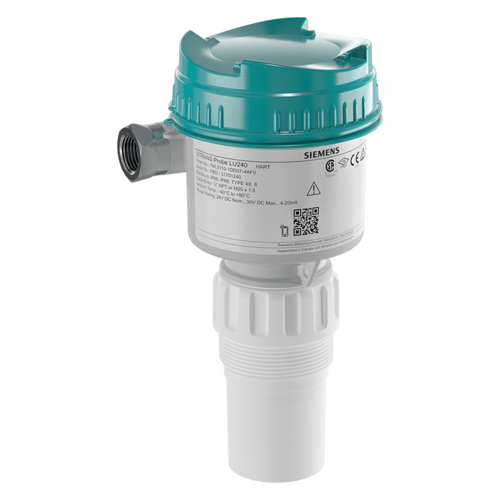

Insatech Siemens SITRANS LU240 Ultrasonic Level Transmitter 7ML51 1X1

SITRANS LU240

The SITRANS LU240 from Siemens is an ultrasonic level meter that can be used for level, volume, and flow measurement. It operates with liquids, slurries, and bulk materials up to 12 m (40 ft).

The LU240 gives you multiple benefits:

  • Continuous Level Measurement
  • Easy Installation
  • HART Communication
  • Process Intelligence.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact ud now

Versatile Applications and Advanced Features

The SITRANS Probe LU240 ultrasonic level transmitter offers exceptional versatility and advanced features, making it an ideal solution for a wide range of applications across various industries.

With its ability to measure levels, volume, and volume flow in liquids, slurries, and bulk materials up to 12 m (40 ft), it excels in environments such as water and wastewater treatment facilities, chemical storage tanks, and bulk material handling. Its high accuracy of 0.15% and Process Intelligence signal processing ensure reliable performance, even in challenging conditions.

The optional Bluetooth connectivity through the SITRANS mobile IQ app simplifies configuration and monitoring, enhancing user convenience. Additionally, the LU240’s chemical compatibility with ETFE or PVDF transducers and features like Auto False Echo Suppression further bolster its adaptability and reliability, providing customers with a robust solution that meets their unique operational needs.

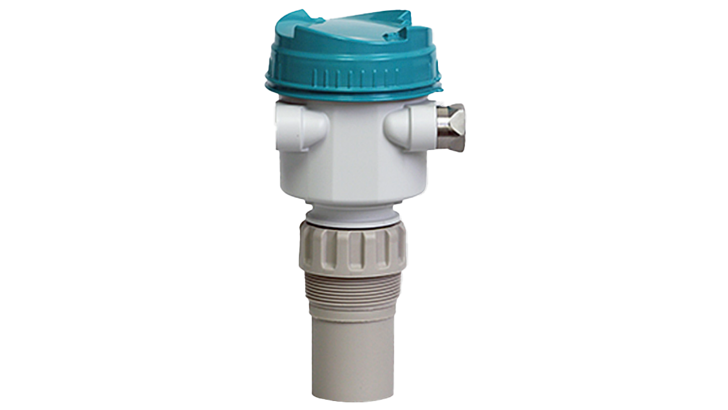

LU240 1 Siemens 1024 16X9

Key Features of the SITRANS LU240

The LU240 has several benefits, some of which we have listed for you below:

  • Measurement Capabilities: Continuous level measurement for liquids, slurries, and bulk solids up to 12 m (40 ft).
  • Accuracy: High accuracy of 0.15% of range or 6 mm (0.25 inches) for 6 m and 12 m models.
  • Process Intelligence: Advanced signal processing for reliable performance in challenging applications.
  • Auto False Echo Suppression: Minimizes false readings caused by obstructions or tank buildup.
  • HART Communication: Supports HART protocol for enhanced communication and configuration.
    mA Output: Provides a standard 4-20 mA output for easy integration with control systems.
  • Flexible Transducer Options: Available in ETFE or PVDF materials for compatibility with various chemicals.
  • Internal Temperature Sensor: Compensates for temperature variations affecting measurement accuracy.
  • Bluetooth Connectivity: Optional Bluetooth configuration and monitoring via SITRANS mobile IQ app.
  • User-Friendly Interface: Simple programming through a 4-button HMI or SIMATIC PDM software.
  • Custom Level-to-Output Function: Allows for tailored linearization for unique vessel shapes.
  • Versatile Applications: Suitable for water and wastewater, chemical storage, filter basins, and marine applications.
  • Low Power Consumption: Efficient operation for reduced energy use and quick startup.

Exactly what you need? Contact us now!

Versatile Applications of SITRANS Probe LU240 for Level, Volume, and Flow Measurement

The SITRANS Probe LU240 is a highly adaptable ultrasonic level transmitter designed to measure level, volume, and volume flow across various applications. It excels in level monitoring for water and wastewater treatment, chemical storage vessels, and small bulk hoppers. The LU240 can accurately measure levels in a range of storage-type vessels, simple process vessels with some surface agitation, liquids, slurries, bulk solids, and open channels, with measurement capabilities up to 12 meters (40 feet). It provides unmatched reliability through features such as Process Intelligence and Auto False Echo Suppression, achieving an accuracy of 0.15% of range or 6 mm (0.25 inches) for the 6 m and 12 m models. Additionally, pre-defined vessel shapes allow for the conversion of level measurements to volume, while volume flow can be measured in open channel systems like Parshall flumes or V-notch weirs using integral pre-defined flow structures. For vessels not covered by pre-defined shapes, a customized level-to-output linearization function is available. The LU240 supports HART communication on select models and offers mA output on all versions. The SITRANS mobile IQ app, compatible with Android, Apple, and Windows devices, enables effortless configuration and monitoring via Bluetooth.

Key applications:

  • Water and wastewater treatment
  • Chemical storage vessels
  • Filter beds
  • Marine industry applications, including ballast water management and fuel tank monitoring
  • Liquid storage vessels.

Need more information? Contact us here

169 Marineforsidebillede

HART Communication with the SITRANS Probe LU240

The SITRANS Probe LU240, particularly in its 6 m and 12 m versions, supports the Highway Addressable Remote Transducer (HART) communication protocol, an open standard that enhances the functionality of the traditional 4 to 20 mA signal. This feature allows for efficient configuration and monitoring over a HART network, making it easier to manage multiple field devices simultaneously through multi-drop mode. Users can set up the polling address, device mode, and loop current values directly via the device's HMI or through compatible software.

The recommended tool for this purpose is the SIMATIC Process Device Manager (PDM) by Siemens, which is designed for easy configuration, monitoring, and troubleshooting of HART devices. Furthermore, the HART Electronic Device Description (EDD) specific to the SITRANS Probe LU240 is essential for successful configuration and can be downloaded from the Siemens product page. By utilizing HART communication, operators can enjoy enhanced diagnostics, streamlined device management, and improved operational efficiency in their applications.

LU240 Configuration Siemens 1024 16X9

Installation Guidelines for SITRANS Probe LU240

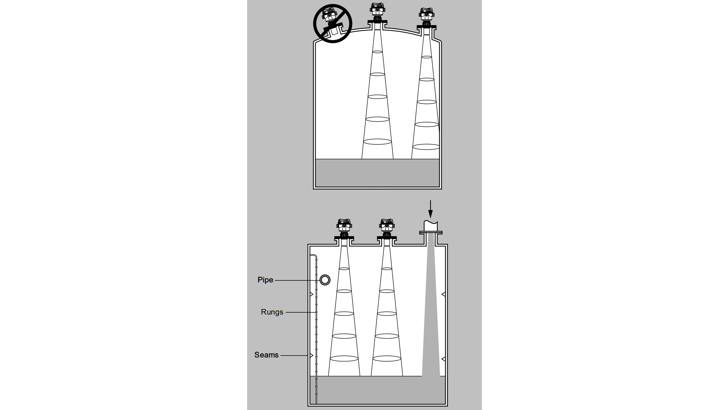

Proper installation of the SITRANS Probe LU240 is crucial for optimal performance and accurate measurements. It is essential to ensure that the ambient temperature remains within the range of -40 to +80 °C (-40 to +176 °F) and the process temperature stays between -40 to +85 °C (-40 to +185 °F). The mounting location should be free from vibrations, and the sound path should be perpendicular to the material surface for effective signal transmission. Additionally, the display and local buttons should be easily accessible for programming, and cable entries must be positioned for convenient wiring. To prevent interference, avoid placing the device near high-voltage wiring or in direct sunlight; a sun shield may be necessary to protect it from sun exposure. Furthermore, ensure that the mounting surface is clean and suitable gaskets are used to prevent leaks, as improper mounting can compromise the device's functionality and longevity.

Contact us now and let's talk price!

Connecting the SITRANS Probe LU240

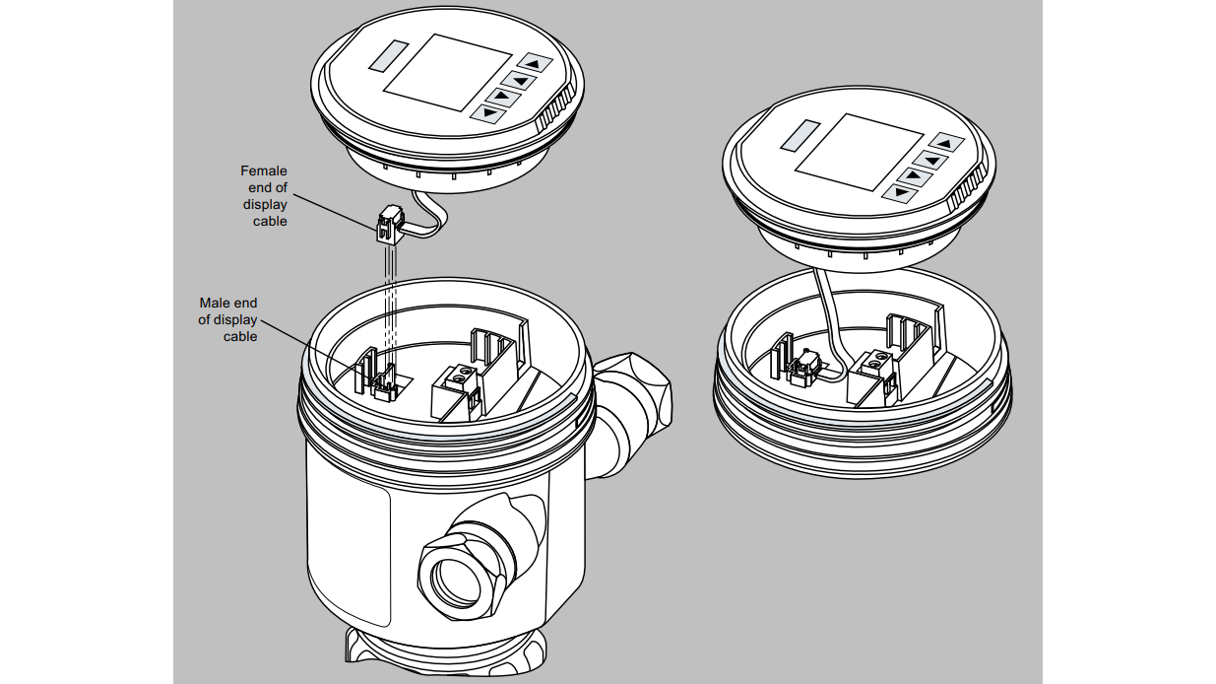

When connecting the SITRANS Probe LU240, it's essential to follow proper wiring practices to ensure reliable operation. Begin by using shielded, twisted pair cables, selecting wire gauges between AWG 22 and AWG 14 (0.34 mm² to 2.08 mm²) to minimize signal interference. Adhering to standard instrumentation wiring practices may require separate cables and conduits, so ensure compliance with relevant electrical codes. If routing the cable through conduit, only use approved hubs designed for waterproof applications. Since the non-metallic enclosure does not provide a continuous ground path, grounding-type bushings and jumpers should be employed. To make the connection, first remove the device lid, then strip approximately 70 mm (2.75 inches) from the cable jacket and thread the wires through the gland. Connect the wires to the terminal block, ensuring proper polarity, and tighten the gland for a secure seal. If using an optional display, connect its female end to the male four-pin connector and secure it in the enclosure before replacing the device lid. Proper connections will enhance the functionality and reliability of the SITRANS Probe LU240.

Need our help? Contact us here!

LU240 Configuration Siemens 1024 16X9

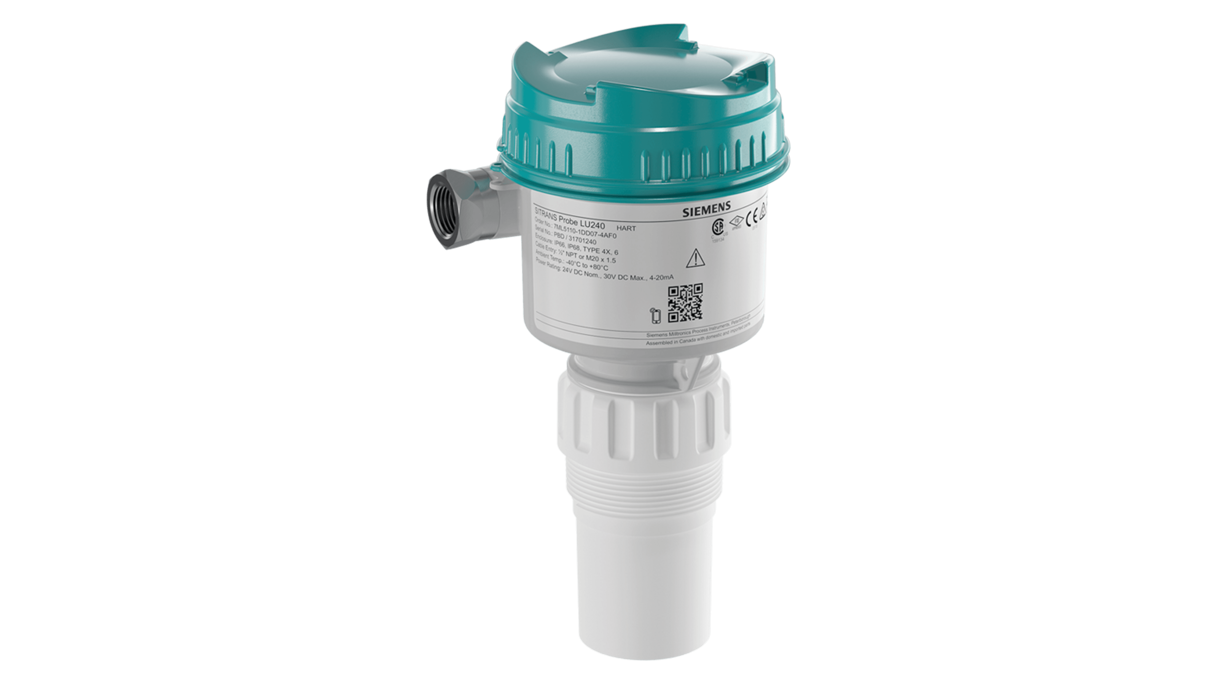

Insatech Siemens SITRANS LU240 Ultrasonic Level Transmitter 7ML51 16 9
Siemens Unboxing The SITRANS LU240 Video Thumbnail
Siemens SITRANS LU240 With SITRANS AW050 Bluetooth Adaptor Video Thumbnail

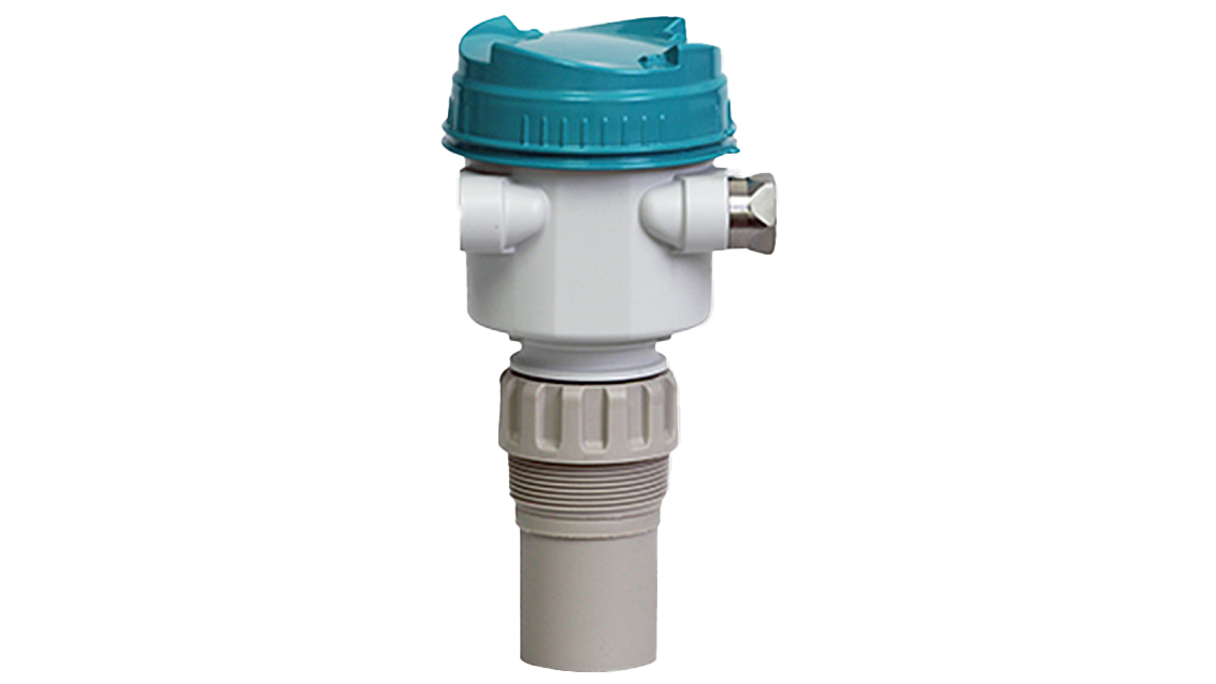

LU240 1 Siemens 1024 16X9

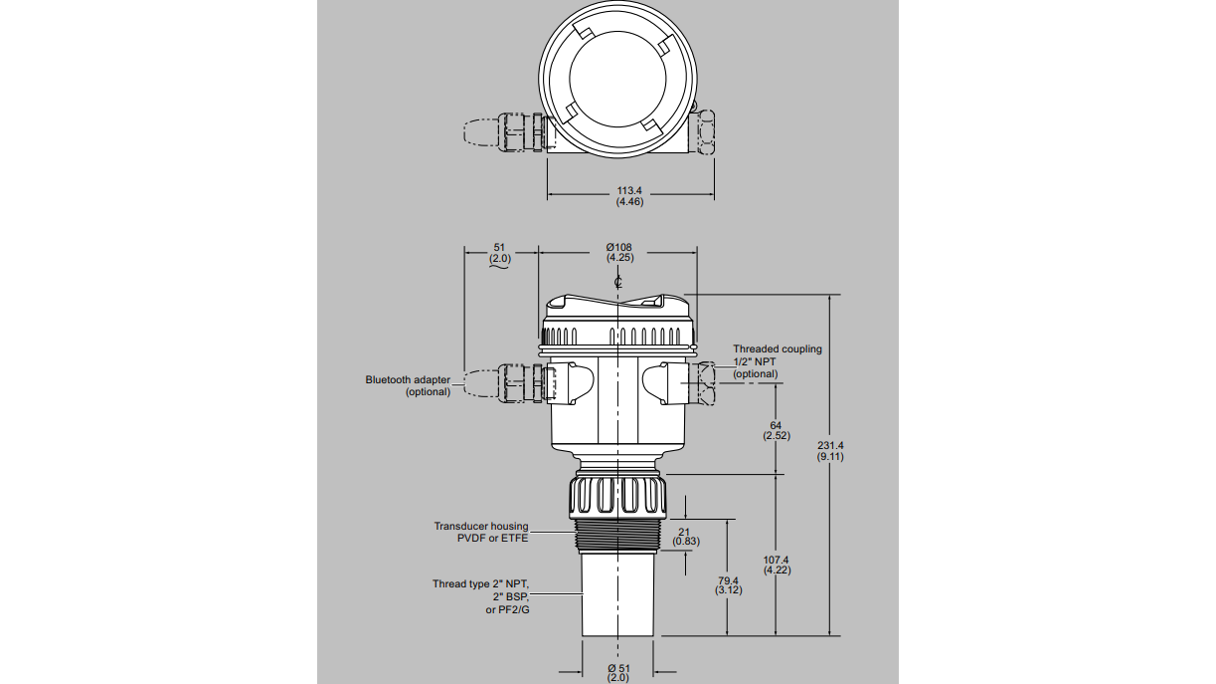

LU240 Dimensions Siemens 1024 16X9
LU240 Circuit Diagrams Siemens 1024 16X9
Insatech Siemens SITRANS LU240 Ultrasonic Level Transmitter 7ML51 16 9
Siemens Unboxing The SITRANS LU240 Video Thumbnail
Siemens SITRANS LU240 With SITRANS AW050 Bluetooth Adaptor Video Thumbnail
LU240 1 Siemens 1024 16X9
LU240 Dimensions Siemens 1024 16X9
LU240 Circuit Diagrams Siemens 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

0.2 to 12 m (depending on the version)

Process temperature

-40...+80 °C

Process pressure

0.5 bar

Accuracy
  • ±10 mm (3-meter version)
  • ±6 mm (6 and 12-meter versions)
  • ±2 mm at < 4 m (6 and 12-meter versions)
Frequency

54 KHz

Beam angle

10°

Output
  • 4…20 mA
  • HART 7
Protection rating
  • Type 4X
  • Type 6
  • IP66
  • IP68
Ambient temperature

-40...+80 °C

Housing material
  • PBT
Process connections

Thread:

  • 2" NPT [(Taper), ASME B1.20.1]
  • R 2" [(BSPT), EN 10226]
  • G 2" [(BSPP), EN ISO 228-1]

Flange:

  • 3" (80 mm) universal flange
Approvals
  • ATEX
  • VLAREM II
  • MCERTS

See more in the datasheet

Specifications & Manuals

  • Manual - Siemens SITRANS LU240 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS LU240 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf
