Echomax XPS

The Echomax XPS from Siemens transducers use ultrasonic technology to measure the level in a wide range of liquids and solids. The transducers can be fully submerged, are resistant to steam and corrosive chemicals, and can be installed without flanges.

The XPS gives you multiple benefits:

  • Temperature Compensated
  • Self-Cleaning
  • Easy installation
  • Minimal maintenance.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Reliable Level Measurement in Challenging Environments

Echomax XPS transducers deliver accurate level measurement across a variety of challenging conditions, making them an excellent choice for industries dealing with liquids and solids. Utilizing advanced ultrasonic technology, the XPS series measures levels up to 30 meters (100 feet) while withstanding temperatures of up to 95 °C (203 °F).

The ability to operate in fully submerged conditions and resist steam and corrosive chemicals ensures that these transducers perform reliably in demanding environments, such as wastewater treatment plants, chemical storage facilities, and marine applications. This robust design minimizes downtime and maintenance, allowing for continuous monitoring and peace of mind.

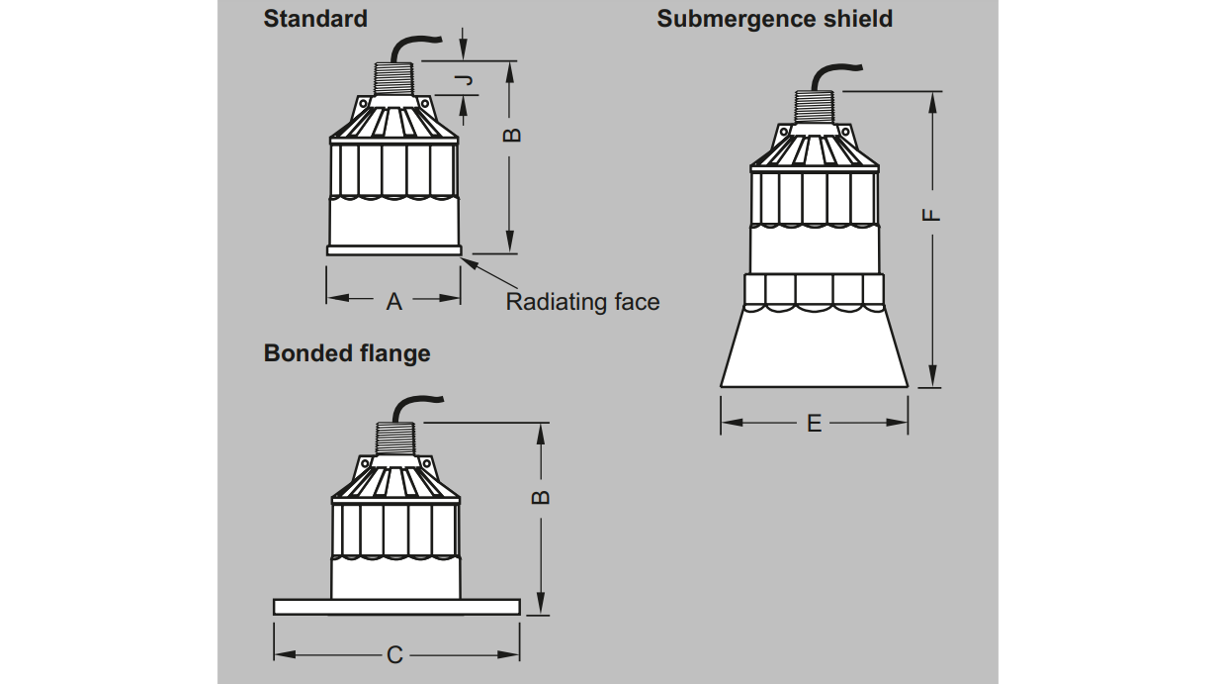

XPS Dimensions Siemens 1024 16X9

Key Features of the Echomax XPS

The XPS has several benefits, some of which we have listed for you below:

  • Ultrasonic Technology: Utilizes acoustic pulses for accurate level measurement.
  • Measuring Range: Capable of measuring levels up to 30 m (100 ft).
  • Temperature Resistance: Operates at temperatures up to 95 °C (203 °F).
  • Full Submersion Capability: Designed for complete immersion in liquids.
  • Corrosion Resistance: Resistant to steam and harsh chemicals.
  • Flangeless Installation: Can be installed without the need for flanges.
  • Low Ringing Effect: Reduces blanking distance for more reliable readings.
  • Integrated Temperature Compensation: Ensures accurate measurements despite temperature variations.
  • Optional Foam Facing: Available for applications with dust or foam interference.
  • Self-Cleaning Surfaces: Minimizes maintenance by shedding dirt and buildup.
  • Hermetically Sealed: Provides protection against environmental factors, ensuring durability.
  • Versatile Applications: Suitable for use in wet wells, channels, weirs, and filtration basins

Exactly what you need? Contact us now!

Reliable Level Measurement for Challenging Environments

The EchoMax XPS transducers are versatile devices designed for measuring levels in a variety of liquids and solids across diverse applications. These transducers can be fully immersed in liquids, showcasing their resistance to steam and corrosive chemicals, making them suitable for harsh environments. The XPS series accommodates various measuring ranges of up to 30 m (100 ft) and operates effectively at temperatures reaching up to 95 °C (203 °F). By emitting acoustic pulses in a narrow beam, the XPS accurately calculates the distance by measuring the time it takes for the pulse to travel and return, ensuring reliable level monitoring.

Key applications:

  • Wet Wells
  • Channels
  • Weirs
  • Filtration Basins
  • Marine Applications: Suitable for monitoring levels in tanks, ballast water management systems, and other marine environments where robust and reliable measurements are crucial.

Need more information? Contact us here

169 Marineforsidebillede

Enhanced Performance and Versatility

The XPS transducers are engineered for versatility and user convenience, featuring a flangeless installation design that simplifies the setup process. With options for integral temperature compensation and an available foam-facing for dusty applications, they adapt easily to various measurement scenarios.

The self-cleaning surfaces effectively reduce maintenance needs, while the hermetically sealed construction protects against environmental factors. Whether used in wet wells, channels, weirs, or filtration basins, the XPS transducers promise high performance and reliability, making them an invaluable addition to any monitoring system. Choose Echomax XPS transducers for a dependable solution that meets the diverse needs of your operations.

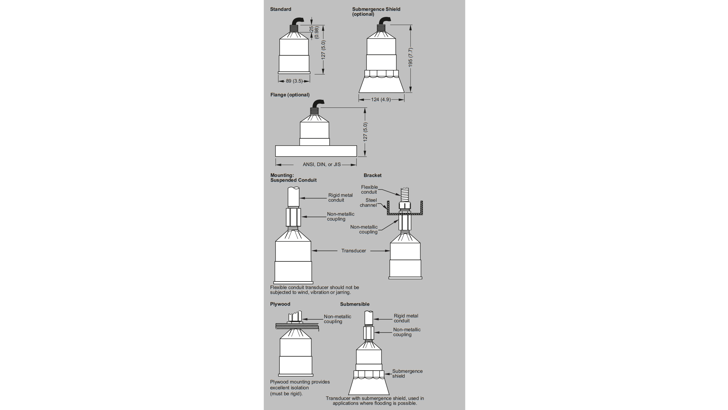

XRS 5 Dimensions Siemens 1024 16X9

Mounting Echomax Transducers

Proper mounting of Echomax transducers ensures reliable level measurement and long-lasting performance. While these transducers are designed to operate with minimal maintenance, monitoring their performance and ensuring they are mounted as specified in the instructions is crucial. Install the transducer according to the guidelines in its operating instructions, with attention to any application-specific requirements, such as using explosion-proof conduit seals where necessary. Generally, Echomax transducers require no routine cleaning. However, if performance changes are noticed, promptly shut down the system and inspect the transducer to maintain optimal functionality.

Contact us now and let's talk price!

Essential Safety Considerations for Echomax Transducer Installation

When installing Echomax transducers, following essential safety guidelines is critical for optimal performance and compliance, particularly in hazardous areas. Always connect or disconnect the device in a de-energized state, as energized handling can lead to explosive risks in such environments. Select an appropriate type of explosion protection, ensure all connections comply with the selected protection method, and mark any unused protection types as inactive to prevent future misuse. If ambient temperatures exceed 60°C (140°F), use heat-resistant cabling rated for at least 20°C (36°F) above the ambient level to prevent cable sheath damage. Additionally, after transportation or storage in temperature-differing conditions, let the transducer adapt to the new environment to avoid condensation damage. For effective electromagnetic compatibility (EMC) and interference immunity, lay signal cables separately from high-voltage cables and position the device away from strong electromagnetic sources. Always engage qualified personnel to perform installations, adhering to local regulatory standards for safe and reliable operation.

Need our help? Contact us here!

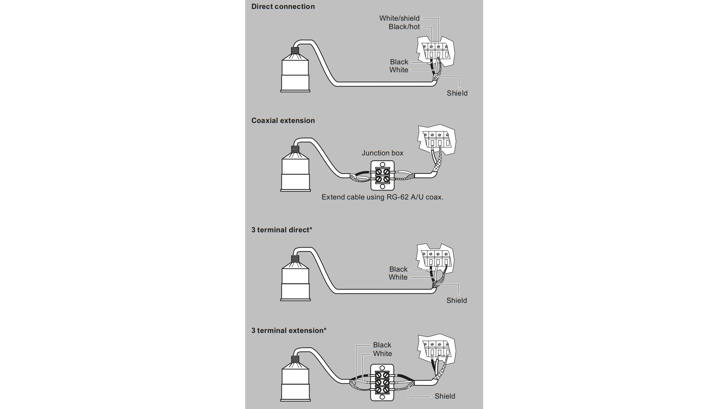

XRS 5 Circuit Diagram Siemens 1024 16X9
Insatech Siemens Echomax XPS Ultrasonic Transducer 7ML1115 7ML1118 7ML1121 7ML1123 7ML1124 7ML1155 7ML1171 16 9
XPS Dimensions Siemens 1024 16X9
Insatech Siemens Echomax XPS Ultrasonic Transducer 7ML1115 7ML1118 7ML1121 7ML1123 7ML1124 7ML1155 7ML1171 16 9
XPS Dimensions Siemens 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

0.3...30 m (depending on the model)

Process temperature

-40...+95 °C

Process pressure
  • up to 8 bar
  • 0.5 bar with flange
Frequency
  • 44 KHz
  • 30 KHz
Beam angle

6° or 12° (depending on the model)

Output

Dependent on Siemens Controller

Protection rating
  • IP66
  • IP68
Ambient temperature

-40...+95 °C

Housing material
  • PVDF
  • PVDF with CPVC flange
  • PTFE with CPVC flange
Process connection

Thread and flange

See the datasheet for more information

Approvals
  • ATEX
  • VLAREM II

See more in the datasheet
