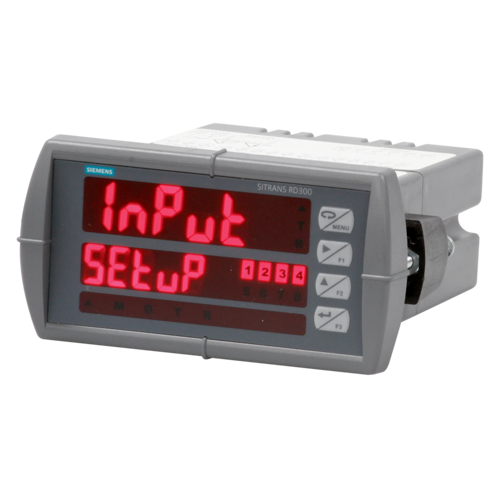

Insatech Siemens SITRANS RD300 Digital Display 7ML5744 1X1

SITRANS RD300

The SITRANS RD300 from Siemens is a panel-mounted remote digital display for process instrumentation that functions as a multifunctional rate/totalizer, ideal for flow rate, totalization, and control applications. It can be used for level, flow, pressure, weighing, and other process instruments.

The RD300 gives you several benefits:

  • User-Friendly Setup
  • Versatile Input Options
  • Advanced Control Features
  • Comprehensive Data Management.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Versatile Performance Across Applications

The SITRANS RD300 offers exceptional versatility for remote monitoring and control, making it an ideal solution for a variety of applications, including level, flow, pressure, and temperature measurement. With support for a broad range of inputs—current, voltage, thermocouple, and RTD—this display adapts easily to most field instruments, delivering reliable data for monitoring and control in even the most demanding environments.

The RD300's built-in totalizing and data logging capabilities enable it to not only track but also record essential metrics over time, supporting process efficiency and accuracy. Combined with its dual-line display and extensive communication options, the RD300 brings seamless integration and enhanced operational insight for any process control setup.

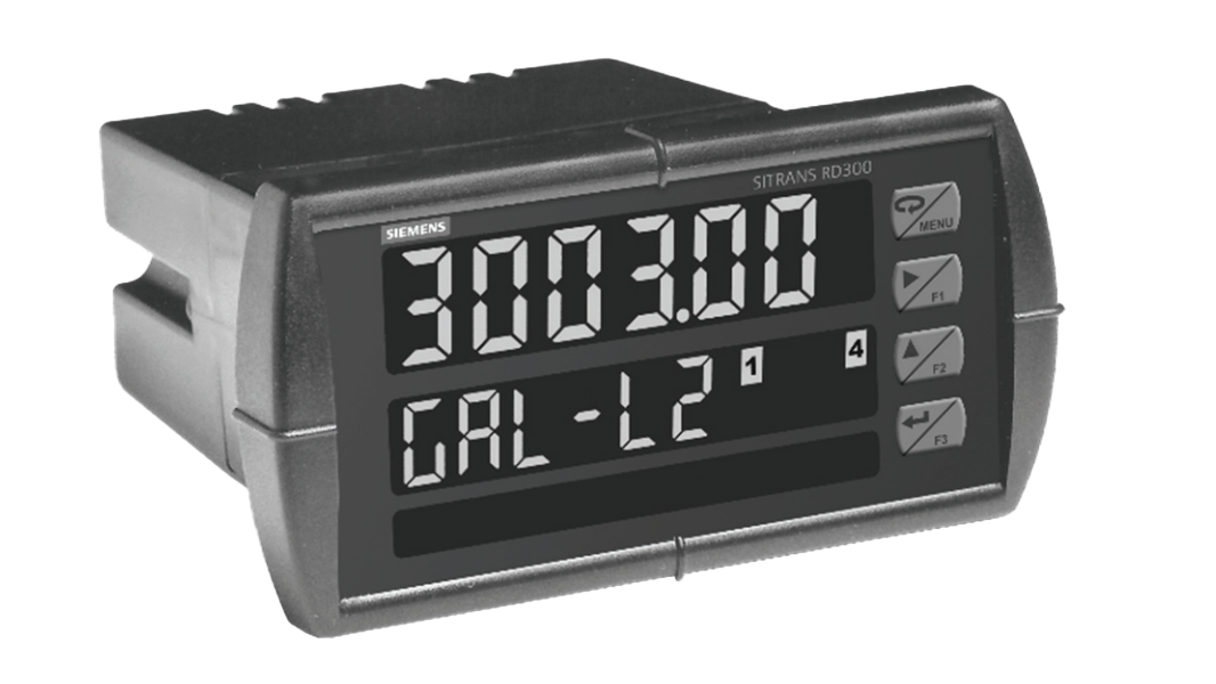

RD300 1 Siemens 1024 16X9

Key Features of the SITRANS RD300

The RD300 has several benefits, some of which we have listed for you below:

  • Dual-Line Display: Large, easy-to-read dual-line, 6-digit display for process and status information
  • Universal Input Compatibility: Accepts single or dual current and voltage inputs for a wide range of process signals
  • Data Logging & Remote Monitoring: Supports data logging and remote access via RD software on a PC, accessible through USB
  • Modbus & Serial Communication: Built-in protocol or Modbus RTU communication for integration with existing control systems
  • Advanced Totalizing Capabilities: Functions as a rate/totalizer for accurate flow, total, and control applications with 9-digit totalizer and overflow protection
  • Flexible Configuration Options: Front-panel buttons or RD software for easy setup and configuration
  • Wide Adjustment Range: Displays engineering units from -99999 to 999999 with high precision and flexibility
  • Relay & Alarm Support: Supports up to 8 relays and 8 digital I/O for versatile process control and alarm indication
  • Robust Panel Mounting: Standard 1/8 DIN panel cutout with optional enclosures for up to 6 displays
  • Comprehensive Functionality: Multi-pump alternation, 32-point linearization, and math functions like addition, subtraction, average, and multiplication.

Exactly what you need? Contact us now!

Maximize Efficiency with the Versatile RD300 Display

The SITRANS RD300 is a versatile remote display designed to accommodate various applications, including level, flow, pressure, weighing, and more. Its multifunctional capabilities make it particularly effective as a rate/totalizer, perfect for monitoring flow rates and controlling processes. With the ability to accept single or dual inputs of current and voltage, the RD300 is compatible with most field instruments, ensuring seamless integration into existing systems. Additionally, data can be conveniently collected, logged, and analyzed on your local computer using the free RD software available via USB drive. Whether mounted as a standard panel display or housed in optional enclosures that can accommodate up to six displays, the RD300 is designed to enhance operational efficiency and provide accurate real-time data for a wide range of industrial applications.

Key applications with remote display of:

  • Level measurement
  • Flow monitoring
  • Pressure readings
  • Temperature tracking
  • Weighing applications.

As well as applications like:

  • Tank farms
  • Pump alteration control
  • Marine applications.

Need more information? Contact us here

169 Marineforsidebillede

Effortless Configuration with MeterView Pro Software

The RD300 can be conveniently configured using the included MeterView Pro software, enabling easy setup via a PC. This software, compatible with Microsoft® Windows® (2000 and later), allows users to program the meter by connecting through the onboard USB port, eliminating the need for additional wiring during configuration.

Simply plug in the provided USB cable to power and connect the RD300 to your computer, launching the MeterView Pro software directly. This intuitive setup process streamlines configuration, providing users with a seamless, PC-based control interface tailored to their exact needs.

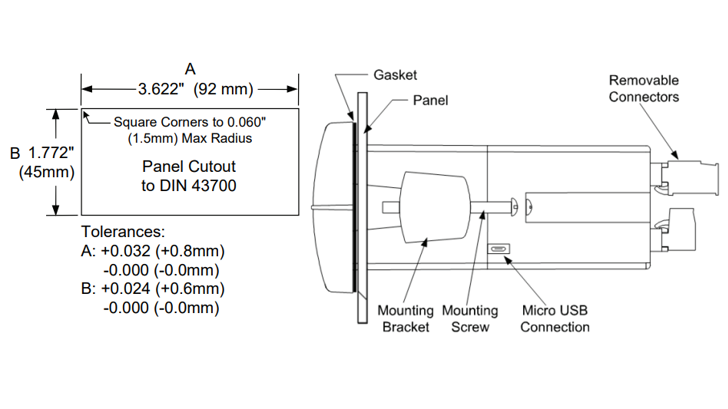

RD300 Mounting Siemens 1024 16X9

Easy Panel Mounting for the RD300

Mounting the RD300 display is a straightforward process designed for efficiency and reliability. Begin by preparing a standard 1/8 DIN panel cutout measuring 3.622" x 1.772" (92 mm x 45 mm) while ensuring at least 6.0" (152 mm) of clearance behind the panel for wiring. The panel thickness should be between 0.04" and 0.25" (1.0 mm to 6.4 mm), with a minimum thickness of 0.06" (1.5 mm) for steel or 0.16" (4.1 mm) for plastic panels to maintain the Type 4X rating. After removing the two mounting brackets, insert the meter into the cutout. Finally, secure the mounting brackets, ensuring even tightness to avoid damage to the panel while achieving a proper seal.

Contact us now and let's talk price!

Flexible Operation and Process Control with Customizable Display

The RD300 is a flexible, dual-line display that supports current (0-20 mA, 4-20 mA) and voltage inputs (0-5 V, 1-5 V, 0-10 V, ±10 V), presenting these signals in engineering units across a broad range from -99999 to 999999. Users can configure the upper line to show process variables, while the lower line can display engineering units, custom legends, totals, or set points. With programmable function keys (F1, F2, F3), users can adapt the display to meet unique control requirements, while an additional digital input (F4) offers responsive control through contact closure or active low signals. The RD300 also tracks and displays maximum and minimum readings, providing insight into peak process performance with options for continuous or momentary display. This comprehensive adaptability makes the RD300 a valuable choice for applications requiring precise monitoring and control.

Need our help? Contact us here!

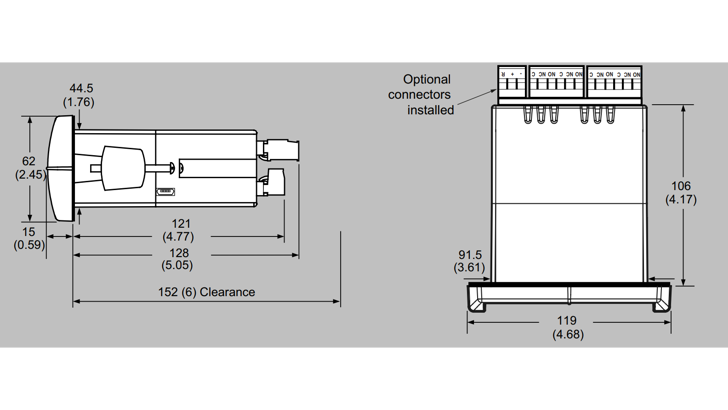

RD300 Dimensions Siemens 1024 16X9
Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9
Siemens Configuring The SITRANS RD300 Thumbnail
RD300 Dimensions Siemens 1024 16X9
RD300 1 Siemens 1024 16X9
Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9
Siemens Configuring The SITRANS RD300 Thumbnail

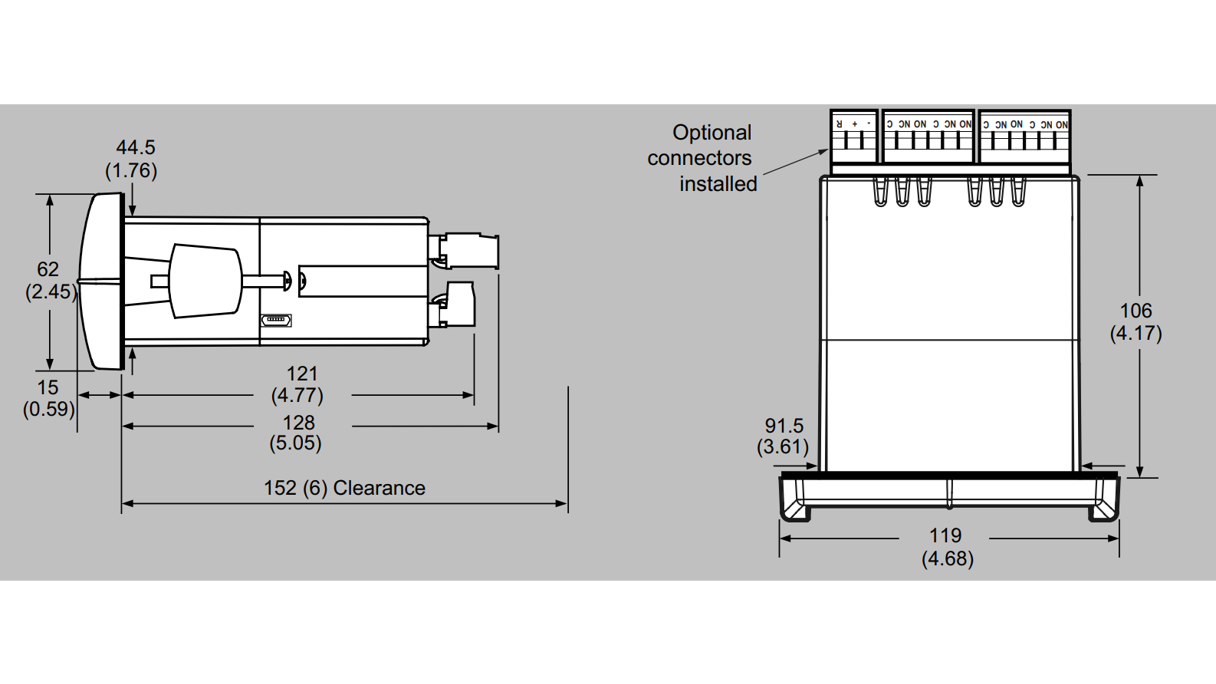

RD300 Dimensions Siemens 1024 16X9
RD300 1 Siemens 1024 16X9

How to Choose the Right RD-Display for Your Needs?

Choosing the right RD-display for your specific application is crucial for maximizing efficiency and ensuring reliable monitoring of your processes. Siemens offers three excellent models: the SITRANS RD100, RD200, and RD300, each tailored to meet different needs. Here’s a quick overview of their features and benefits to help you make an informed decision:

SITRANS RD100: Simple and Reliable

  • 2-Wire Loop-Powered: Efficient integration into existing 4-20 mA loops.
  • Easy Calibration: Quick two-step calibration process with minimal tools.
  • Rugged Design: NEMA 4X, IP67 impact-resistant enclosure for harsh environments.
  • Hazardous Location Approval: Intrinsically safe and non-incendive certifications.

SITRANS RD200: Universal Flexibility

  • Universal Input: Accepts current, voltage, thermocouples, and RTDs.
  • Remote Monitoring: Supports data collection from up to 100 displays using RD software.
  • Customizable Setup: Options for panel mounting or enclosures for multiple displays.
  • User-Friendly: Easy setup and programming via buttons or remotely.

SITRANS RD300: Multifunctional Control

  • Rate/Totalizer Functionality: Ideal for flow measurement and control applications.
  • Dual Input Capability: Accepts one or two current and voltage inputs for enhanced flexibility.
  • Advanced Features: Supports up to 8 relays, digital I/O, and complex mathematical functions.
  • Large Display: Dual-line, 6-digit display with a 9-digit totalizer for easy readability.

SITRANS RD150: Versatile HART Display

  • HART Communication: Displays 4-20 mA or multiple HART variables for convenient remote readings.
  • Flexible Housing Options: Available in plastic, aluminum, or stainless steel with IP68 rating for demanding environments.
  • User-Friendly Interface: 4-button, menu-driven display for easy operation.
  • Full Configuration: Supports full configuration of connected sensors via optional USB and PC setup.

By assessing your specific application requirements—whether you need simplicity and reliability, universal input capabilities, or advanced totalization and control features—you can choose the RD-display that best suits your needs. Each model is designed to offer unique advantages, ensuring you have the right tools to effectively monitor and manage your processes.

Siemens Displays

Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

Siemens SITRANS RD100 Digital Display

RD100 is a 2-wire loop-powered, NEMA 4X enclosed remote digital display for process instrumentation.

Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9

Siemens SITRANS RD200 Digital Display

RD200 is a universal display for level, flow, pressure, temperature, weighing, and other process instruments. The display accepts a single input of current, voltage, thermocouple, and RTD.

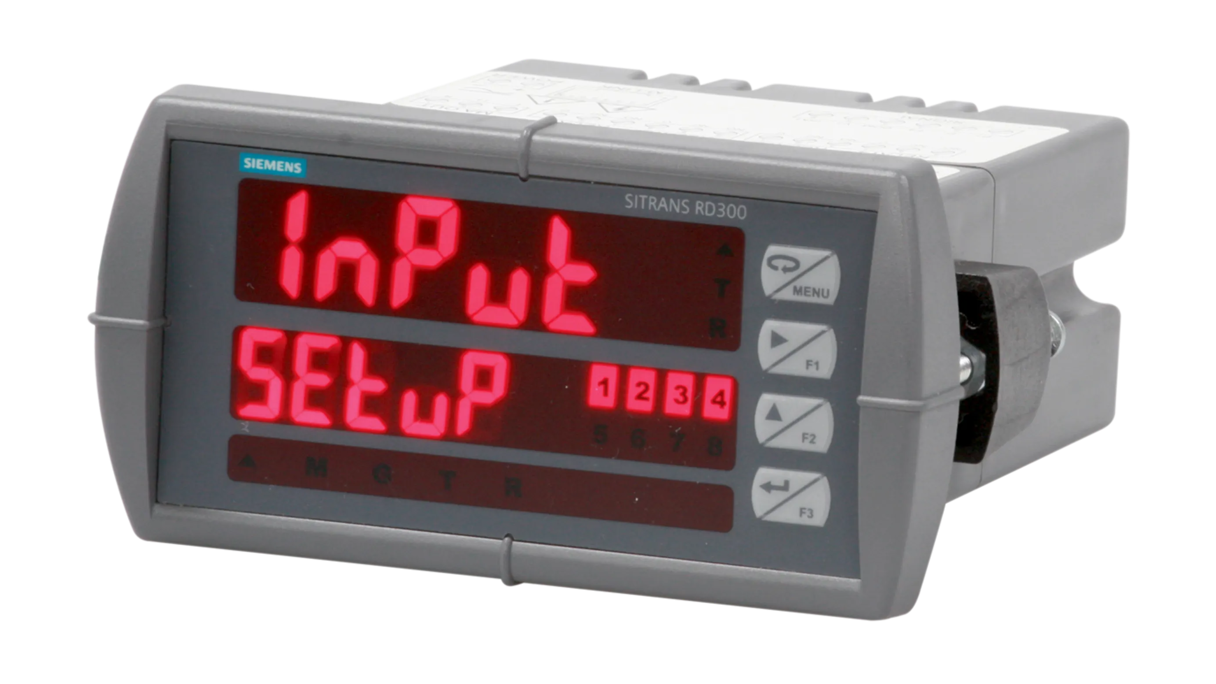

Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9

Siemens SITRANS RD300 Digital Display

SITRANS RD300 is a panel-mounted digital display for process instrumentation that functions as a multifunctional rate/totalizer, ideal for flow rate, totalization, and control applications. It can be used for level, flow, pressure, weighing, and other process instruments.

Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9

Siemens SITRANS RD150 Digitalt Display

SITRANS DR150 is a digital 4...20 mA HART display for remote reading of process instrumentation. The housing is available in plastic, aluminum, and stainless steel with up to IP68 protection. The display can be used to show level, flow, pressure, temperature, and weight.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Display

Display:

  • Primary: 15 mm high LED
  • Secondary: 12 mm high LED
  • Numeric range: -99999...+999999

Memory:

  • Non-volatile
  • Retains settings for at least 10 years without power

Programming:

  • Primarily via front panel
  • Secondarily via "meter copy" or PC with SITRANS RD software

Ambient temperature

-40...+65 °C

Accuracy

4...20 mA output:

  • ±0.1% FS ±0.004 mA

Process input:

  • ±0.05% of span ±1 count
  • Square root: 10…100% FS
Output

Output:

  • 4 … 20 mA (optional)
  • Modbus RTU

Relay:

  • 2 or 4 internal SPDT Form C relays and/or 4 SPST Form A external relays:
    • Rated 3 A at 30 V DC and 125/250 V AC resistive load
    • 1/14 HP (50 W) at 125/250 V AC for inductive loads (optional)

Communication:

  • RS 232 with PDC or Modbus RTU
  • RS 422/485 with PDC or Modbus RTU
  • USB configuration and monitoring port
Protection rating

Type 4X, NEMA 4X, IP65 (front cover); panel gasket included

Material
  • 1/8 DIN, high impact plastic, UL94V-0, color: gray
  • (Optional) plastic, steel, or stainless steel (Type 304, EN 1.4301) NEMA 4 enclosure
Power Supply

Voltage, power supply, or loop

See the datasheet for more information

Approvals

CE, UKCA, UL, CUL

Specifications & Manuals
