Insatech Siemens SITRANS RD200 Digital Display 7ML5740 1X1

SITRANS RD200

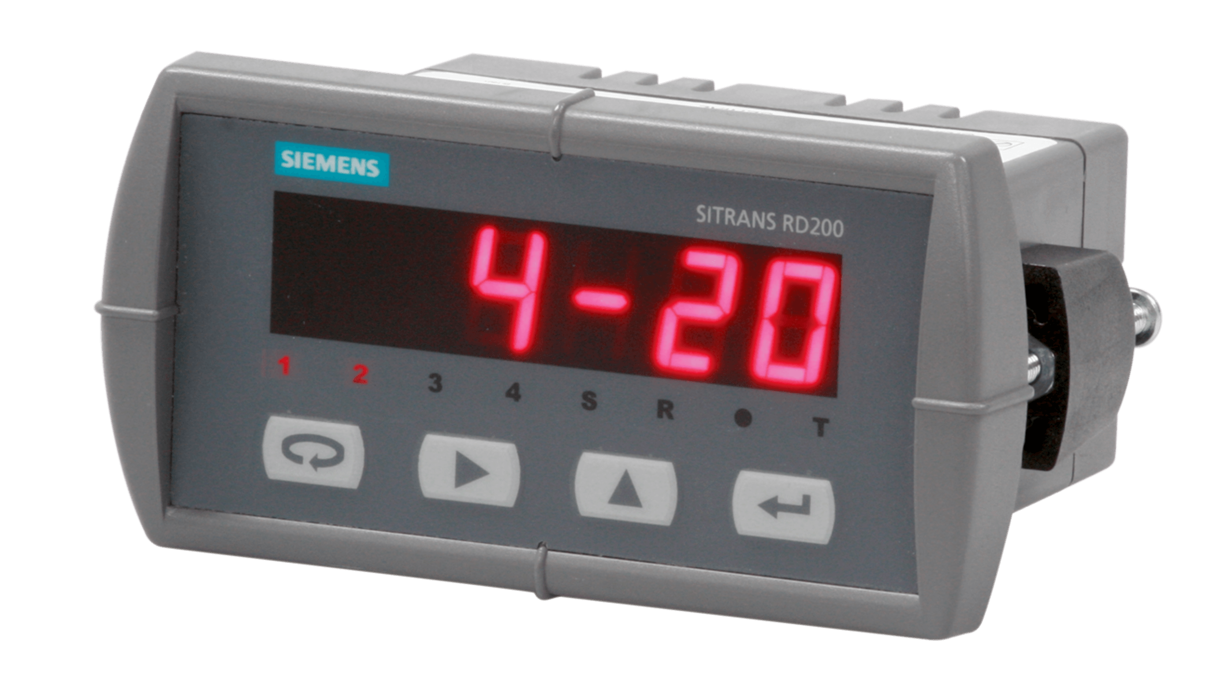

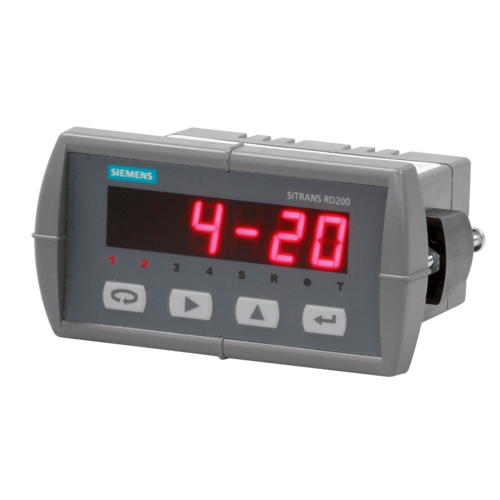

The SITRANS RD200 from Siemens is a universal display for level, flow, pressure, temperature, weighing, and other process instruments. The display accepts a single input of current, voltage, thermocouple, and RTD.

The RD200 gives you several benefits:

  • Easy-to-Use
  • Universal input
  • Serial communication
  • Flexibility.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Unlock Versatile Monitoring with the SITRANS RD200

The SITRANS RD200 is an exceptional choice for those seeking a reliable and versatile remote display for process instrumentation. It supports a broad range of inputs, including current, voltage, thermocouples, and RTDs, making it compatible with most field instruments. With the ability to display values from -1999 to 9999, users can easily monitor critical process variables in engineering units.

The RD200 allows for temperature display in either Fahrenheit or Celsius, with Type T thermocouples offering resolution options of 1° or 0.1°. Additionally, this display can be remotely managed through RD software, enabling users to collect, log, and visualize data from up to 100 devices simultaneously.

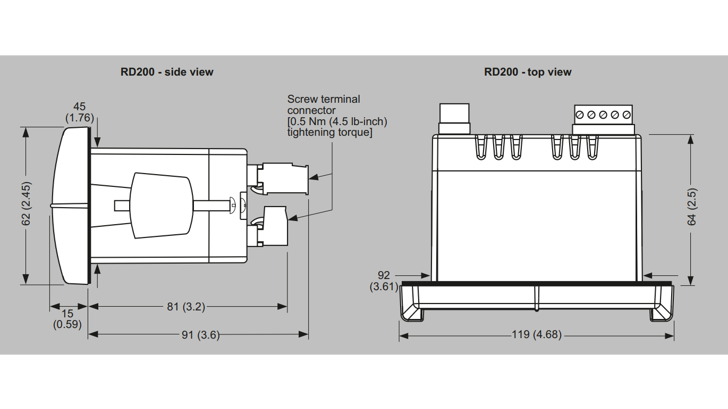

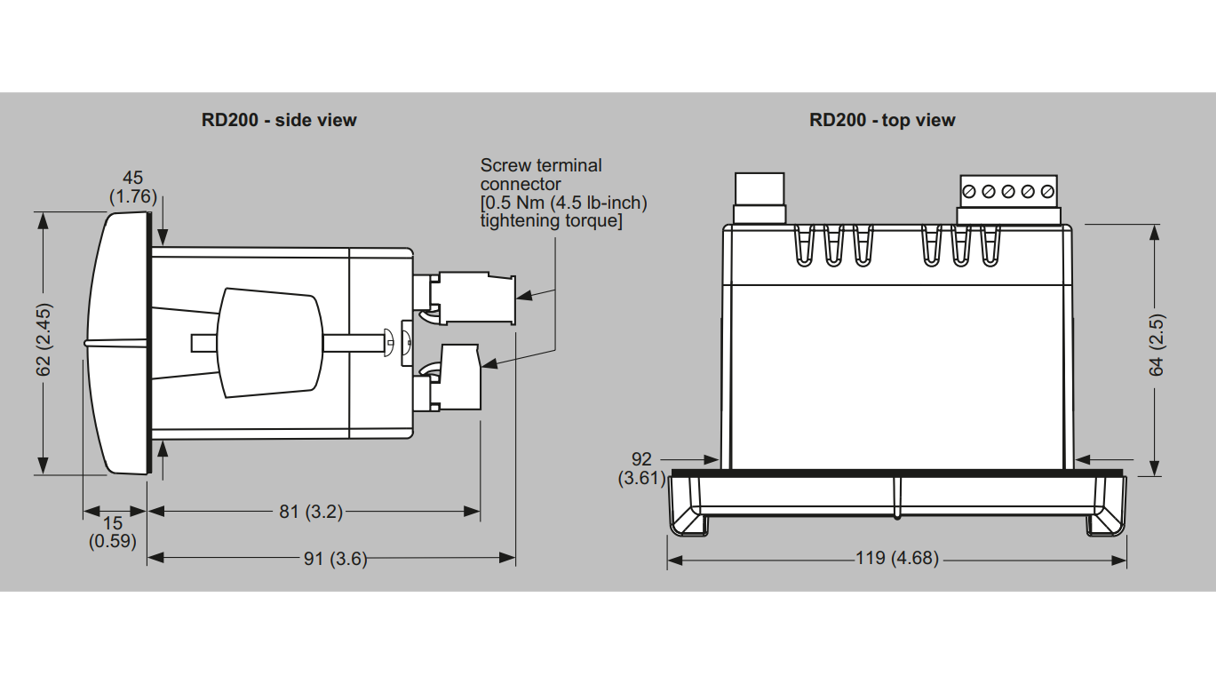

RD200 Dimensions Siemens 1024 16X9

Key Features of the SITRANS RD200

The RD200 has several benefits, some of which we have listed for you below:

  • Universal Input: Accepts current, voltage, thermocouple, and RTD inputs.
  • Wide Display Range: Capable of displaying values from -1999 to 9999 in engineering units.
  • Temperature Unit Selection: Configurable for °F or °C based on user preference.
  • Multiple Resolution Options: Type T thermocouples can be displayed with either 1° or 0.1° resolution.
  • Remote Data Management: Allows logging and presentation of data from up to 100 displays using free RD software.
  • Panel Mounting Versatility: Can be set up as a standard panel mount or housed in enclosures accommodating multiple displays.
  • Easy Setup: Intuitive installation and configuration process.
  • Robust Design: Built to withstand harsh environments with options for NEMA-rated enclosures.
  • Flexible Application: Suitable for various applications including level, flow, pressure, temperature, and weighing measurements.

Exactly what you need? Contact us now!

Versatile Monitoring for Multiple Process Applications

The SITRANS RD200 is a universal remote display compatible with level, flow, pressure, temperature, and weighing instruments. It supports various input types, including current, voltage, thermocouple, and RTD, making it adaptable to most field instruments. Using RD Software, users can remotely collect, log, and manage data from up to 100 displays on a local computer, streamlining large-scale applications. Additionally, the RD200 can be mounted in a standard panel or configured with enclosures for up to six displays, offering flexibility and efficient monitoring in one solution.

Key applications with remote display of:

  • Level measurement
  • Flow monitoring
  • Pressure readings
  • Temperature tracking
  • Weighing applications.

As well as applications like:

  • Tank farms
  • Pump alteration control
  • Marine applications.

Need more information? Contact us here

169 Marineforsidebillede

Flexible Installation and Robust Design for Every Environment

Designed for ease of installation and operation, the RD200 can be mounted as a standard panel unit or placed in enclosures that can accommodate multiple displays, offering flexibility to meet specific needs. Its robust design is suitable for various applications, including level, flow, pressure, temperature, and weighing measurements.

Built to endure harsh environmental conditions, the RD200 is available with NEMA-rated enclosures for added protection. This display not only enhances visibility but also streamlines monitoring, making it an ideal solution for industries where precision and reliability are paramount.

RD200 Mounting Siemens 1024 16X9

Simple and Secure Panel Mounting for the RD200

Mounting the RD200 display is straightforward, requiring a standard 1/8 DIN panel cutout of 92 mm x 45 mm (3.622" x 1.772") and a minimum panel thickness of 1.5 mm for steel or 4.1 mm for plastic to maintain the Type 4X rating. For best results, allow 102 mm (4") of clearance behind the panel for wiring. After removing the two mounting brackets from the display, insert the RD200 into the cutout, reattach the brackets, and evenly tighten the screws to create a secure seal. Be careful not to overtighten to prevent panel damage.

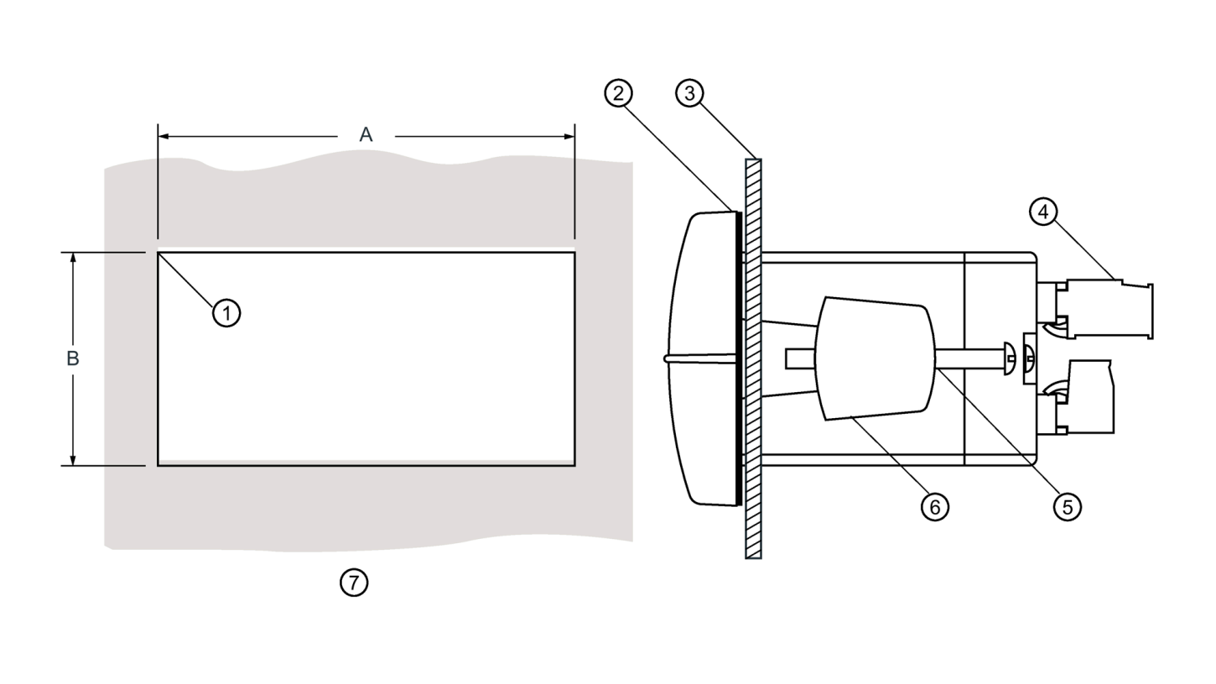

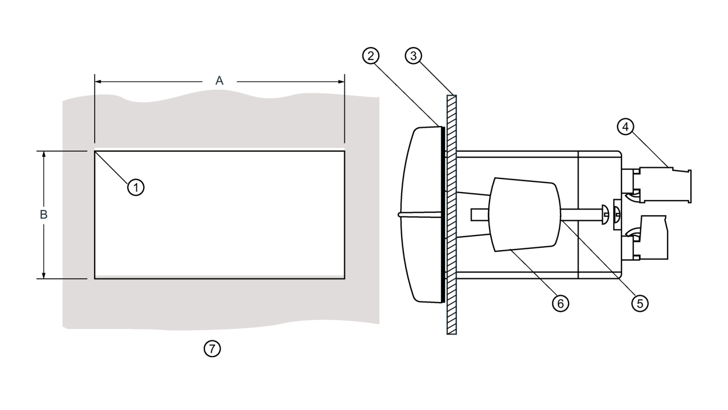

The illustrated numbers indicates the following:

  1. Square corners to 1.5 mm (0.060") max. radius
  2. Gasket
  3. Panel
  4. Removable connectors
  5. Mounting screw
  6. Mounting bracket
  7. Panel cutout to DIN 43700.

Contact us now and let's talk price!

Flexible Operation and Accurate Display for the RD200

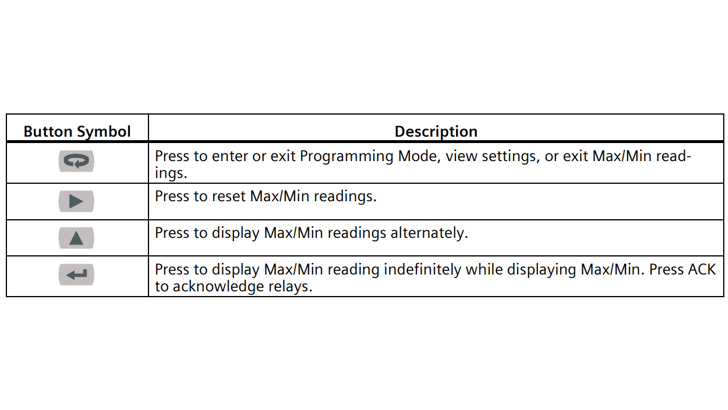

The RD200 display is designed for versatility, capable of accepting both positive and negative signals from a wide range of process inputs, and displaying these in engineering units from -1999 to 9999. This allows precise representation of values, such as a -10 to +10 VDC input signal shown directly as -10.00 to 10.00. Temperature inputs are tailored to user preferences, with displays configurable by input type and units in either °F or °C. For Type T thermocouples, users can choose a resolution of 1° or 0.1°, enhancing readability and ensuring accurate monitoring.

Need our help? Contact us here!

RD200 Operation Siemens 1024 16X9
Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9
RD200 Dimensions Siemens 1024 16X9
RD200 Mounting Siemens 1024 16X9
Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9
RD200 Dimensions Siemens 1024 16X9
RD200 Mounting Siemens 1024 16X9

How to Choose the Right RD-Display for Your Needs?

Choosing the right RD-display for your specific application is crucial for maximizing efficiency and ensuring reliable monitoring of your processes. Siemens offers three excellent models: the SITRANS RD100, RD200, and RD300, each tailored to meet different needs. Here’s a quick overview of their features and benefits to help you make an informed decision:

SITRANS RD100: Simple and Reliable

  • 2-Wire Loop-Powered: Efficient integration into existing 4-20 mA loops.
  • Easy Calibration: Quick two-step calibration process with minimal tools.
  • Rugged Design: NEMA 4X, IP67 impact-resistant enclosure for harsh environments.
  • Hazardous Location Approval: Intrinsically safe and non-incendive certifications.

SITRANS RD200: Universal Flexibility

  • Universal Input: Accepts current, voltage, thermocouples, and RTDs.
  • Remote Monitoring: Supports data collection from up to 100 displays using RD software.
  • Customizable Setup: Options for panel mounting or enclosures for multiple displays.
  • User-Friendly: Easy setup and programming via buttons or remotely.

SITRANS RD300: Multifunctional Control

  • Rate/Totalizer Functionality: Ideal for flow measurement and control applications.
  • Dual Input Capability: Accepts one or two current and voltage inputs for enhanced flexibility.
  • Advanced Features: Supports up to 8 relays, digital I/O, and complex mathematical functions.
  • Large Display: Dual-line, 6-digit display with a 9-digit totalizer for easy readability.

SITRANS RD150: Versatile HART Display

  • HART Communication: Displays 4-20 mA or multiple HART variables for convenient remote readings.
  • Flexible Housing Options: Available in plastic, aluminum, or stainless steel with IP68 rating for demanding environments.
  • User-Friendly Interface: 4-button, menu-driven display for easy operation.
  • Full Configuration: Supports full configuration of connected sensors via optional USB and PC setup.

By assessing your specific application requirements—whether you need simplicity and reliability, universal input capabilities, or advanced totalization and control features—you can choose the RD-display that best suits your needs. Each model is designed to offer unique advantages, ensuring you have the right tools to effectively monitor and manage your processes.

Siemens Displays

Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

Siemens SITRANS RD100 Digital Display

RD100 is a 2-wire loop-powered, NEMA 4X enclosed remote digital display for process instrumentation.

Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9

Siemens SITRANS RD200 Digital Display

RD200 is a universal display for level, flow, pressure, temperature, weighing, and other process instruments. The display accepts a single input of current, voltage, thermocouple, and RTD.

Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9

Siemens SITRANS RD300 Digital Display

SITRANS RD300 is a panel-mounted digital display for process instrumentation that functions as a multifunctional rate/totalizer, ideal for flow rate, totalization, and control applications. It can be used for level, flow, pressure, weighing, and other process instruments.

Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9

Siemens SITRANS RD150 Digitalt Display

SITRANS DR150 is a digital 4...20 mA HART display for remote reading of process instrumentation. The housing is available in plastic, aluminum, and stainless steel with up to IP68 protection. The display can be used to show level, flow, pressure, temperature, and weight.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Display

Display:

  • 14 mm high LED
  • 30.5 mm high LED (option)
  • Numeric range: -1999...+9999

Memory:

  • Non-volatile
  • Retains settings for at least 10 years without power

Programming:

  • Primarily via front panel
  • Secondarily via "meter copy" or PC with SITRANS RD software
Ambient temperature

-40...+65 °C

Accuracy

4...20 mA output (optional):

  • ±0.1% FS ±0.004 mA

Process input:

  • ±0.05% of span ±1 count
  • Square root: 10…100% FS

Thermocouple temperatur input:

  • Type J: ± 1 °C (± 2 °F)
  • Type K: ± 1 °C (± 2 °F)
  • Type E: ± 1 °C (± 2 °F)
  • Type T: ± 1 °C (± 2 °F)
  • Type T, 0,1° resolution: ± 1 °C (± 1,8 °F)

RTD temperatur input:

100 Ω RTD: ±1 °C (±1 °F)

Output

Output:

  • 4 … 20 mA (optional)
  • Modbus RTU

Relay:

  • 2 SPDT Form C relæer, rated 3 A ved 30 V DC eller 3 A ved 250 V AC, non-inductive, auto initializing (optional)

Communication:

  • RS 232 with PDC or Modbus RTU
  • RS 422/485 with PDC or Modbus RTU
Protection rating

Type 4X, NEMA 4X, IP65 (front cover); panel gasket included

Material
  • 1/8 DIN, high impact plastic, UL94V-0, color: gray
  • (Optional) plastic, steel, or stainless steel (Type 304, EN 1.4301) NEMA 4 enclosures
Power Supply

Voltage, power supply, or loop

See the datasheet for more information

Approvals

CE, UKCA, UL, CUL

Specifications & Manuals

  • Manual - Siemens SITRANS RD200 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS RD200 Datasheet
    English | pdf
