Insatech Siemens SITRANS RD150 Digital Display 7ML5742 1X1

SITRANS RD150

The SITRANS RD150 from Siemens is a digital 4...20 mA HART display for remote reading of process instrumentation. The housing is available in plastic, aluminum, and stainless steel with up to IP68 protection. The display can be used to show level, flow, pressure, temperature, and weight.

The RD150 gives you several benefits:

  • Easy-to-Use
  • Flexible mounting
  • HART communications
  • Multiple housing options.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Versatile and User-Friendly Remote Display

The SITRANS RD150 offers a highly versatile solution for monitoring and adjusting process instrumentation with its ability to operate on a 4-20 mA HART signal line. This means that it can be easily integrated into existing systems without the need for additional power supplies, making it a cost-effective choice for various applications.

The RD150 is designed with a user-friendly, 4-button menu interface, allowing for quick and intuitive navigation when configuring HART instruments. Its rugged enclosure, available in plastic, aluminum, or stainless steel, ensures durability and protection against harsh environmental conditions, with an impressive IP68 rating that withstands dust and water ingress.

Insatech Siemens SITRANS RD150 Housing Size 7ML5742 16 9

Key Features of the SITRANS RD150

The RD150 has several benefits, some of which we have listed for you below:

  • 4-20 mA Loop-Powered Display: Operates directly on a 4-20 mA HART signal line without additional power supply.
  • Versatile Remote Display: Reads multiple HART variable signals for applications like level, flow, pressure, temperature, and weighing.
  • Durable Enclosure Options: Available in plastic, aluminum, or stainless steel housings with up to IP68 protection for demanding environments.
  • User-Friendly Interface: Features a 4-button, menu-driven interface for quick setup and easy navigation.
  • Full HART Configuration: Provides complete HART device configuration using standard HART commands or via PC with PACTware.
  • HART Multi-Drop Capability: Functions as an indicating device in multi-drop HART networks for multiple connected sensors.
  • Flexible Mounting Orientation: Display module can be mounted in four positions, rotated in 90° increments for optimal viewing.
  • Quick Display Installation: Insert or remove the display and adjustment module without interrupting the power supply.
  • High Visibility Display: Backlit for readability in low-light and direct sunlight conditions.
  • Hazardous Area Approvals: Certified for intrinsically safe and non-incendive operation in hazardous environments.
  • Wide Operating Temperature Range: Operates reliably from -40 to +85 °C (-40 to +185 °F).
  • Easy Sensor Adjustment: Sensor configuration possible directly on the RD150 display or via PC using PACTware/DTM.
  • Compact and Efficient: Lightweight design adds only 1V to the 4-20 mA loop for minimal impact on loop power.

Exactly what you need? Contact us now!

Flexible Application Options with the SITRANS RD150

The SITRANS RD150 offers a versatile solution for remote monitoring across various industries, making it ideal for locations where easy access to critical process data is essential. Designed to be installed remotely, it provides safe and convenient 4-20 mA or multiple HART variable readings, allowing operators to monitor and configure HART instruments without needing to be on-site. The RD150’s intuitive, menu-driven interface with four-button control simplifies configuration, while USB connectivity enables full setup of connected instruments through a computer, adding flexibility for HART-based systems.

Key applications with remote display within a 4-20 mA HART loop for:

  • Level measurement
  • Flow monitoring
  • Pressure readings
  • Temperature tracking
  • Weighing applications.

Need more information? Contact us here

169 Marineforsidebillede

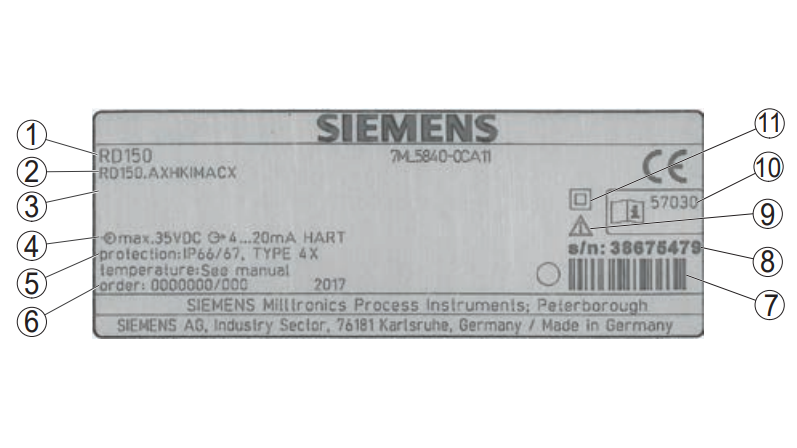

Quick Guide to Identifying Your RD150

The type label on the SITRANS RD150 provides critical information to ensure correct identification, installation, and use of the instrument. This label displays essential data, including the instrument type, product code, approval details, electronics and voltage supply information, and the protection rating. Additionally, it includes the order number, identification code, serial number, device protection class, and a reminder to refer to the instrument documentation for safe operation. The clear layout of this label makes it easy to verify specifications at a glance, ensuring proper configuration and compliance in any application.

The numbers of the layout indicate:

  1. Instrument type
  2. Product code
  3. Field for approvals
  4. Electronics/Voltage supply
  5. Protection rating
  6. Order number
  7. Identification code
  8. Serial number of the instrument
  9. Reminder to observe the instrument documentation
  10. ID number, instrument documentation
  11. Device protection class.
RD150 Sensor Adjustment RD150 Siemens 1024 16X9

Efficient Operation in 4-20 mA and HART Modes

The RD150 seamlessly integrates into any 4-20 mA loop, offering versatile display capabilities for process instrumentation. When connected in a standard 4-20 mA mode, it serves as an effective, energy-efficient display instrument for key measurements without requiring any additional power source. For HART protocol applications, the RD150 functions both as a display and an adjustment tool. In this mode, users can adjust sensor parameters using HART communication, with the RD150 acting as a Primary or Secondary Master, allowing precise control over sensor settings and display scaling.

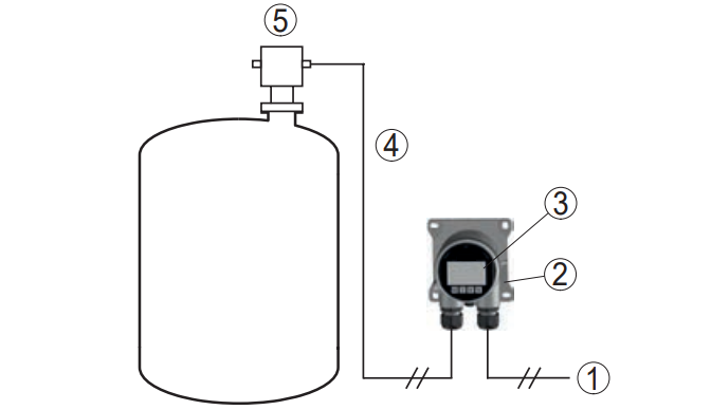

The numbers on the photo indicates:

  1. Voltage supply/Signal output sensor
  2. RD150
  3. Display and adjustment module
  4. 4 … 20 mA/HART signal cable
  5. Sensor.

Contact us now and let's talk price!

Advanced HART Multidrop and Sensor Adjustment Options

Beyond single-sensor applications, the RD150 supports HART multidrop, allowing it to act as a display for any bus-connected participant in a HART system. This flexibility is ideal for complex, multi-instrument environments. For sensor adjustments, the RD150 enables quick setup through its integrated display module, or for more detailed configuration, it can connect to a PC with PACTware/DTM software. This flexibility ensures that users can fine-tune sensor settings either directly on the RD150 or through advanced software tools, optimizing for different operational needs.

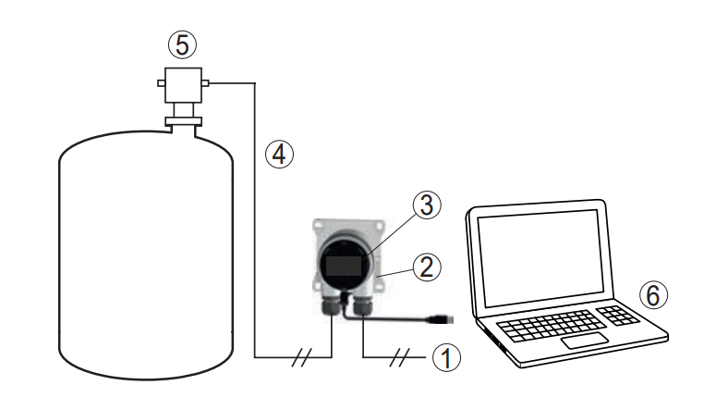

The numbers on the picture indicates:

  1. Voltage supply/Signal output sensor
  2. RD150
  3. Interface adapter
  4. 4 … 20 mA/HART signal cable
  5. Sensor
  6. PC with PACTware/DTM.

Need our help? Contact us here!

RD150 Sensor Adjustment PC Siemens 1024 16X9

Seamless Integration and Configuration Options

One of the standout features of the RD150 is its seamless integration capabilities in HART multi-drop systems, enabling simultaneous monitoring of multiple sensors from a single display. This functionality not only enhances efficiency but also simplifies the overall management of your process variables, whether measuring level, flow, pressure, temperature, or weight.

The display supports easy configuration adjustments directly through its interface or via a PC using PACTware, making it ideal for users who require flexibility and precision in sensor management. With its broad operating temperature range from -40 to +85 °C and certifications for hazardous environments, the RD150 is a reliable choice for industries looking to optimize their processes while maintaining safety and efficiency.

RD150 Mounting Display Siemens 1024 16X9

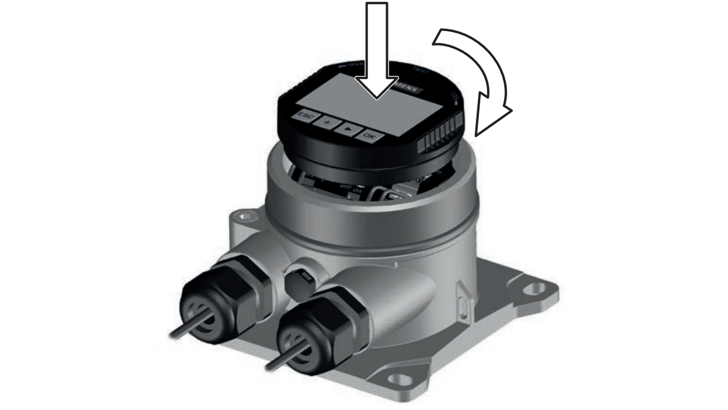

Installing the Display and Adjustment Module on the RD150

The RD150’s display and adjustment module can be easily installed or removed without interrupting the device’s power supply. To install, simply unscrew the housing lid, position the module in one of four possible orientations (rotated by 90° each), press it into place on the electronics, and turn it to the right until it locks in securely. Once the module is in place, reattach the housing lid with the inspection window. Disassembly follows the same steps in reverse order. Please note, however, that RD150 does not support display modules with integrated Bluetooth functionality.

Contact us now and let's talk price!

Setting Up the RD150 with PACTware

To configure the RD150 via PACTware, connect a PC to the device using an interface adapter. This setup allows for precise parameter adjustments on both the RD150 display and the connected sensor. Simply connect a USB cable from the PC to the interface adapter, and then link the adapter to the RD150. Once connected, PACTware enables easy configuration and adjustment of operational parameters, streamlining setup and calibration tasks for accurate process monitoring.

The numbers on the picture indicates:

  1. USB cable to the PC
  2. Interface adapter
  3. RD150.

Need our help? Contact us here!

RD100 1 Siemens 1024 16X9

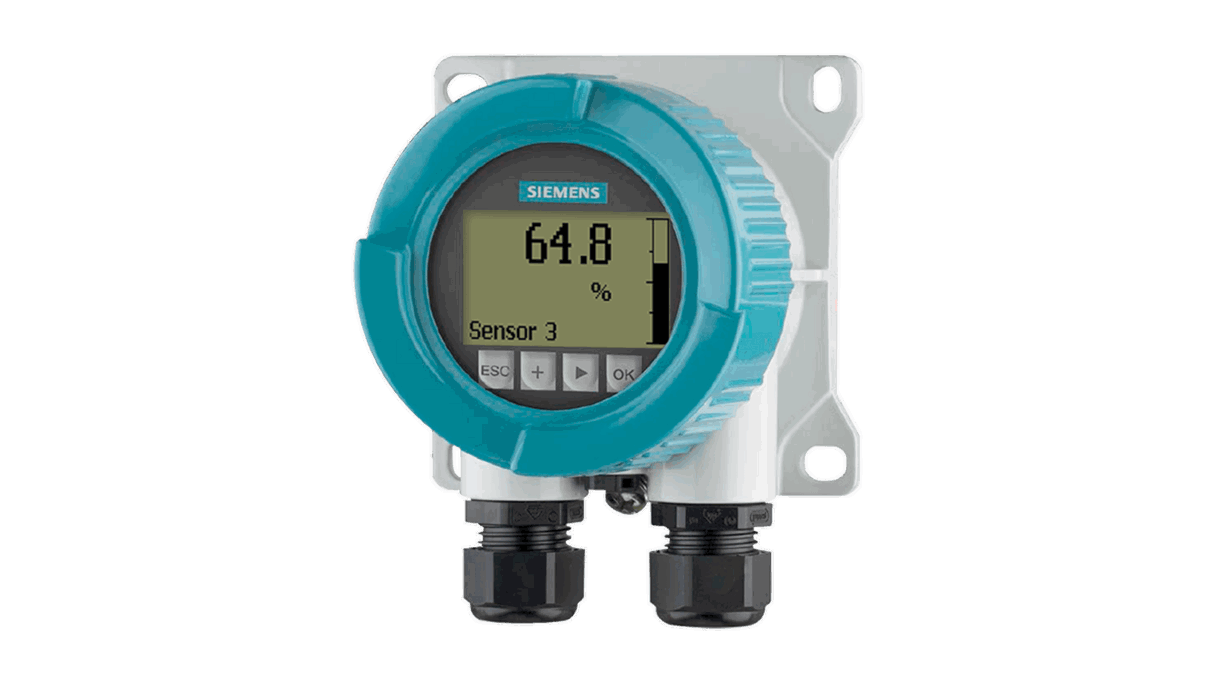

Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9
Insatech Siemens SITRANS RD150 Housing Size 7ML5742 16 9

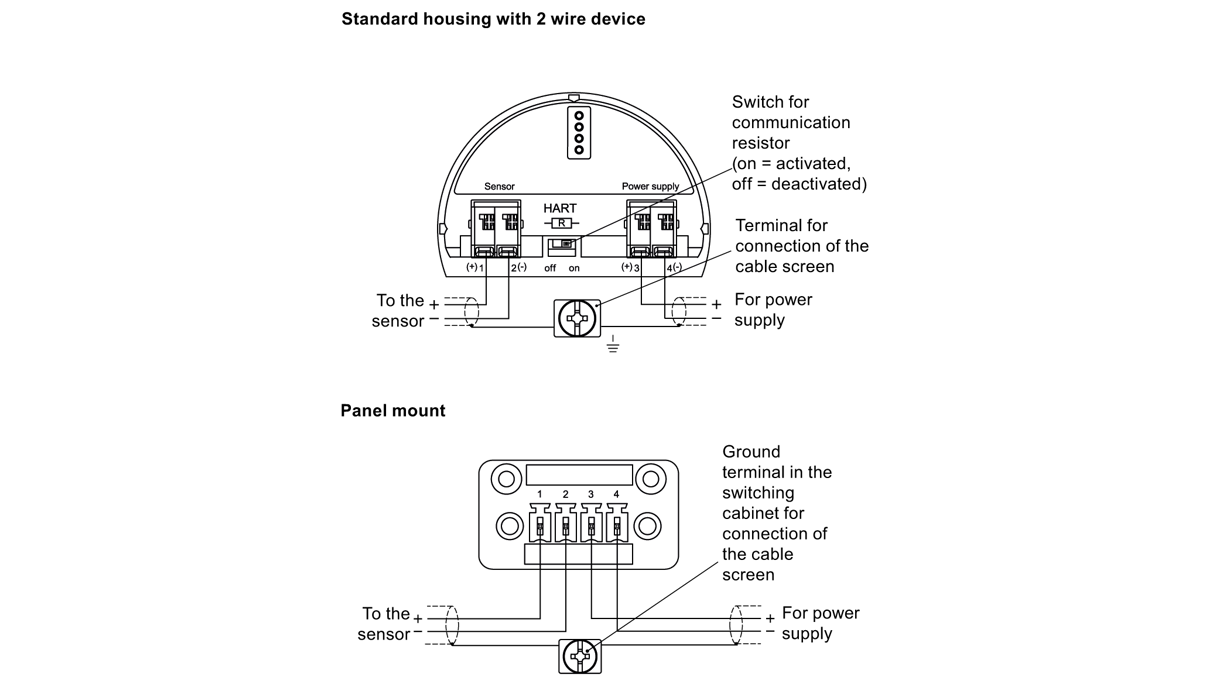

Insatech Siemens SITRANS RD150 Standard And Panel Mount 7ML5742 16 9

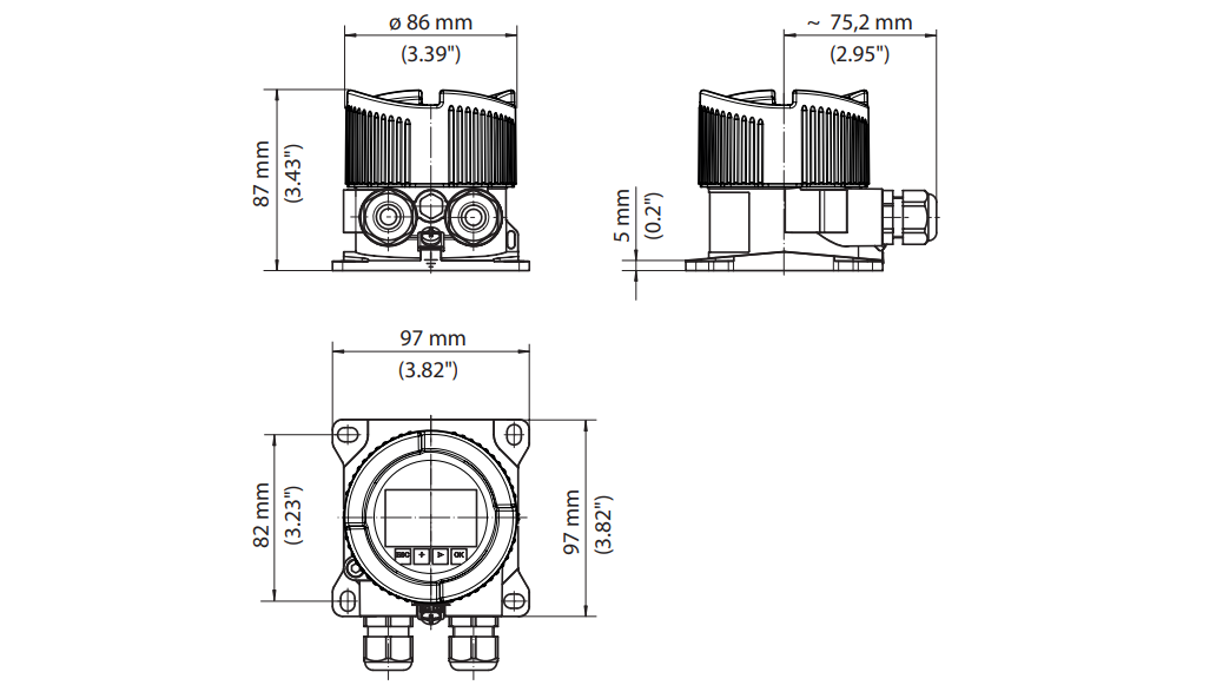

RD150 Dimensions Aluminium Housing Siemens 1024 16X9

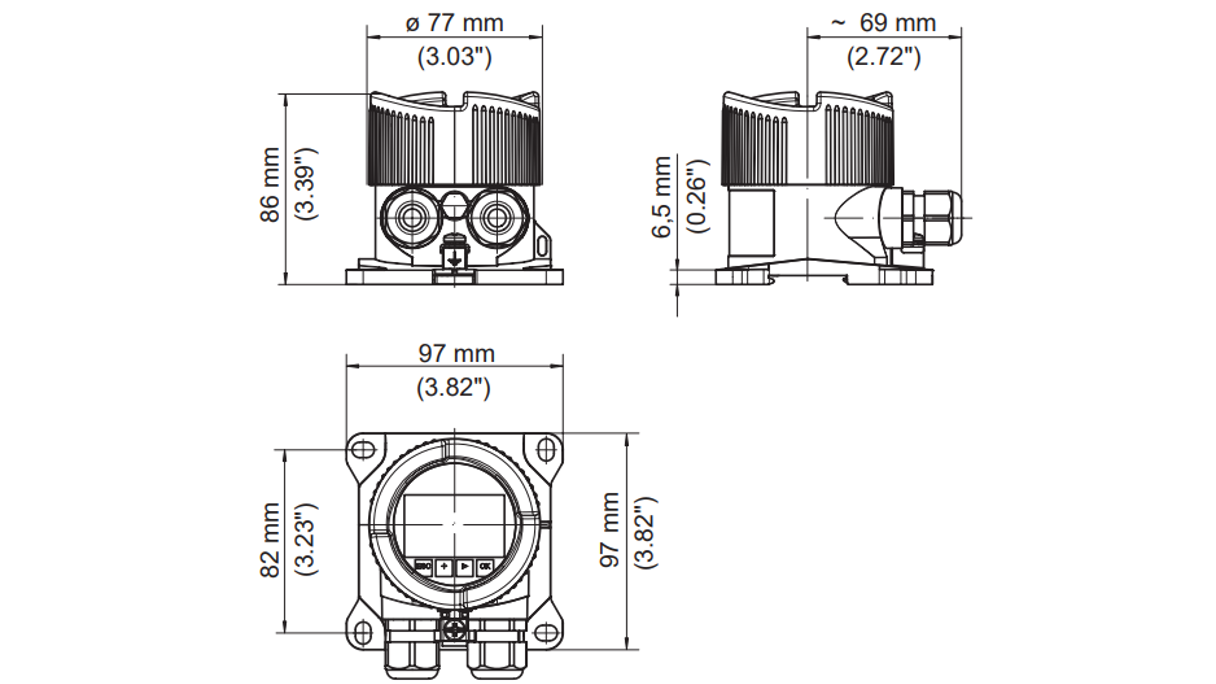

RD150 Dimensions Plastic Housing Siemens 1024 16X9

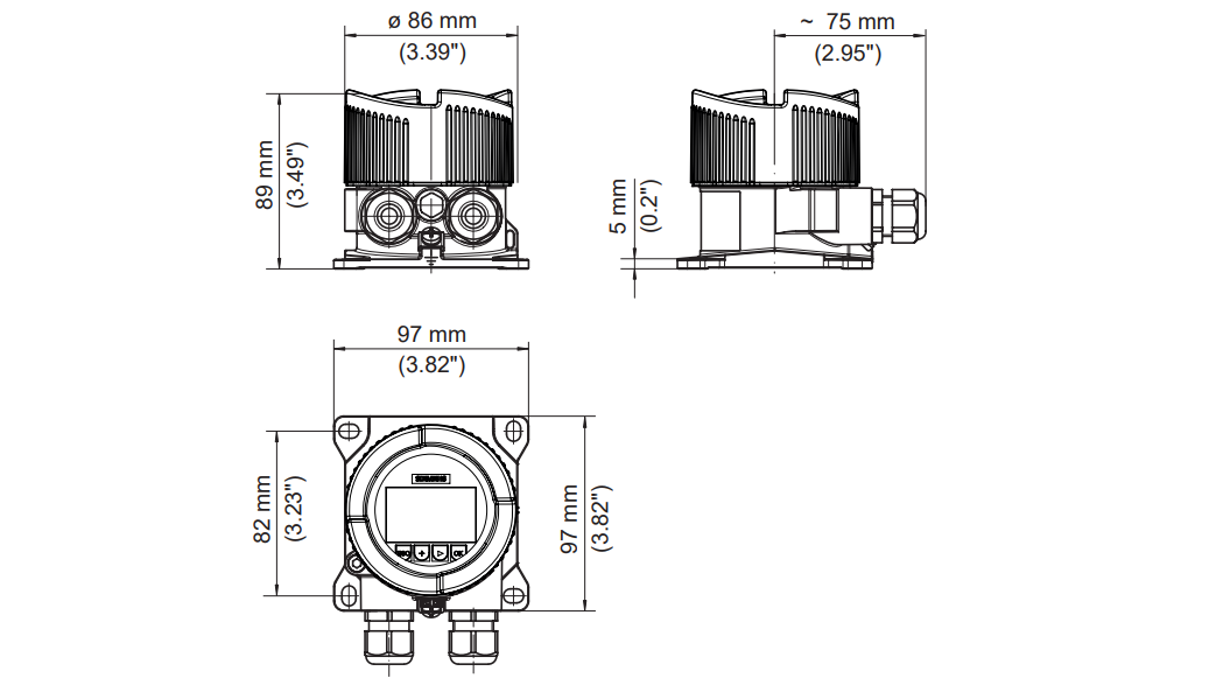

RD150 Dimensions Stainless Steel Housing Siemens 1024 16X9
Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9
Insatech Siemens SITRANS RD150 Housing Size 7ML5742 16 9
Insatech Siemens SITRANS RD150 Standard And Panel Mount 7ML5742 16 9
RD150 Dimensions Aluminium Housing Siemens 1024 16X9
RD150 Dimensions Plastic Housing Siemens 1024 16X9
RD150 Dimensions Stainless Steel Housing Siemens 1024 16X9

How to Choose the Right RD-Display for Your Needs?

Choosing the right RD-display for your specific application is crucial for maximizing efficiency and ensuring reliable monitoring of your processes. Siemens offers three excellent models: the SITRANS RD100, RD200, and RD300, each tailored to meet different needs. Here’s a quick overview of their features and benefits to help you make an informed decision:

SITRANS RD100: Simple and Reliable

  • 2-Wire Loop-Powered: Efficient integration into existing 4-20 mA loops.
  • Easy Calibration: Quick two-step calibration process with minimal tools.
  • Rugged Design: NEMA 4X, IP67 impact-resistant enclosure for harsh environments.
  • Hazardous Location Approval: Intrinsically safe and non-incendive certifications.

SITRANS RD200: Universal Flexibility

  • Universal Input: Accepts current, voltage, thermocouples, and RTDs.
  • Remote Monitoring: Supports data collection from up to 100 displays using RD software.
  • Customizable Setup: Options for panel mounting or enclosures for multiple displays.
  • User-Friendly: Easy setup and programming via buttons or remotely.

SITRANS RD300: Multifunctional Control

  • Rate/Totalizer Functionality: Ideal for flow measurement and control applications.
  • Dual Input Capability: Accepts one or two current and voltage inputs for enhanced flexibility.
  • Advanced Features: Supports up to 8 relays, digital I/O, and complex mathematical functions.
  • Large Display: Dual-line, 6-digit display with a 9-digit totalizer for easy readability.

SITRANS RD150: Versatile HART Display

  • HART Communication: Displays 4-20 mA or multiple HART variables for convenient remote readings.
  • Flexible Housing Options: Available in plastic, aluminum, or stainless steel with IP68 rating for demanding environments.
  • User-Friendly Interface: 4-button, menu-driven display for easy operation.
  • Full Configuration: Supports full configuration of connected sensors via optional USB and PC setup.

By assessing your specific application requirements—whether you need simplicity and reliability, universal input capabilities, or advanced totalization and control features—you can choose the RD-display that best suits your needs. Each model is designed to offer unique advantages, ensuring you have the right tools to effectively monitor and manage your processes.

Siemens Displays

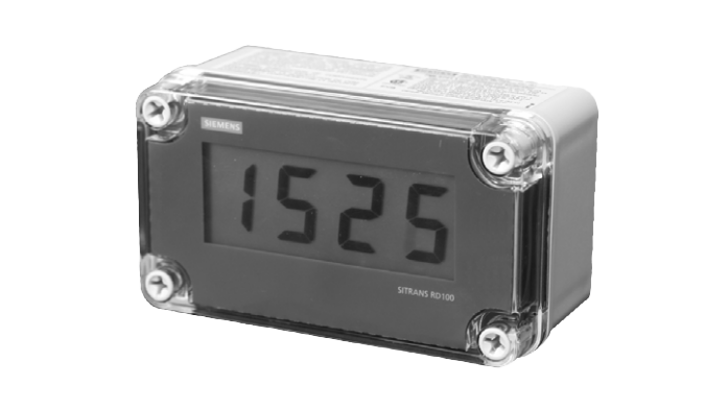

Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

Siemens SITRANS RD100 Digital Display

RD100 is a 2-wire loop-powered, NEMA 4X enclosed remote digital display for process instrumentation.

Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9

Siemens SITRANS RD200 Digital Display

RD200 is a universal display for level, flow, pressure, temperature, weighing, and other process instruments. The display accepts a single input of current, voltage, thermocouple, and RTD.

Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9

Siemens SITRANS RD300 Digital Display

SITRANS RD300 is a panel-mounted digital display for process instrumentation that functions as a multifunctional rate/totalizer, ideal for flow rate, totalization, and control applications. It can be used for level, flow, pressure, weighing, and other process instruments.

Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9

Siemens SITRANS RD150 Digitalt Display

SITRANS DR150 is a digital 4...20 mA HART display for remote reading of process instrumentation. The housing is available in plastic, aluminum, and stainless steel with up to IP68 protection. The display can be used to show level, flow, pressure, temperature, and weight.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Display
  • Number of digits: 5
  • Size of digits: 7 x 13 mm
Ambient temperature

-40...+80 °C

Accuracy

±0.1 % of 20 mA

Output

2-wire 4...20 mA with or without HART

Protection rating
  • IP66 / IP67 NEMA 4X
  • IP66 / IP68 NEMA 6P (0.2 bar)
  • IP40 NEMA 2
  • IP40 Type
Material
  • Plastic
  • Aluminum
  • Stainless steel
Power Supply

Maks. 35 V DC

Approvals

Contact us for approvals and certificates

Specifications & Manuals

  • Manual - Siemens SITRANS RD150 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS RD150 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
