SITRANS RD100

The SITRANS RD100 is a versatile 2-wire loop-powered remote digital display designed to meet the demands of process instrumentation across various industrial applications. With its NEMA 4X enclosure, this device is built to withstand harsh environments, ensuring durability whether installed indoors or outdoors. The RD100 can display critical process variables, including level, flow, pressure, temperature, and weight, all while being easy to set up and maintain. Its intrinsic safety approvals make it suitable for hazardous locations, providing peace of mind in safety-sensitive areas.

The RD100 gives you several benefits:

  • Quick setup
  • Hazardous area approved
  • Rugged IP67 enclosure
  • Simple two-step calibration.

For sales or commercial inquiries please contact us at marine@insatech.com.

kontakt vores produktekspert

Versatile and Reliable Process Display

The SITRANS RD100 is a highly versatile remote digital display that is designed to meet the needs of various process instrumentation applications. With its 2-wire loop-powered design, it seamlessly integrates into 4 to 20 mA current loops while adding only 1 V to the system. This makes it an efficient choice for industries that require real-time monitoring of critical parameters such as level, flow, pressure, temperature, and weight.

The RD100 is housed in a rugged NEMA 4X enclosure that is both impact-resistant and rated for IP67, allowing it to withstand harsh indoor and outdoor environments. Operating within a broad temperature range of -40 to +85 ºC (-40 to +185 ºF), this display is suitable for both hot and cold applications, ensuring reliable performance in any setting.

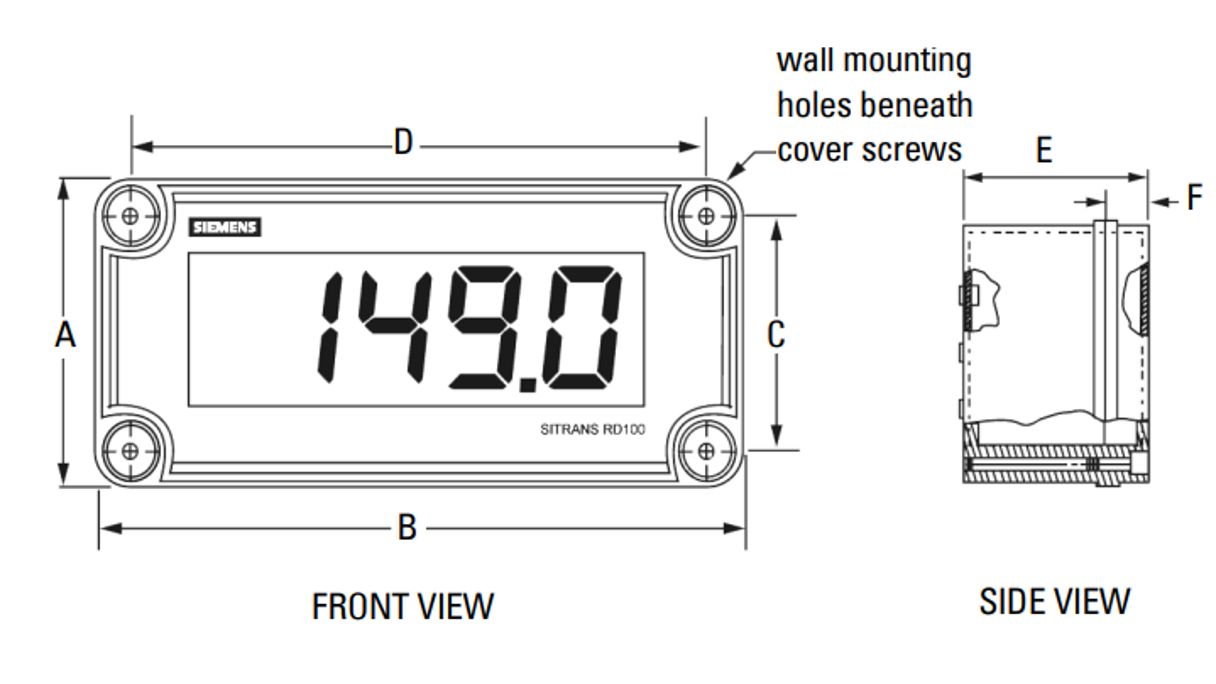

RD100 Dimensions Siemens 1024 16X9

Key Features of the SITRANS RD100

The RD100 has several benefits, some of which we have listed for you below:

  • 2-Wire Loop Powered: Operates on a 4 to 20 mA current loop, adding only 1 V to the loop
  • NEMA 4X Enclosure: IP67-rated, impact-resistant design suitable for indoor and outdoor use
  • Temperature Range: Approved for operation in environments ranging from -40 to +85 ºC (-40 to +185 ºF)
  • Hazardous Location Approval: FM/CSA approved as intrinsically safe and non-incendive
  • Easy Setup: Simplified two-step calibration process using only two non-interacting potentiometers
  • Dual Input Modes: Allows easy servicing without interrupting the loop
  • Versatile Applications: Capable of displaying various process variables such as level, flow, pressure, temperature, and weight
  • Maintenance-Free: Designed to require minimal maintenance under normal operating conditions
  • Simple Installation: User-friendly design allows for straightforward mounting and wiring.

Exactly what you need? Contact us now!

Versatile Applications for Every Environment

The SITRANS RD100 is a highly adaptable remote digital display that can be deployed in a wide range of environments and applications. Its robust design allows for installation in both indoor and outdoor settings, making it suitable for varying temperature conditions, from hot to cold. With approvals from FM and CSA as intrinsically safe and non-incendive, the RD100 can be used in safe and hazardous areas alike. This versatility is further enhanced by its ability to display essential process variables such as level, flow, pressure, temperature, and weight within a 4 to 20 mA loop, making it an ideal choice for various industrial processes. The simple two-step calibration process ensures minimal downtime during installation and maintenance.

Key Applications:

  • Level measurement
  • Flow monitoring
  • Pressure readings
  • Temperature tracking
  • Weighing applications.

Need more information? Contact us here

169 Marineforsidebillede

Safety and Ease of Use

Safety is a priority with the RD100, which is approved for use in hazardous locations by FM and CSA as intrinsically safe and non-incentive. Its robust design means it can operate without interruption in environments where safety is a concern. The device features a straightforward two-step calibration process that requires minimal tools—only a calibrated current source and a screwdriver.

Customers will appreciate the convenience of dual input modes, allowing for easy servicing without disrupting the loop. This combination of safety features, ease of use, and reliable performance makes the SITRANS RD100 an excellent choice for process monitoring, ensuring peace of mind and operational efficiency for customers across various industries.

Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

Comprehensive Approvals for Safety and Compliance

The SITRANS RD100 boasts a range of critical approvals, ensuring it meets stringent safety standards for use in hazardous environments. It is classified as intrinsically safe under FM and CSA guidelines, making it suitable for operation in:

Intrinsically Safe:

  • FM/CSA Class I, II, III, Division 1, Groups A to G (T4)
  • FM/CSA Class I, Zone 0, Group IIC

Non-incendive:

  • FM/CSA Class I, Division 2, Groups A to D
  • FM/CSA Class II and III, Division 2, Groups F and G

These certifications ensure that the device can operate safely in the presence of flammable gases and dust. For detailed installation guidelines, customers can refer to the "RD100 Remote Display - Approval Connections Control Drawing," which is included with the unit and available on the Instruction Manual CD. This comprehensive set of approvals makes the RD100 an excellent choice for customers seeking reliable and safe instrumentation solutions in challenging conditions.

Contact us now and let's talk price!

Simple Calibration Process for Accurate Readings

Calibrating the SITRANS RD100 is a straightforward process that ensures accurate measurements for various applications. To begin, you will need a calibrated current source and a screwdriver. First, remove the enclosure cover and display PCB by loosening the four screws on the enclosure cover. Then, loosen the left screw holding the display PCB while loosening the right screw about four turns to keep the display PCB attached to the enclosure. Rotate the display PCB 90° to access the input signal PCB and connect the calibrated current source.

The calibration controls, labeled LO and HI, are conveniently located to the left of the display. Start by applying a signal of 4 mA and adjusting the LO control to display the desired reading. Next, apply a signal between 16 and 20 mA, adjusting the HI control accordingly. Finally, make any minor adjustments to the LO and HI controls to fine-tune the calibration. This easy two-step calibration ensures the RD100 provides reliable and accurate process readings in a variety of industrial settings.

Need our help? Contact us here!

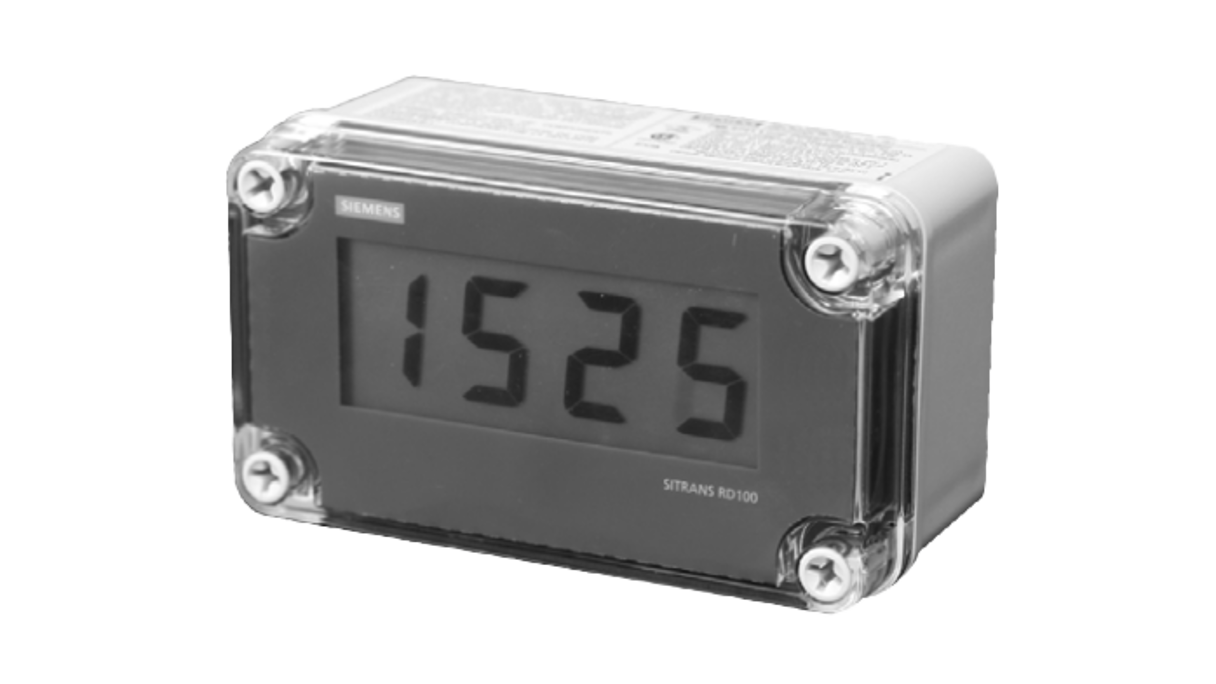

RD100 1 Siemens 1024 16X9
Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

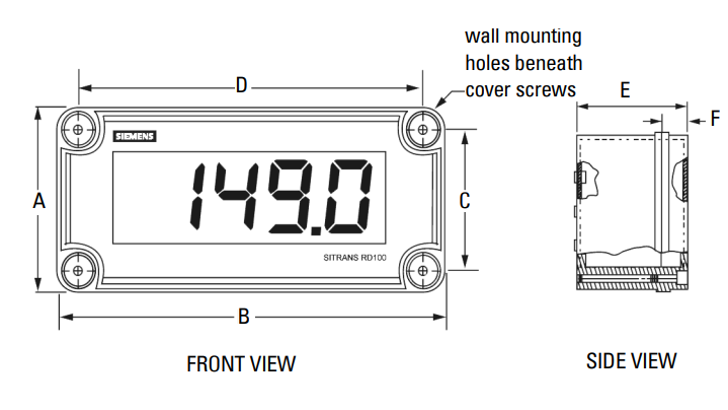

RD100 Dimensions Siemens 1024 16X9
RD100 1 Siemens 1024 16X9
Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9
RD100 Dimensions Siemens 1024 16X9
RD100 1 Siemens 1024 16X9

How to Choose the Right RD-Display for Your Needs?

Choosing the right RD-display for your specific application is crucial for maximizing efficiency and ensuring reliable monitoring of your processes. Siemens offers three excellent models: the SITRANS RD100, RD200, and RD300, each tailored to meet different needs. Here’s a quick overview of their features and benefits to help you make an informed decision:

SITRANS RD100: Simple and Reliable

  • 2-Wire Loop-Powered: Efficient integration into existing 4-20 mA loops.
  • Easy Calibration: Quick two-step calibration process with minimal tools.
  • Rugged Design: NEMA 4X, IP67 impact-resistant enclosure for harsh environments.
  • Hazardous Location Approval: Intrinsically safe and non-incendive certifications.

SITRANS RD200: Universal Flexibility

  • Universal Input: Accepts current, voltage, thermocouples, and RTDs.
  • Remote Monitoring: Supports data collection from up to 100 displays using RD software.
  • Customizable Setup: Options for panel mounting or enclosures for multiple displays.
  • User-Friendly: Easy setup and programming via buttons or remotely.

SITRANS RD300: Multifunctional Control

  • Rate/Totalizer Functionality: Ideal for flow measurement and control applications.
  • Dual Input Capability: Accepts one or two current and voltage inputs for enhanced flexibility.
  • Advanced Features: Supports up to 8 relays, digital I/O, and complex mathematical functions.
  • Large Display: Dual-line, 6-digit display with a 9-digit totalizer for easy readability.

SITRANS RD150: Versatile HART Display

  • HART Communication: Displays 4-20 mA or multiple HART variables for convenient remote readings.
  • Flexible Housing Options: Available in plastic, aluminum, or stainless steel with IP68 rating for demanding environments.
  • User-Friendly Interface: 4-button, menu-driven display for easy operation.
  • Full Configuration: Supports full configuration of connected sensors via optional USB and PC setup.

By assessing your specific application requirements—whether you need simplicity and reliability, universal input capabilities, or advanced totalization and control features—you can choose the RD-display that best suits your needs. Each model is designed to offer unique advantages, ensuring you have the right tools to effectively monitor and manage your processes.

Siemens Displays

Insatech Siemens SITRANS RD100 Digital Display 7ML5741 16 9

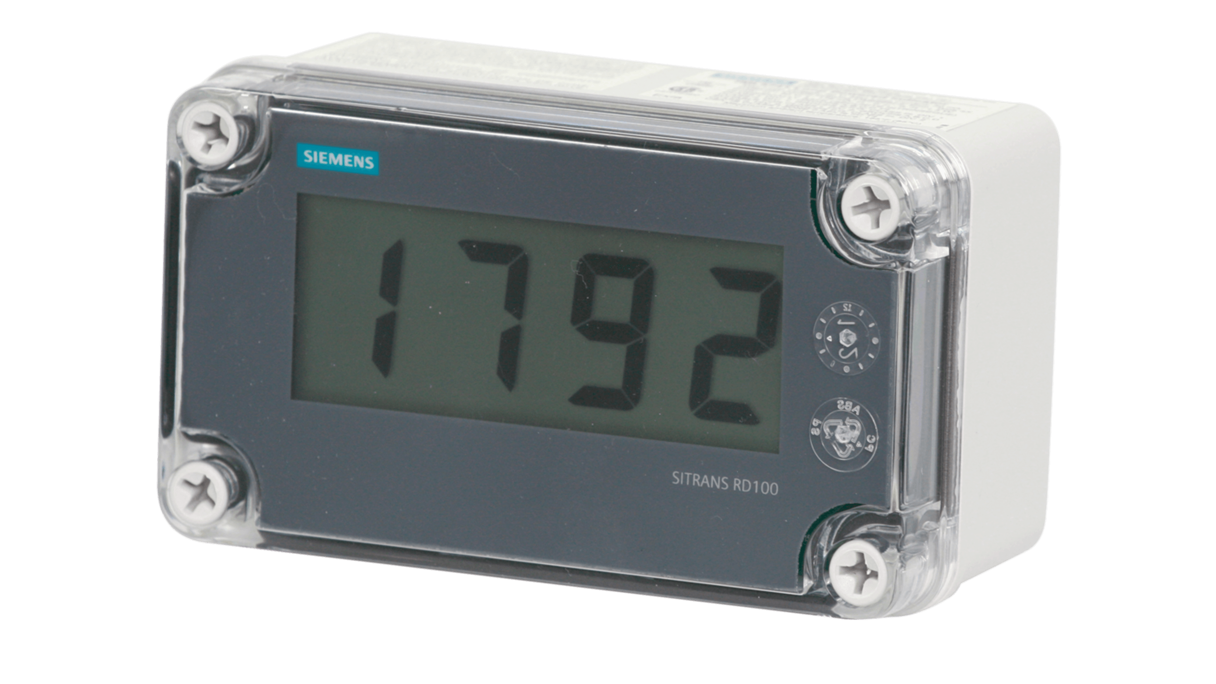

Siemens SITRANS RD100 Digital Display

RD100 is a 2-wire loop-powered, NEMA 4X enclosed remote digital display for process instrumentation.

Insatech Siemens SITRANS RD200 Digital Display 7ML5740 16 9

Siemens SITRANS RD200 Digital Display

RD200 is a universal display for level, flow, pressure, temperature, weighing, and other process instruments. The display accepts a single input of current, voltage, thermocouple, and RTD.

Insatech Siemens SITRANS RD300 Digital Display 7ML5744 16 9

Siemens SITRANS RD300 Digital Display

SITRANS RD300 is a panel-mounted digital display for process instrumentation that functions as a multifunctional rate/totalizer, ideal for flow rate, totalization, and control applications. It can be used for level, flow, pressure, weighing, and other process instruments.

Insatech Siemens SITRANS RD150 Digital Display 7ML5742 16 9

Siemens SITRANS RD150 Digitalt Display

SITRANS DR150 is a digital 4...20 mA HART display for remote reading of process instrumentation. The housing is available in plastic, aluminum, and stainless steel with up to IP68 protection. The display can be used to show level, flow, pressure, temperature, and weight.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Display
  • 1" high LCD
  • Numeric range: -1000...+1999
Ambient temperature

-40...+85 °C

Accuracy

±0.1 % of SPAN ±1 count

Output

4...20 mA

Protection rating

NEMA 4X / IP67

Material

Impact-resistant glass-filled polycarbonate housing with a transparent polycarbonate lid

Power Supply

Maks. 30 V DC

Approvals
  • Intrinsically safe
  • Non-incendive

Specifications & Manuals

  • Manual - Siemens SITRANS RD100 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS RD100 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf
