SITRANS LT500

The SITRANS LT500 from Siemens is a controller with level, flow, and pump control for radar and ultrasonic transmitters, transducers, or any 2-wire 4...20 mA device. It is ideal for level control applications with either one or two measurement points. Additionally, it features 6 relays and supports Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, and PROFINET.

The LT500 gives you multiple benefits:

  • User-Friend Interface
  • Flexible Communication
  • Advanced Process Monitoring
  • Versatile Mounting & Configurations.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Enhance Operational Efficiency with SITRANS LT500

The SITRANS LT500 is designed to streamline operations across various industries, particularly in applications requiring accurate level measurement and control. With its dual point monitoring capability, the LT500 allows for simultaneous tracking of multiple levels, making it ideal for applications like wet wells, flumes, chemical storage, and dry solids management.

This versatility is further enhanced by its compatibility with a wide range of sensors, including 4-20 mA HART devices and EchoMax transducers, ensuring it integrates seamlessly into your existing setup. Its low-maintenance design minimizes operational downtime and reduces service costs, providing a reliable solution for continuous monitoring.

Insatech Siemens SITRANS LT500 Dimensions Diagram 7ML60 16 9

Key Features of the SITRANS LT500

The LT500 has several benefits, some of which we have listed for you below:

  • Dual Point Monitoring: Capable of monitoring two points simultaneously for enhanced efficiency.
  • Versatile Input Compatibility: Works with 4-20 mA HART sensors, SITRANS LR110, LR120, Probe LU240, and EchoMax transducers.
  • Advanced Control Functions: Manages pump operations during lower cost time periods and optimizes pump rosters.
  • Low Maintenance Design: Engineered for minimal upkeep, reducing operational costs.
  • Open Channel Flow Monitoring: Effective for applications requiring monitoring of open channels.
  • Relay Alarming: Advanced alarm functions to notify users of critical conditions.
  • Volume Conversion Capabilities: Converts level measurements into volume for various applications.
  • Flexible Mounting Options: Can be wall-mounted, panel-mounted, or used with optional enclosures.
  • Robust Design: Built to withstand harsh environments with appropriate ingress protection.
  • User-Friendly Interface: Easy to operate and configure for various applications.

Exactly what you need? Contact us now!

Versatile Applications for Effective Level Control

The SITRANS LT500 is designed to accommodate a wide range of level measurement applications, whether using mA HART-compatible devices like the SITRANS LR110, LR120, or Probe LU240, or connecting ultrasonic models to any EchoMax or legacy transducer. With advanced control features, the LT500 offers true dual-point monitoring and supports efficient pump management by operating during low-cost periods and managing pump rosters for optimal performance. Additionally, it is well-suited for open channel flow monitoring, relay alarming, and volume conversion, providing low maintenance and cost-effective level control across various applications.

Key applications:

  • Wet wells and flumes/weirs
  • Bar screen control and hoppers
  • Chemical and liquid storage
  • Crusher bins and dry solids storage.

In the marine industry, the SITRANS LT500 is a valuable solution for several critical applications, leveraging its ability to accurately monitor and control various parameters in challenging environments. Key applications include:

  • Ballast Water Management: Monitoring and managing ballast tank levels for ship stability and compliance with environmental regulations.
  • Fuel and Lubricant Storage Tanks: Ensuring precise level measurement and monitoring for effective fuel and lubricant management on vessels.
  • Bilge and Wastewater Monitoring: Overseeing bilge water levels to comply with discharge standards and to optimize pump operations.
  • Potable Water and Utility Tank Monitoring: Maintaining control over onboard water supply levels to ensure continuous availability.
  • Cargo Holds and Hopper Levels: Suitable for bulk carriers to monitor dry solids or liquid cargo levels, ensuring efficient and safe load management.

The SITRANS LT500's dual-point monitoring, advanced control functions, and reliable communications make it ideal for the demanding applications found in marine environments.

Need more information? Contact us here

169 Marineforsidebillede

Advanced Control Functions for Cost Savings

One of the standout features of the SITRANS LT500 is its advanced control functions that facilitate efficient pump management. The instrument can be programmed to operate pumps during off-peak hours, helping you take advantage of lower energy rates while efficiently managing pump rosters.

Additionally, the LT500 supports open channel flow monitoring and advanced relay alarming, ensuring that critical conditions are promptly addressed. With its ability to perform volume conversions and provide accurate readings, the LT500 empowers operators with the data needed to optimize processes, improve safety, and drive cost savings. Whether you are in the marine industry or managing wastewater facilities, the LT500 offers the performance and reliability you need to enhance your operational efficiency.

Siemens SITRANS LT500 Controller Explained Video Thumbnail

Wall Mounting the SITRANS LT500

To wall mount the SITRANS LT500 securely, first ensure that the required cable entry points are prepared, either through pre-drilled holes on the device or customized by the user. Begin by removing the lid to access the mounting holes inside. Mark and drill four screw points on the mounting surface, and secure the device with a long screwdriver. If using conduit or cable glands for wiring, attach the conduit first, then secure the glands loosely to the enclosure. Thread the cables through the conduit, keeping power and signal cables separate to avoid interference. Once wiring is complete, tighten the glands for a watertight seal, then replace and secure the lid to complete the installation.

Contact us now and let's talk price!

 Connecting the SITRANS LT500: A Step-by-Step Guide

Connecting the SITRANS LT500 involves a straightforward process that ensures optimal performance and functionality. Begin by selecting the appropriate cables for your application, ensuring they are suitable for the environment and meet safety standards. Connect the power supply to the designated terminals, ensuring correct polarity to avoid damage. For input signals, connect the 4-20 mA HART output from the sensor to the corresponding terminals on the LT500, following the wiring diagram provided in the documentation. If using digital communication, ensure that the correct protocol is selected and configured. After making all connections, double-check for secure fittings and proper cable routing to prevent any interference. Once everything is in place, power up the device and verify that the display indicates normal operation. This setup allows the SITRANS LT500 to effectively monitor levels and flows in various applications.

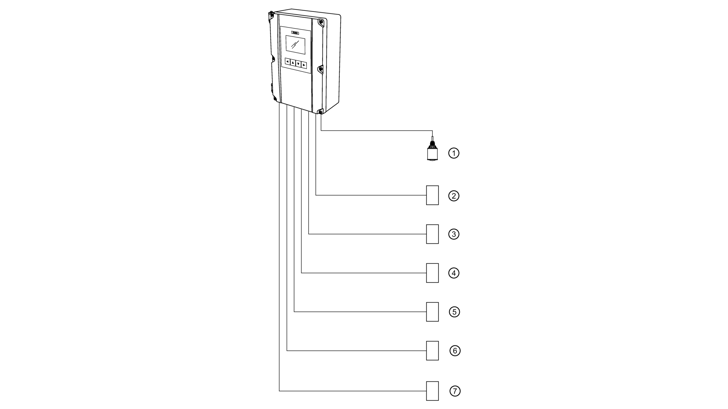

The numbers on the picture indicates:

  1. Remote sensor(s)
  2. Customer alarm, pump, or control device
  3. Customer device, digital output
  4. Service interface
  5. Communication card
  6. Display, chart recorder, or other control device
  7. Computer running SIMATIC PDM, or FDT.

Need our help? Contact us here!

LT500 Connecting Siemens 1024 !6X9

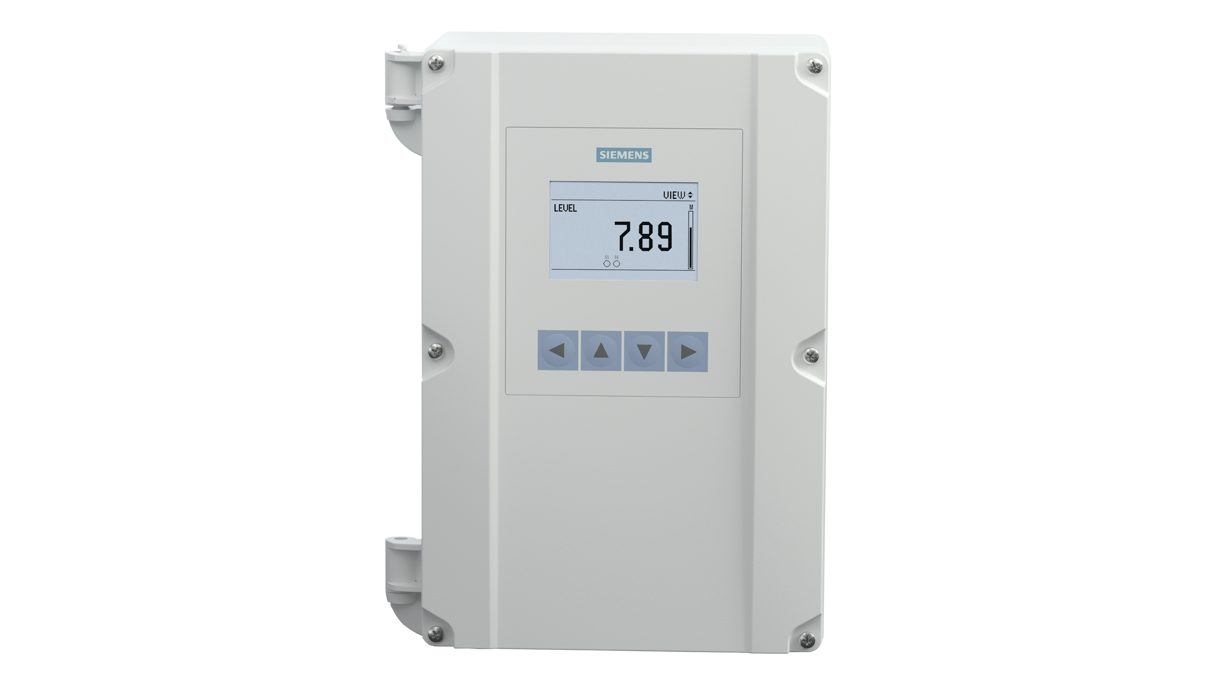

Insatech Siemens SITRANS LT500 Controller 7ML60 16 9
Insatech Siemens SITRANS LT500 Dimensions Diagram 7ML60 16 9
Insatech Siemens SITRANS LT500 Wiring Diagram 7ML60 16 9
Siemens Level Up Your Control With SITRANS LT500 Video Thumbnail
Siemens Introducing SITRANS LT500 Level Measurement Controller Video Thumbnail
Siemens SITRANS LT500 Controller Explained Video Thumbnail
Insatech Siemens SITRANS LT500 Controller 7ML60 16 9
Insatech Siemens SITRANS LT500 Dimensions Diagram 7ML60 16 9
Insatech Siemens SITRANS LT500 Wiring Diagram 7ML60 16 9
Siemens Level Up Your Control With SITRANS LT500 Video Thumbnail
Siemens Introducing SITRANS LT500 Level Measurement Controller Video Thumbnail
Siemens SITRANS LT500 Controller Explained Video Thumbnail
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Display
  • 60 x 40 mm (2.36 x 1.57 inch) LCD,
    240 x 160 pixels resolution
    Menu navigation with 4 push buttons
Ambient temperature

-20...+50 °C

Accuracy

0.1 % of full scale

Output
  • 1 or 2 analog outputs

Relay:

  • Up to 6, 4 form A and 2 form C
Communication
  • HART 7, with Active/Passive 4...20 mA
  • Modbus RTU
  • PROFIBUS PA per profile 4.01
  • PROFIBUS DP
  • PROFINET
Protection rating
  • Wall-mounted: IP65 / Type 4X
  • Panel-mounted: IP54 / Type 3
  • Remote panel-mounted: IP65 / Type 3 (front panel), IP20 housing
Material

Polycarbonate

Power Supply
  • AC version: 100...230 V AC, ±15%, 50/60 Hz, 36 VA (17 W)
  • DC version: 12...30 V DC (20 W)
Approvals
  • CE, UKCA, RCM, EAC, FM, CCSAUS, CULUS
  • CCSAUS Class I, Div. 2, Group A, B, C and D; Class II, Div 2, Group F & G; Class III
  • MCERTS

Specifications & Manuals

  • Manual - Siemens SITRANS LT500 Operating Instructions (mA / HART)
    English | pdf
  • Technical Specifications - Siemens SITRANS LT500 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf
