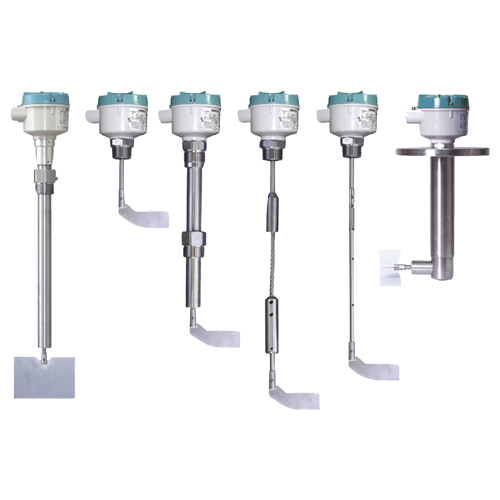

Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 7ML5725 7ML5726 7ML5727 7ML5728 7ML5730 1X1

SITRANS LPS200

The SITRANS LPS200 from Siemens is a highly reliable rotary paddle switch designed specifically for point level and material detection in bulk solids. It excels in applications involving various materials, including grain, feed, cement, plastic granules, and wood chips. This device ensures precision and efficiency, making it a valuable addition to any industrial process.

The LPS200 gives you several benefits:

  • Proven technology
  • High integrity seal
  • Universal power options
  • Optional fail-safe feature.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Reliable Performance in Tough Bulk Solid Applications

The SITRANS LPS200 is built to withstand the challenges of bulk solid applications, reliably detecting full, empty, or demand conditions in materials like grain, feed, cement, and wood chips.

Its robust design, equipped with a high-integrity mechanical seal and available in high-temperature and high-pressure models, ensures lasting performance under extreme conditions.

The unique friction clutch mechanism protects internal components by preventing damage if the paddle encounters sudden resistance, while rotation failure monitoring alerts operators if the paddle stops unexpectedly.

Additionally, its optional fail-safe feature ensures that any fault or power loss triggers an alert, providing extra reliability in critical operations.

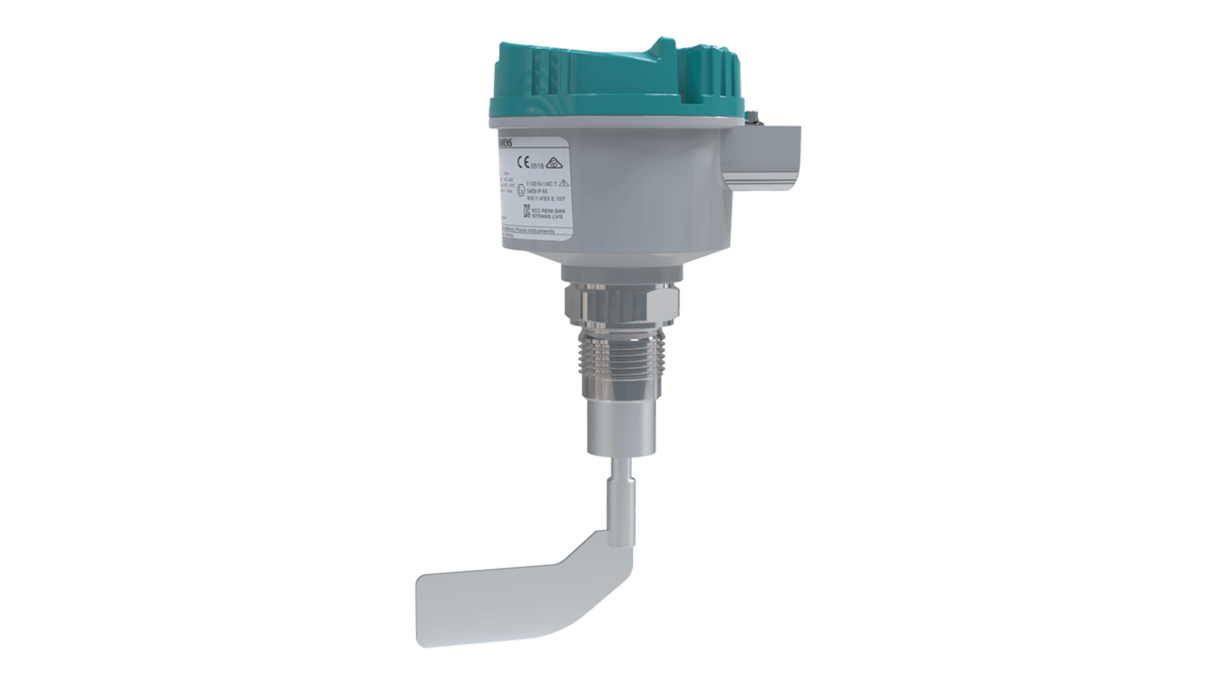

Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 16 9

Key Features of the Pointek LPS200

The LPS200 has several benefits, some of which we have listed for you below:

  • Reliable Paddle Switch Technology: Detects full, empty, and demand conditions in bulk solids applications.
  • High Integrity Mechanical Seal: Ensures durability and protection in harsh environments.
  • Flexible Power Options: Compatible with AC, DC, or universal power supply.
  • Friction Clutch Mechanism: Prevents damage to internal components by slipping when the paddle encounters sudden resistance.
  • Fail-Safe Function: Optional feature for fault condition or component failure alerts.
  • Rotatable Enclosure: Simplifies wiring and installation, allowing for flexible orientation.
  • Versatile Vane Options: Includes standard, hinged, and rectangular vanes for detecting various bulk densities, down to 15 g/l (0.9 lb/ft³).
  • Extended Configurations: Available in compact, rigid, angled, and cable extension setups to suit different application needs.
  • High Temperature and High-Pressure Models: Suitable for extreme operating environments.
  • Optional Extension Kit: Adds flexibility to the compact version for specific installation requirements.

Exactly what you need? Contact us now!

Versatile Applications for Pointek LPS200

The SITRANS LPS200 paddle switch offers versatile applications across the bulk solids industry, excelling in point level detection for materials like grain, feed, cement, plastic granulate, and wood chips. Its ability to detect full, empty, or demand conditions makes it ideal for monitoring material flow and storage in bins, silos, and hoppers. The LPS200 is also designed to handle a wide range of bulk densities—down to 15.06 g/l with an optional rectangular vane or 100 g/l with the standard vane—allowing it to perform reliably with both heavy and lightweight materials. With a robust, rugged design and adjustable sensitivity, the LPS200 ensures dependable operation even in challenging environments and can be configured with various vane types to optimize detection accuracy.

Key Applications:

  • Marine applications
  • Grain and feed storage
  • Cement and aggregate processing
  • Plastic granulate handling
  • Wood chip and biomass storage
  • Bulk solids in bins, silos, and hoppers.

Need more information? Contact us here

169 Marineforsidebillede

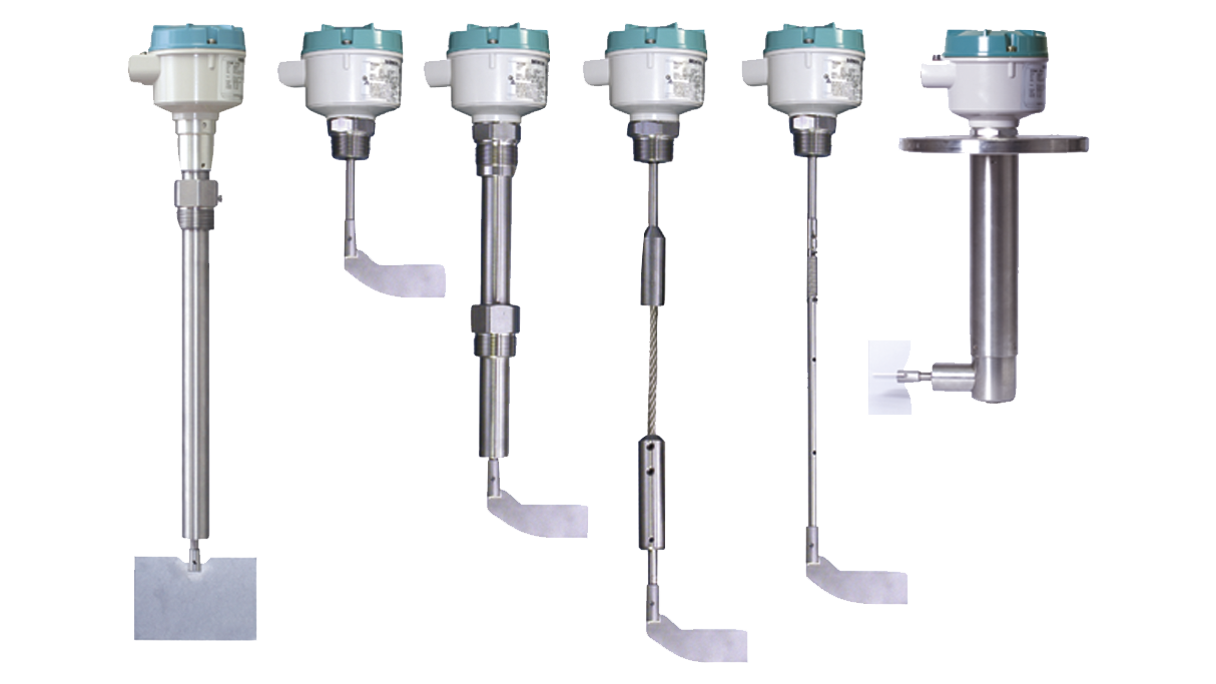

Which SITRANS LPS200 Configuration is Right for Your Needs?

The SITRANS LPS200 offers multiple configurations to handle a wide range of bulk material applications. Choose the right setup for your industry:

Standard LPS200

  • Application: Asphalt, paving, and general bulk solid detection
  • Key Features: Durable design, rotation monitoring with stop alarms, optional SIL configurations for added safety.

LPS200 with Rigid Horizontal Extension

  • Application: Clinker storage silos and high-temperature demand detection
  • Temperature Range: Up to 350°C (662°F)
  • Installation: Horizontal, ideal for high-level detection in storage silos.

LPS200 with Rigid Vertical Extension

  • Application: Power industry and biomass storage (e.g., sawdust)
  • Temperature Range: Handles temperatures up to 600°C (1112°F)
  • Installation: Vertical, suited for vertically oriented storage tanks.

LPS200 with Angled Extension

  • Application: Challenging bulk materials with heavy buildup (e.g., carbon black)
  • Key Feature: Angled extension allows continuous rotation in demanding, high-buildup conditions
  • Purpose: Low-level and demand detection.

With these configurations, the SITRANS LPS200 adapts to different environments, temperatures, and material characteristics, allowing you to choose the best option for your specific needs.

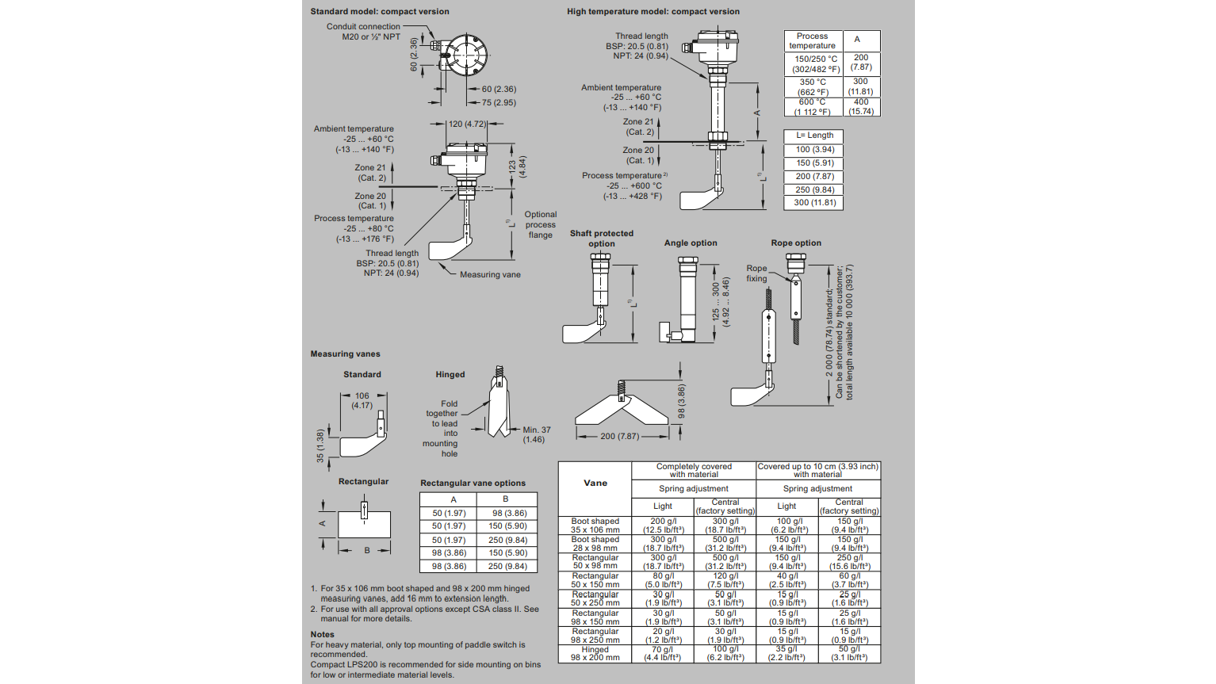

LPS200 Dimensions Siemens 1024 16X9

Easy Customization and Low Maintenance

Designed with flexibility and simplicity in mind, the LPS200 offers versatile installation options and minimal maintenance requirements. The device features a rotatable enclosure for convenient wiring and setup, along with universal power supply options for adaptability across various systems. With optional vane configurations, the LPS200 can handle bulk densities as low as 15 g/l, ensuring accuracy for both heavy and light materials.

Its low-maintenance design means the device requires no upkeep under normal conditions, though the paddle may be easily cleaned if buildup occurs, making it a user-friendly solution for operators looking for dependable, hassle-free material detection.

Contact us now and let's talk price!

Hassle-Free Maintenance for Reliable Operation

The SITRANS LPS200 is designed to be low-maintenance, with no regular upkeep needed under typical operating conditions. In cases where severe conditions lead to material buildup on the measuring vane, occasional cleaning may be required. To clean, gently brush off any accumulated deposits, ensuring the vane remains straight and undamaged. Any repairs or modifications to the device must be conducted by qualified personnel, adhering to relevant safety standards. It’s essential that only Siemens-approved replacement parts are used, and faulty components should be replaced, not reused, to ensure continued reliability and performance.

Need our help? Contact us here!

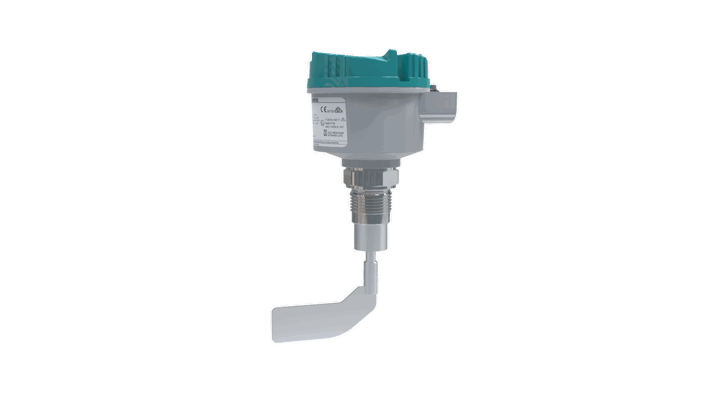

Rotary Paddle Point Level Measurement State Of The Art
Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 7ML5725 7ML5726 7ML5727 7ML5728 7ML5730 16 9
Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 16 9
LPS200 Dimensions Siemens 1024 16X9
Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 7ML5725 7ML5726 7ML5727 7ML5728 7ML5730 16 9
Insatech Siemens SITRANS LPS200 Rotary Paddle Switch 16 9
LPS200 Dimensions Siemens 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

up to 10 m

Process temperature

-25...+600 °C

Process pressure

up to 10 bar

Output

Relay SPDT or DPDT

Protection rating

Type 4 / NEMA 4 / IP65

Ambient temperature

-25...+60 °C

Materials, wetted parts

Stainless steel or aluminum

Materials, housing

Epoxy-coated aluminum

Process connections

Thread, flange, and tri-clamp

See the datasheet for more information

Approvals
  • ATEX
  • SIL 2
  • FDA 1935/2004/EC

Specifications & Manuals

  • Manual - Siemens SITRANS LPS200 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS LPS200 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf
