VEGA WEIGHTRAC 31

WEIGHTRAC 31 is used for weighing all types of materials on belts, chain conveyors, screw feeders, vibration conveyors and other conveying systems.

For sales or commercial inquiries please contact us at marine@insatech.com.

contact us now

Easy to commission and service

  • Simple mounting via the frame system.
  • Easy setting with display, PC software or HART® terminal.

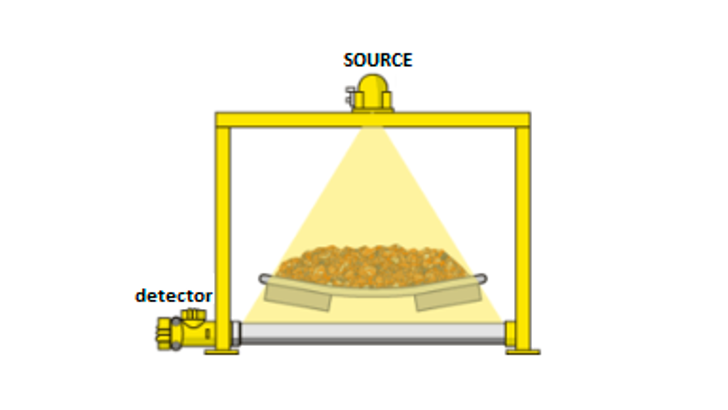

Insatech WEIGHTRAC 31 Theory

How WEIGHTRAC 31 works

Since the weighing is done without contact with the medium, wear and uplift problems are avoided. The detector captures a narrow gamma ray through the product from the source holder which contains a Cesium 137 source.

The amount of radiation detector captures is inversely proportional to the amount of material on the tape. Since the source and detector are always at the same distance from each other, the only possible change is caused by the amount of material on the tape. A little material band allows more radiation to pass to the detector. A band of more material allows less radiation to pass to the detector.

Retro-installation on existing plants

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Version

PVT rod detector

Measuring range

500 ... 1600 mm

Process temperature

-40 ... 60 °C

Accuracy

1 %

Output
  • Profibus PA
  • Foundation Fieldbus
  • 4 … 20 mA/HART - four-wire
Protection rating

IP66/IP67

Ambient temperature

-40 ... 60 °C

Specifications & Manuals

  • Manual - WEIGHTRAC 31 - 4...20 mA HART four-wire
    English | pdf
  • Technical Specifications - WEIGHTRAC 31 - 4...20 mA HART four-wire
    English | pdf
  • Brochure VEGA ProTrac Radiation-based process instrumentation
    English | pdf
