VEGAMINITRAC 31

MINITRAC 31 is a radiometric system that uses gamma energy, ideal for density measurement or level indication.

For use in the refining, chemical, food, soap and cleaning products, and the pulp and paper industry.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

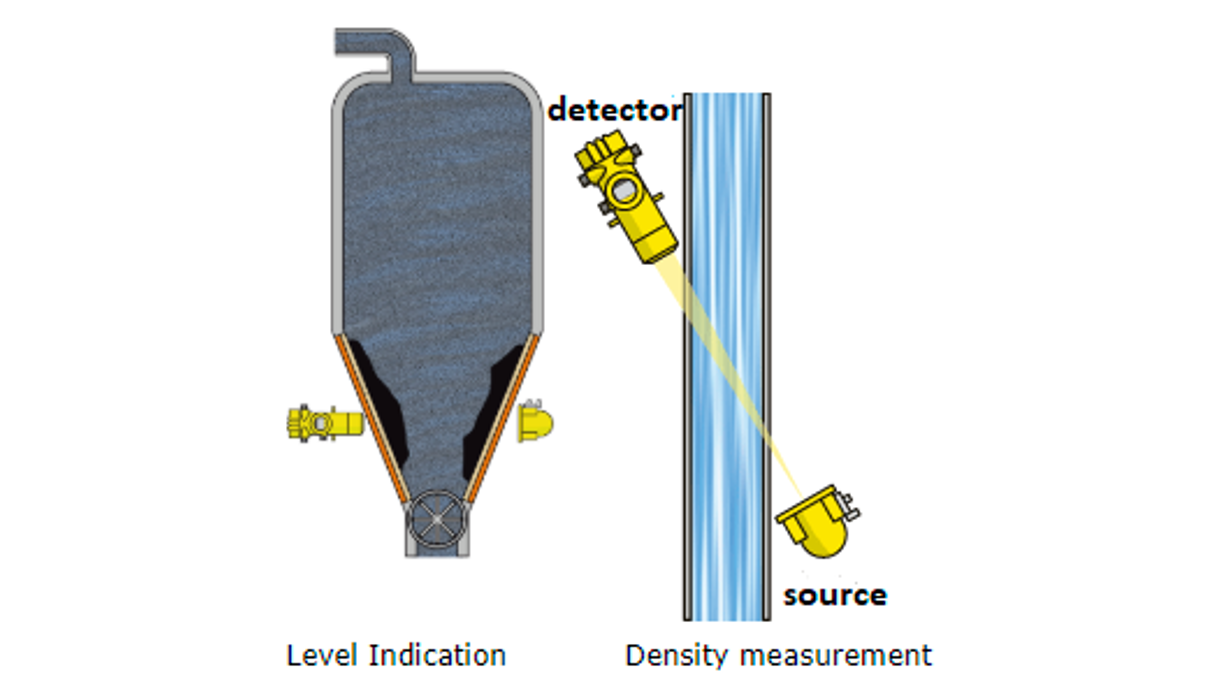

How it works

The energy is not absorbed or in any way affects the media being measured.

The radiometric system works by directing an energy of radioactivity through the sterilizer to a detector.

As the level rises, this will shield the detector from the energy. The detector will then sound an alarm.

Features

  • Touchless density measurement or as a level indicator
  • Adjustment with PLICSCOM and PC
  • Compact, modular plics © design

Easy to commission and service

  • Can be mounted and adjusted without filling or emptying the container.
  • Easy setting with display, PC software or HART® terminal.

Calibration of the system is done easily and simply using Pactware or a PLICSCOM. It is free to choose whether to use the system for high alarm, low alarm or density. In addition, an automatic calibration or a manual calibration can be performed. By automatic calibration, the reaction time is determined by the detector. By manual calibration you can determine the reaction time yourself

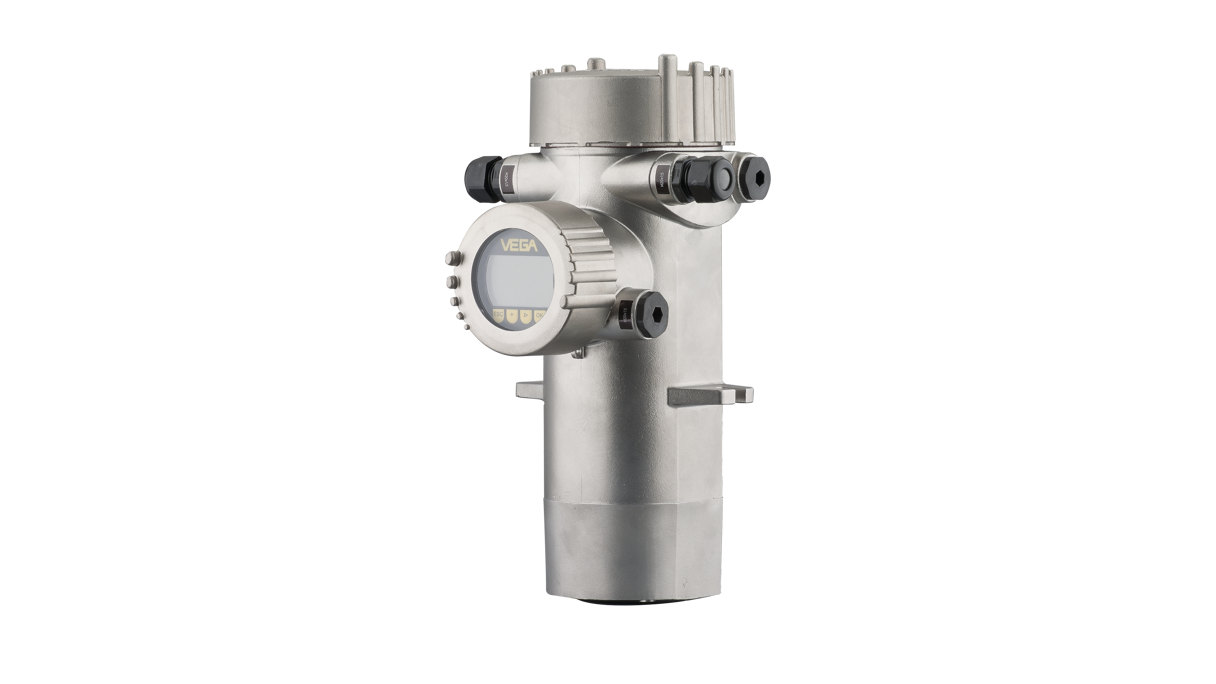

Insatech VEGAMINITRAC 31 5

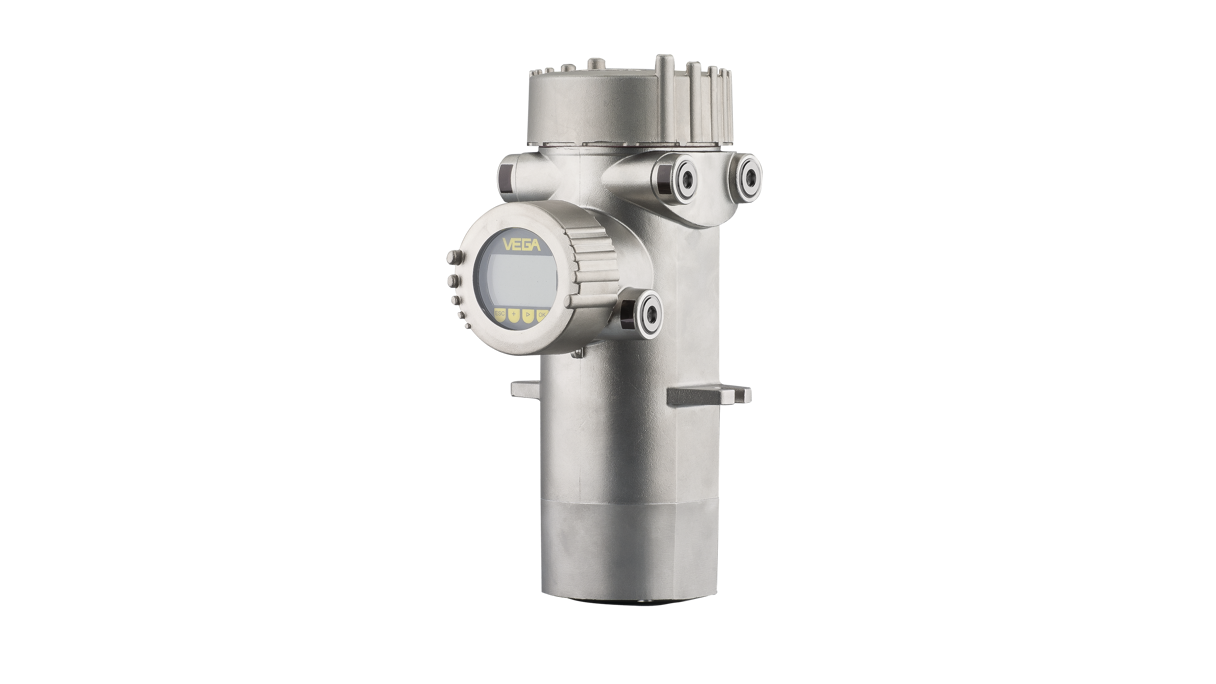

Insatech VEGAMINITRAC 31 6
Insatech VEGAMINITRAC 31 Theory

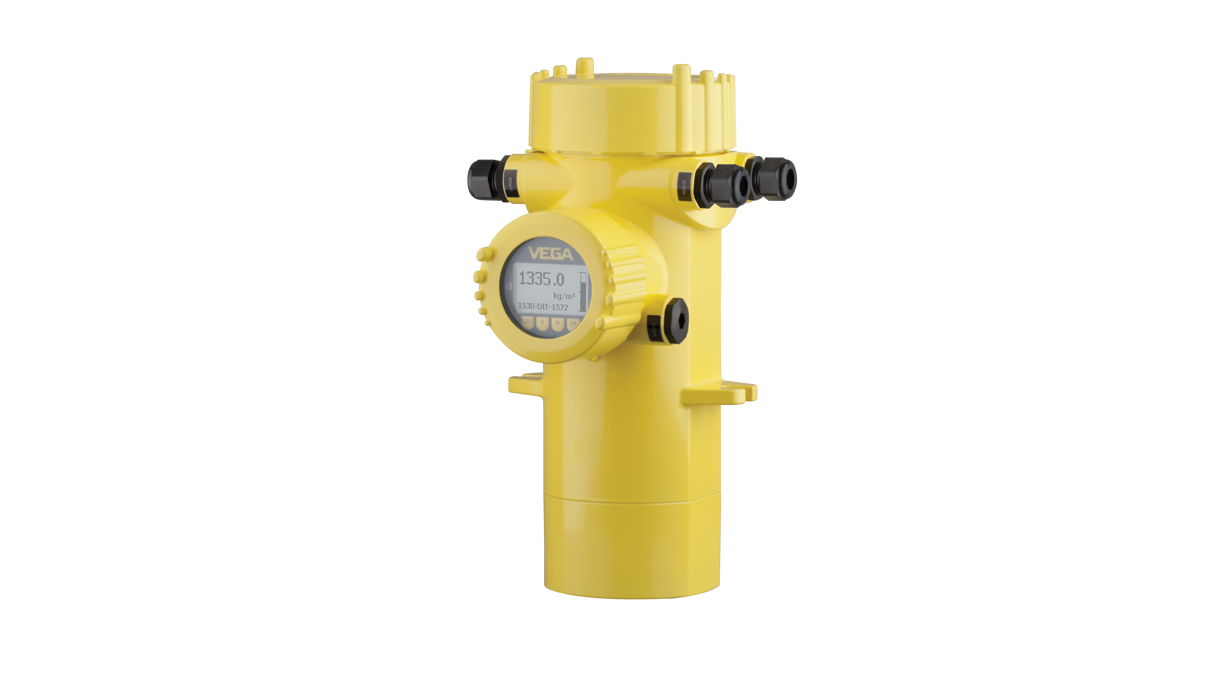

Insatech VEGAMINITRAC 31 1

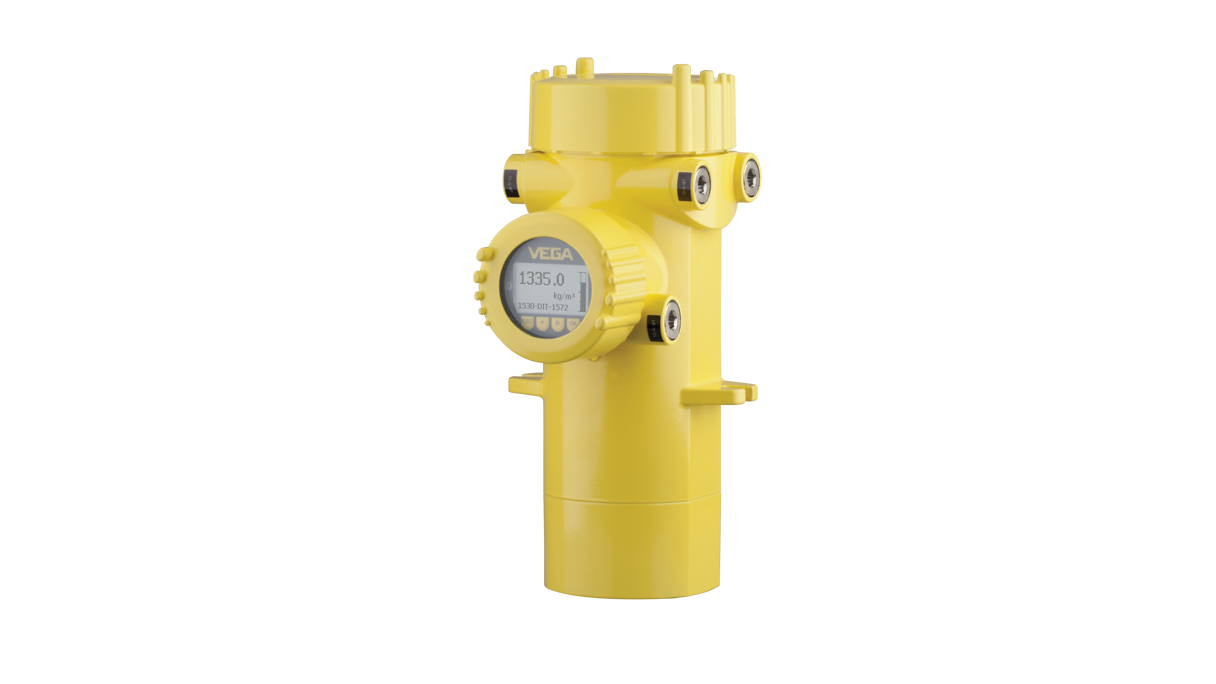

Insatech VEGAMINITRAC 31 3
Insatech VEGAMINITRAC 31 5
Insatech VEGAMINITRAC 31 6
Insatech VEGAMINITRAC 31 Theory
Insatech VEGAMINITRAC 31 1
Insatech VEGAMINITRAC 31 3
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical data
Process temperature

-40 ... 60 °C

Accuracy

0.1 %

Output
  • Profibus PA
  • Foundation Fieldbus
  • 4 … 20 mA/HART - four-wire
Degree of protection

IP66/IP67

Ambient temperature

-40 ... 60 °C

Specifications & Manuals

  • VEGA MINITRAC 31 manual - 4...20 mA HART four-wire
    English | pdf
  • Technical Specifications - MINITRAC 31 - 4...20 mA HART four-wire
    English | pdf
  • Brochure - VEGA - ProTrac Radiation-based process instrumentation
    English | pdf
