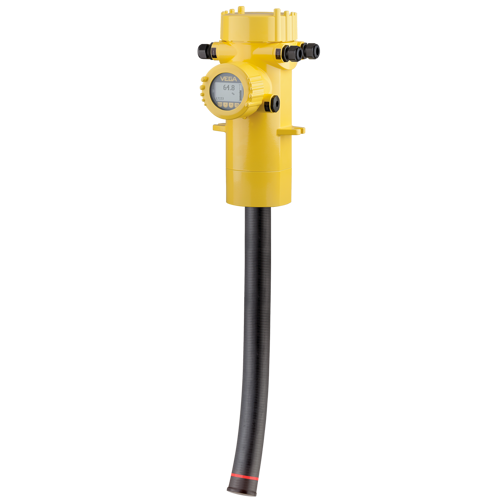

VEGA FIBERTRAC 31 Radiometric instrument

FIBERTRAC 31 is a flexible detector for continuous level and interface measurements on round and tapered containers. It is suitable for liquids, solids and sludge etc.

Radiometric measurements are used in cases where other "traditional" methods must give up the conditions they are faced with. It can be pressure, temperature, corrosive or toxic media, abrasive media, etc.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

How the FIBERTRAC work

The FIBERTRAC 31 detector is made up of specially developed fiber optic scintillator cables. The detector works by hitting the fiber optic scintillator cables with gamma energy which converts the energy into light pulses. The light pulses are received by an amplifier. The amplifier then converts the light pulses into an electrical signal.

A radiometric level meter is basically made up of two main components:

• a source holder with source that mounted on one side of a container

• a detector mounted on it opposite side of the container

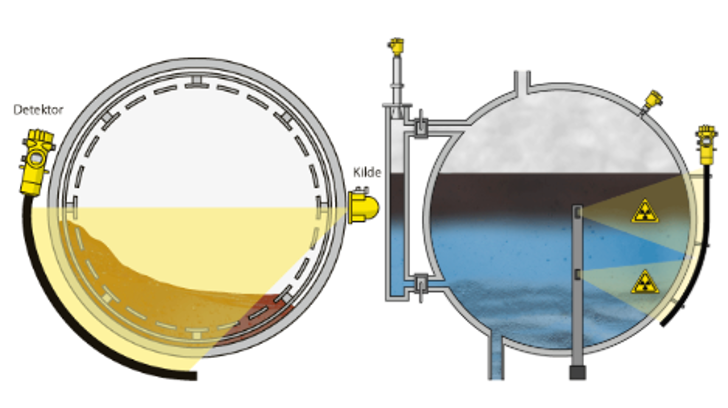

Illustation of FIBERTRAC 31 in action on a container
An example of a level measurement - source with 45 ° Display angle and a FIBERTRAC detector.

FIBERTRAC 31 is ideal for use in the Chemical, Petrochemical, Offshore, Refining, Energy, Steel, Food and Pulp and Paper industries.

And can be used on:

  • Horizontal cylindrical containers
  • Non-linear containers
  • Containers with external obstructions
  • High containers

Properties

The detector is available in lengths up to 7 meters due to the flexible construction, which also allows a bending radius of up to 30 cm. This includes helping to keep transport costs down. The detector is easy and simple to install due to its low weight. This means that cranes and other lifting gear are not necessary when installing the detector. At the same time, the attachment of the detector to the container or other mounting stands need not be carried out in the same robust manner as it is to be done for a traditional rod detector.

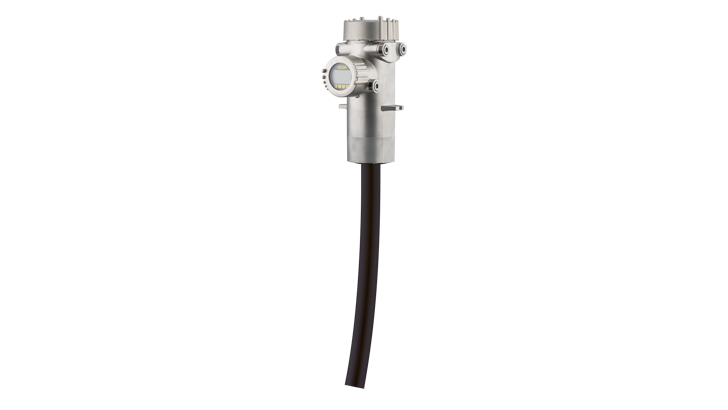

Insatech VEGAFIBERTRAC 31 3

Easy to commission and service

  • Can be mounted and adjusted without filling or emptying the container.
  • Easy setting with display, PC software or HART® terminal.
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical data
Measuring range

7 m

Accuracy

± 0.5 %

Output
  • Profibus PA
  • Foundation Fieldbus
  • 4 … 20 mA/HART - four-wire
Degree of protection

IP66/IP67

Ambient temperature

-20 ... 50 °C
