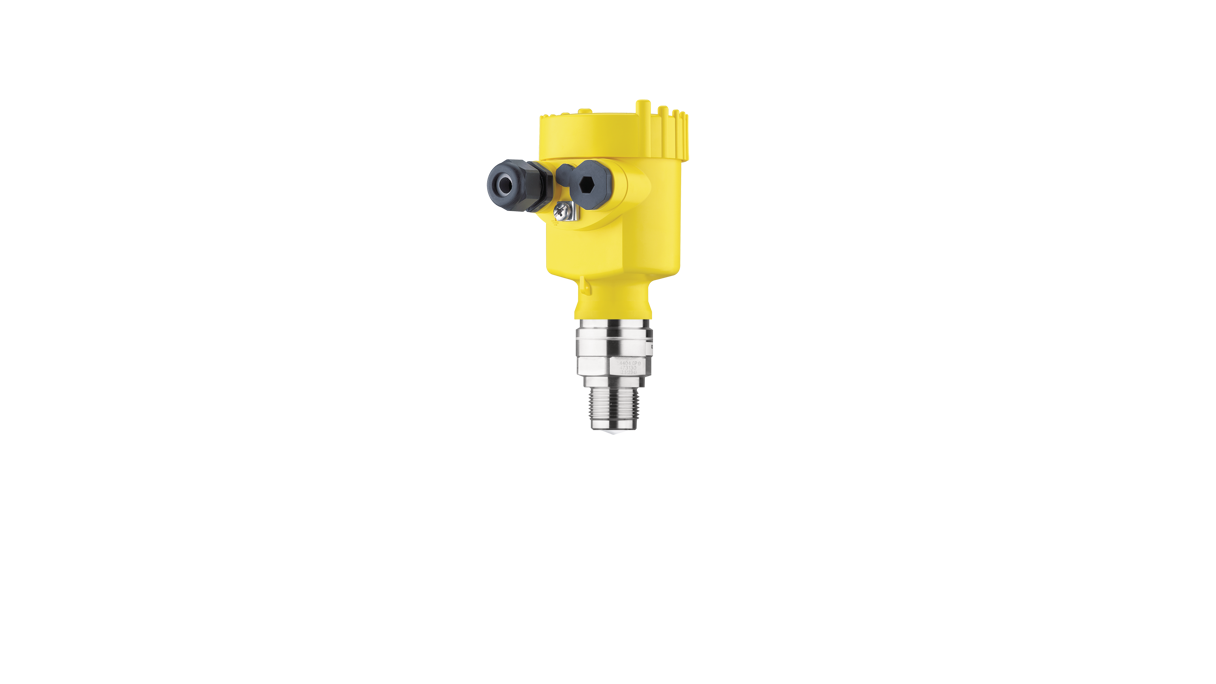

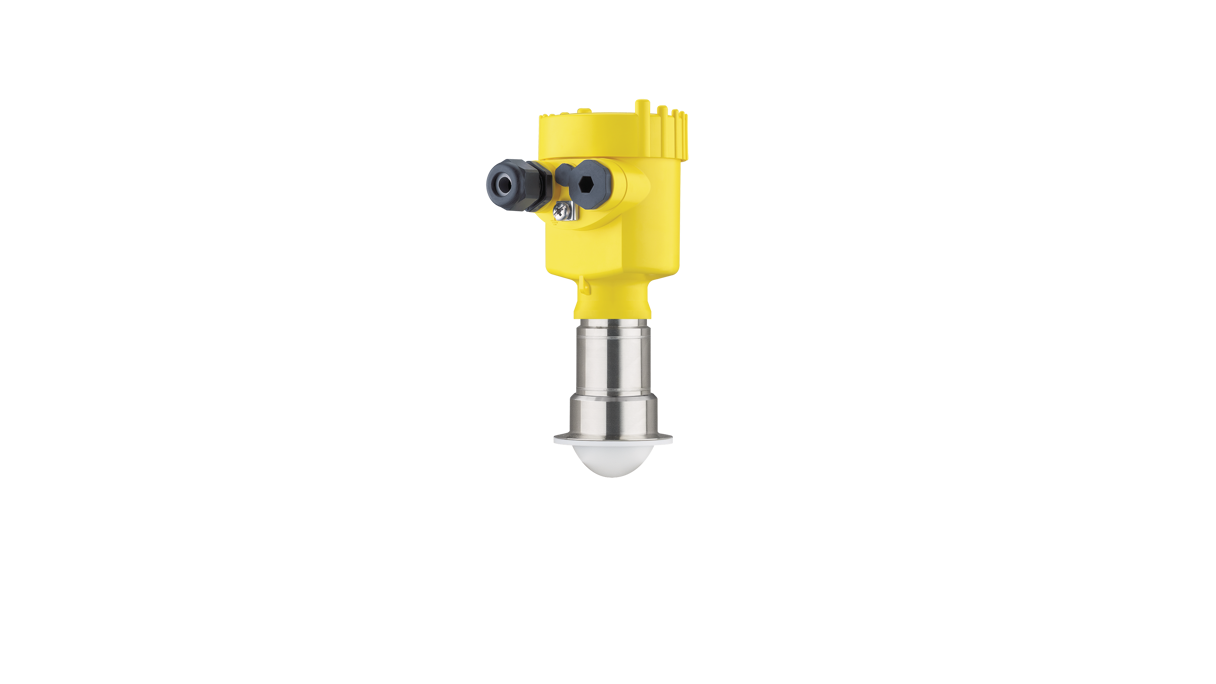

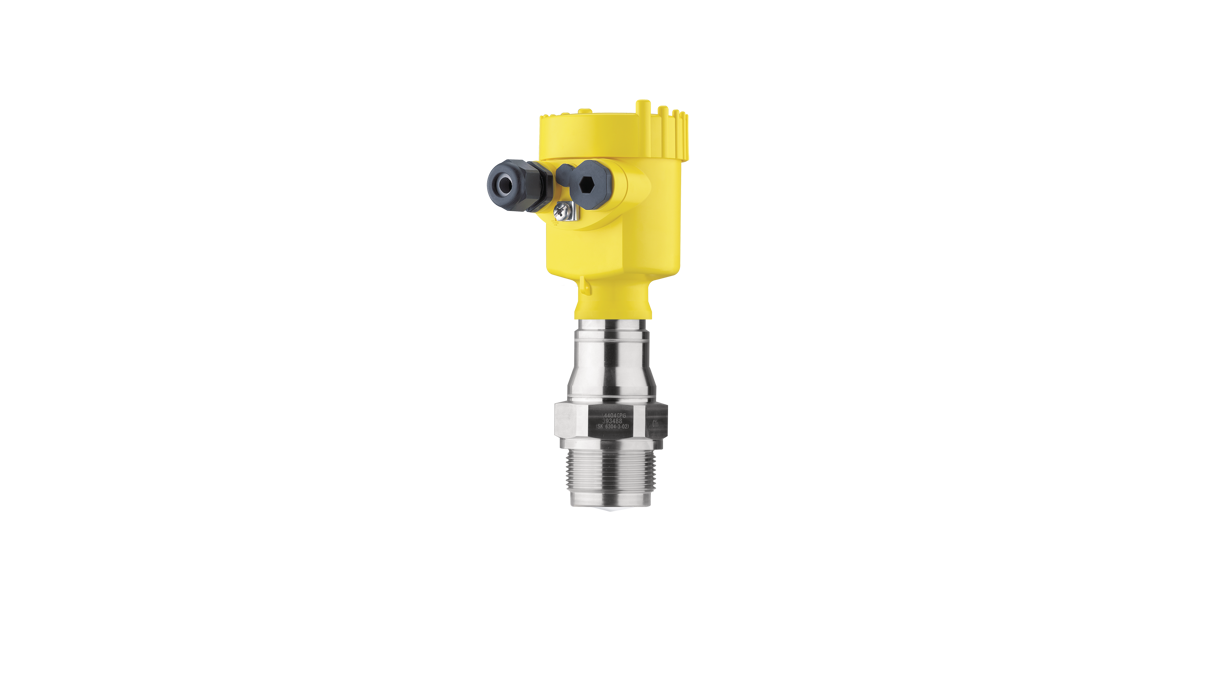

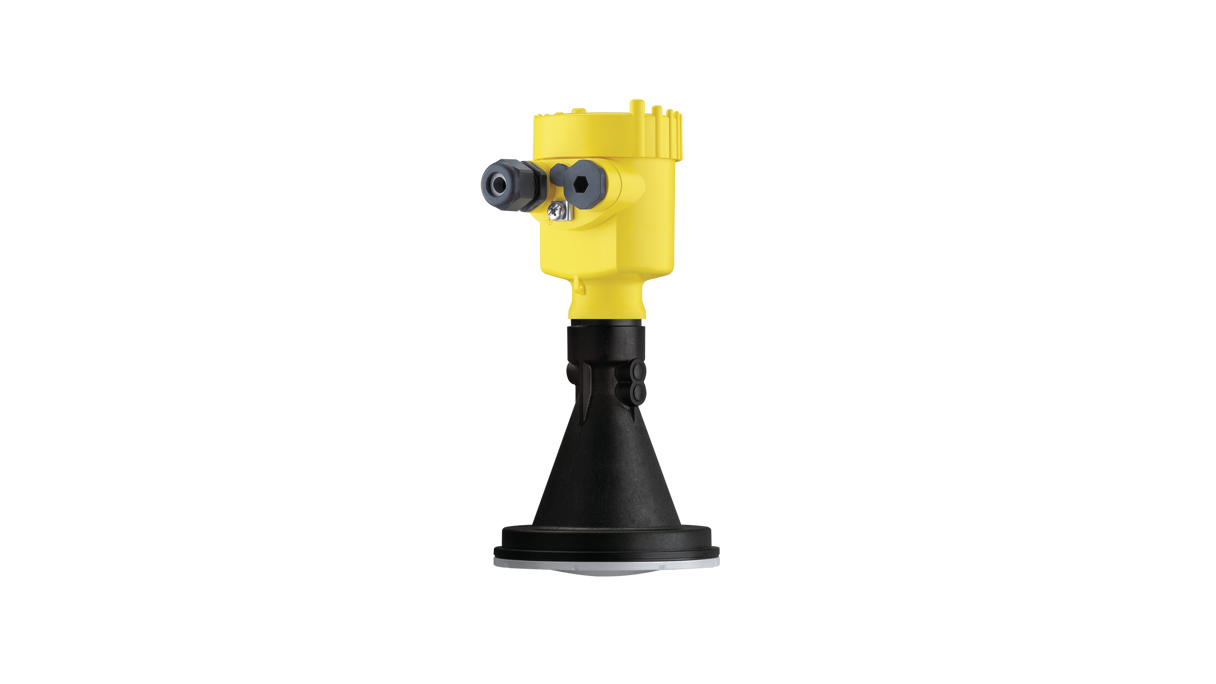

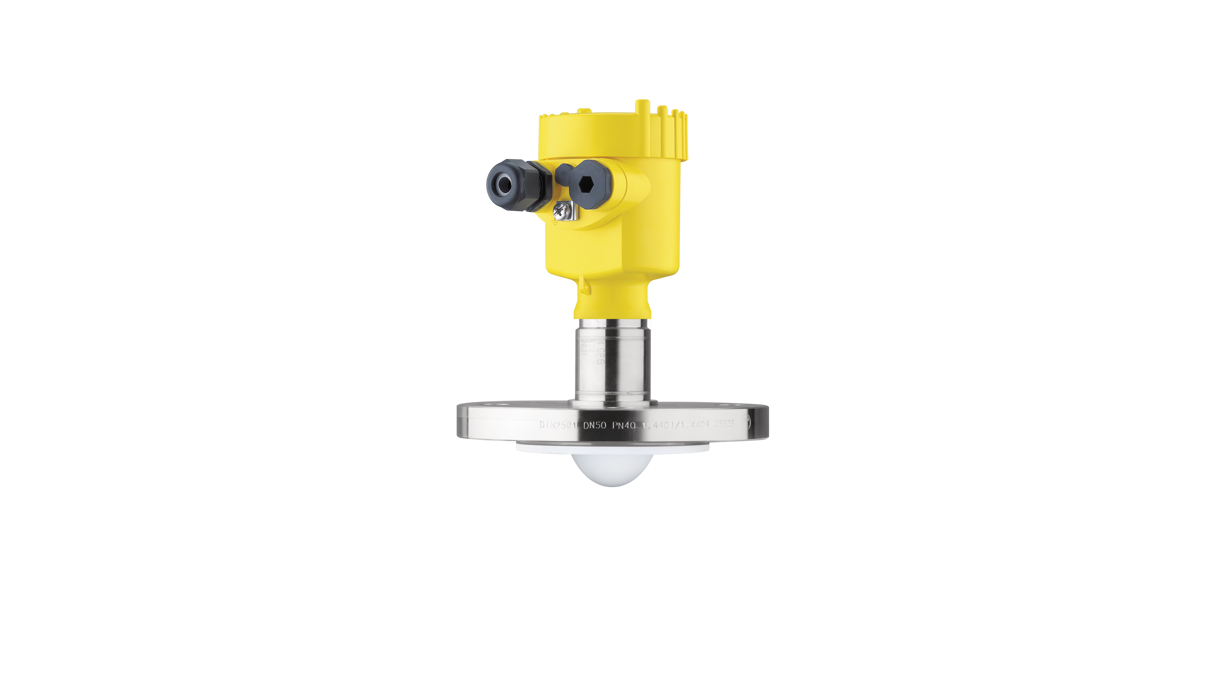

80 GHz for continuous level measurement of fluid.
Measuring range up to 30m.
For sales or commercial inquiries please contact us at marine@insatech.com.
80 GHz for continuous level measurement of fluid.
Measuring range up to 30m.
For sales or commercial inquiries please contact us at marine@insatech.com.
Technical Specifications | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Measuring range - Distance | 30 m |
||||||||||||||||||
Process temperature | -196 ... 200 °C |
||||||||||||||||||
Process pressure | -1 ... 25 bar |
||||||||||||||||||
Accuracy | ± 1 mm |
||||||||||||||||||
Frequency | 80 GHz |
||||||||||||||||||
Beam angle | ≥ 3° |
||||||||||||||||||
Output | 4 … 20 mA/HART - two wire |
||||||||||||||||||
Protection rating |
|
||||||||||||||||||
Ambient temperature | -40 ... 80 °C |
Materials, wetted parts |
|
---|---|
Seal material |
|
Housing material |
|
Threaded connection |
|
---|---|
Flange connection |
|
Hygenic fittings |
|
Scope |
|
---|---|
Explosion protection |
|
Foodstuffs/Pharma |
|
Ship approval |
|
Overfill protection |
|
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
