VEGAPULS 62

Touchless radar level measurement with horn antenna or fixed ½ ”standpipe. Used for continuous level measurement of fluids in containers and tanks.

Measuring range up to 30 m and process temperature between -200 ... + 450 ° C.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Accurate level measurement

  • Used for liquids in all industries. (DC value> 2)
  • Accuracy ± 2 mm.
  • Level measurement of fluids under difficult process conditions.
  • Measurement is unaffected by process pressure, temperature and gases.
  • All types of storage and process tanks as well as fiberglass and plastic containers.

Suitable for measuring under difficult conditions

  • Low impact on the accuracy of temperature variations or high pressure / vacuum.
  • Independent of varying gas concentrations and different gases.
  • Unaffected by noise and strong air turbulence.
  • Microwaves are not dampened by dust or vapor particles.
  • Can be mounted outside on plastic containers and measured through the tank top
  • Antennas and media-affected parts are made of highly resistant materials such as 316L, 1.4848, Hastelloy C22, etc.

Easy to commission and service

  • Can be mounted and adjusted without having to fill or empty the container.
  • Easy setting with display, PC software or HART® terminal.

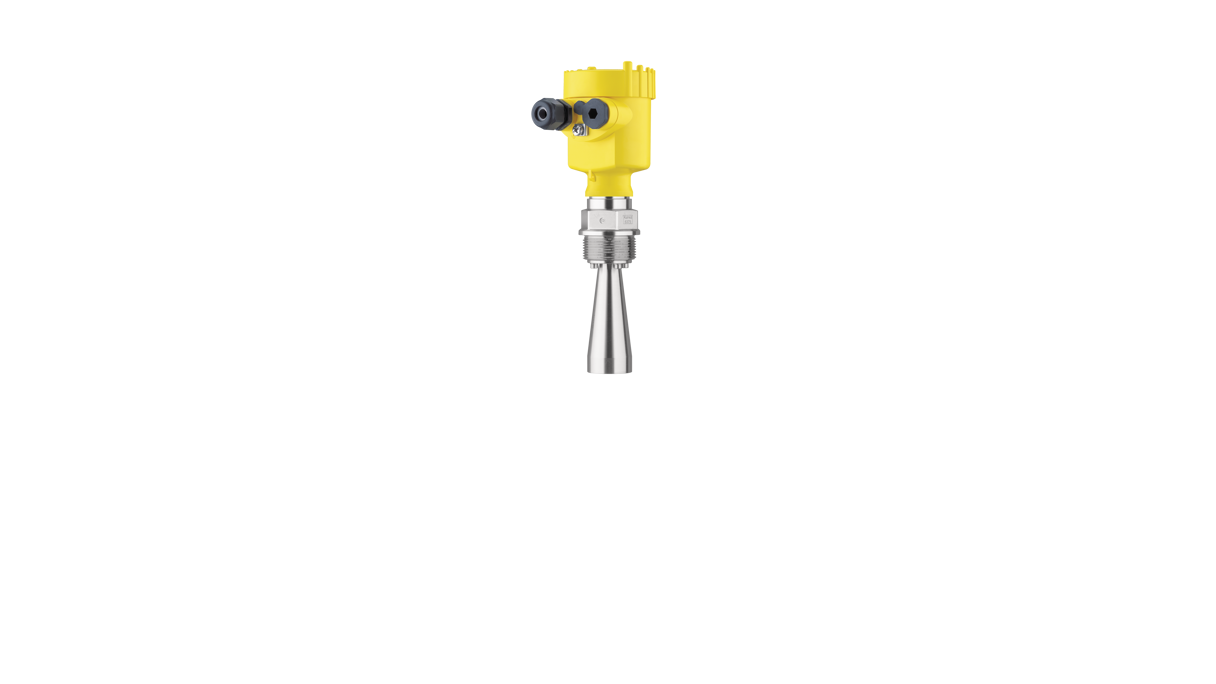

Insatech VEGAPULS 62 1

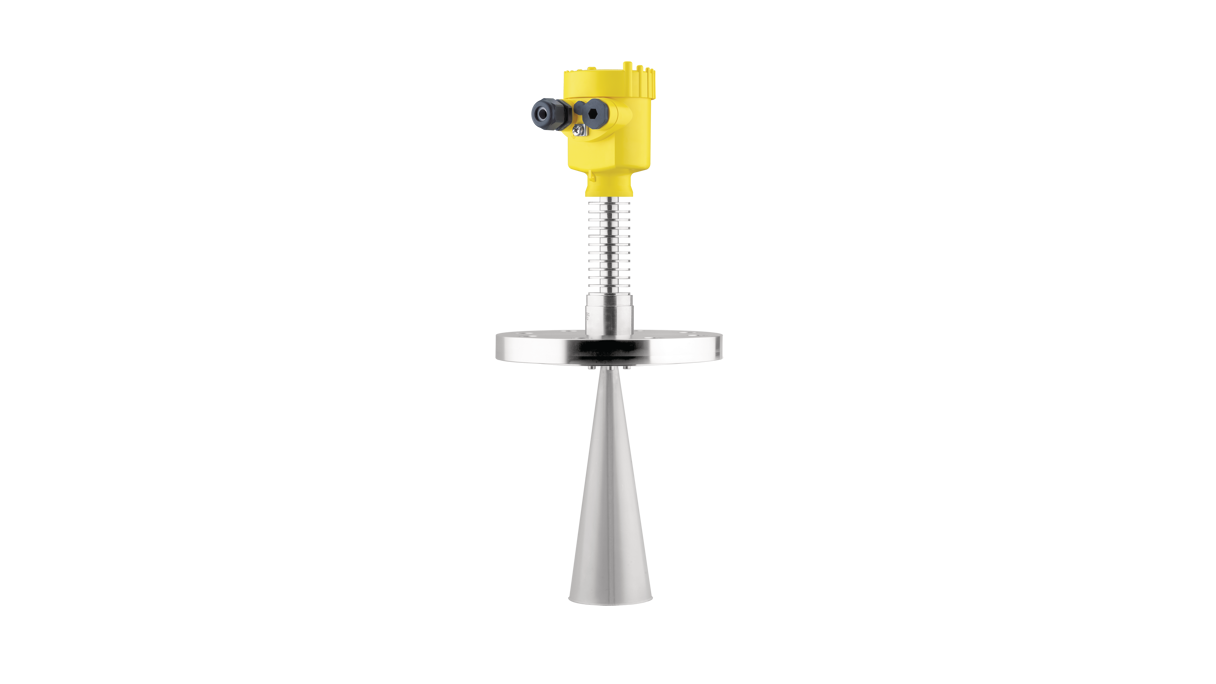

Insatech VEGAPULS 62 2

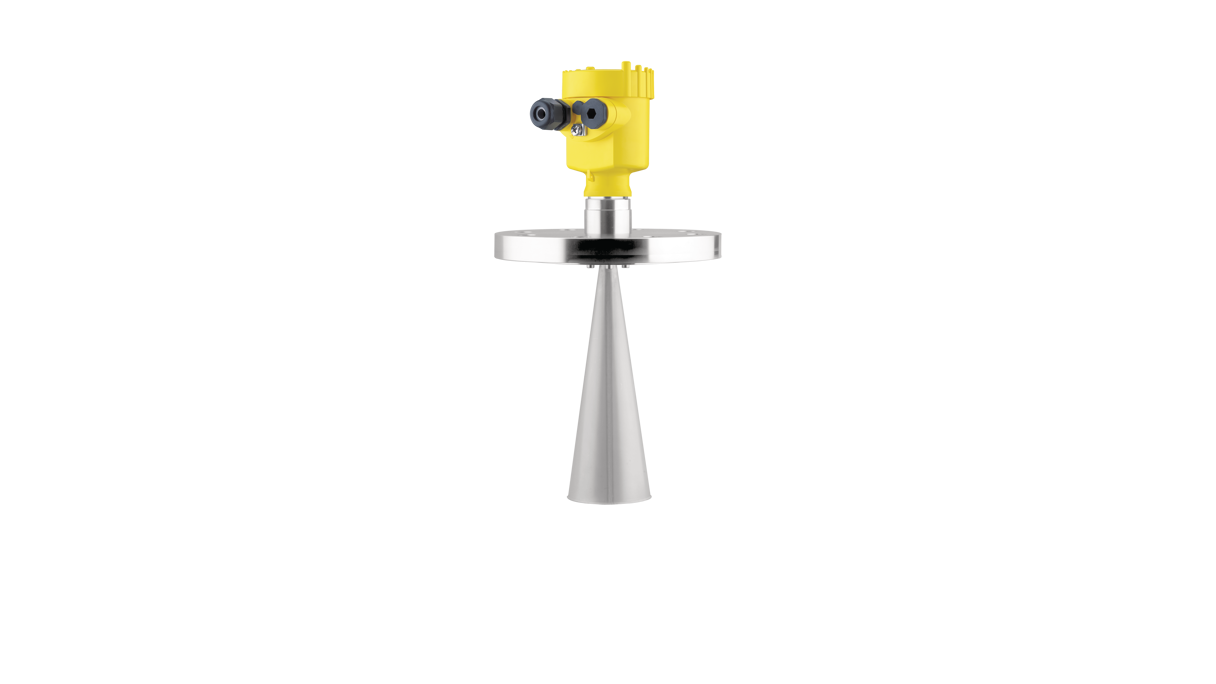

Insatech VEGAPULS 62 3
Insatech VEGAPULS 62 4

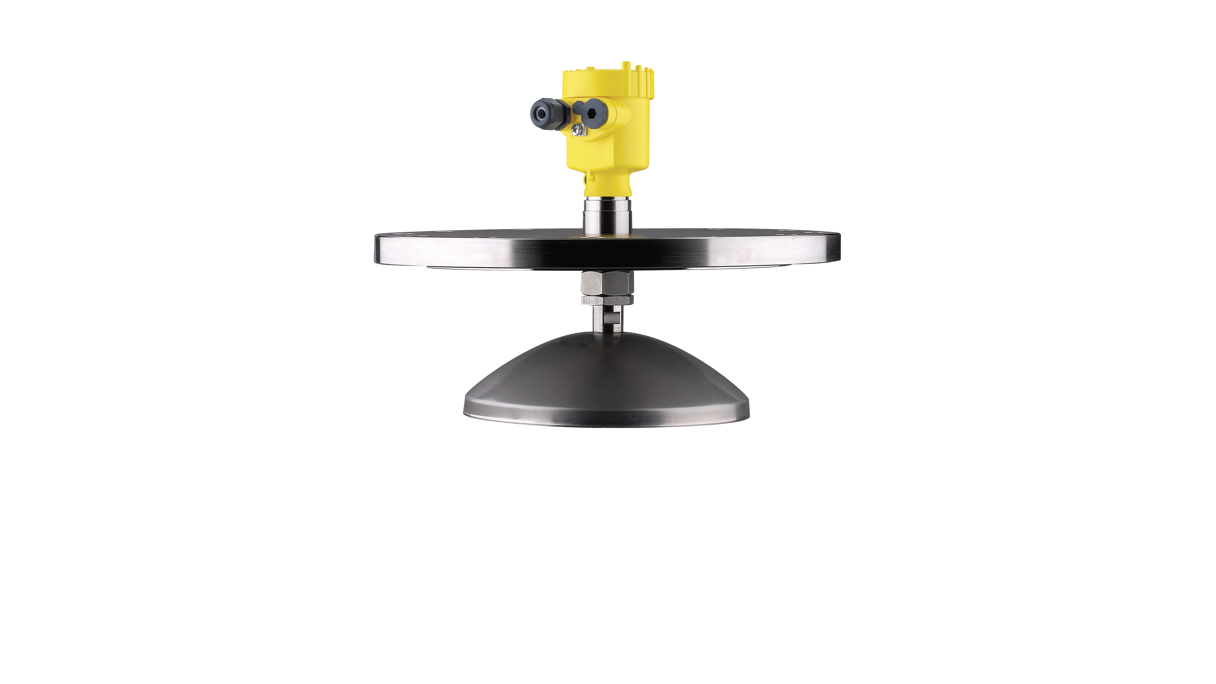

Insatech VEGAPULS 62 5
Insatech VEGAPULS 62 6
Insatech VEGAPULS 62 1
Insatech VEGAPULS 62 2
Insatech VEGAPULS 62 3
Insatech VEGAPULS 62 4
Insatech VEGAPULS 62 5
Insatech VEGAPULS 62 6
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

35 m
Process temperature

-196...450 °C
Process pressure

-1...160 bar
Accuracy

± 2 mm
Frequency

26 GHz
Beam angle

≥ 3°
Output
  • 4 … 20 mA/HART - four wire
  • 4 … 20 mA/HART - two wire
  • Modbus
  • Foundation Fieldbus
  • Profibus PA
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • Manual - VEGAPULS 62 - 4...20 mA HART two-wire
    English | pdf
  • Specification sheet - VEGAPULS 62 - 4...20 mA HART two-wire
    English | pdf
  • Product Information VEGAPULS 61, 62, 63, 64, 65, 66
    English | pdf
