Touchless radar level measurement with encapsulated antenna system. Used for continuous level measurement of fluids in containers and tanks.
Measuring range up to 35 m.
For sales or commercial inquiries please contact us at marine@insatech.com.

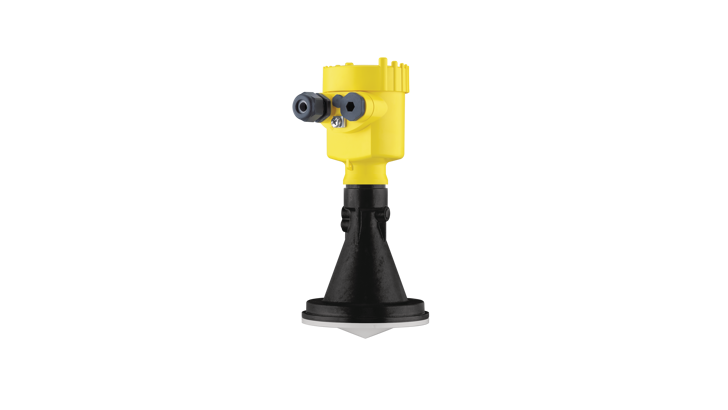

VEGAPULS 61
Accurate level measurement
- Level measurement of water, wastewater and aggressive liquids (DC value> 2).
- Accuracy ± 2 mm.
- Measurement is unaffected by process pressure, temperature and gases.
- Used for liquids in all industries.
- All types of storage and process tanks as well as fiberglass and plastic containers.
Suitable for measuring under difficult conditions
- Low impact on the accuracy of temperature variations or high pressure / vacuum.
- Independent of varying gas concentrations and different gases.
- Unaffected by noise and strong air turbulence.
- Microwaves are not dampened by dust or vapor particles.
- Can be mounted outside on plastic containers and measured through the tank top
- Media-affected parts are made in PP and process gasket in FPM material.
Easy to commission and service.
- Can be mounted and adjusted without having to fill or empty the container.
- Easy setting with display, PC software or HART® terminal.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Distance | 35 m |
||||||||||||||||||
| Process temperature | -40 ... 80 °C |
||||||||||||||||||
| Process pressure | -1 ... 3 bar |
||||||||||||||||||
| Accuracy | ± 2 mm |
||||||||||||||||||
| Frequency | 26 GHz |
||||||||||||||||||
| Beam angle | ≥ 10° |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
Material
| Materials, wetted parts |
|
|---|---|
| Housing material |
|
Connections
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Hygenic fittings |
|
Approvals
| Scope |
|
|---|---|
| Explosion protection |
|
| Ship approval |
|
| Overfill protection | WHG |
| SIL qualification | SIL2 |
Specifications & Manuals
-
VEGAPULS 61 manual - 4...20 mA HART two-wire
English | pdf -
Specification sheet - VEGAPULS 61 - 4...20 mA HART two-wire
English | pdf -
Product Information VEGAPULS 61, 62, 63, 64, 65, 66
English | pdf
