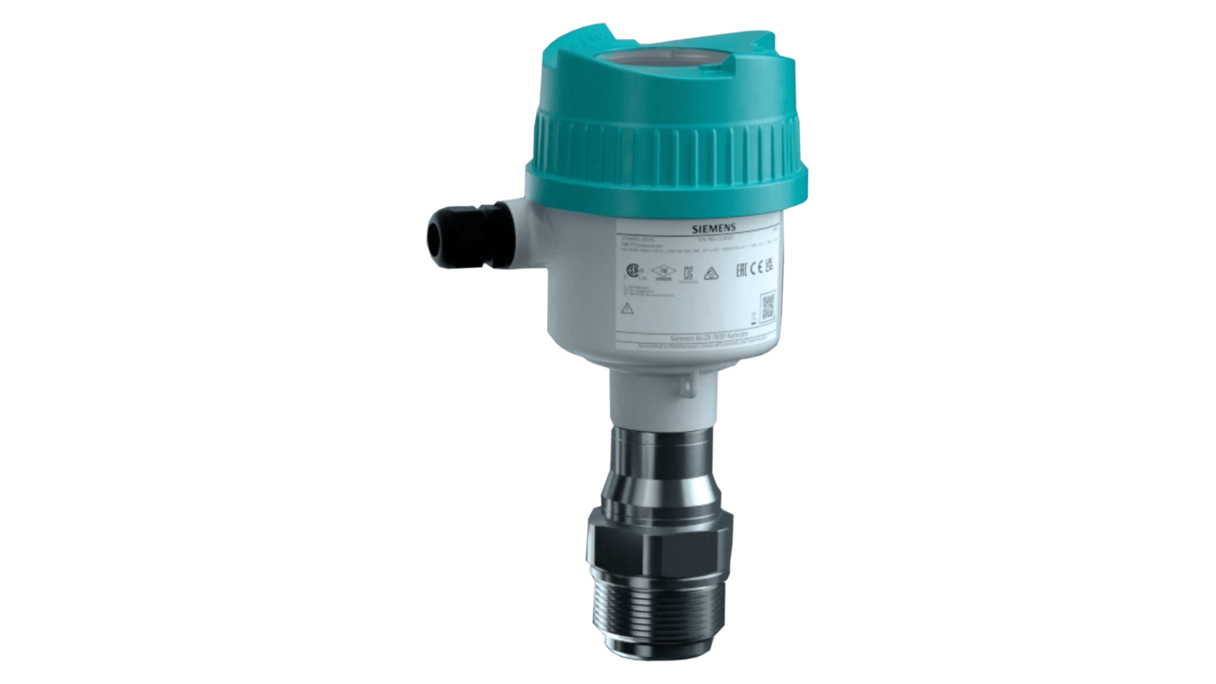

Siemens SITRANS LR510 radar level transmitter

Key Features of the SITRANS LR510

The LR510 has several benefits, some of which we have listed for you below:

• Threaded Lens Antenna: Simplifies installation in small or challenging mounting spaces

• Wide Temperature Range: Operates between -40°C to 250°C (-40°F to 482°F), ideal for extreme environments

• Pressure Tolerance: Handles pressures up to 40 bar, depending on temperature

• Corrosion Resistance: Suitable for monitoring corrosive liquids and slurries

• High Accuracy: 1 mm precision for enhanced inventory management, process control, and quality assurance.
• Fast Response: Capable of up to 3 measurements per second for dynamic process needs.
• Long Range: Measures distances up to 120 m.
• Advanced Diagnostics Support: Logs up to 100,000 points of variables data for detailed monitoring.
• Custom Radar Microchip Technology: Provides extreme sensitivity to measure a wide range of solid or liquid materials and ensures compliance with local radio frequency regulations.
• Advanced Signal Processing: Features Near Range Suppression for optimized Plug & Play performance.
• Wider Process Compatibility: Suitable for extreme conditions like high temperatures, vacuums, or high pressure environments.
• Variety of Process Connections: Offers flexible options, from small ¾" threaded to 8" size flange connections.
• Intuitive Quick Start Wizard: Simplifies setup, enabling fast and easy operation.

Exactly what you need? Contact us now!

What is Your Application?

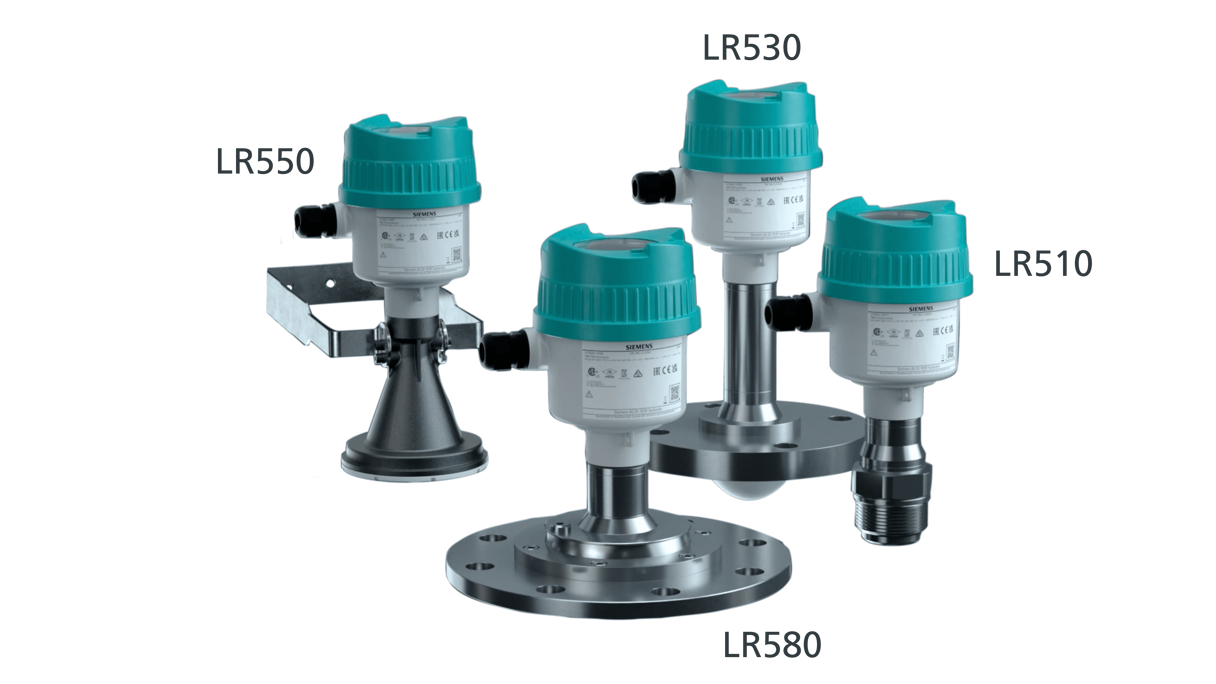

The SITRANS LR500 series offers a versatile level measurement solution that caters to both liquids and solids in a wide range of applications.

For liquids, it can handle everything from:

• Acids
• Caustics
• Hydrocarbon-based liquids
• Edible oils
• Asphalt cement
• Paper pulp
• Slurries
• Molten metals
• Liquified gases.

On the solids side, it is ideal for measuring:

• Grain
• Lime
• Cement
• Sand
• Plastic pellets and powders
• Fly ash
• Sugar
• Flour
• Animal feed
• Wood pellets and powders
• Ores
• Hot mix asphalt.

These popular use cases demonstrate the extensive possibilities for level measurement.

Need more information? Contact us here

Enhance Your Operational Safety

The SITRANS LR500 series offers cutting-edge technology designed to boost safety in demanding industrial environments. With a lightning-fast update rate and reliable measurements, it helps prevent accidental overflows, ensuring seamless operation. Its non-contacting level measurement technology keeps operators out of hazardous situations by eliminating the need to access the tops of vessels.

Additionally, built-in safety features such as a Second Line of Defense seal, extreme temperature service capabilities, and hazardous area approvals ensure robust protection. The system also complies with IEC 62443-4-2 cybersecurity standards, safeguarding against digital threats.

Contact us now and let's talk price!

Boost Your Confidence with SITRANS IQ Guard

SITRANS IQ Guard ensures complete oversight of your measurement system's health and performance. The system's health status is instantly displayed on the HMI or through the SITRANS mobile IQ App, allowing for quick confirmation.

For quality assurance, SITRANS mobile IQ delivers a verification report directly to your email, supporting your QA system requirements. Device diagnostics are communicated through Namur NE107 status messages, providing clear insight into operational status.

With SITRANS IQ Guard, you can confidently rely on a robust measurement system backed by advanced diagnostics, monitoring, and verification capabilities.

Need our help? Contact us here!

SITRANS RD150 and SITRANS Level Controllers

The SITRANS RD150 not only displays readings from your HART instruments but also allows for configuration and viewing of diagnostic data. The SITRANS LT500 enhances your SITRANS LR100 series setup with advanced pump control capabilities.

Exactly what you need? Contact us now!

SITRANS AW050: Upgrade Your Transmitter with Wireless Technology

The SITRANS AW050 optional adapter enables easy integration of Bluetooth wireless technology into your SITRANS LR500 transmitters.

Need more information? Contact us here

SITRANS Mobile IQ App

SITRANS Mobile IQ is a Bluetooth-enabled app that offers an intuitive interface for fast configuration, setup, and monitoring of the SITRANS LR100 series. It is available on Android, Apple, and Windows devices.

Contact us now and let's talk price!

SIMATIC PDM (Process Device Manager)

SIMATIC PDM enables easy integration and operation of over 4,000 different field devices and automation components, providing a flexible tool for managing devices throughout your plant's entire lifecycle.
