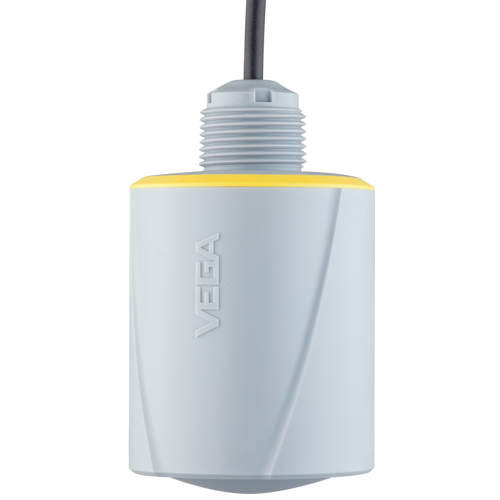

VEGAPULS C 23 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. Read more.
Measuring range up to 30 m, accuracy ±2 mm, 4 ... 20 mA,
For sales or commercial inquiries please contact us at marine@insatech.com.
The instrument measures through the closed vessel ceiling and is suitable for nearly all liquids and bulk solids. VEGAPULS Air 23 is quickly mounted by simple and reliable adhesive, ceiling or tension belt mounting. Since no additional power supply is necessary, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the vessel.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Distance | 30 m |
||||||||||||||||||
| Process temperature | -40...+80 °C |
||||||||||||||||||
| Accuracy | ± 2 mm |
||||||||||||||||||
| Frequency | 80 GHz |
||||||||||||||||||
| Beam angle | 4° |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... +80 °C |
||||||||||||||||||
| Display & adjustment | Adjustment
|
||||||||||||||||||
| Materials, wetted parts | PVDF |
|---|
| Threaded connection |
|
|---|
| Scope |
|
|---|---|
| Explosion protection |
|
| Ship approval |
|
| Overfill protection | WHG |
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
High quality and robust mounting strap made of 316L stainless steel. The adjustable sensor holder allows easy alignment of the sensors. The mounting strap is particularly suitable for VEGAPULS 11, 21, 31 and C 11, C 21, C 22, C 23 series radar sensors and VEGAPULS Air 41, but can also be used for other instruments with appropriate process fittings. The necessary mounting material for wall mounting of 316L is supplied with the instrument.
High quality and robust mounting strap made of 316L stainless steel. The compact design enables simple mounting of a radar sensor of VEGAPULS C series to the ceiling or on a simple bracket. The necessary mounting material of 316L is supplied with the instrument.
The adjustable bracket allows easy mounting of the sensors and safe access for maintenance work. The mounting strap is particularly suitable for VEGAPULS 11, 21, 31, VEGAPULS C 11, C 21, C 22, C 23 and VEGAPULS Air 41 radar sensors, but can also be used for other instruments with appropriate process fittings.
