With VEGAPULS 6X you get a sensor that can handle any application, no matter if the medium is liquid, solid, hot, cold, hazardous or corrosive. You no longer need to select the right instrument from a multitude of different options. You just specify the operational parameters and process conditions and you will get an instrument that is tailor-made for you.
Measuring range up to 120 m.
For sales or commercial inquiries please contact us at marine@insatech.com.

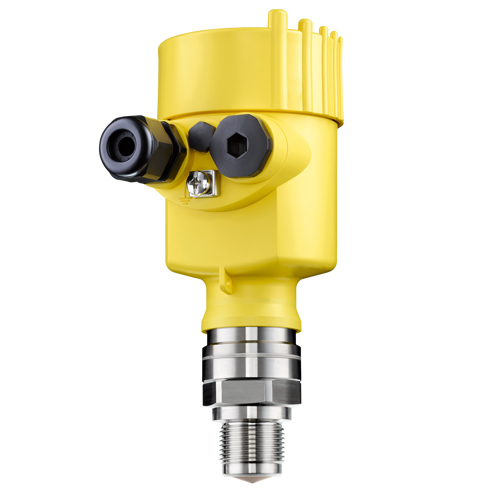

The VEGAPULS 6X with the optimal measuring frequency for your application. The modular sensor is ready for any challenge – a range of different housings, i.e. plastic, aluminium and stainless steel, as well as a wide selection of process fittings and antenna designs – this means it’s prepared to face any kind of industrial environment. A choice of signal outputs and adjustment concepts contribute to making system integration reliable, simple and compatible across all industries.

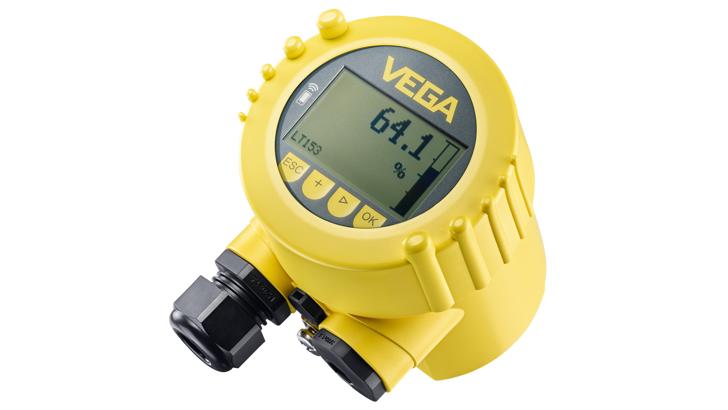

Since all settings in VEGAPULS 6X can be preconfigured to your application in advance, it’s ready for immediate use. The display and adjustment module is clear, concise and easy to understand. The instrument has Bluetooth for wireless adjustment with the VEGA Tools app. Welcome to radar level measurement of the future.
Equipped with SIL2/3, VEGAPULS 6X meets the strict, internationally standardised safety requirements that serve to protect health, the environment and products during process operations. It achieves excellent performance figures. In short: This sensor reduces safety risks and protects your system over the long term.
In view of the increasing digitalisation in industry, an extremely important point is effective protection against cyber attacks. That’s why we’ve designed-in the latest IT security standard IEC 62443-4-2 into VEGAPULS 6X. It means that this sensor also meets the highest cyber-security standards currently established in the process industry.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Distance | 120 m |
||||||||||||||||||
| Accuracy | ±1 mm |
||||||||||||||||||
| Beam angle | from ≥ 3° |
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Process temperature | 40 ... 80 °C |
||||||||||||||||||
| Process pressure | -1...+160 bar |
||||||||||||||||||
| Frequency |
|
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material |
|
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Hygenic fittings |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Overfill protection |
|
| Other |
|
