LMP 808

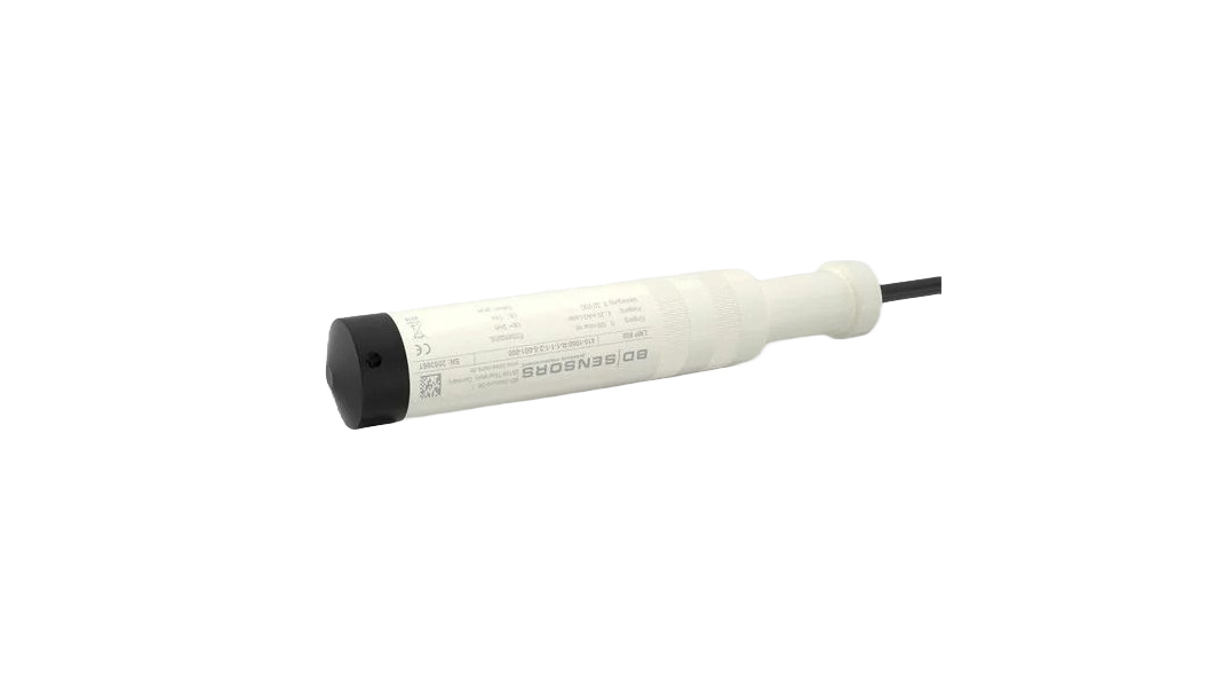

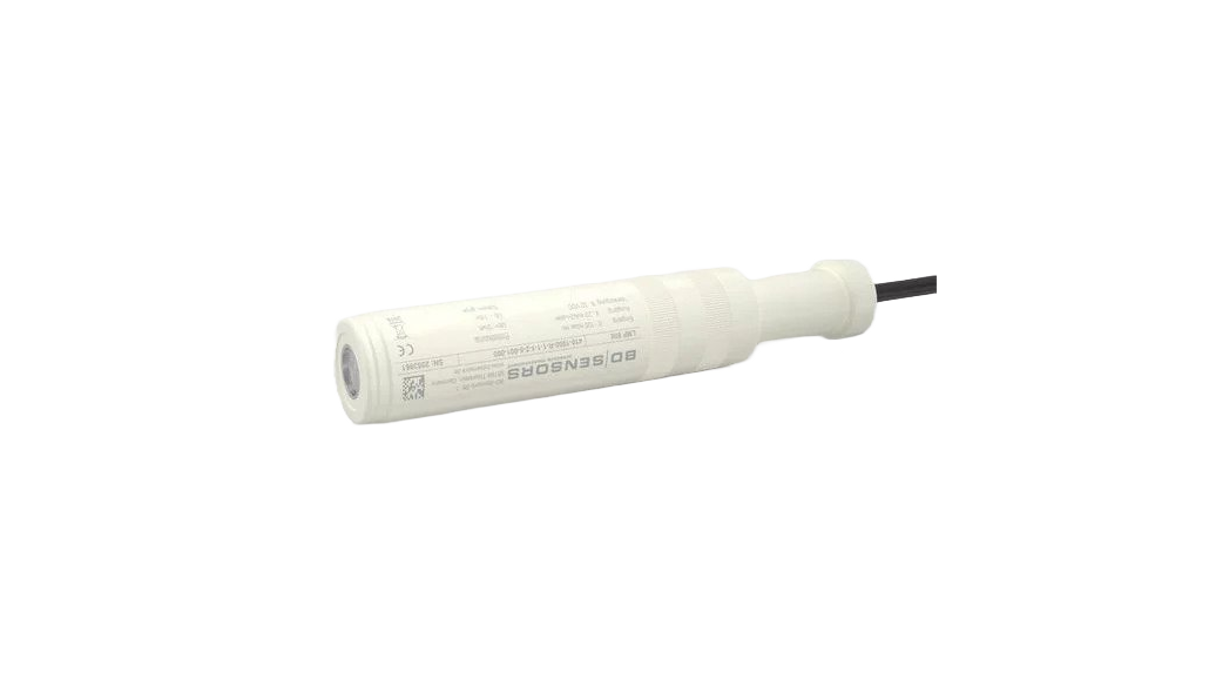

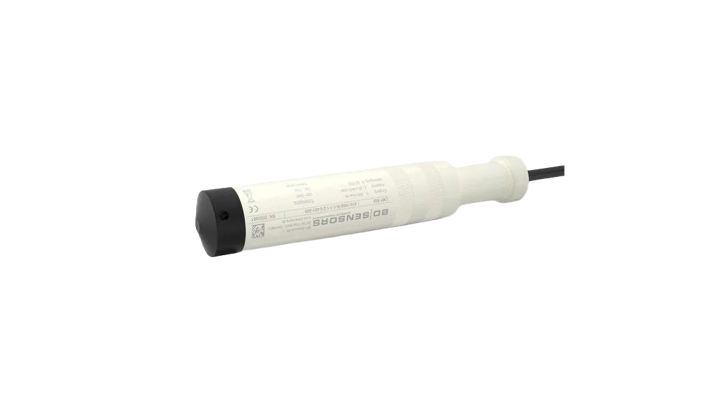

The LMP 808 from BD Sensors is a separable plastic immersion probe, which is developed to measure level in water applications, as well as for fuel and oil purposes. Moreover, the probe is highly precise because the basic element is a stainless-steel sensor.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMP 808 submersible probe is precise and has the following features that benefits you:

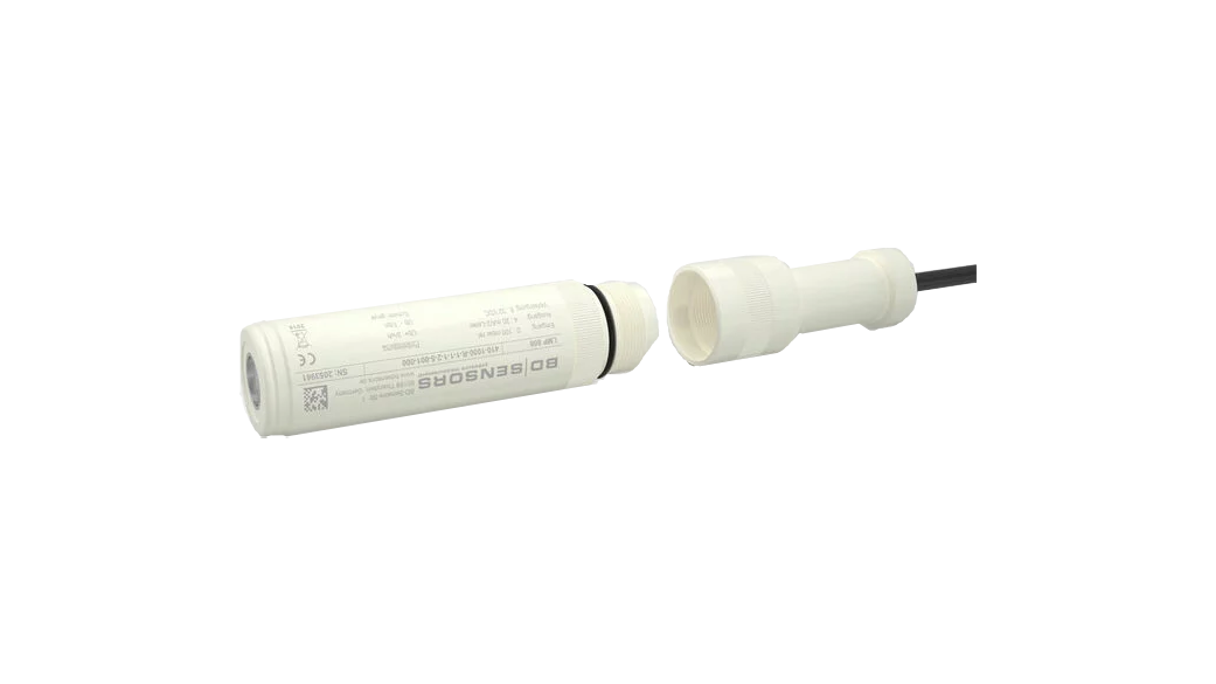

Furthermore, you can separate the probe head from the cable part. This is both simplifying the maintenance and is making it less time consuming to replace, if necessary, because of this assembly possibility.
The LMP 808 from BD Sensors is applicable in various settings:
Furthermore, the probe can be used for various media including water, fuels, and oils.
The LMP 808 is also developed with a great accent on protecting the probe from overvoltage and lightning, so it can easily be used for outside application.
If you have a specific need the LMP 808 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 410: in bar 411: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | R: PP-HT 9: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 2: 0 … 20 mA / 3-wire 3: 0 … 10 V / 3-wire 1S: SIL2 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 9: customer |
||||||||||||||||||
| Electrical connection | 1: PVC-cable (grey, Ø 7.4 mm) (Note 1) 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 3: FEP-cable (black, Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | standard for pN ≥ 0.4 bar 3: 0.35% FSO standard for pN < 0.4 bar 5: 0.5 % FSO option for pN ≥ 0.4 bar 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 106: prepared for pipe mounting (Note 2) 999: customer |
||||||||||||||||||
| Notes | 1: cable with integrated ventilation tube for atmospheric pressure reference 2: pipe is not part of the supply. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
