LMP 308i

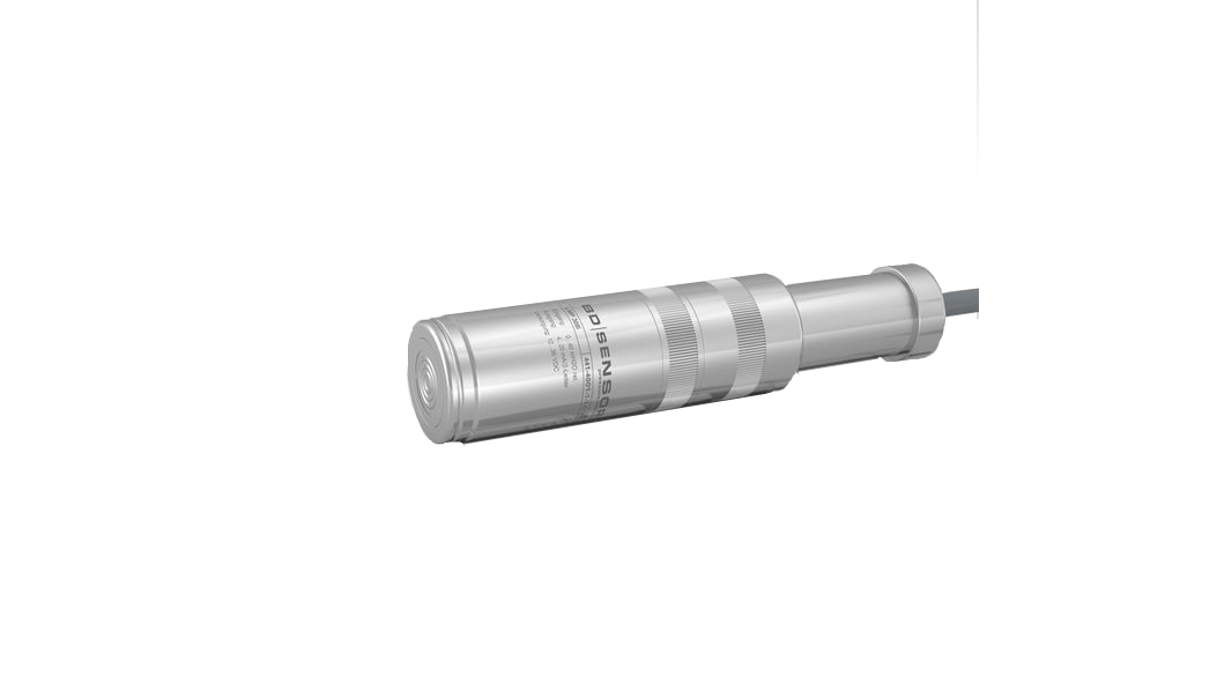

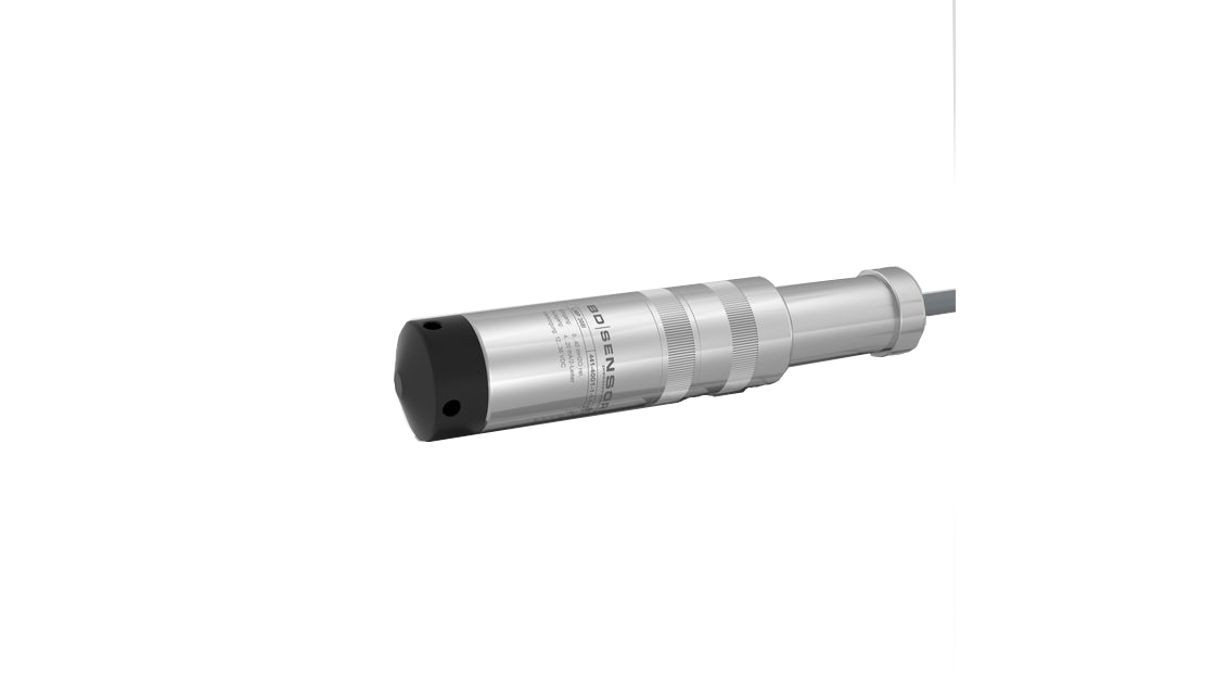

The LMP 308i from BD Sensors is a detachable precision probe in stainless steel. This probe is designed for continuous fill level and level measurement of water and liquid mediums.

The processing of the sensor signal is done by digital electronics with a 16-bit digital converter. This gives you the ability to conduct an active compensation of the sensor’s intrinsic deviations from normal conditions for example nonlinearity and thermal error.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMP 308i Features

The LMP 308i submersible probe is precise and has the following features that benefits you:

  • Nominal pressure: 0 ...4 mH2O up to 0...200 mH2O
  • Accuracy: 0.1 % FSO
  • Diameter 35 mm
  • Cable and sensor section detachable
  • Thermal error in compensated range -20...70°C: 0.2 FSO TC 0.02% FSO/10K 0,02 % FSO / 10K
  • High accuracy
  • Communication connection
  • Turn-down 1:10.

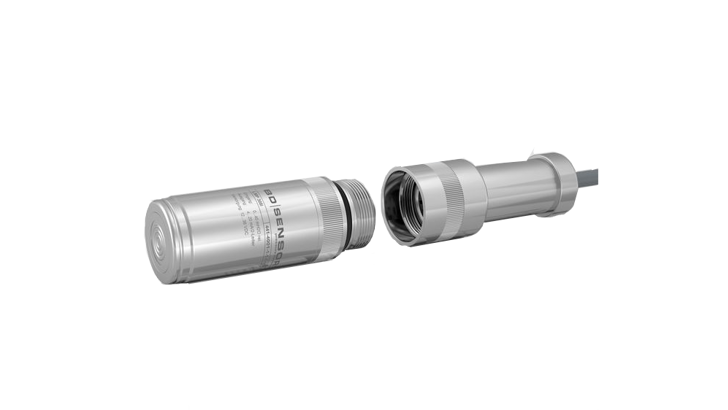

Moreover, the transmitter body is plugged in to the cable assembly with a connector and, which means you can facilitate stock keeping, maintenance, and can easily be changed.

Lmp308i 1 Bdsensors 1024X16x9

Typical applications

The LMP 308i from BD Sensors is applicable in various settings:

  • Maritime industry
  • Energy industry
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the LMP 308i submersible probe is available with optional features like:

  • IS-version, Ex ia = intrinsically safe for gas and dust
  • Mounting accessories as cable gland and terminal clamp in stainless steel
  • Various types of cables
  • different kinds of seal materials.

If you have additional needs - contact us here

Lmp308i Bdsensors 1024X16x9
Lmp308i 2 Bdsensors 1024X16x9
Lmp308i 1 Bdsensors 1024X16x9
Lmp308i Bdsensors 1024X16x9
Lmp308i 2 Bdsensors 1024X16x9
Lmp308i 1 Bdsensors 1024X16x9
Lmp308i Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

440: in bar

441: in H2O

Input

[mH2O]
4000:
4.0
1001:
10
2001:
20
4001:
40
1002:
100
2002:
200

[bar]

4000: 0.4
1001:
1.0
2001:
2.0
4001:
4.0
1002:
10
2002:
20
9999: customer

Housing

1: stainless steel 1.4404 (316L)

9: customer

Diaphragm

1: stainless steel 1.4435 (316L)

9: customer

Output

1: 4 … 20 mA / 2-wire

E: intrinsic safety 4 … 20 mA / 2 wire

3: 0 … 10 V / 3-wire

9: customer

Seals

1: FKM

3: EPDM

9: customer

Electrical connection

1: PVC-cable (grey, Ø 7.4 mm) (Note 1)

2: PUR-cable (black, Ø 7.4 mm) (Note 1)

3: FEP-cable (black, Ø 7.4 mm) (Note 1)

9: customer

Accuracy

1: 0.1 % FSO (Note 2)

9: customer

Cable length

999: in m

Version

111: standard

121: with communication interface (Note 3)

999: customer

Notes

1:cable with integrated ventilation tube for atmospheric pressure reference

2: available on request: calibration of individual pressure range higher than 400 mbar with accuracy 0.1 %

3: software, interface and cable have to be order separately (ordering code: CIS-G; software appropriate for Windows® 95, 98, 2000, NT Version 4.0 or newer and XP).
