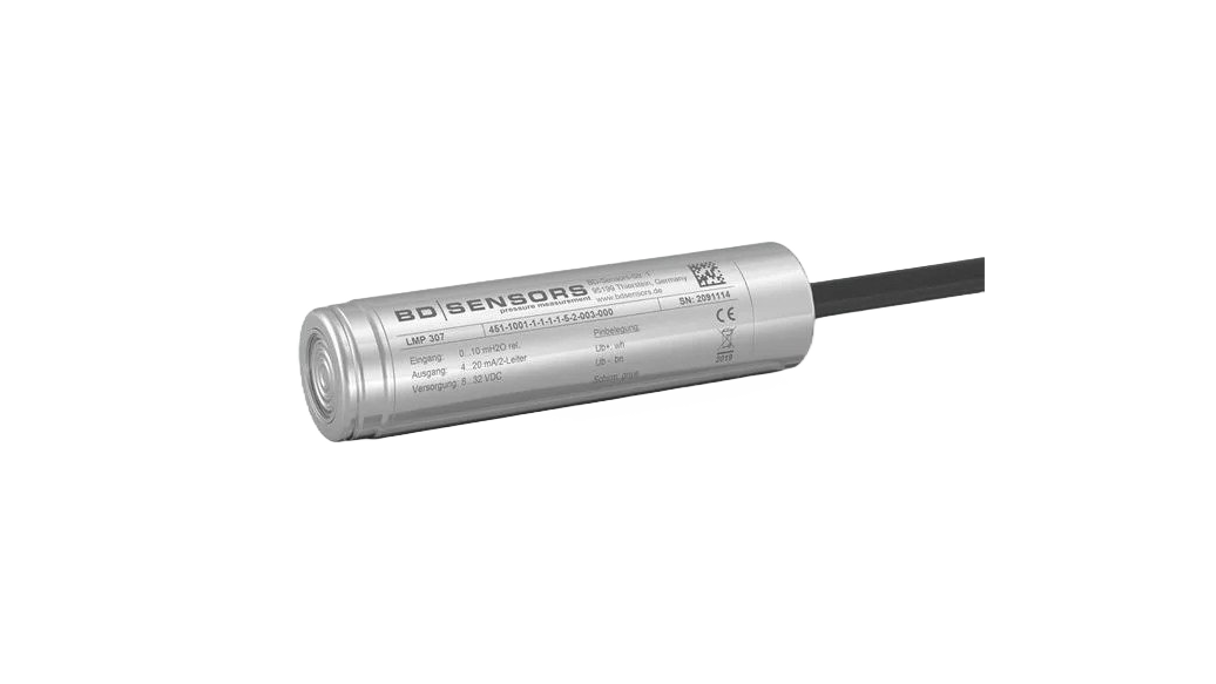

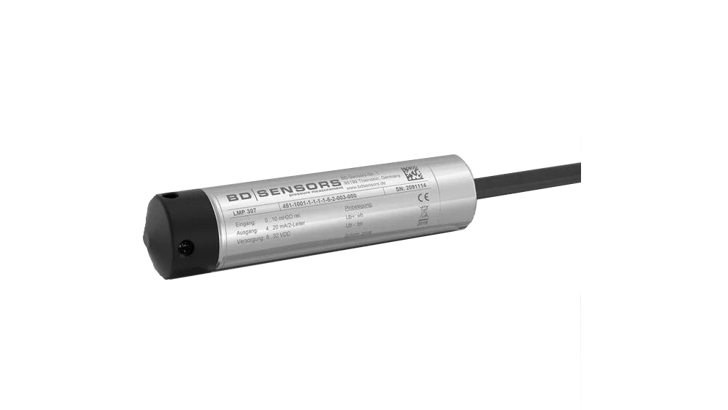

LMP 307
The LMP 307 from BD Sensors is designed to continuously measure level in water, as well as clean or waste fluids. Moreover, the high-quality stainless-steel sensor is the base of the probe, which have high requirements that ensure you accurate measurements and long-term stability.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMP 307 submersible probe is precise and has the following features that benefits you:
The LMP 307 from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including water fuels, and oils.
If you have a specific need the LMP 307 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 450: in bar 451: in H2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 2: 0 … 20 mA / 3-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 1S: SIL2 4 … 20 mA / 2-wire ES: SIL 2 with Intrinsic safety, 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM DVGW/KTW 3T: EPDM (Note 1) petrol-version 21: without (welded version) (Note 2,4) 9: customer |
||||||||||||||||||
| Accuracy | standard for PN > 0.4 bar 3: 0.35 % FSO standard for PN ≤ 0.4 bar 5: 0.5% FSO option 1 for PN > 0.4 bar 2: 0.25 % FSO option 2 1: 0.1 % FSO (Note 2) 9: customer |
||||||||||||||||||
| Electrical connection/ cable length | PVC-cable (grey, Ø 7.4 mm) (Note 3) 1 005: 5 m 1 010: 10 m 1 015: 15 m 1 999: special length in m PUR-cable (black, Ø 7.4 mm) (Note 3) 2 005: 5 m 2 010: 10 m 2 015: 15 m 2 999: special length in m FEP-cable (black, Ø 7.4 mm) (Note 3) 3 010: 10 m 3 999: special length in m TPE-U-cable (blue, Ø 7.4 mm) (Note 3) DVGW/KTW (Note 1) F 999: special length in m |
||||||||||||||||||
| Special version | 000: standard 503: prepared for mounting with stainless steel 999: customer |
||||||||||||||||||
| Notes | 1: drinking water certification only possible with EPDM seal (code 3T) in combination with TPE-U cable (code F); not possible with IS version (explosion protection) 2: not in combination with SIL 3: shielded cable with integrated ventilation tube for atmospheric pressure reference 4: petrol-version only in combination with FEP cable |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
