LMP 305

The LMP 305 from BD Sensors is a slimline probe designed for you, so you can measure the level in a confined space continuously. It is made with a silicon stainless steel sensor, which makes it applicable in media that are:

  • Clean water
  • Wastewater
  • Thin fluids.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMP 305 Features

The LMP 305 submersible probe is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 1 mH2O up to 0 ... 250 mH2O
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • Diameter 19 mm for cramped areas e.g., 1" observation well
  • Small thermal effect
  • Exceptional linearity
  • Long-term stability.

All in all, the LMP 305 is a piezoresistive stainless steel sensor with low thermal error, an excellent linearity, and long-term stability.

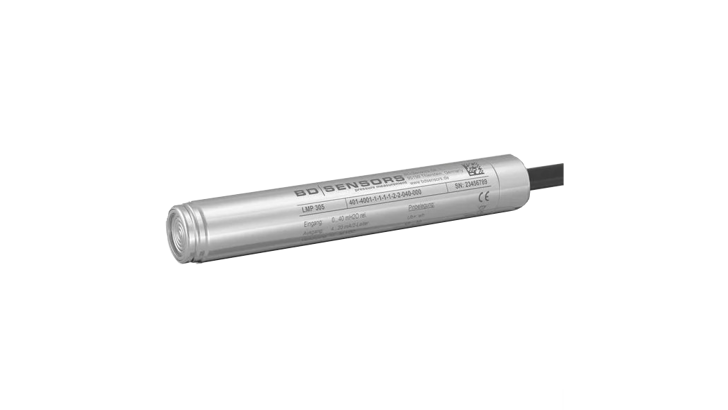

LMP305 Bdsensors 1024X16x9

Typical applications

The LMP 305 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Energy industry
  • Environmental industry.

Moreover, the probe can be used for various media including water.

Get more information here

Additional Available Features

If you have a specific need the LMP 305 submersible probe is available with optional features like:

  • Different kinds of cable
  • Customer specific versions e.g., special pressure ranges.

If you have additional needs - contact us here

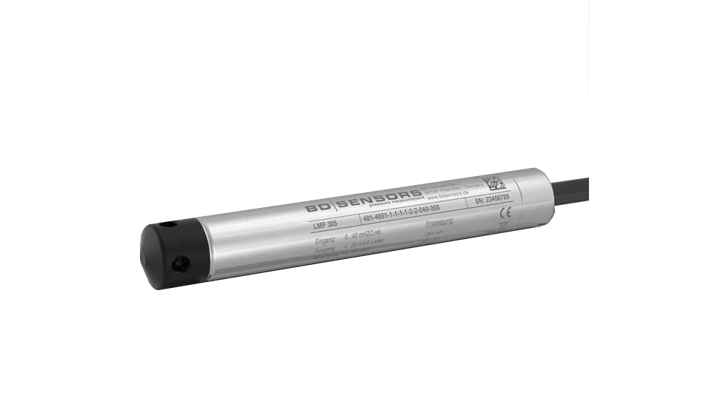

LMP305 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

400: in bar

401: in H2O

Input

[mH2O]
1000: 1.0
1600:
1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001:
10
1601:
16
2501:
25
4001:
40
6001:
60
1002:
100
2502:
250

[bar]
1000: 0.10
1600:
0.16
2500:
0.25
4000:
0.40
6000:
0.60
1001:
1.0
1601:
1.6
2501:
2.5
4001:
4.0
6001:
6.0
1002:
10
2502:
25
9999: customer

Housing

1: stainless steel 1.4404 (316L)

9: customer

Diaphragm

1: stainless steel 1.4435 (316L)

9: customer

Output

1: 4 … 20 mA / 2-wire

9: customer

Seals

1: FKM

3: EPDM

9: customer

Accuracy

standard for PN > 0.4 bar

3: 0.35 % FSO

standard for PN ≤ 0.4 bar

5: 0.5% FSO

option for PN > 0.4 bar

2: 0.25 % FSO

9: customer

Electrical connection

1: PVC-cable (grey, Ø 7.4 mm) (Note 1)

2: PUR-cable (black, Ø 7.4 mm) (Note 1)

3: FEP-cable (black, Ø 7.4 mm) (Note 1)

9: customer

Cable length

999: in m

Special version

000: standard

999: customer

Notes

1:shielded cable with integrated ventilation tube for atmospheric pressure reference.
