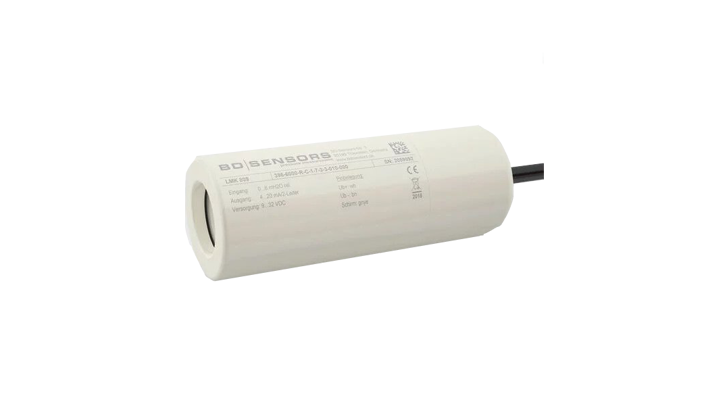

LMK 809
The LMK 809 from BD Sensors is a plastic submersible probe, which is designed to measure level continuously in wastewater or in various kinds of aggressive media. The basic element of the probe is the flush mounted capacitive ceramic sensor that is making it easier to clean.
Furthermore, there is different cable and seal materials available to achieve maximum media compatibility.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 809 submersible probe is precise and has the following features that benefits you:
The LMK 809 from BD Sensors is applicable in various settings:
The probe can also be used for various media including sewage water, sludge, and aggressive media.
If you have a specific need the LMK 808 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 395: in bar 396: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | R: PP-HT B: PVDF 9: customer |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99,9% 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 7: FFKM 9: customer |
||||||||||||||||||
| Accuracy | standard 3: 0.35 % FSO option 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 3: FEP-cable (black, Ø 7.4 mm) (Note 1) F: TPE-U-cable (blue Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 610: pipe R1" (Note 2) 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference 2: pipe is not part of the supply. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
