LMK 808

The LMK 808 from BD Sensors is a detachable plastic submersible probe, which is developed to measure level in water and wastewater. The capacitive ceramic sensor is the basis of the probe and makes the LMK 808 extremely vigorous and almost maintenance-free.

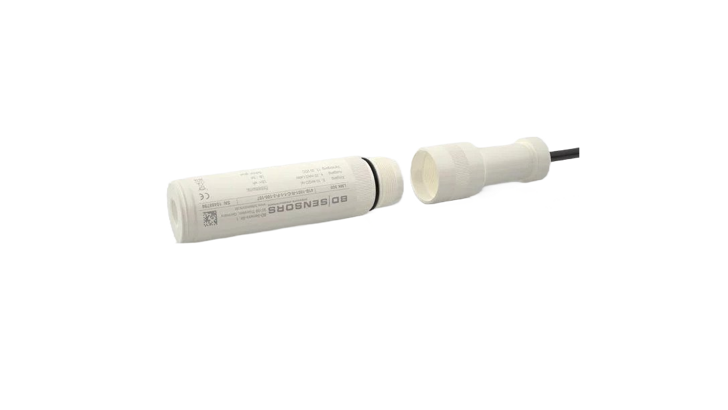

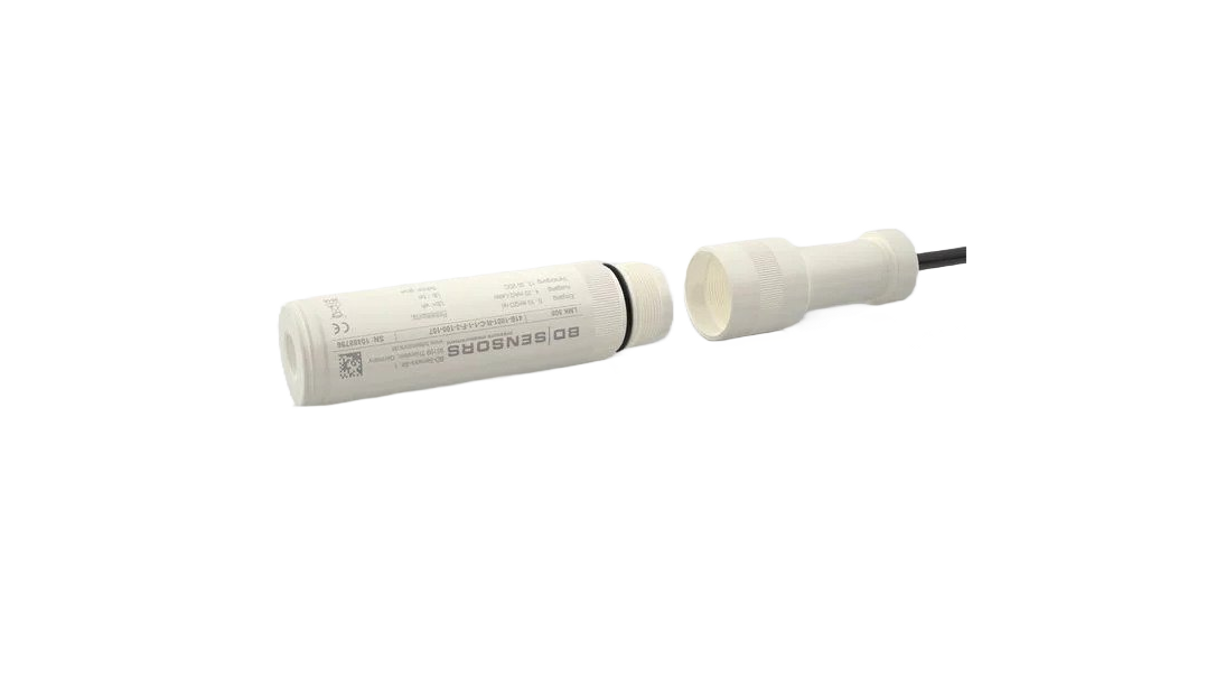

 Furthermore, you can separate the probe head from the cable part. This is both simplifying the maintenance and is making it less time consuming to replace, if necessary, because of this assembly possibility.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMK 808 Features

The LMK 808 submersible probe is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 1 mH2O up to 0 ... 100 mH2O
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • Diameter 35mm
  • Diaphragm ceramics Al2O3 (99.9 %)
  • Cable and sensor section detachable
  • Exceptional long-term stability
  • Integrated lightning protection 8 kA gas discharge tube (8/20µsec); 4 kV surge l-l/l-e according to EN61000-4-5.

Moreover, when the LMK 808 was developed there was put emphasis on high overvoltage and lightning protection, so the probed can be used to measure level i.e., in river courses, on weir systems, or in locks.

Additionally, the cable is protected against bites if this is necessary for your application.

LMK808 1 Bdsensor 1024X16x9

Typical applications

The LMK 808 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Energy industry
  • Environmental industry.

The probe can also be used for various media including sewage water, sludge, and aggressive media, as well as water.

Get more information here

Additional Available Features

If you have a specific need the LMK 808 submersible probe is available with optional features like:

  • Mounting accessories
  • Various types of elastomers
  • Customer specific versions e. g. special pressure ranges.

Does it match your need - contact us here

LMK808 Bdsensor 1024X16x9
LMK808 2 Bdsensor 1024X16x9
LMK808 1 Bdsensor 1024X16x9
LMK808 Bdsensor 1024X16x9
LMK808 2 Bdsensor 1024X16x9
LMK808 1 Bdsensor 1024X16x9
LMK808 Bdsensor 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

41A: in bar

41B: in mH2O
Input

[mH2O]
1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100

[bar]
1000: 0.10
1600: 0.16
2500: 0.25
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
9999: customer
Housing

R: PP-HT

9: customer
Diaphragm

C: ceramics Al2O3 99%

9: customer
Output

1:  4 … 20 mA / 2-wire

9: customer
Seals

1: FKM

3: EPDM

9: customer
Electrical connection

F: TPE-U-cable (blue Ø 7.4 mm) (Note 1)

9: customer
Accuracy

standard

3: 0.35 % FSO

option

2: 0.25 % FSO

9: customer
Cable length

999: in m
Special version

000: standard

999: customer
Notes

1: shielded cable, drinking water suitable, with integrated ventilation tube for atmospheric pressure reference.
  • Data Sheet - LMK 808 - BD Sensors
    English | pdf
  • Owners Manual - LMK 808 - BD Sensors
    English | pdf
  • Owners Manual - Mounting Instructions - LMK 808 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - LMK 808 - BD Sensors
    English | pdf
