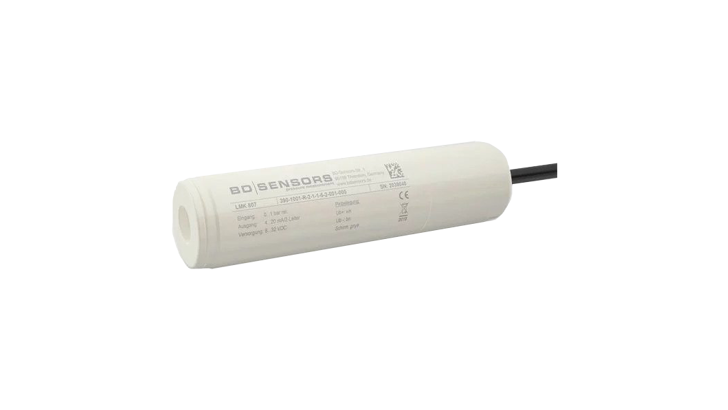

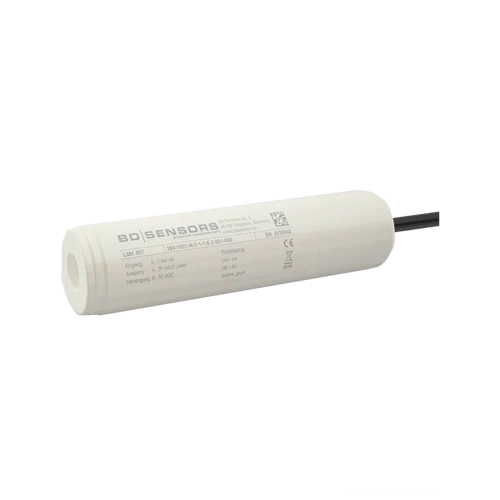

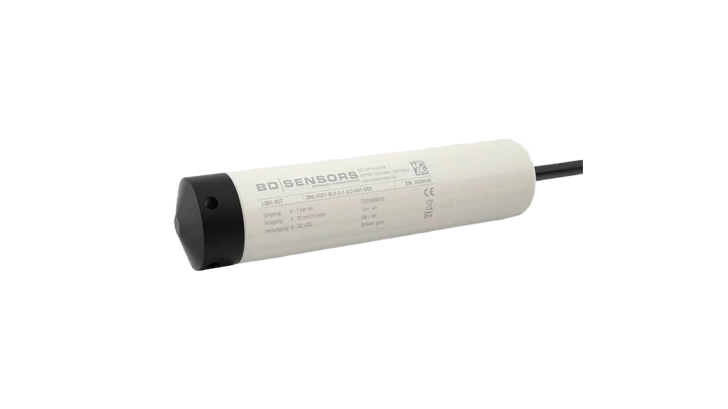

LMK 807
The LMK 807 from BD Sensors is a plastic submersible probe, which is designed to measure the level continuously in wastewater or various types of aggressive media. The probe’s basic element is the flush mounted ceramic sensor that is making it easier to clean and maintain.
Moreover, the probe is available with various types of cable and elastomer materials to attain maximum media compatibility.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 807 submersible probe is precise and has the following features that benefits you:
The LMK 807 from BD Sensors is applicable in various settings:
Furthermore, the probe can be used for various media including sewage water, sludge, and aggressive media.
If you have a specific need the LMK 807 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 390: in bar 391: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | R: PP-HT 9: customer |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96% 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 1S: SIL2 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 7: FFKM 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 1: PVC-cable (grey, Ø 7.4 mm) (Note 1) 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 3: FEP-cable (black, Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
