LMK 487

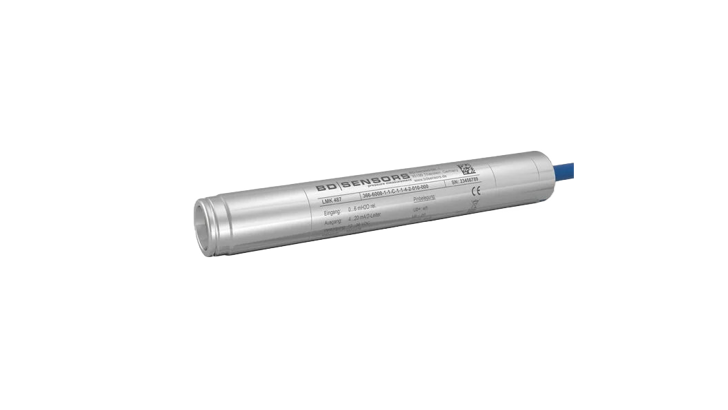

The LMK 487 from BD Sensors is a hydrostatic probe, which is developed to measure the level in several tank applications for shipbuilding and offshore. Furthermore, the external diameter is only 22 mm, so the installation in 1” pipes is easily done.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 487 submersible probe is precise and has the following features that benefits you:

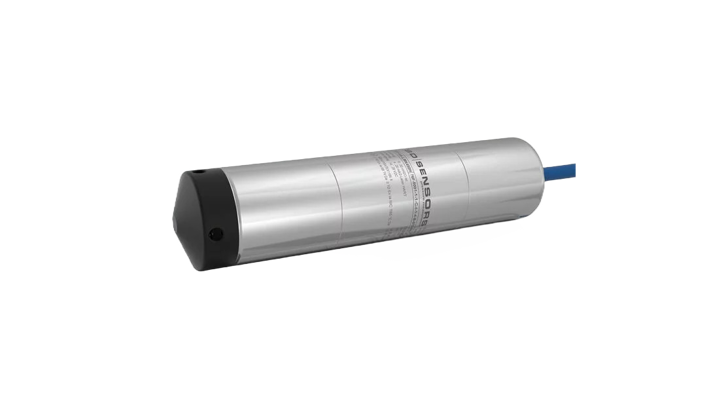

Furthermore, the LMK 458H has shipping approvals including the American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), and the Lloyd's Register (LR).
The LMK 487 from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including water.
If you have a specific need the LMK 487 submersible probe is available with optional features like:
Thus, the LMK 487 is available with various housing materials both stainless steel and titanium. Moreover, the optimal adaption to the application you need is also ensured by the elastomer materials, which is available for the probe.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 365: gauge in bar 366: gauge in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) T: titanium 9: customer |
||||||||||||||||||
| Design | 1: probe B: screw-in version G3/4" flush (Note 1) |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99.9 % 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 7: FFKM (Note 2) 9: customer |
||||||||||||||||||
| Electrical connection | 4: TPE-U-cable (blue, Ø 7.4 mm) (Note 3) 42: TPE-U-cable (red, Ø 9.0 mm) (Note 3,4) |
||||||||||||||||||
| Accuracy | standard for pN < 0,4 bar standard for pN ≥ 0,4 bar 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 013: with temperature sensor Pt 100 999: customer |
||||||||||||||||||
| Notes | 1: only in combination with housing in stainless steel 1.4404 (316L) 2: min. permissible temperature from -15 °C 3: shielded cable with integrated ventilation tube for atmospheric pressure reference 4: only in combination with IS version (explosion protection) and temperature element Pt 100. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
