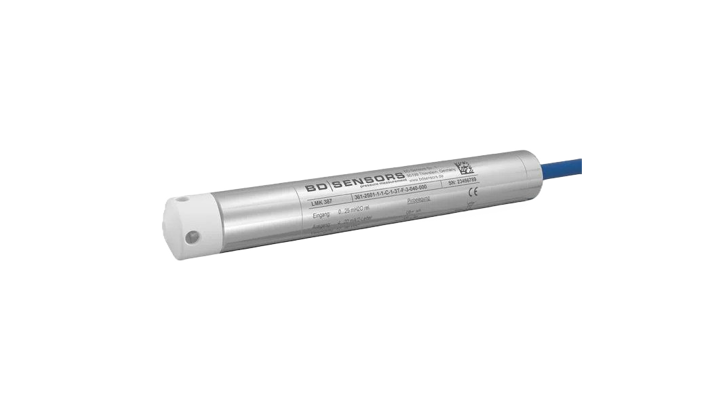

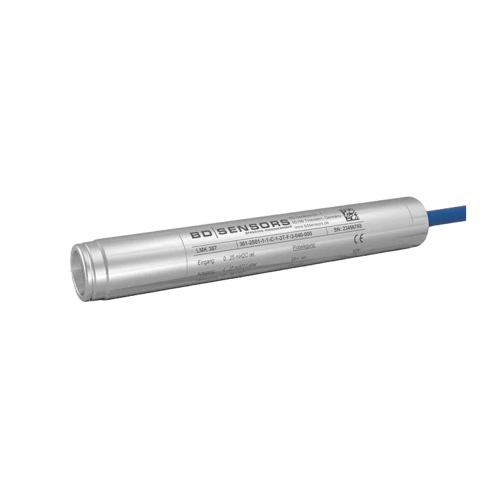

LMK 387
The LMK 387 from BD Sensors is a stainless-steel probe, which is developed to measure level and gauge in for example wastewater, sludge, or water courses. The front-flush ceramic diaphragm has a high mechanical vigor and, thus, makes it easy to disassemble and clean the probe in case of service.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 387 submersible probe is precise and has the following features that benefits you:
Moreover, the probe is easy to install because of the small outside diameter (only 22 mm) and the backfitting in 1” tubes, which also makes it easier to install under cramped fitting situations.
If you need it, there is also an IS-version available with the LMK 387 probe.
The LMK 387 from BD Sensors is applicable in various settings:
Furthermore, the probe can be used for various media including water, fuels, and oils, as well as sewage water and sludge.
If you have a specific need the LMK 387 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 565: in bar 566: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96 % C: ceramics Al2O3 99.9 % |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 7: FFKM |
||||||||||||||||||
| Electrical connection/ cable length | PVC-cable (grey, Ø 7.4 mm) (Note 1) 1 005: 5 m 1 010: 10 m 1 015: 15 m 1 020: 20 m 1 999: special length in m PUR-cable (black, Ø 7.4 mm) (Note 1) 2 005: 5 m 2 010: 10 m 2 015: 15 m 2 020: 20 m 2 999: special length in m FEP-cable (black, Ø 7.4 mm) (Note 1) 3 010: 10 m 3 999: special length in m TPE-U-cable (blue, Ø 7.4 mm) (Note 1, 2) TPE-U-cable (red, Ø 0.0 mm) |
||||||||||||||||||
| Accuracy | standard 3: 0.35% FSO option 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Special version | 000: standard 013: with temperature sensor Pt 100 (Note 3) 502: prepared for mounting with stainless steel pipe (Note 4) 510: flange version (Note 5) 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference 2: only in combination with IS version (explosion protection) and temperature element Pt 100 3: only in combination with 4 ... 20 mA / 2-wire (standard or IS-version) 4: stainless steel pipe is not part of the supply 5: mounting accessories are not part of supply and have to be ordered separately. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
