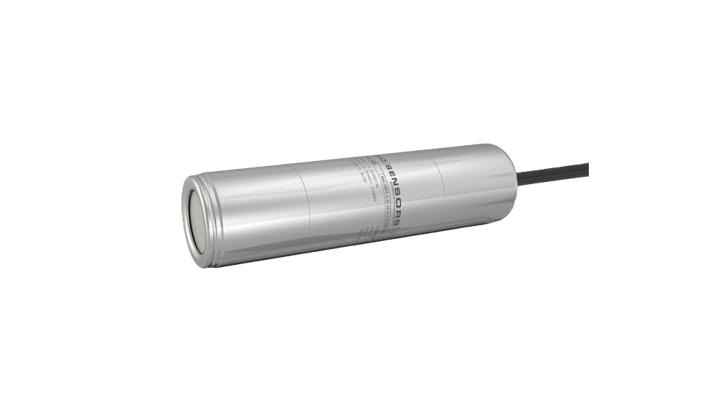

LMK 382H

The LMK 382H from BD Sensors is a probe designed to measure level continuously in both wastewater, waste, and mediums with higher viscosity. Furthermore, the basic element of the probe is a vigorous and high overpressure capable capacitive ceramic sensor used for, for example, low levels.

Moreover, the probe can be used for various media including:

  • Sewage water, sludge
  • Fuels and oils
  • Water.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMK 382H Features

The LMK 382H submersible probe is precise and has the following features that benefits you:

  • Nominal pressure range 0 ... 60 cmH2O up to 0 ... 200 mH2O
  • Accuracy: 0.1 % FSO
  • Diameter 39.5 mm
  • HART®-communication (setting of offset, span, and damping)
  • Permissible temperatures up to 85 °C
  • High overpressure capability
  • Long- term stability.
LMK382H Bdsensors 1024X16x9

Typical applications

The LMK 382H from BD Sensors is applicable in various settings:

  • Maritime industry
  • Chemical industry
  • Energy industry
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the LMK 382H submersible probe is available with optional features like:

  • IS-version, Ex ia = intrinsically safe for gas and dust
  • Mounting with stainless steel pipe
  • Flange version
  • Diaphragm pure ceramic (99,9 % AI2O3)
  • Accessories e.g. assembling and probe flange, mounting clamp.

If you have additional needs - contact us here

LMK382H 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

565: in bar

566: in H2O

Input

[mH2O]

0600: 0.6
1600:
1.6
4000:
4.0
1001:
10
2001:
20
5001: 5
0
1002:
100
2002: 200

[bar]

0600: 0.06
1600:
0.16
4000:
0.40
1001:
1.0
2001:
2.0
5001:
5.0
1002:
10
2002: 200
9999: customer

Housing

1: stainless steel 1.4404 (316L)

9: customer

Diaphragm

2: ceramics Al2O3 96 %

C: ceramics Al2O3 99.9 %

9: customer

Output

H: HART®-communication, 4 … 20 mA / 2-wire

I: HART®-communication, intrinsic safety 4 … 20 mA / 2 wire

9: customer

Seals

1: FKM

3: EPDM

7: FFKM

9: customer

Electrical connection

1: PVC-cable (grey, Ø 7.4 mm) (Note 1)

2: PUR-cable (black, Ø 7.4 mm) (Note 1)

3: FEP-cable (black, Ø 7.4 mm) (Note 1)

4: TPE-U-cable (blue, Ø 7.4 mm) (Note 1)

9: customer

Accuracy

pN ≥ 1 bar

1: 0.1 % FSO

pN ≥ 1 bar

B: 0.2 % FSO

9: customer

Cable length

999: in m

Special Version

000: standard

502: prepared for mounting with stainless steel pipe(Note 2)

510: flange version (Note 3)

999: customer

Notes

1: shielded cable with integrated ventilation tube for atmospheric pressure reference

2: stainless steel pipe is not part of the supply

3: mounting accessories are not part of supply and have to be ordered separately
