LMK 382

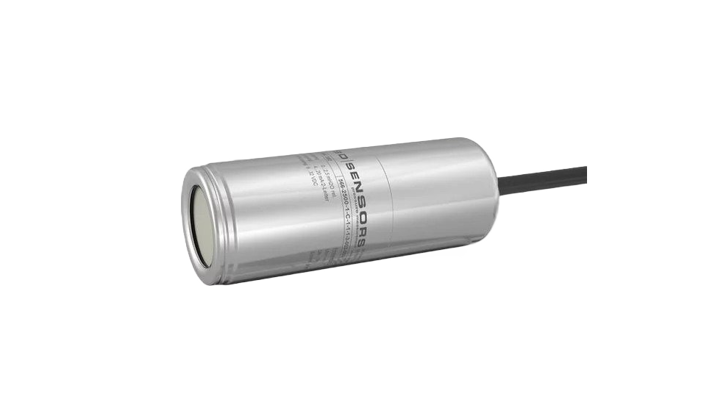

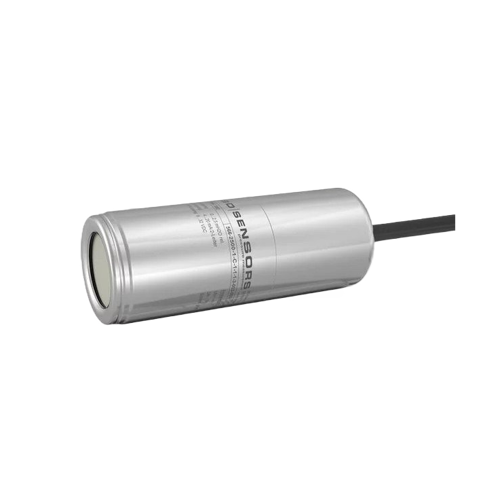

The LMK 382 from BD Sensors is a stainless-steel probe, which is designed to measure level continuously in wastewater, water, and higher viscosity media. Moreover, the basic element of the probe is a vigorous and high overpressure capable capacitive ceramic sensor used for, for example, low levels.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 382 submersible probe is precise and has the following features that benefits you:
Moreover, the probe can be used for various media including water, fuels, and oils, as well as sewage water and sludge.
The LMK 382 from BD Sensors is applicable in various settings:
If you have a specific need the LMK 382 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 360: gauge in bar 363: absolute in bar 361: gauge in H2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) T: titanium 9: customer |
||||||||||||||||||
| Design | 1: probe A: screw-in version G1/2" open (Note 1) B: screw-in version G3/4" flush (Note 1) |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99.9 % 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM DVGW / KTW 7: FFKM (Note 3) 9: customer |
||||||||||||||||||
| Electrical connection | 2: PUR-cable (black, Ø 7.4 mm) (Note 4)
3: FEP-cable (black, Ø 7.4 mm) (Note 4) 4: TPE-U-cable (blue, Ø 7.4 mm) (Note 4) 42: TPE-U-cable (red, Ø 0.0 mm) (Note 4, 5) DVGW / KTW F: TPE-U-cable (blue, Ø 7.4 mm) (Note 2, 4) 9: customer |
||||||||||||||||||
| Accuracy | standard 3: 0.35% FSO option 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 013: with temperature sensor Pt 100 (Note 3) 502: prepared for mounting with stainless steel pipe (Note 4) 999: customer |
||||||||||||||||||
| Notes | 1: only in combination with housing in stainless steel 1.4404 (316L) 2: drinking water certification only possible with EPDM seal (code 3T) in combination with TPE-U cable (code F); not possible with IS-protection (explosion protection) or housing material titanium 3: min. permissible temperature from -15 °C 4: shielded cable with integrated air tube for atmospheric pressure reference 5: only in combination with IS version (explosion protection) and temperature element Pt 100 6: stainless steel pipe is not part of the supply. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
