LMK 358

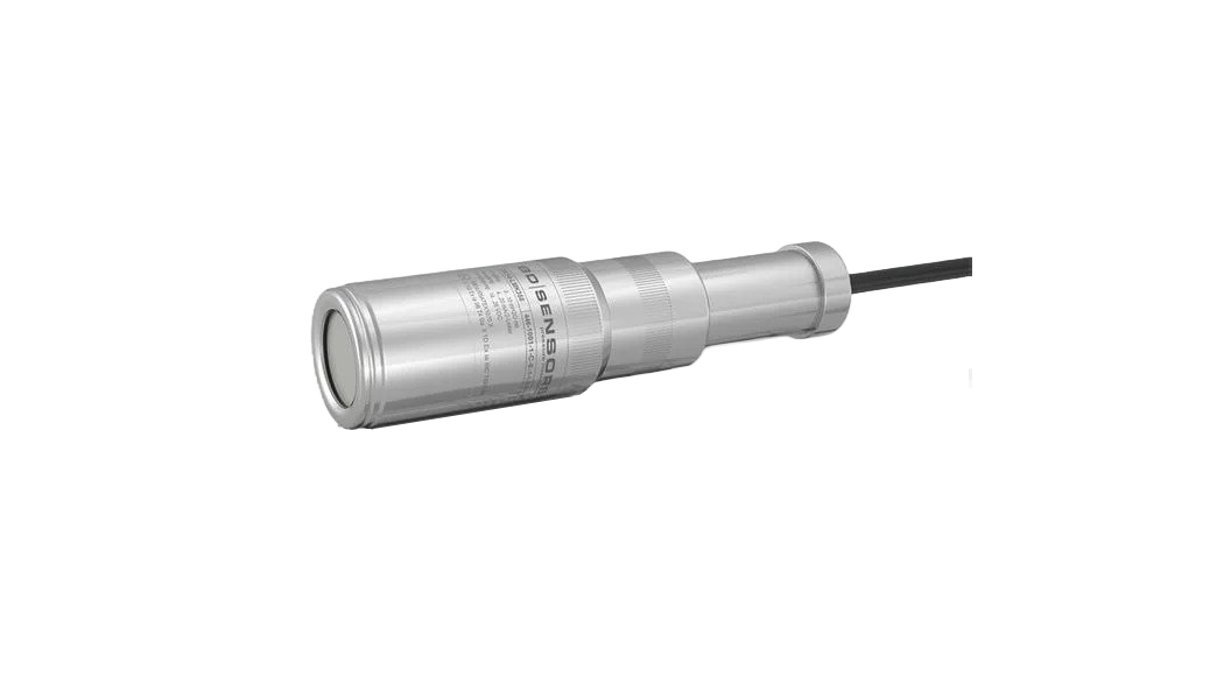

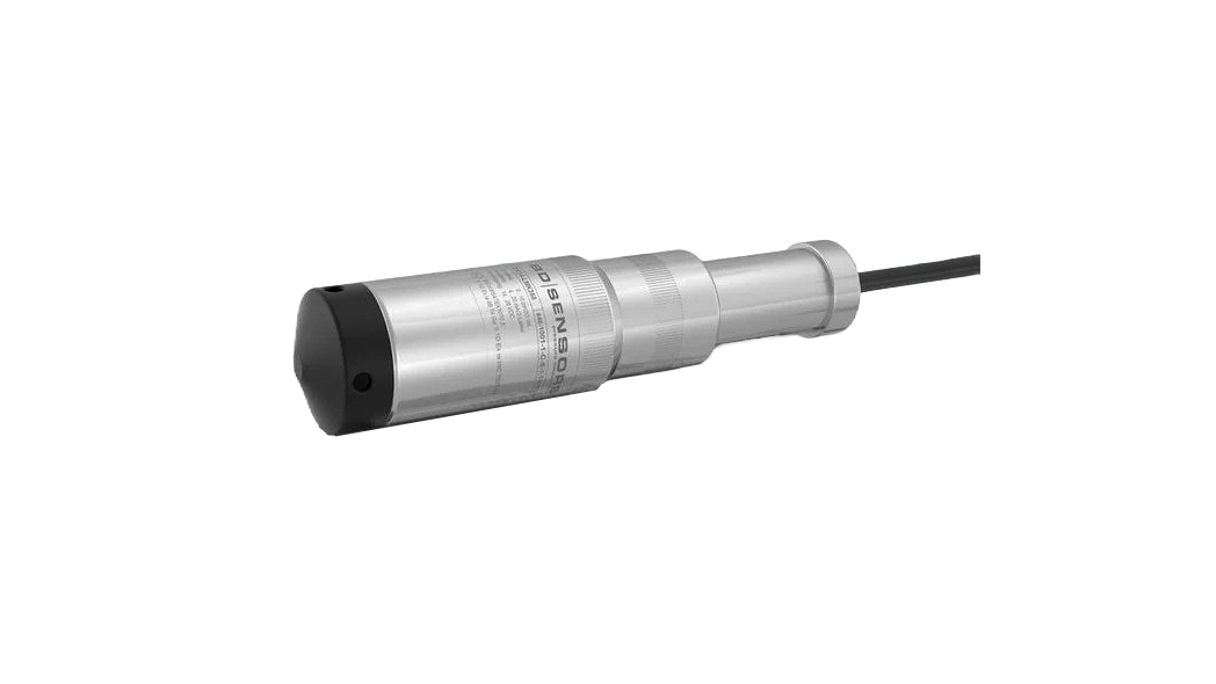

The LMK 358 from BD Sensors is a detachable stainless-steel probe, which is designed to measure level in wastewater, waste, and higher viscosity media. Furthermore, the basic element of the probe is a capacitive ceramic sensor.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMK 358 Features

The LMK 358 submersible probe is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 40 cmH2O up to 0 ... 100 mH2O
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • Diameter 39.5 mm
  • Cable and sensor section detachable
  • Especially for sewage, viscous and pasty media.

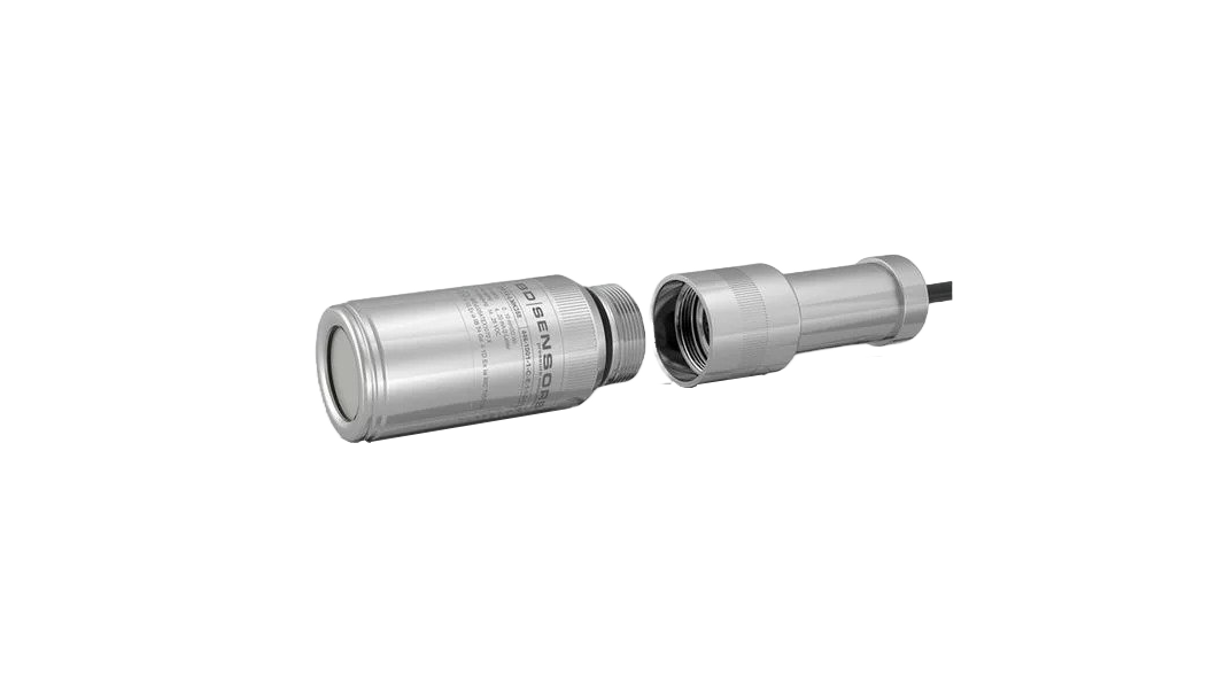

Moreover, the transmitter body is plugged in to the cable assembly with a connector and, which means you can facilitate stock keeping, maintenance, and can easily be changed.

LMK358 Bdsensors 1024X16x9

Typical applications

The LMK 358 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Chemical industry
  • Energy industry
  • Environmental industry.

Moreover, the probe can be used for various media including water, fuels, and oils, as well as sewage water and sludge.

Get more information here

Additional Available Features

If you have a specific need the LMK 358 submersible probe is available with optional features like:

  • IS-protection, Ex ia = intrinsically safe for gas and dust
  • Cable protection via corrugated pipe
  • diaphragm pure ceramic (99,9 % AI2O3)
  • Various types of cable
  • A variety of elastomers.

Does it match your need - contact us here

LMK358 1 Bdsensors 1024X16x9
LMK358 2 Bdsensors 1024X16x9
LMK358 Bdsensors 1024X16x9
LMK358 1 Bdsensors 1024X16x9
LMK358 2 Bdsensors 1024X16x9
LMK358 Bdsensors 1024X16x9
LMK358 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

445: in bar

446: in mH2O

Input

[mH2O]
0400: 0.4
0600:
0.6
1000:
1.0
1600:
1.6
2500:
2.5
4000:
4.0
6000:
6.0
1001:
10
1601: 16
2501:
25
4001: 40
6001: 60
1002:
100

[bar]
0400: 0.4
0600:
0.6
1000:
1.0
1600:
1.6
2500:
2.5
4000:
0.4
6000:
0.6
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
9999: customer

Housing

1: stainless steel 1.4404 (316L)

9: customer

Diaphragm

2: ceramics Al2O3 96 %

C: ceramics Al2O3 99.9 %

9: customer

Output

1:  4 … 20 mA / 2-wire

3: 0 … 10 V / 3-wire

E: intrinsic safety 4 … 20 mA / 2-wire

9: customer

Seals

1: FKM

3: EPDM

9: customer

Electrical connection

1: PVC-cable (grey, Ø 7.4 mm) (Note 1)

2: PUR-cable (black, Ø 7.4 mm) (Note 1)

3: FEP-cable (black, Ø 7.4 mm) (Note 1)

4: TPE-U-cable (blue, Ø 7.4 mm)

9: customer

Accuracy

standard

3: 0.35% FSO

option

2: 0.25 % FSO

9: customer

Cable length

999: in m

Special version

000: standard

999: customer

Notes

1: shielded cable with integrated ventilation tube for atmospheric pressure reference.
