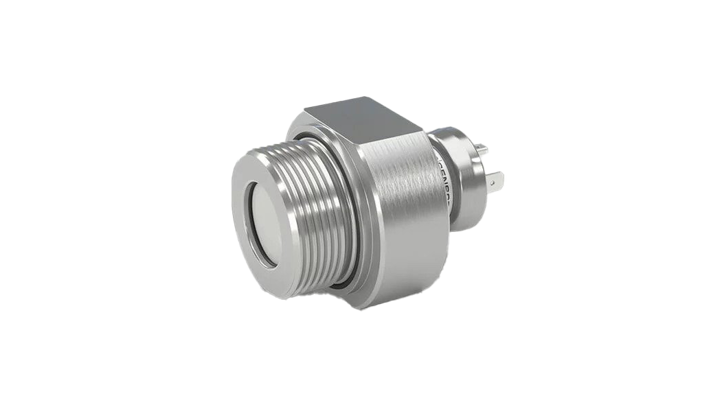

LMK 351
The screw-in transmitter LMK 351 from BD Sensors is designed to measure level and pressure in small systems and in containers. Moreover, the transmitter is based on the capacitive ceramic sensor element.
Additionally, this screw-in transmitter is available in an intrinsically safe version, which complete the range of possibilities you have with the LMK 351.
For sales or commercial inquiries please contact us at marine@insatech.com.
The screw-in transmitter LMK 351 is precise and has the following features that benefits you:
Furthermore, the screw-in transmitter can be used in various media including:

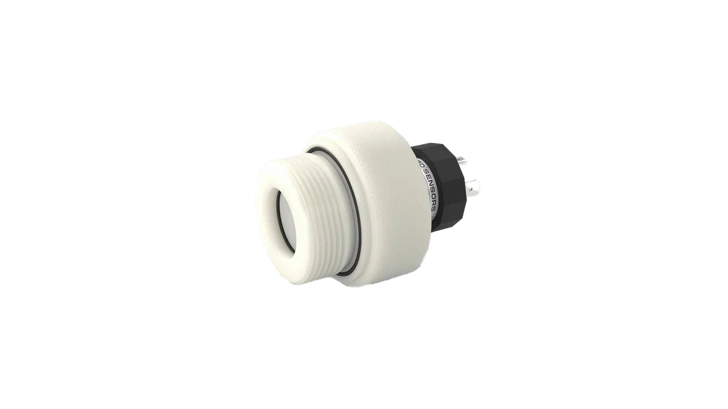

If you want to use the transmitter in more aggressive media, the version of the LMK 351 with PVDF pressure port and the diaphragm in AI2O3 99.9 % is recommended.
The usage in viscous and pasty media is possible because of the flush mounted sensor.
The LMK 351 from BD Sensors is applicable in various settings:
If you have a specific need the LMK 351 screw-in transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 470: in bar 471: in H2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2 wire 9: customer |
||||||||||||||||||
| Accuracy | standard option for pN ≥ 0.6 bar 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 1) TR0: cable outlet, cable with ventilation tube (IP68) (Note 2) M10: male plug M12x1 (4-pin) / metal for analog output 850: compact field housing stainless steel 1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | M00: G1 1/2" DIN 3852 with flush sensor 999: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 7: FFKM 9: customer |
||||||||||||||||||
| Pressure port | 1: stainless steel 1.4404 (316L) B: PVDF (Note 3) 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request 2: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths 3: not possible in combination with compact field housing; permissible medium temperature: -30 … 60 °C. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
