LMK 307T

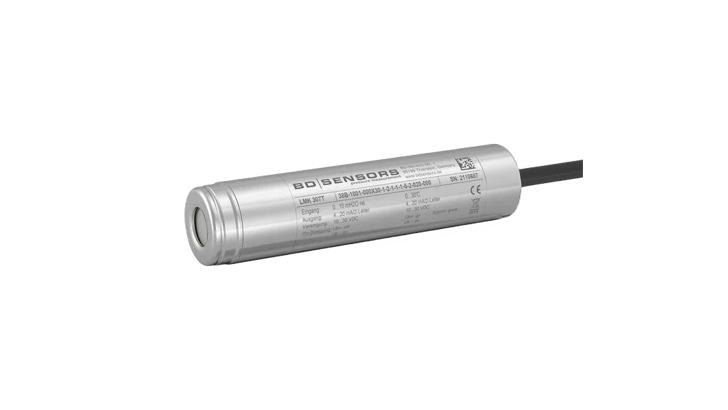

The LMK 307T from BD Sensors is a submersible probe, which is developed to measure level and temperature continuously with a flush mounted ceramic sensor. This is possible in water or wastewater.
Furthermore, you can simultaneously record the level and temperature with an independent signal amplification. Thus, the maintenance and wiring costs are also reduced.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 307T submersible probe is precise and has the following features that benefits you:
Additionally, an extra signal circuit independent of the level converts the temperature signal into a 4 ... 20 mA analogue signal in 2-wire technology, which is provided as an addition to the classical signal processing of the level.
The LMK 307T from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including water, fuels, and oils, as well as sewage water and sludge.
If you have a specific need the LMK 307T submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 38A: in bar 38B: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96 % 9: customer |
||||||||||||||||||
| Output pressure | 1: 4 … 20 mA / 2-wire |
||||||||||||||||||
| Output temperature | 1: 4 … 20 mA / 2-wire |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5% FSO 9: customer |
||||||||||||||||||
| Electrical connection/ cable length | PVC-cable (grey, Ø 7.4 mm) (Note 1) PUR-cable (black, Ø 7.4 mm) (Note 1) FEP-cable (black, Ø 7.4 mm) (Note 1) |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference. |
||||||||||||||||||
