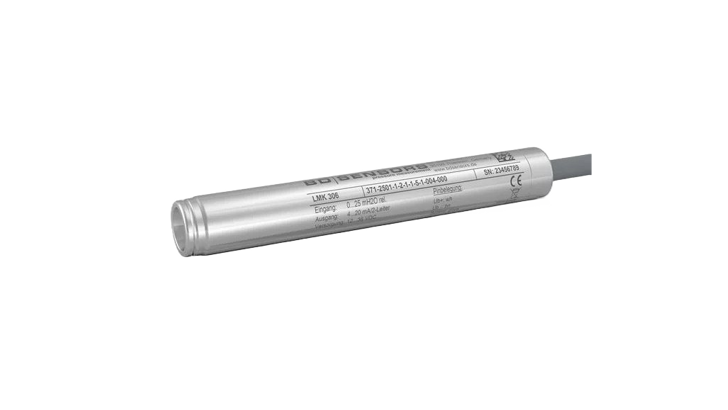

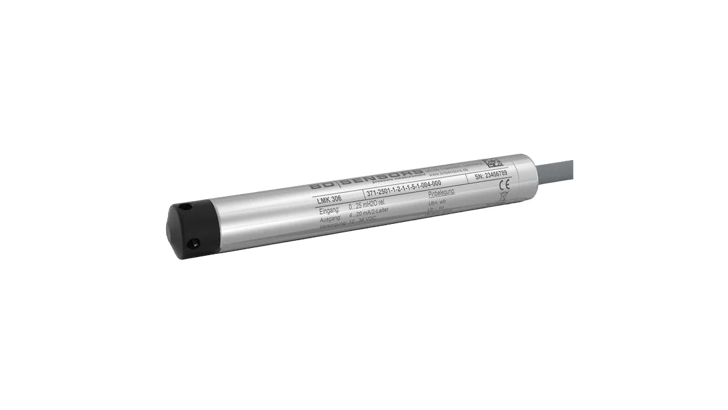

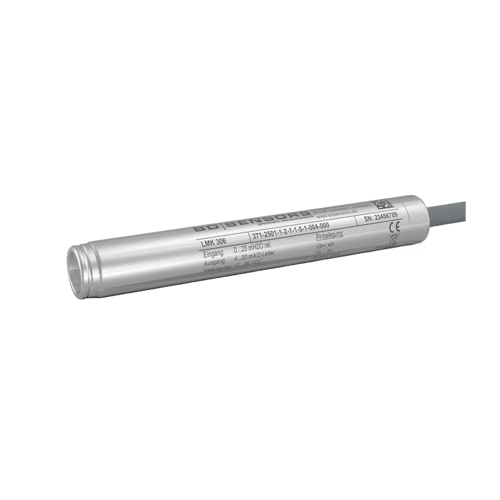

LMK 306
The LMK 306 from BD Sensors is a slimline probe with a ceramic sensor, which is design specifically to measure level continuously in a confined space. Acceptable media are including clear or slightly contaminated water, as well as thin fluids.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 306 submersible probe is precise and has the following features that benefits you:
The LMK 306 from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including water, fuels, and oils.
If you have a specific need the LMK 306 submersible probe is available with optional features like:
Moreover, for you to achieve maximum media compatibility you have different types of sheath materials available, as mentioned above.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 370: in bar 371: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96 % 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5% FSO 9: customer |
||||||||||||||||||
| Electrical connection | 1: PVC-cable (grey, Ø 7.4 mm) (Note 1) 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 3: FEP-cable (black, Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
