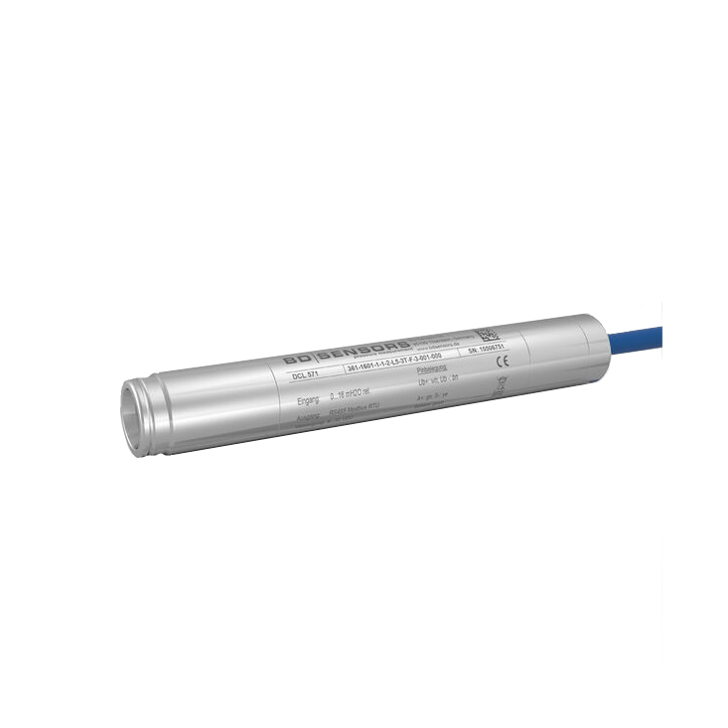

DCL571 Bdsensors 1024 Square

DCL 571

The DCL 571 is a stainless-steel probe from BD Sensors, which is developed to measure level in wastewater, sludge, or water courses. The probe has a flush ceramic diaphragm that has a mechanical vigor that makes it easy to disassemble and clean in case of service of the probe.

Furthermore, the DCL 571 is available with a RS485 interface.

Moreover, the outside-diameter is only 22 mm, which makes easy to install, back fitting 1” tubes, or in confined fitting conditions.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DCL 571 Features

The DCL 571 submersible probe is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 1 mH2O up to 0 ... 100 mH2O
  • Accuracy: 0.35% (opt. 0.35 %) FSO
  • Output signal: RS485 with Modbus RTU protocol
  • Diameter 22 mm
  • Exceptional long-term stability.

The probe is using the RS485 interface, which is based on the communication protocol by Modbus RTU. Thus, it is an open protocol where the data is transferred in binary form.

DCL571 Bdsensors 1024 Square

Typical applications

The DCL 571 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Energy industry
  • Environmental industry.

Moreover, the probe can be used for various media including water, fuels, and oils, as well as sewage water, sludge.

Get more information here

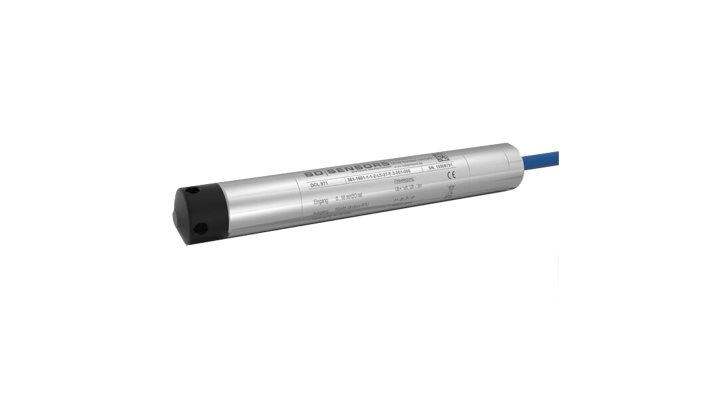

DCL571 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

360: gauge in bar

361: gauge in H2O

363: absolute in bar
Input

[mH2O]

1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1201: 12
1401: 14
1601: 16
1801: 18
2001: 20
2501: 25
3001: 30
4001: 40
6001: 60
1002: 100

[bar]

1000: 0.10
1600: 0.16
2500: 0.25
4000: 0.40
6000: 0.60
1001: 1.0
1201: 1.2
1401: 1.4
1601: 1.6
1801: 1.8
2001: 2.0
2501: 2.5
3001: 3.0
4001: 4.0
6001: 6.0
1002: 10
9999: customer
Housing

1: stainless steel 1.4404 (316L)

9: customer
Design

1: probe

A: screw-in version G1/2" open

B: screw-in version G3/4" flush
Diaphragm

C: ceramics Al2O3 99.9%

9: customer
Output

L5: RS485 Modbus RTU

9: customer
Seals

1: FKM

DVGW / KTW

3T: EPDM (Note 1)

9: customer
Electrical connection

2: PUR-cable (black, Ø 7.4 mm) (Note 2)

DVGW / KTW

F: TPE-U-cable (blue, Ø 7.4 mm) (Note 1, 2)

9: customer
Accuracy

standard

3: 0.35 % FSO

option

2: 0.25 % FSO

9: customer
Cable length

999: in m
Special Version

000: standard

999: customer
Notes

1: drinking water certification only possible with EPDM seal (code 3T) in combination with TPE-U cable (code F)

2: shielded cable with integrated ventilation tube for atmospheric pressure reference.
