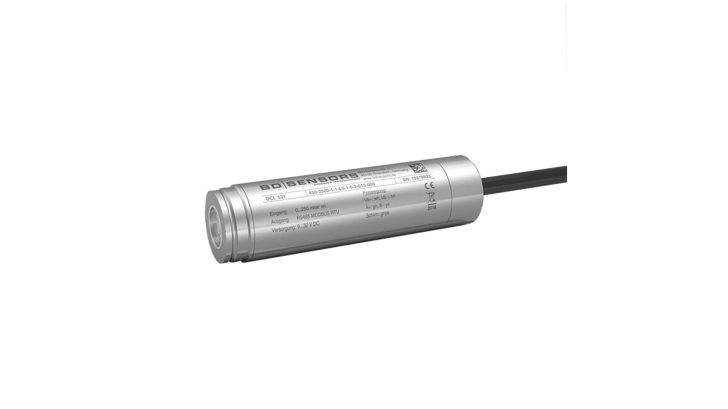

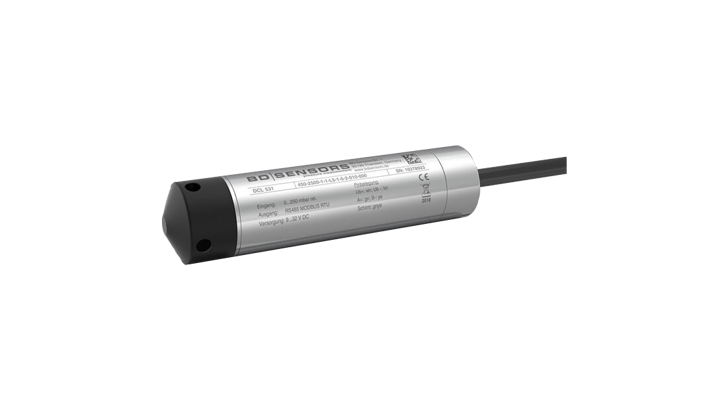

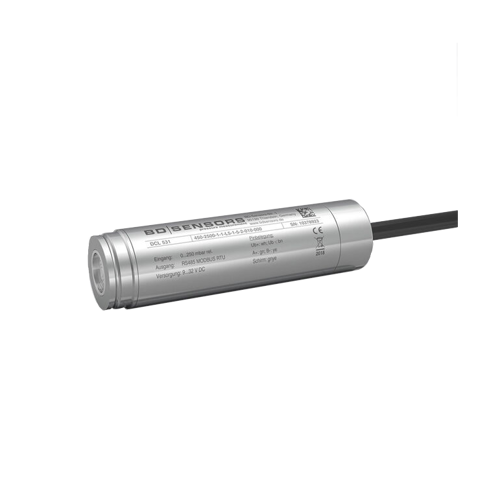

DCL 531
The DCL 531 from BD Sensors is a stainless-steel submersible probe with the RS485 interface. Moreover, the probe’s basic element is a stainless-steel sensor of great quality that meet the highest requirements for accurate measurement with exceptional long-term stability.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCL 531 submersible probe is precise and has the following features that benefits you:
The probe is using the RS485 interface, which is based on the communication protocol by Modbus RTU. Thus, it is an open protocol where the data is transferred in binary form.
The DCL 531 from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including fuels and oils, as well as water.
If you have a specific need the DCL 531 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 450: in bar 451: in H2O |
||||||||||||||||||
| Input | [mH2O] 1000: 1.0 [bar] 1000: 0.10 |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Output | L5: RS485 Modbus RTU 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM DVGW / KTW 3T: EPDM (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 2: PUR-cable (black, Ø 7.4 mm) (Note 2) 3: FEP-cable (black, Ø 7.4 mm) (Note 2) DVGW / KTW F: TPE-U-cable (blue, Ø 7.4 mm) (Note 1, 2) 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special Version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: drinking water certification only possible with EPDM seal (code 3T) in combination with TPE-U cable (code F) 2: shielded cable with integrated ventilation tube for atmospheric pressure reference. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
