VEGAFLEX 83 Hygjenic

Guided radar level measurement with polished rod in 316L, rod covered with PFA or cable covered with PFA. Used for continuous level measurement and interface measurement in food and pharmaceutical products.

Measuring range: wire up to 35 m and rod up to 4 m - process temperature between -40 ° C… 150 ° C.

For sales or commercial inquiries please contact us at marine@insatech.com.

contact us now

Accurate level measurement

Accuracy ± 2 mm.

Level measurement and interface measurement of liquids in food and pharmaceutical products (DC value> 1.6).

Suitable for e.g.:

  • Foaming liquids
  • food
  • Pharmaceutically.
  • Suitable for measuring under difficult conditions.

Independent of product features such as conductivity, density, DC value, moisture.

Insensitive to dust, vapor and build-up of media.

Easy to commission and service.

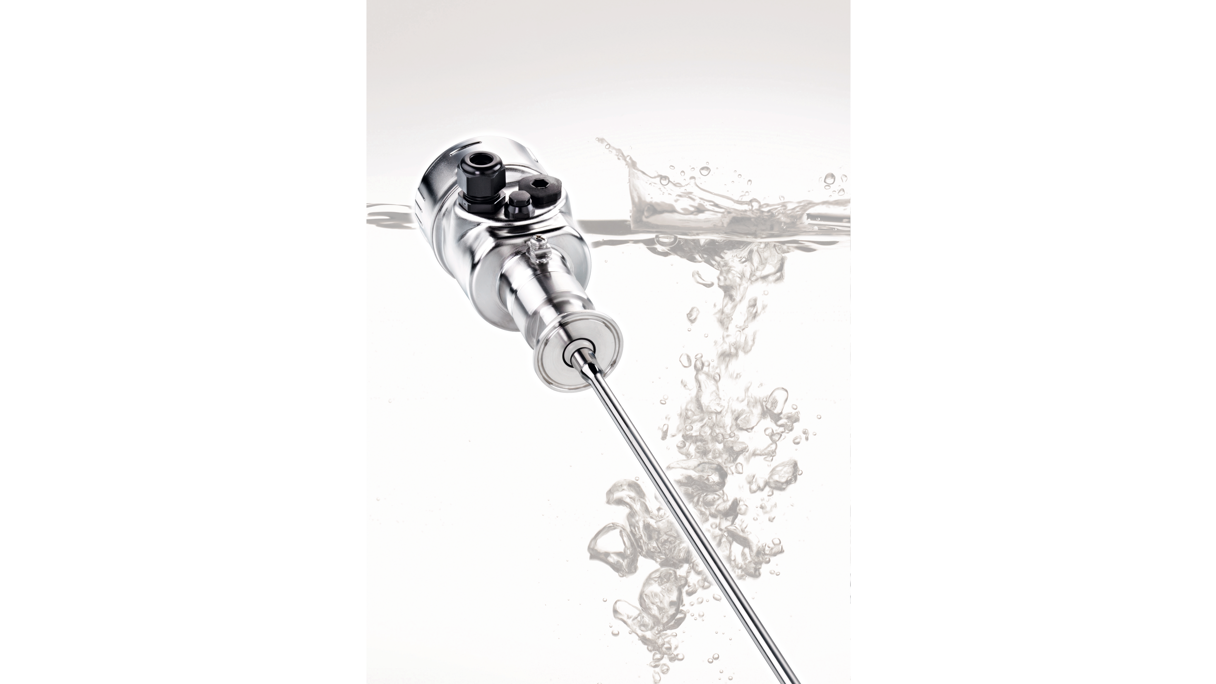

Insatech VEGAFX 83 4

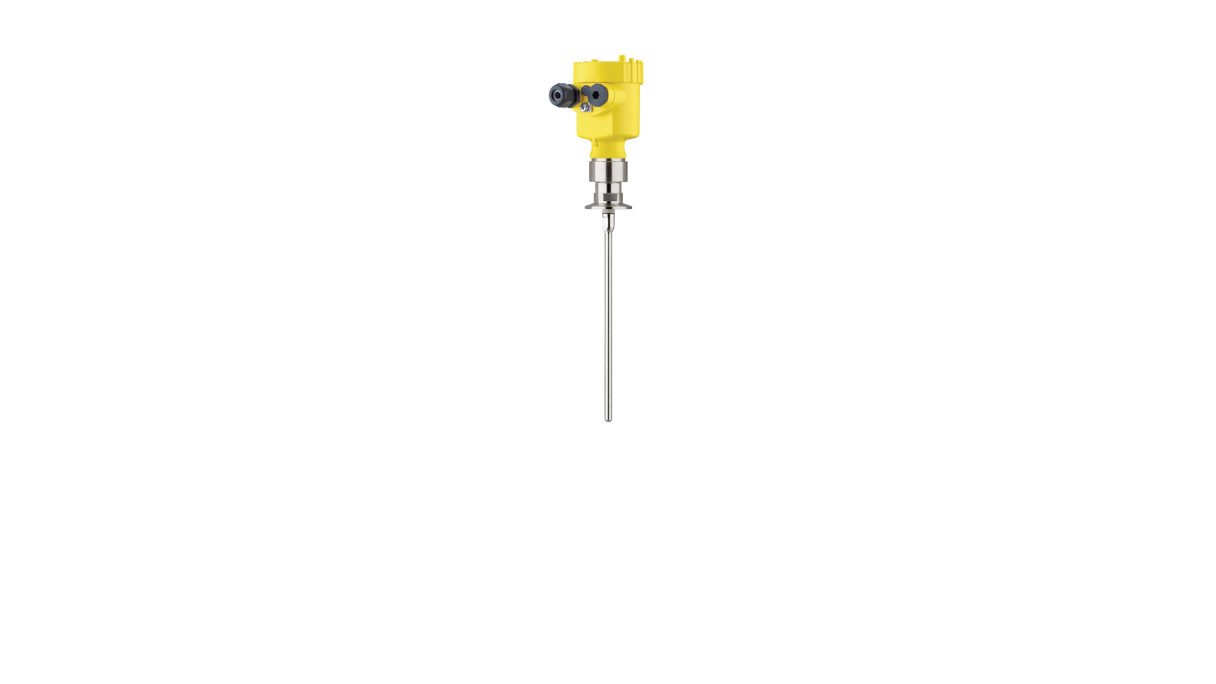

Insatech VEGAFX 83 3
Insatech VEGAFX 83 2
Insatech VEGAFX 83 1

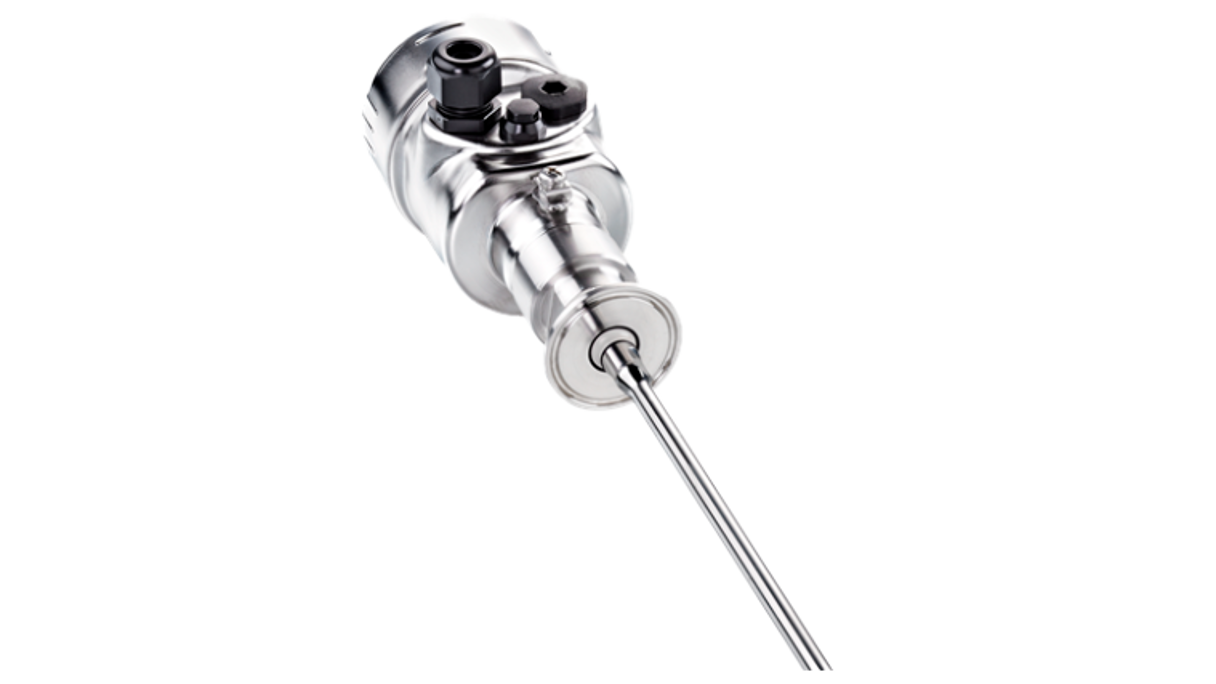

Insatech VEGAFX 83 Hygiejne
Insatech VEGAFX 83 4
Insatech VEGAFX 83 3
Insatech VEGAFX 83 2
Insatech VEGAFX 83 1
Insatech VEGAFX 83 Hygiejne

Can be mounted and adjusted without having to fill or empty the container

Easy setting with display, PC software or HART® terminal.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

32 m

Process temperature

-40 ... 150 °C

Process pressure

-1 ... 16 bar

Accuracy

± 2 mm

Output
  • 4 … 20 mA/HART - four wire
  • 4 … 20 mA/HART - two wire
  • Modbus
  • Foundation Fieldbus
  • Profibus PA
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • Manual - VEGAFLEX 83 - 4...20 mA HART two-wire
    English | pdf
  • Specification sheet - VEGAFLEX 83 - 4...20 mA HART two-wire
    English | pdf
  • Brochure - Guided Wave Radar: VEGAFLEX series 80
    English | pdf
  • Product information VEGAFLEX 81, 83, 86
    English | pdf
