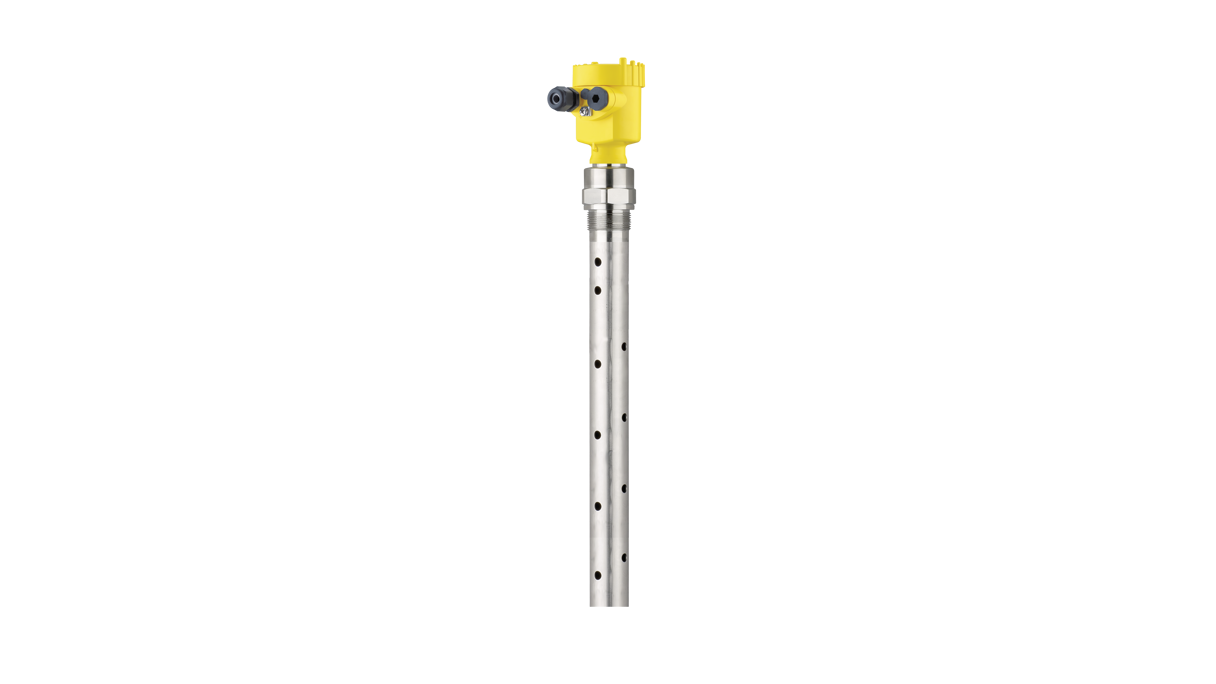

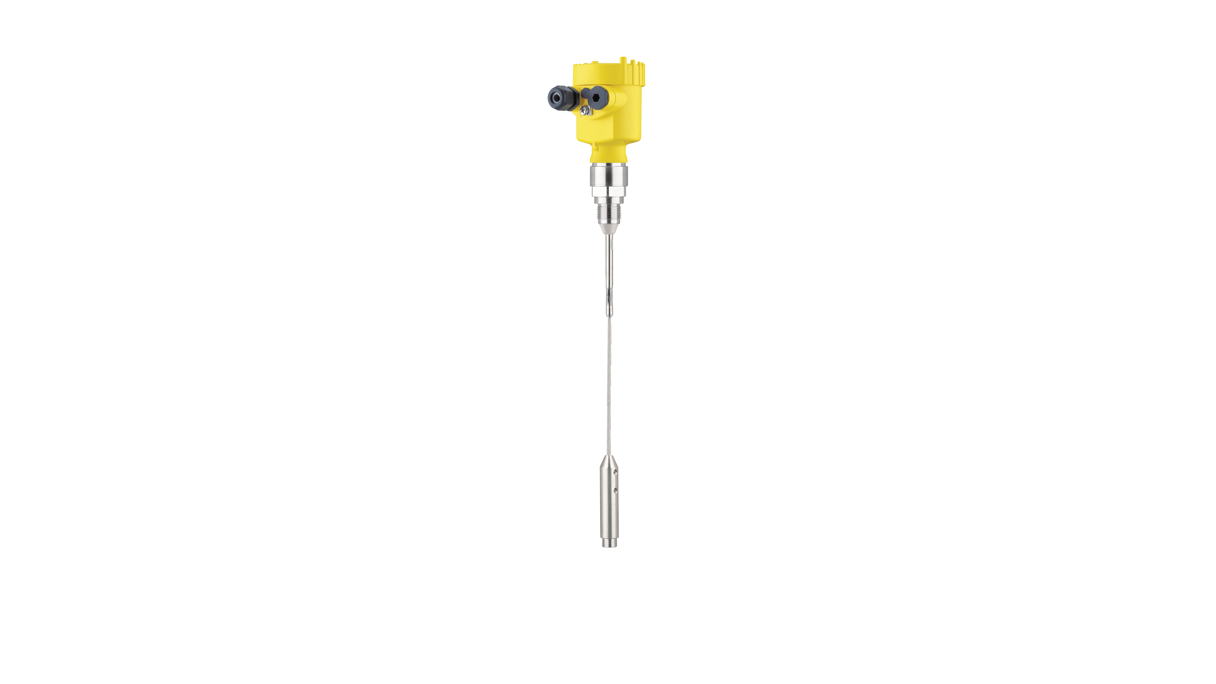

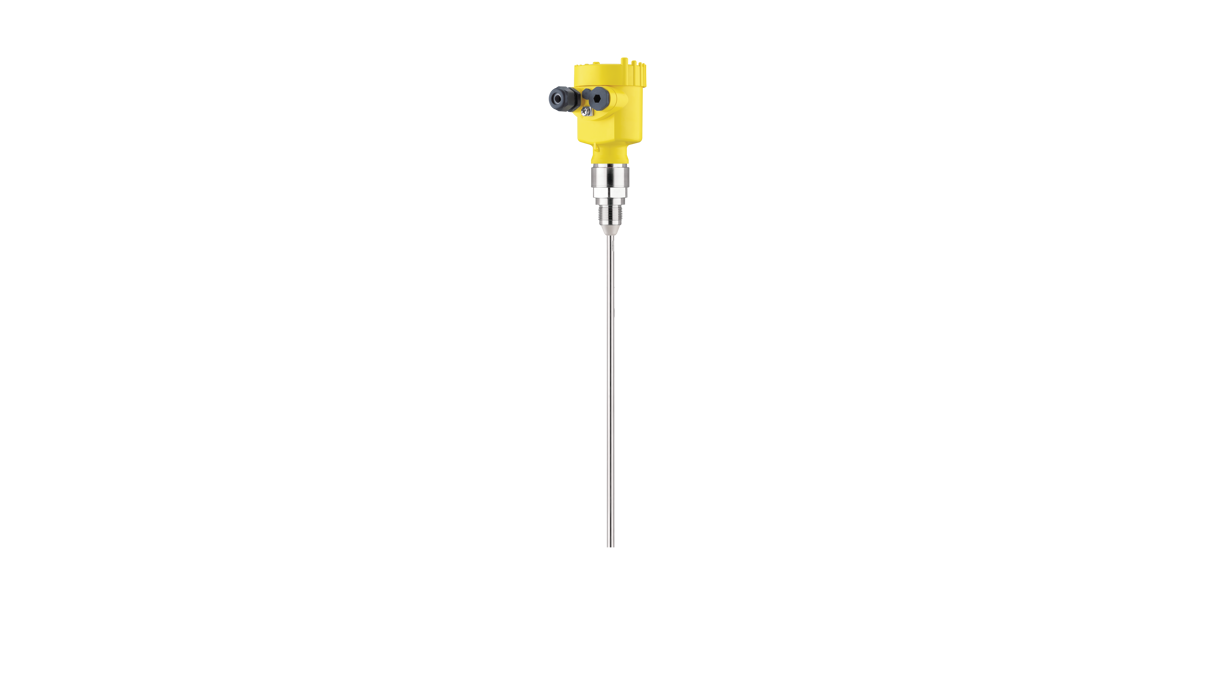

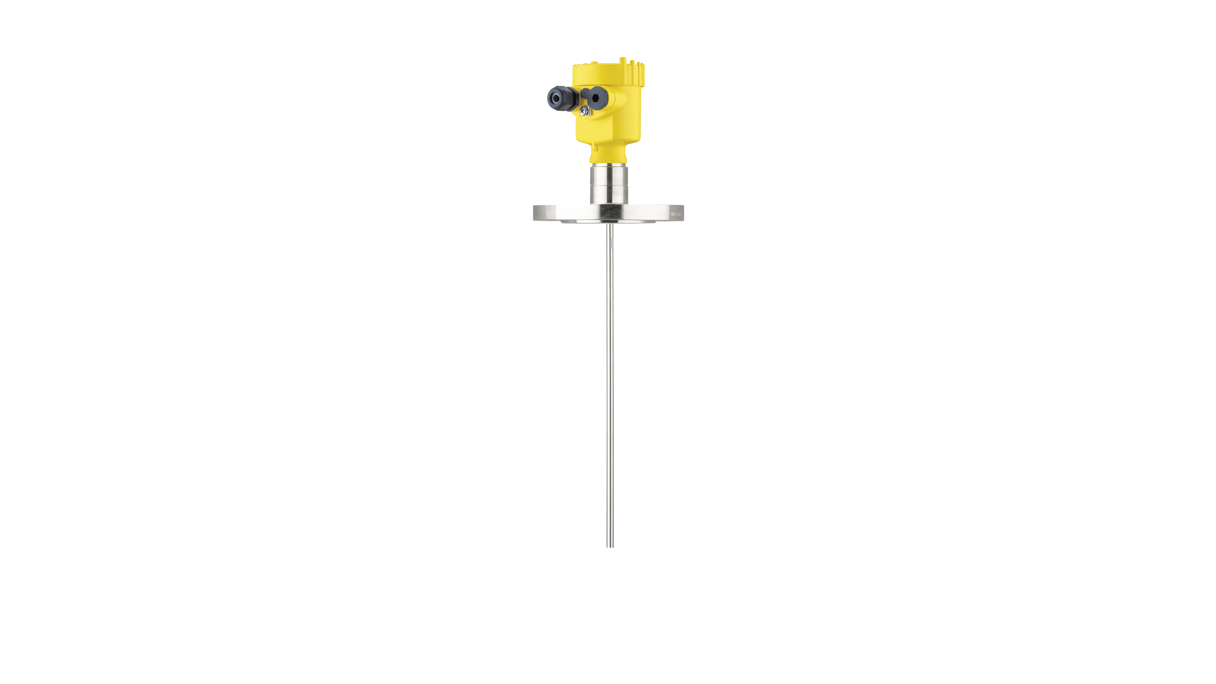

Guided radar level measurement with wire or rod. Used for continuous level measurement and interface measurement in fluids.
Measurement range: wire up to 75 m and rod up to 6 m - process temperature between -40 ° C… 200 ° C.
For sales or commercial inquiries please contact us at marine@insatech.com.
VEGAFLEX81 is made for liquid applications and can measure both level and interface in standard version and can be made in special version intended for measurement in ammonia.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Distance | 75 m |
||||||||||||||||||
| Process temperature | -60 ... 200 °C |
||||||||||||||||||
| Process pressure | -1 ... 40 bar |
||||||||||||||||||
| Accuracy | ± 2 mm |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material |
|
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Foodstuffs/Pharma | FDA |
| Ship approval |
|
| Overfill protection |
|
| SIL qualification | SIL2 |
