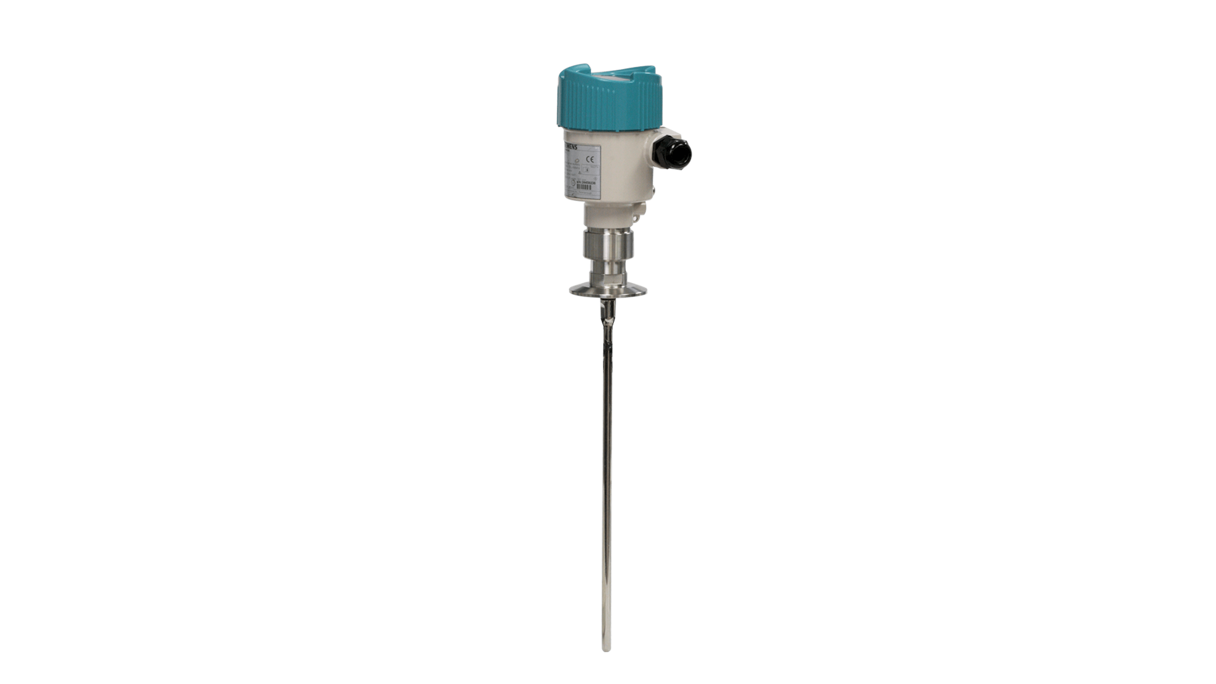

Insatech Siemens SITRANS LG240 Guided Wave Radar 7ML5880 1X1

SITRANS LG240

The SITRANS LG240 from Siemens is a radar particularly well-suited for continuous level measurement in bypass and stilling wells, even at very low DK values. It is ideal for measuring level and interface in aggressive liquids and hygienic applications. Available in both rod and cable versions. Both versions can measure values as low as ≥ 1.6 in DK value.

The LG240 gives you several benefits:

  • High accuracy
  • Advanced diagnostics
  • Easy setup
  • Broad applicability
  • Available with FDA approval.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Precision Level Measurement for Complex Environments

The SITRANS LG240 provides precise level and interface measurement in both simple and complex environments, making it highly adaptable across various industries.

Whether used in corrosive chemical processes, hygienic food and pharmaceutical applications, or multi-layered liquid systems, the LG240 ensures accurate readings with its guided wave radar technology.

It offers flexibility in measuring low dielectric constant materials and can handle extreme pressure and temperature variations, making it suitable for a broad range of demanding industrial settings.

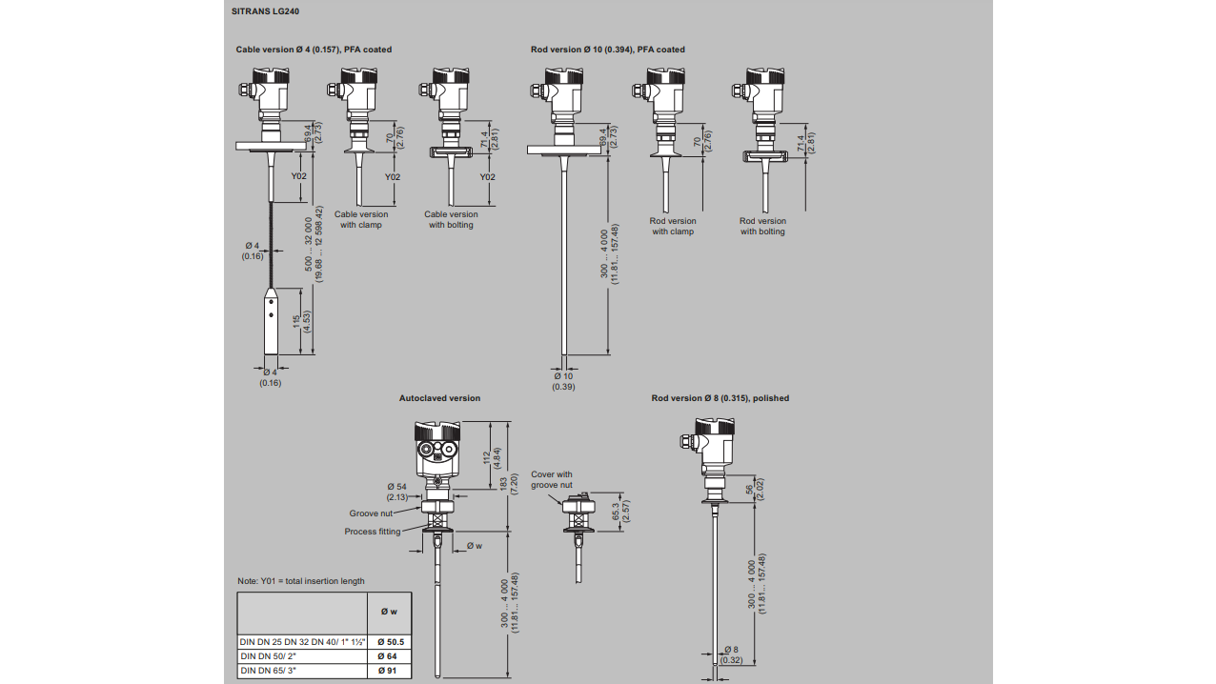

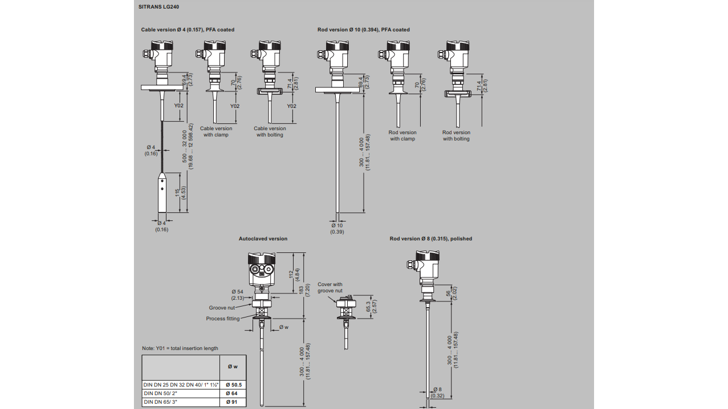

LG240 Diemensions Siemens 1024 16X9

Key Features of the SITRANS LG240

The LG240 series has several benefits, some of which we have listed for you below:

  • Guided wave radar technology
  • Measures level, interface, and volume of liquids and solids
  • Suitable for hygienic and corrosive applications
  • Handles extreme temperatures and pressures
  • High accuracy to +/- 2 mm
  • Advanced diagnostics for safety
  • Simple menu-driven display for easy setup
  • Modular design with replaceable probes
  • Available in rod and cable versions
  • Measures low DK values (≥ 1.6)
  • FDA approval available
  • Broad application range from storage to extreme pressure/temperature environments
  • Auto-learn function for buildup resistance
  • Probe end tracking for loss of echo situations
  • USB and remote access options for convenience.

Exactly what you need? Contact us now!

Diverse Applications of the SITRANS LG240

The SITRANS LG240 from Siemens is a versatile guided wave radar transmitter designed for a wide range of applications. It excels in continuous level and interface measurement, particularly in challenging environments such as hygienic and corrosive applications. With the ability to measure very low dielectric constant (DK) values (≥ 1.6) and handle extreme process conditions, the LG240 is ideal for industries that require precise monitoring in aggressive liquids or in processes with high temperatures and pressures. It is well-suited for applications ranging from storage tanks to demanding environments like chemical plants and food production, where hygienic standards are critical. The LG240's advanced diagnostics and ease of maintenance make it a reliable solution for ensuring safety and efficiency in a broad range of level measurement scenarios.

Key Applications:

  • Marine Industry
  • Hygienic applications (e.g., food and pharmaceutical industries)
  • Corrosive liquid environments
  • Storage tanks for liquids and solids
  • Chemical processing plants
  • High-temperature and high-pressure environments
  • Aggressive liquid measurement
  • Separation and interface measurement processes
  • Steam boilers and distillation columns
  • LPG gas tanks and other pressurized vessels.

Need more information? Contact us here

169 Marineforsidebillede

Simple Installation and Reliable Operation

Installing the SITRANS LG240 is straightforward, with specific guidelines ensuring optimal performance. It requires proper spacing from vessel walls and installations, especially in non-metallic containers where a metal sheet or flange version is necessary for signal accuracy.

The sensor is designed to avoid interference from inflowing products and includes features like false signal suppression to enhance measurement precision. With minimal dead zones and durable construction, the LG240 offers reliable level measurement for a variety of applications, ensuring accurate readings even in the most challenging environments.

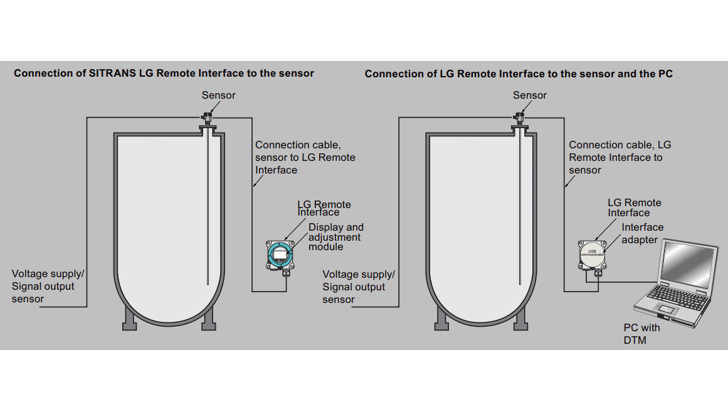

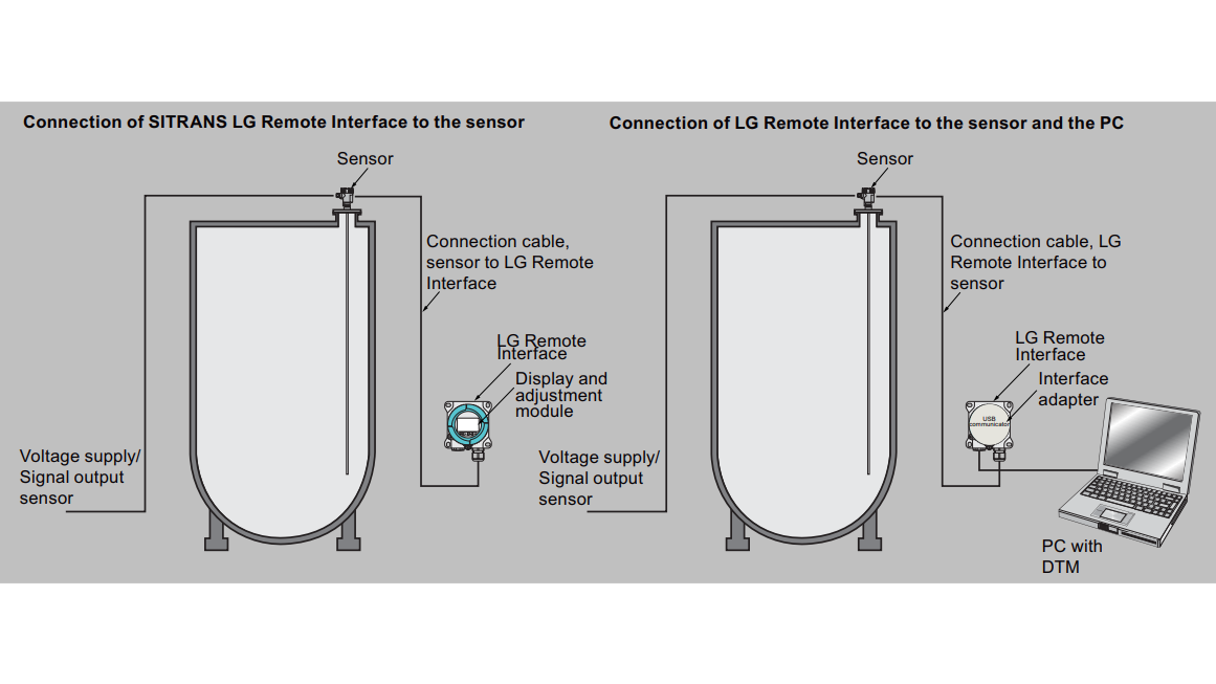

LG Series Configuration 1 Siemens 1024 16X9

Easy Configuration and Reliable Operation of the SITRANS LG240

The SITRANS LG240 is designed for continuous level and interface measurement, making it especially suitable for applications in the food processing and pharmaceutical industries. Utilizing high-frequency microwave pulses, this level sensor guides the impulses along a steel cable or rod, which are reflected when they reach the product surface. The time it takes for these pulses to return is then processed by the instrument to calculate and output the level or interface.

For interface measurement, the SITRANS LG240 requires a stable and homogenous upper medium with a known dielectric constant (minimum 1.6), and it must be non-conductive. The lower medium must have a dielectric constant at least 10 times higher than the upper medium, typically electrically conductive. The instrument can also handle applications involving a gas phase and is configured by default for level measurement, with the option to adjust settings for interface measurement. Its precise operation ensures reliable measurement in even complex multi-layered environments.

Contact us now and let's talk price!

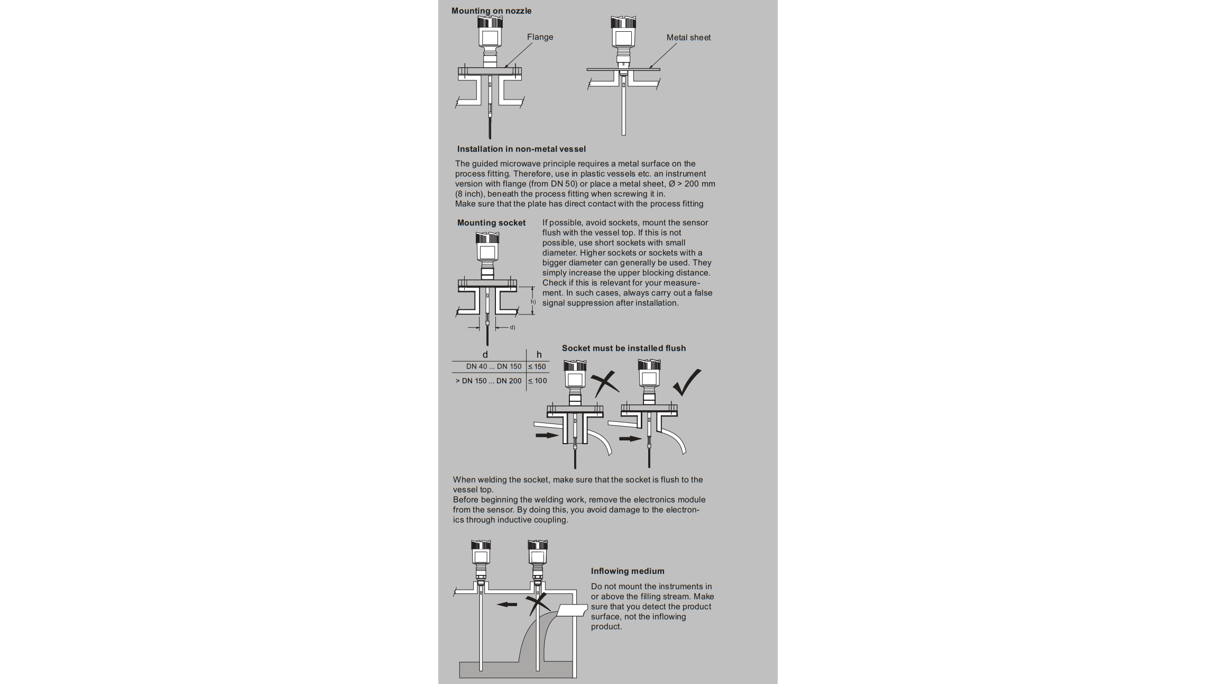

Proper Installation Guidelines for the SITRANS LG240

For optimal performance, the SITRANS LG240 should be mounted at least 300 mm (12 in) away from vessel walls or installations, and 500 mm (19.7 in) in non-metallic vessels. The probe must not touch any vessel structures during operation, and in vessels with conical bottoms, centering the sensor ensures measurement close to the lowest point. For non-metallic vessels, a metal sheet or a version with a flange is required to ensure proper signal transmission. Avoid placing the sensor above the filling stream to ensure accurate product surface detection, and follow the specified guidelines for dead zones at the probe's ends for accurate measurements.

Need our help? Contact us here!

LG Series Siemens 1024 16X9
Insatech Siemens SITRANS LG240 Guided Wave Radar 7ML5880 16 9

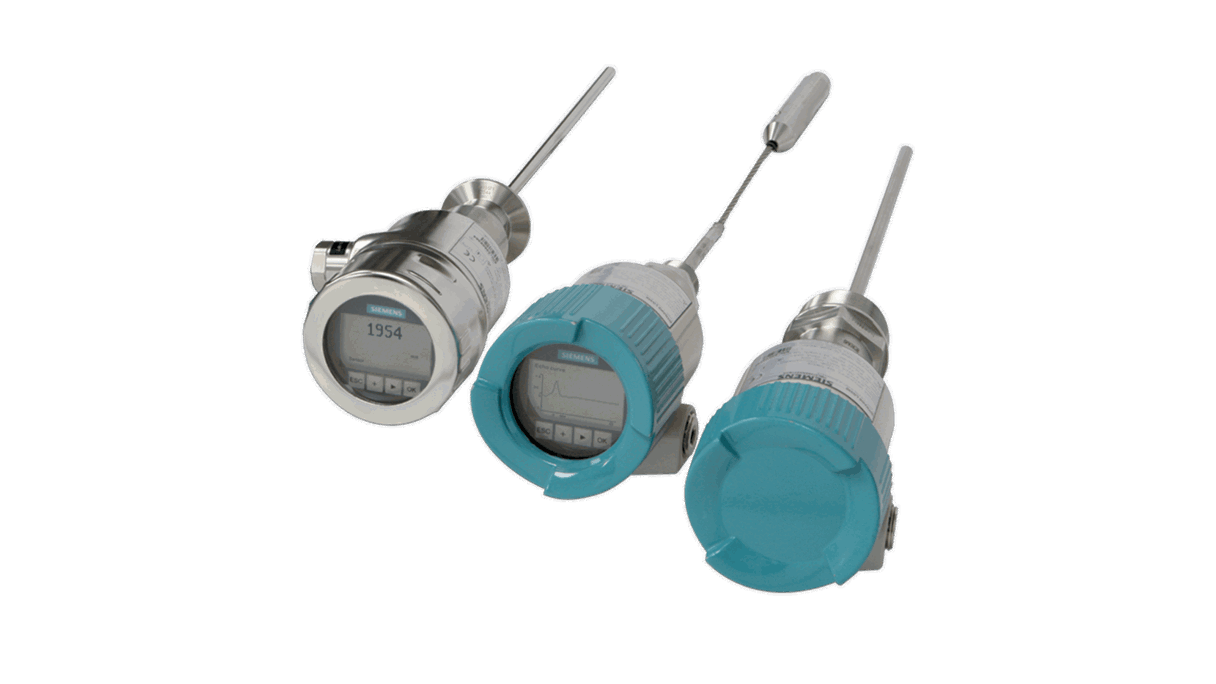

Insatech Siemens SITRANS LG Series Guided Wave Radar 16 9
LG240 Diemensions Siemens 1024 16X9
LG Series Configuration 1 Siemens 1024 16X9
LG Series Configuration Siemens 1024 16X9
LG Series Siemens 1024 16X9
Insatech Siemens SITRANS LG240 Guided Wave Radar 7ML5880 16 9
Insatech Siemens SITRANS LG Series Guided Wave Radar 16 9
LG240 Diemensions Siemens 1024 16X9
LG Series Configuration 1 Siemens 1024 16X9
LG Series Configuration Siemens 1024 16X9
LG Series Siemens 1024 16X9

Choosing the Right SITRANS LG Model for Your Application

The SITRANS LG series from Siemens offers a comprehensive range of guided wave radar transmitters tailored for different industrial needs, providing solutions for level, interface, and volume measurement across various applications. Each model is designed to meet specific process requirements, ensuring reliable performance even under challenging conditions.

SITRANS LG240:

  • Designed for hygienic and aggressive chemical applications
  • Wide range of probe materials available
  • Suitable for highly corrosive environments

SITRANS LG250:

  • Highly flexible for liquid level and interface measurement
  • Versatile solution for storage, material separation, and ammonia applications

SITRANS LG260:

  • Ideal for medium-range solids measurement
  • Suitable for materials like grains, plastics, and cement

SITRANS LG270:

  • Configurable for extreme temperature and pressure conditions
  • Applicable in harsh environments such as chemical, HPI, and energy industries
  • Perfect for LPG gas tanks, steam boilers, and distillation columns

Each model in the SITRANS LG series is tailored to handle the unique challenges of its target application, offering versatility and reliability in demanding industrial processes.

LG-Series comes in four models

Insatech Siemens SITRANS LG240 Guided Wave Radar 7ML5880 16 9

Siemens SITRANS LG240 Guided Radar

Guided wave radar for level and interface measurement in liquids with low DK value. It is particularly well-suited for level measurements in bypass or stilling wells and in hygienic liquid applications.

Insatech Siemens SITRANS LG250 Guided Wave Radar 7ML5881 16 9

Siemens SITRANS LG250 Guided Radar

The radar is particularly well-suited for level and interface measurement in the chemical, petrochemical, power, and general industries. It is a flexible solution that can be used in tanks, media separation, and ammonia applications.

Insatech Siemens SITRANS LG260 Guided Wave Radar 7ML5882 16 9

Siemens SITRANS LG260 Guided Radar

The radar is particularly well-suited for level measurement of solids in the cement, power, food, mineral, mining and maritime industries. It can be used for materials such as grain, plastic, coal, fly ash, and cement. The LG260 is available with a rod or cable and can measure up to 60 m, at temperatures between -40...+200 °C and up to 40 bar.

Insatech Siemens SITRANS LG270 Guided Wave Radar 7ML5883 16 9

Siemens SITRANS LG270 Guided Radar

The radar is particularly well-suited for level and interface measurement of liquids under extreme conditions in the chemical, petrochemical, power, general and maritime industries. It can be used for aggressive media in tanks with agitators, vapors, high temperature, high pressure, and low dielectric constant. The LG270 can measure up to 60 m, at temperatures between -196...+450 °C and up to 400 bar.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

32 m

Process temperature

-40...+150 °C

Process pressure

-1...+16 bar

Accuracy

± 2 mm

Output
  • 4...20 mA / HART
  • Modbus RTU
  • Modbus ASCII
  • PROFIBUS PA
  • FOUNDATION Fieldbus
  • SIMATIC PDM
  • DTM / FDT for PACTware
  • Fieldcare
Protection rating
  • Type 4 / NEMA 4, IP65
  • Plastic housing: IP66 / IP67
  • Aluminum and stainless steel housing: IP66 / IP68
Ambient temperature

-40...+80 °C

Materials, wetted parts
  • PFA
  • 316L
  • TFM-PTFE
Materials, housing
  • Plastic
  • Aluminum
  • Stainless steel

See the datasheet for more information

Process connections

Flange and hygienic connections

See the datasheet for more information
