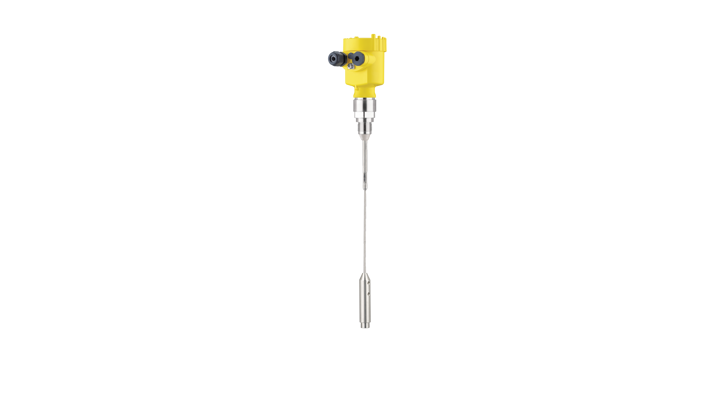

Insatech VEGAFX 81 1
Guided Microwave Radar - Liquids

VEGAFLEX 81

Level and interface measurement in liquids. Measurement range: wire up to 75 m and rod up to 6 m - process temperature between -40 ° C… 200 ° C.

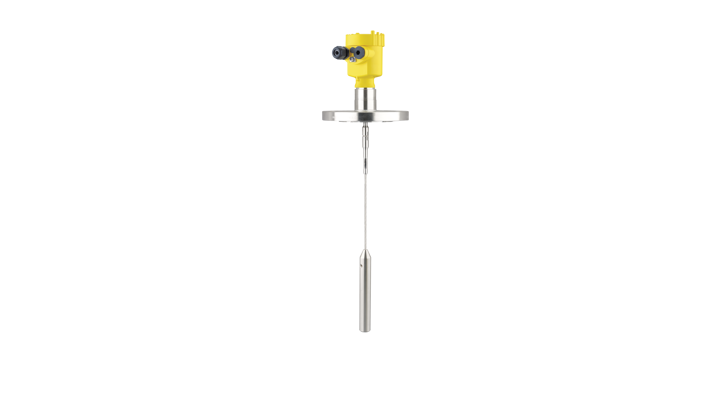

Insatech VEGAFX 82 1
Guided Microwave Radar - Bulk solids

VEGAFLEX 82

Level measurement in solids. Measurement range: wire up to 75 m and rod up to 6 m - process temperature between -40 ° C… 200 ° C.

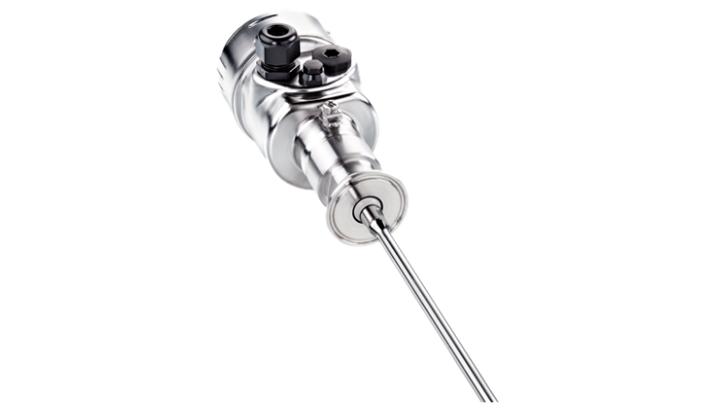

Insatech VEGAFX 83 Hygiejne
Guided Microwave Radar - Liquids

VEGAFLEX 83

Level and interface measurement for agressive liquids or liquid media in food and pharmaceutical products. Measuring range: wire up to 35 m and rod up to 4 m - process temperature between -40 °C… 150 °C.

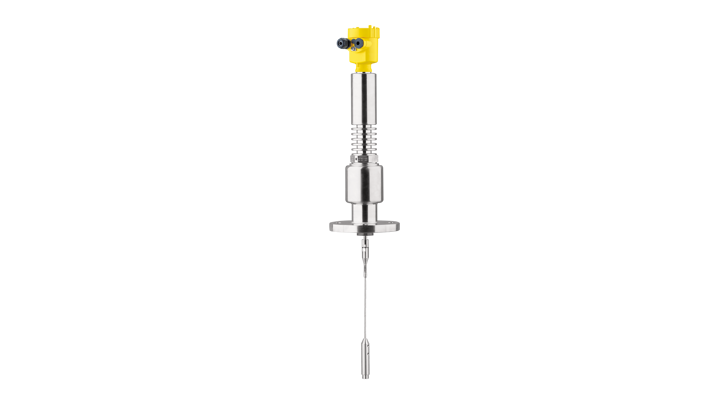

Insatech VEGAFX 86 1
Guided Microwave Radar

VEGAFLEX 86

Level and interface measurement in liquids and level measurement in solids at high temperature and high pressure. Measuring range: wire up to 75 m and rod up to 6 m - process temperature between -196 ° C… 450 ° C, process pressure between -1… 400 bar.

Insatech Siemens SITRANS LG240 Guided Wave Radar 7ML5880 16 9
Guided Microwave Radar - Liquids

Siemens SITRANS LG240 Guided Radar

Guided wave radar for level and interface measurement in liquids with low DK value. It is particularly well-suited for level measurements in bypass or stilling wells and in hygienic liquid applications.

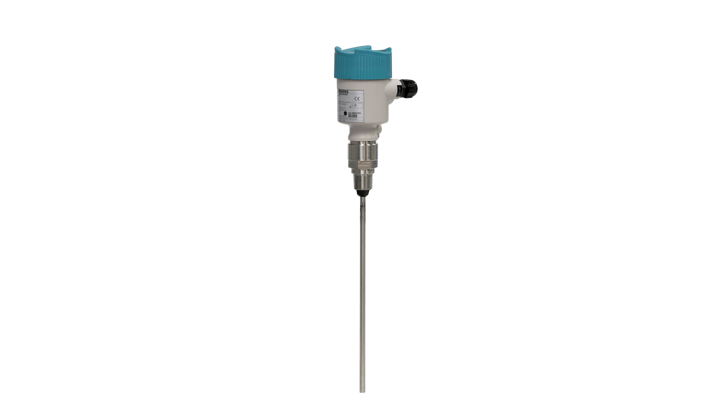

Insatech Siemens SITRANS LG250 Guided Wave Radar 7ML5881 16 9
Guided Microwave Radar - Liquids

Siemens SITRANS LG250 Guided Radar

The radar is particularly well-suited for level and interface measurement in the chemical, petrochemical, power, and general industries. It is a flexible solution that can be used in tanks, media separation, and ammonia applications.

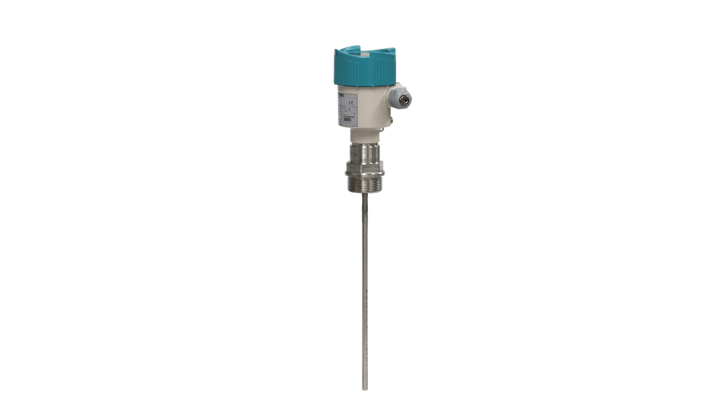

Insatech Siemens SITRANS LG260 Guided Wave Radar 7ML5882 16 9
Guided Microwave Radar - Solids

Siemens SITRANS LG260 Guided Radar

The radar is particularly well-suited for level measurement of solids in the cement, power, food, mineral, mining and maritime industries. It can be used for materials such as grain, plastic, coal, fly ash, and cement. The LG260 is available with a rod or cable and can measure up to 60 m, at temperatures between -40...+200 °C and up to 40 bar.

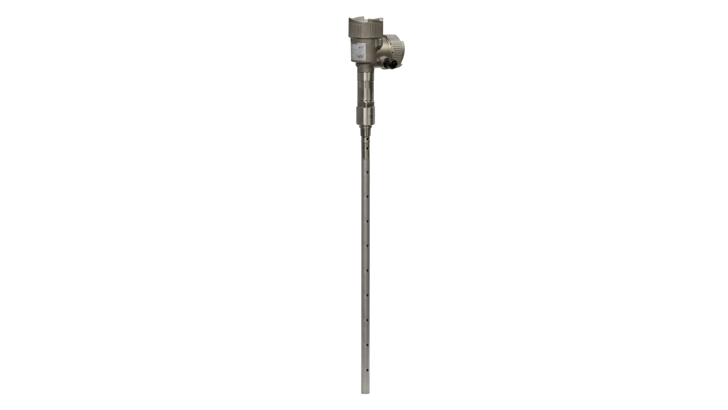

Insatech Siemens SITRANS LG270 Guided Wave Radar 7ML5883 16 9
Guided Microwave Radar - Liquids

Siemens SITRANS LG270 Guided Radar

The radar is particularly well-suited for level and interface measurement of liquids under extreme conditions in the chemical, petrochemical, power, general and maritime industries. It can be used for aggressive media in tanks with agitators, vapors, high temperature, high pressure, and low dielectric constant. The LG270 can measure up to 60 m, at temperatures between -196...+450 °C and up to 400 bar.
