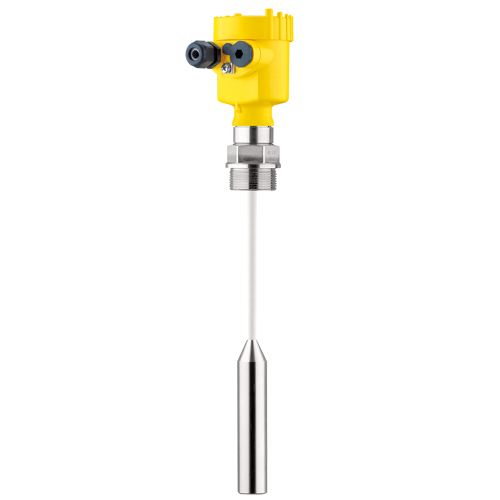

VEGACAL 66

Capacitive full-insulated cable electrode (PTFE), for measurement in liquid or solid media.

Built-in oscillator for continuous level measurement and high / low alarm.

Used mainly for conductive media (DC value> 5), for example water, ethanol or moist sand.

Cable length: 400… 32000 mm

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Benefits with VEGACAL 66

  • Simple mounting.
  • Solid and maintenance free.
  • High reliability.

Meausuring principle: Capacitive

Watch the video from VEGA if you want to know more about how capacitive level measurement works with VEGACAP & VEGACAL

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

32 m

Process temperature

-50 ... 150 °C

Process pressure

-1 ... 40 bar

Version
  • PTFE insulated cable ø 8 mm with gravity weight
  • PTFE-insulated cable ø 8 mm with gravity weight and screening tube
Output
  • Profibus PA
  • Foundation Fieldbus
  • 4 … 20 mA/HART - two-wire
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • Manual - VEGACAL 66 - 4...20 mA HART two-wire
    English | pdf
  • Specification sheet - VEGACAL 66 - 4...20 mA HART two-wire
    English | pdf
  • Product information - VEGACAL 62 63 64 66 69 Liquid
    English | pdf
  • Product information - VEGACAL 62 65 66 67 Bulk Solids
    English | pdf
