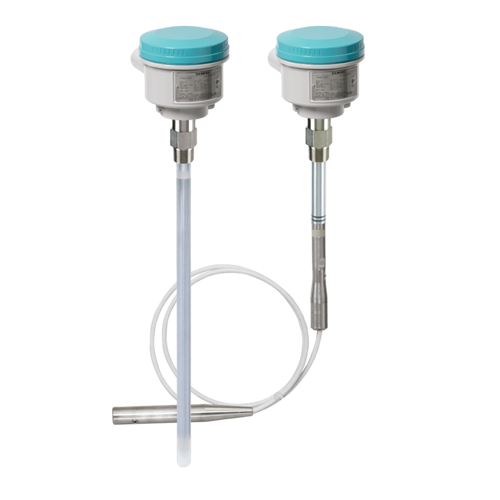

Insatech Siemens SITRANS LC300 Capacitance Level 7ML5670 7ML5671 7ML5673 1X1

SITRANS LC300

The SITRANS LC300 is a versatile and cost-effective capacitive level measurement instrument designed for a variety of industrial applications. It effectively measures levels in liquids, bulk solids, and slurries—even in challenging environments with vapor and dust. Its advanced 2-wire design combines a microprocessor transmitter with reliable probes, ensuring accuracy across industries such as food and beverage, pharmaceuticals, and detergents.

The LC300 gives you several benefits:

  • Versatile Measurement
  • Robust Design
  • Easy Calibration
  • Cost-Effective Solution.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Advanced Level Measurement Technology

The SITRANS LC300 is a state-of-the-art 2-wire level measurement instrument designed to meet the diverse needs of various industries, including food and beverage, pharmaceuticals, and chemicals. Utilizing advanced capacitance measurement technology, it offers reliable and accurate monitoring of liquid, solid, and interface levels. Its ability to measure both low and high dielectric materials (dK ≥ 20 for conductive media and dK < 20 for non-conductive media) ensures versatility across a wide range of applications. The LC300 is particularly valuable for operations requiring precise level monitoring in challenging environments, such as those with vapors, dust, and potential buildup.

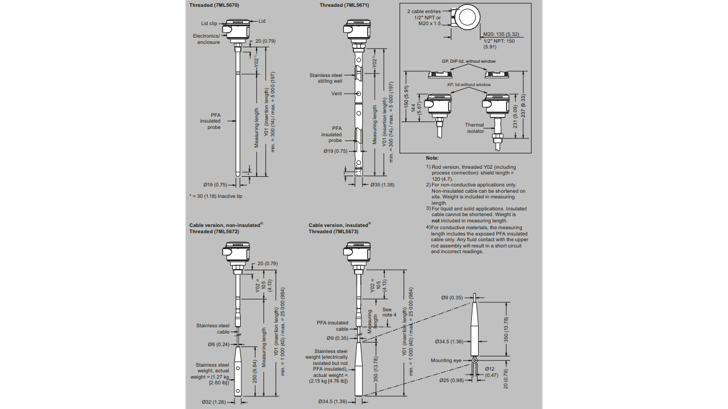

LC300 Dimensions Threaded Siemens 1024 16X9

Key Features of the Pointek LC300

The LC300 has several benefits, some of which we have listed for you below:

  • Active-Shield Technology: Patented technology that ensures measurements are unaffected by material buildup in the active shield section.
  • Versatile Connections: Compatible with threaded and flanged process connections for easy integration.
  • Corrosion-Resistant Construction: Wetted parts made from PFA, PEEK (registered trademark of Victrex plc), and 316L stainless steel for durability in harsh environments.
  • Flexible Insertion Length: Maximum insertion lengths of 5 m (16.4 ft) for rod versions and 25 m (82 ft) for cable versions, allowing for various applications.
  • Rugged Design: Shear and abrasion-resistant probe for reliability in demanding conditions.
  • Fully Adjustable Settings: Customizable range options for level, damping, diagnostics, and more.
  • Field Adjustable Length: Insertion length can be adjusted in the field for cable probes without PFA insulation.
  • ESD Protection: Probe input is protected against electrostatic discharge (ESD).
  • High Accuracy: Reliable measurement for both low and high dielectric materials.
  • Integrated LCD Display: Local display for monitoring, with push-button calibration and programming for user-friendly installation.

Exactly what you need? Contact us now!

Versatile Applications for Pointek LC300

The SITRANS LC300 is an adaptable level measurement instrument designed to excel in various applications across multiple industries. With its four available probe configurations—rod, rod with stilling well, cable with PFA insulation, and cable without PFA insulation—it can accurately measure both low and high dielectric materials. This flexibility makes it suitable for monitoring levels in diverse environments, from food and beverage processing to chemical manufacturing. Its Active-Shield technology further enhances performance by minimizing the impact of buildup or condensation at vessel nozzles, ensuring reliable readings even in challenging conditions.

Key Applications:

  • Conductive media (dK ≥ 20)
  • Non-conductive media (dK < 20)
  • Liquids and solids in standard industrial processes
  • Bulk solids applications involving dust
  • Chemical processes involving vapor.

The SITRANS LC300's robust design and versatile capabilities make it an ideal choice for effective level monitoring in a wide range of applications, enhancing operational efficiency and safety.

You can use it in the following industries:

  • Marine
  • Mining and cement
  • Power
  • Food and beverage
  • Water
  • Chemical
  • Oil and gas.

Need more information? Contact us here

169 Marineforsidebillede

Robust and Reliable Design

One of the standout features of the SITRANS LC300 is its robust construction, designed to withstand demanding conditions. The probe is made from high-quality materials such as PFA, PEEK, and 316L stainless steel, ensuring high chemical resistance and durability against harsh substances. This rugged design is complemented by a fully adjustable range for level, damping, and diagnostics, allowing for customization based on specific operational requirements. Moreover, the LC300's rugged shear and abrasion-resistant probe can perform reliably in applications where heavy solids or abrasive materials are present, making it ideal for industries such as mining and petrochemicals.

LC300 Dimensions Welded Flange Siemens 1024 16X9

Innovative Active-Shield Technology

The SITRANS LC300 incorporates patented Active-Shield technology, which significantly enhances measurement accuracy by mitigating the effects of material buildup near the vessel nozzle. This feature is particularly advantageous in applications where condensation or dust may interfere with traditional measurement methods. With this technology, customers can expect uninterrupted and reliable level readings, reducing the need for frequent maintenance and increasing operational efficiency. The ability to ignore interference from material buildup ensures that the LC300 remains a dependable solution for both continuous level monitoring and interface detection.

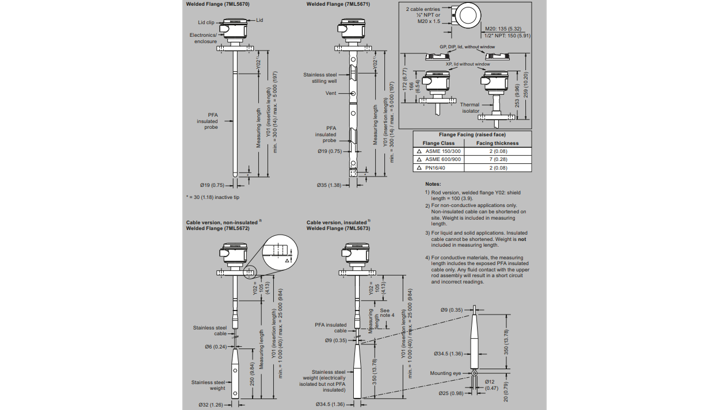

The pictures is showing the dimensions of the Welded Flange.

Contact us now and let's talk price!

User-Friendly Operation and Installation

Designed with user convenience in mind, the SITRANS LC300 features an integrated local LCD display that simplifies monitoring and setup. The push-button calibration and programming capabilities further enhance ease of use, allowing operators to quickly adjust settings according to their specific needs. With a variety of installation options, including threaded and flanged process connections, as well as field-adjustable insertion lengths, the LC300 is easy to integrate into existing systems. This flexibility, combined with ESD protection for the probe input, makes the LC300 a smart investment for customers looking to improve their level measurement capabilities without compromising on reliability or performance.

Need our help? Contact us here!

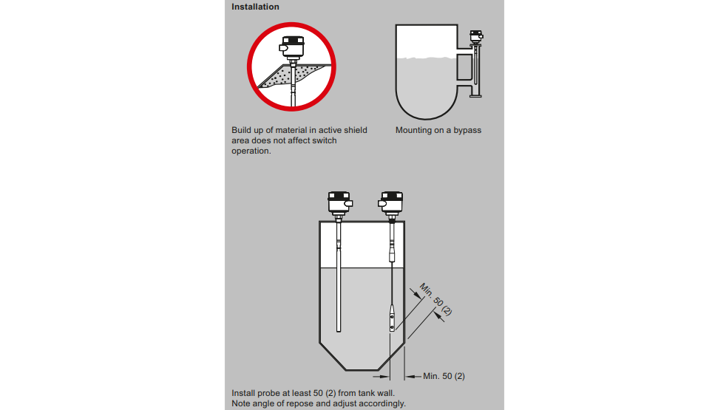

LC300 Configuration Siemens 1024 16X9

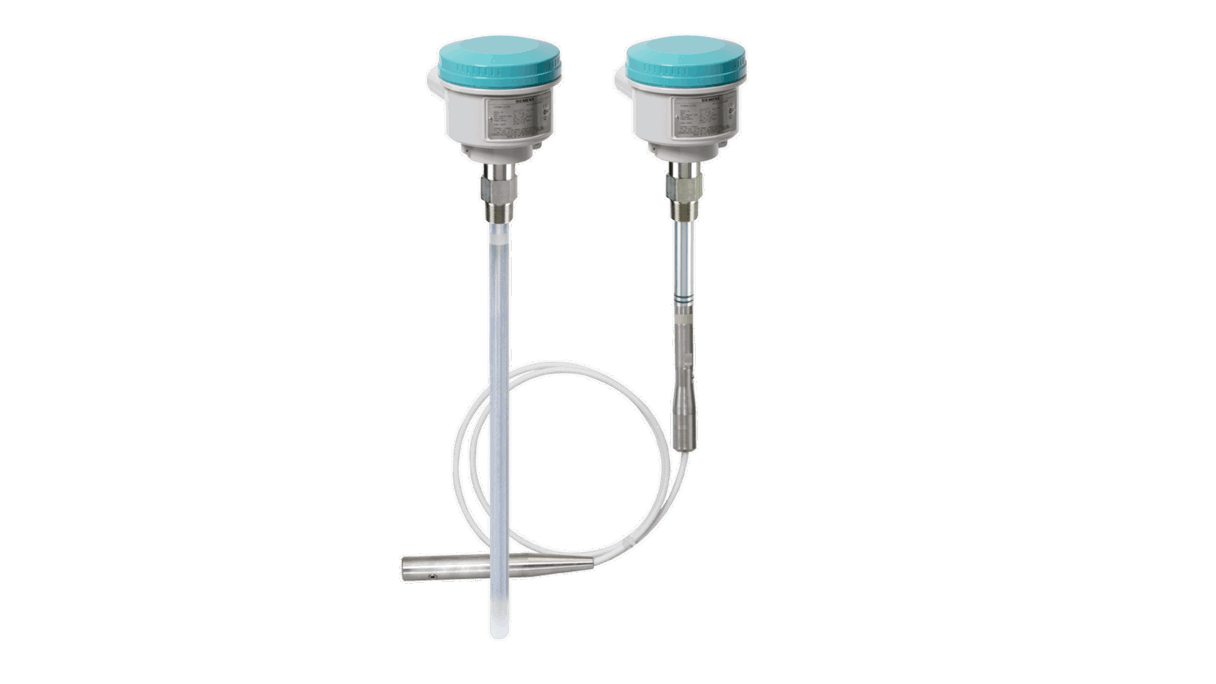

Insatech Siemens SITRANS LC300 Capacitance Level 7ML5670 7ML5671 7ML5673 16 9
LC300 Dimensions Threaded Siemens 1024 16X9
LC300 Dimensions Welded Flange Siemens 1024 16X9
LC300 Configuration Siemens 1024 16X9
Insatech Siemens SITRANS LC300 Capacitance Level 7ML5670 7ML5671 7ML5673 16 9
LC300 Dimensions Threaded Siemens 1024 16X9
LC300 Dimensions Welded Flange Siemens 1024 16X9
LC300 Configuration Siemens 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

25 m

Process temperature

-40...+200 °C

Process pressure

-1...35 bar

Output

2-wire 4...20 mA

Protection rating
  • Type 4 / NEMA 4 / IP65
  • Type 4 / NEMA 4 / IP68
Ambient temperature

-40...+85 °C

Material wetted parts
  • 316L
  • PFA
  • FKM
  • FFKM
Material housing

Epoxy-coated aluminium

Process connections

Thread and flange

See the datasheet for more information

Approvals
  • ATEX
  • Marine
  • VLAREM II

Specifications & Manuals

  • Manual - Siemens SITRANS LC300 Operating Instructions
    English | pdf
  • Technical Specifications - Siemens SITRANS LC300 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf
