Capacitive boundary electrode (switch). Mainly used for conductive media (DC value> 1.5).
For sales or commercial inquiries please contact us at marine@insatech.com.

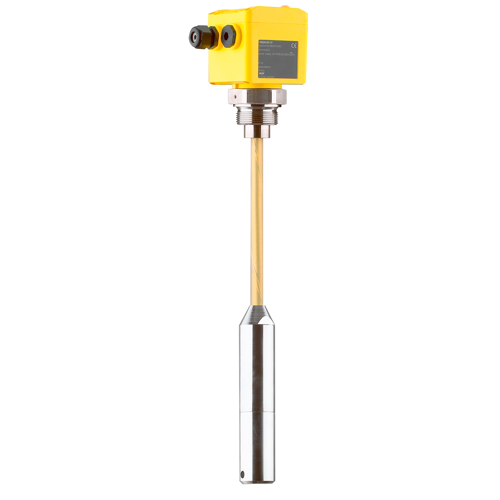

VEGACAP 35
Benefits with VEGACAP 35
- Simple mounting.
- Solid and maintenance free.
- High reliability.
- Precise switch point, even in very sticky media.
- The electrode can be shortened.
Meausuring principle: Capacitive
Watch the video from VEGA if you want to know more about how capacitive level measurement works with VEGACAP & VEGACAL
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Process temperature | -40 ... 80 °C |
||||||||||||||||||
| Process pressure | -1 ... 16 bar |
||||||||||||||||||
| Version | PE insulation |
||||||||||||||||||
| Output | Relay (DPDT) |
||||||||||||||||||
| Protection rating | IP66/IP67 |
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
Material
| Materials, wetted parts |
|
|---|---|
| Seal material | No media contact |
| Housing material |
|
Connections
| Threaded connection |
|
|---|
Approvals
| Overfill protection | WHG |
|---|
Specifications & Manuals
-
Manual - VEGACAP 35 - Relay (DPDT)
English | pdf -
Specification sheet - VEGACAP 35 - Relay (DPDT)
English | pdf
