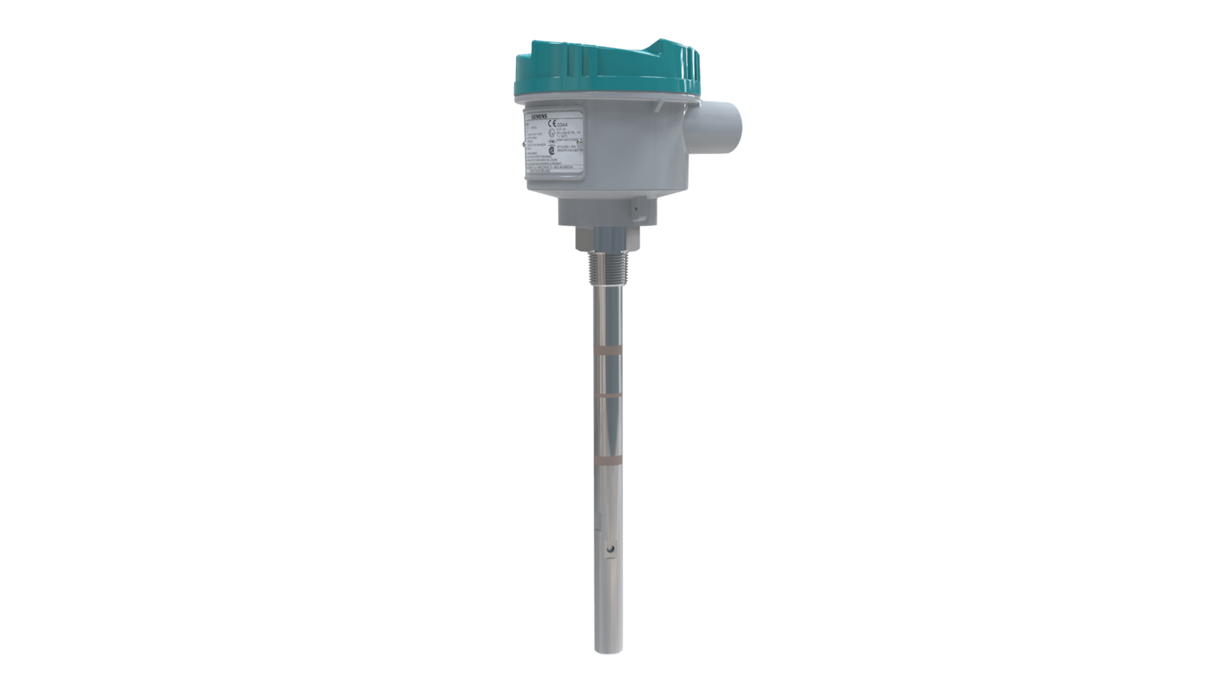

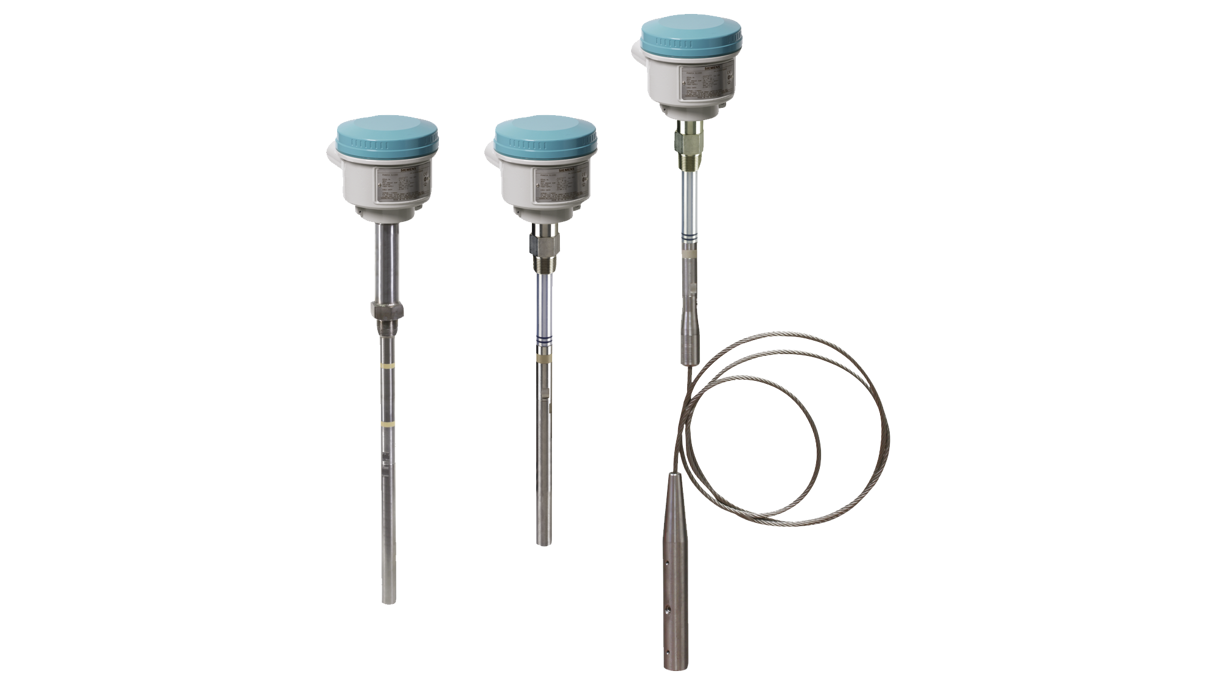

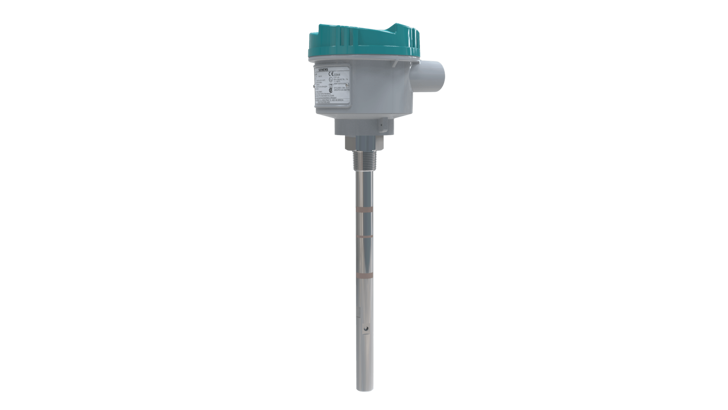

Siemens Pointek CLS300 Capacitive Level Switch

Key Features of the Pointek CLS300

The CLS300 has several benefits, some of which we have listed for you below:

• Active Shield technology: Reduces interference from material buildup and nozzle obstructions, ensuring consistent measurements
• Extended Measurement Range: Rod or cable extensions available up to 25 meters for flexible installations
• High Pressure and Temperature Tolerance: Performs reliably under pressures up to 35 bar and temperatures up to 400 °C
• Robust, Chemical-Resistant Construction: Stainless steel wetted parts with optional PFA and ceramic shielding for enhanced durability in corrosive environments
• Adaptable Modular Design: Configurable with multiple process connections, extensions, and probes to suit specific application needs
• Reliable Electronics Protection: Fully encapsulated components shielded from dust, moisture, and vibrations, ensuring long-term performance
• Application Versatility: Ideal for detecting liquids, solids, slurries, foam, and interfaces, even in challenging industries such as mining, chemical, and cement

Exactly what you need? Contact us now!

Versatile Application Range for Challenging Conditions

The Pointek CLS300 offers a highly versatile solution for demanding applications requiring reliable level detection, even in harsh environments. Designed to withstand the rigors of heavy solids and abrasive materials, such as in the mining industry, the CLS300 is equipped with fully potted electronics to resist condensation, dust, and vibration. Its wetted parts, crafted from stainless steel with a PFA shield for high chemical resistance—or from ceramic and stainless steel in the high-temperature model—enhance its durability in extreme conditions. The CLS300’s “Active Shield” technology effectively minimizes interference from material buildup or long installation nozzles, ensuring accurate measurement across a range of media with varying dielectric constants.

Key Applications:

• Liquids, slurries, and bulk solids
• High-pressure and high-temperature environments
• Hazardous area installations
• Mining, milling, and other heavy-duty industries.

Need more information? Contact us here

Active Shield Technology for Accurate Measurement

The CLS300 incorporates Siemens' "Active Shield" technology, which minimizes measurement interference from material buildup on the probe or from installation in long nozzles. This ensures reliable readings, even in applications prone to material buildup or with varying media types. The CLS300 detects materials with a dielectric constant of 1.5 or higher, responding to changes in capacitance to deliver accurate level readings across a wide range of media. This capability makes it ideal for industries where consistency and precision in measurement are critical, regardless of environmental challenges.

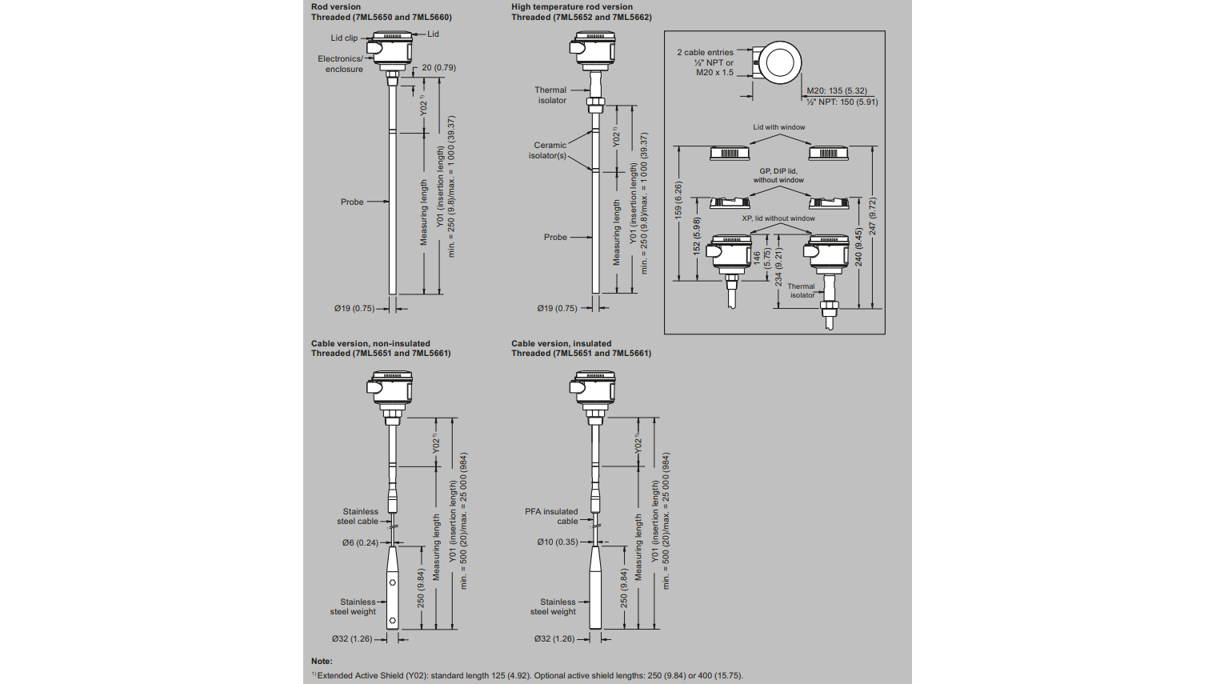

On the picture you see the dimensions of the Rod version, Threaded.

Contact us now and let's talk price!

Flexible Design with Customizable Options

The CLS300's modular design allows for flexible installation across various applications. It offers multiple process connections, including threaded and flanged options, and can be configured with rod or cable extensions up to 25 meters. This adaptability, combined with three LED indicators for power, output, and sensor status, provides users with real-time insights into system operations. With galvanically isolated power supplies and a wide voltage range, the CLS300 integrates smoothly into existing setups. Optional PROFIBUS PA communication further enhances its integration capabilities, making it a versatile choice for complex industrial environments.

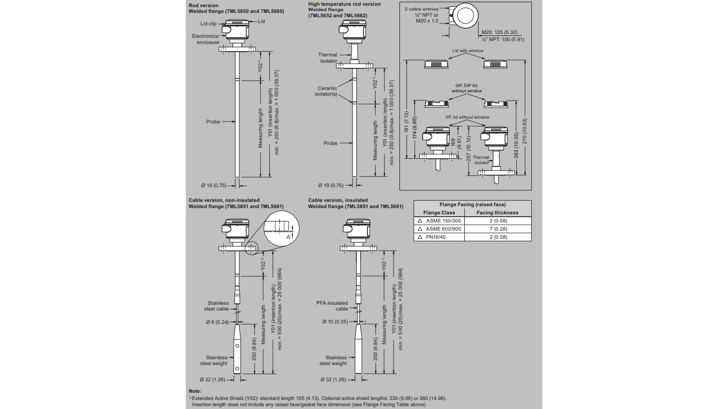

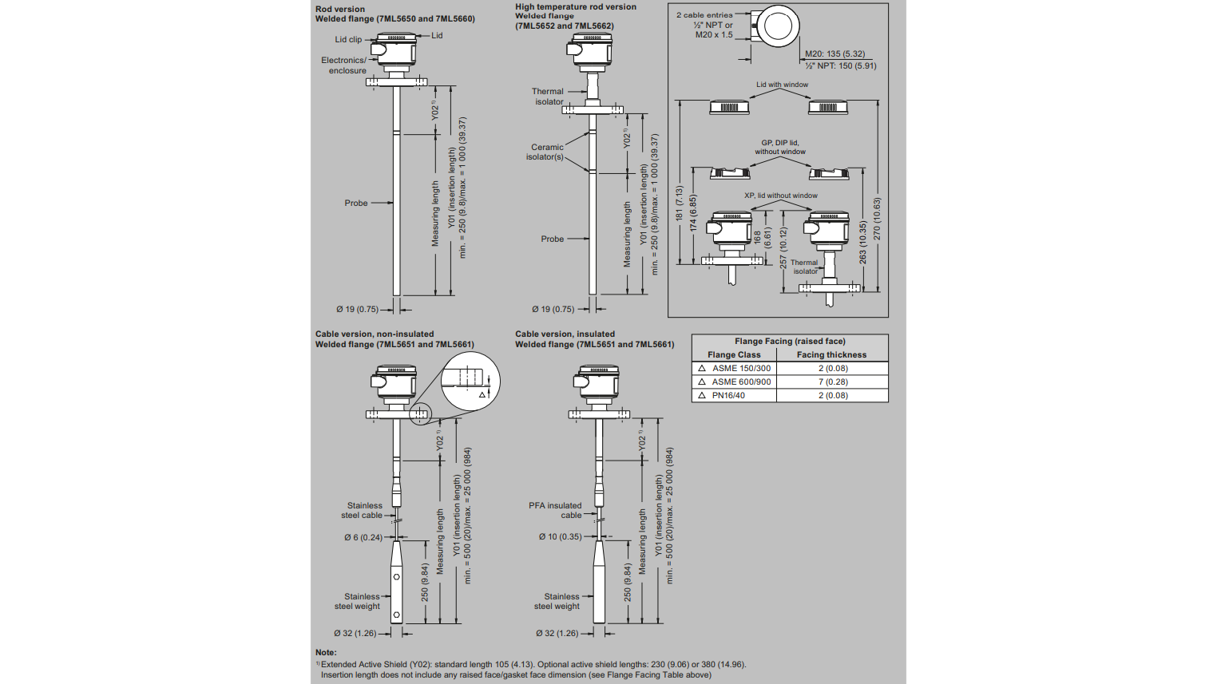

On the picture you see the dimensions of the Rod version, Welded flange.
