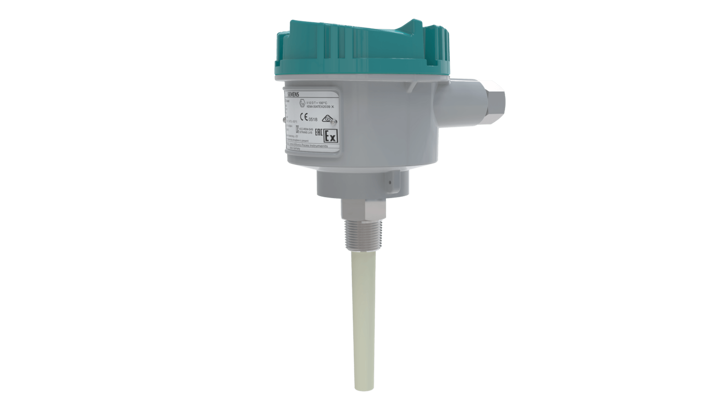

Siemens Pointek CLS200 Capacitive Level Switch

Key Features of the Pointek CLS200

The CLS200 has several benefits, some of which we have listed for you below:

• Versatile Detection: Detects liquids, solids, slurries, foam, and interfaces with reliable sensitivity

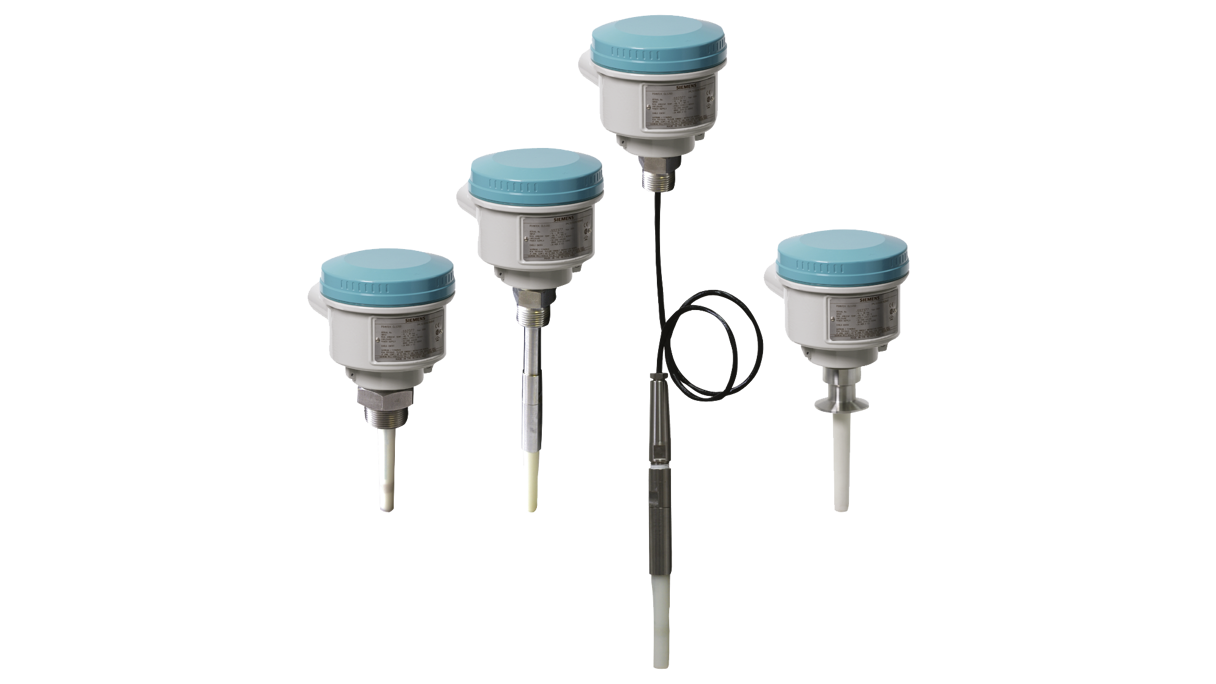

• Flexible Probe Options: Available with rod or cable probes, adaptable up to 30 meters for a range of applications
• Independent of Tank Material: Operates independently from vessel walls, ideal for non-conductive tanks (e.g., concrete, plastic)
• Resistant to Product Buildup: High-frequency oscillation compensates for material buildup on the probe
• Durable and Chemical-Resistant: Probe materials include stainless steel and PPS (optional PVDF), rated to withstand up to 125°C and 25 bar
• Rugged Construction: Fully potted design protects against shock, vibration, humidity, and condensation
• Broad Voltage Range: Operates across 12–250 V AC/DC for standard models, and 12–30 V DC for digital communication models
• Advanced Digital Model: Features LCD display for configuration and diagnostics, with PROFIBUS PA communication for network integration
• LED Indicators on Standard Model: 3 LED indicators provide clear visibility of power, output, and control status
• Approvals: Certified with CE, UKCA, FM, CSA, suitable for hazardous areas and demanding applications, including API 2350 compliance.

Exactly what you need? Contact us now!

Versatile Applications for Pointek CLS200

The Pointek CLS200 offers reliable level detection across a range of challenging environments, including non-conductive vessels like concrete or plastic, thanks to its unique design, which operates independently of tank walls or pipes. With flexible voltage options and solid-state switch alarms, it is especially suitable for pressurized and hazardous applications. The probe’s materials, stainless steel, and PPS (optional PVDF), ensure high durability and chemical resistance up to 125 °C (257 °F). The CLS200’s advanced frequency-based sensing allows precise switching based on changes in dielectric constants, providing dependable detection across various materials, from powders to liquids.

Key Applications:

• Liquids and slurries
• Powders and granules
• Pressurized applications
• Hazardous areas.

Need more information? Contact us here

Independent and Reliable Performance in Nonconductive Vessels

The CLS200 operates effectively without needing an external reference electrode, allowing it to be installed in nonconductive vessels made of materials like plastic or concrete. This independence ensures that the CLS200 can be used in environments where grounding might be challenging or expensive to implement. Its advanced capacitive technology responds to changes in capacitance, allowing it to deliver consistent and dependable measurements regardless of the vessel material, ensuring accurate results across diverse storage and transport conditions.

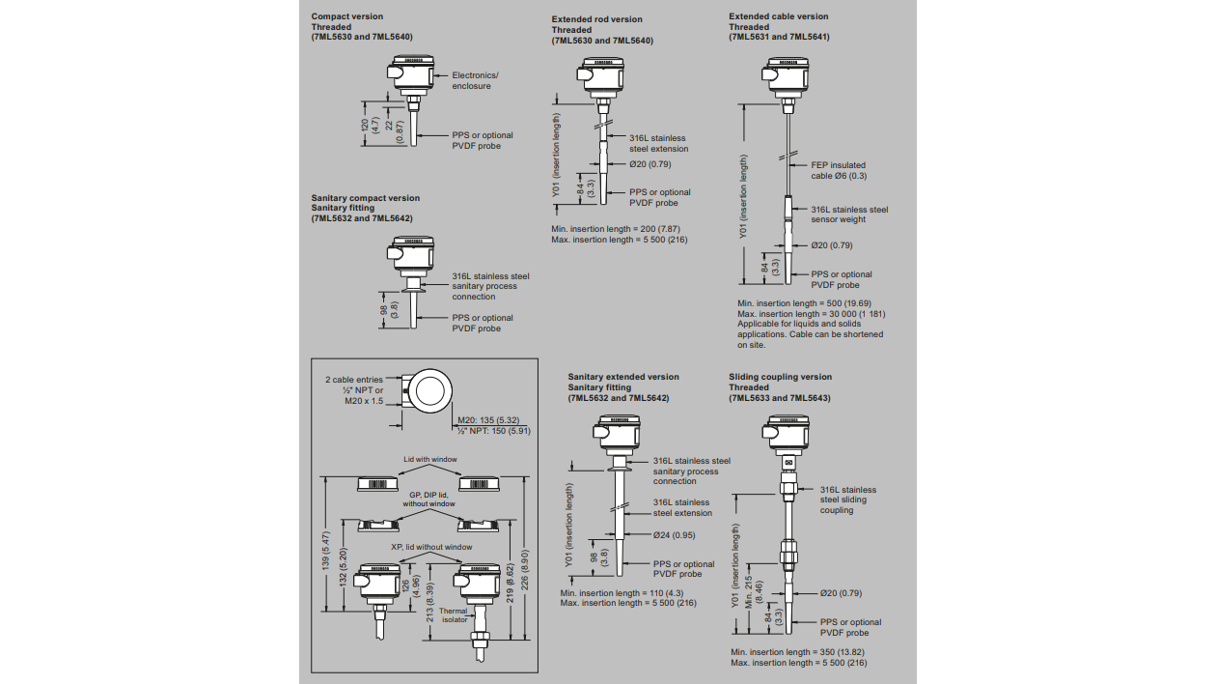

The pictures is showing the dimensions of the Compact Versions, Threaded.

Contact us now and let's talk price!

Comprehensive Options and Configurability

The CLS200 is available in both standard and digital versions, each offering tailored benefits. The standard model provides clear LED indicators for quick status updates on power and output, while the digital version is equipped with an LCD display for enhanced configurability and diagnostic capabilities. The digital model also supports PROFIBUS PA communication, allowing for seamless network integration and remote monitoring. With its broad voltage acceptance (12–250 V AC/DC), the CLS200 adapts easily to varied system requirements, making it a versatile and highly configurable option that can be easily adapted to both new and existing setups.
