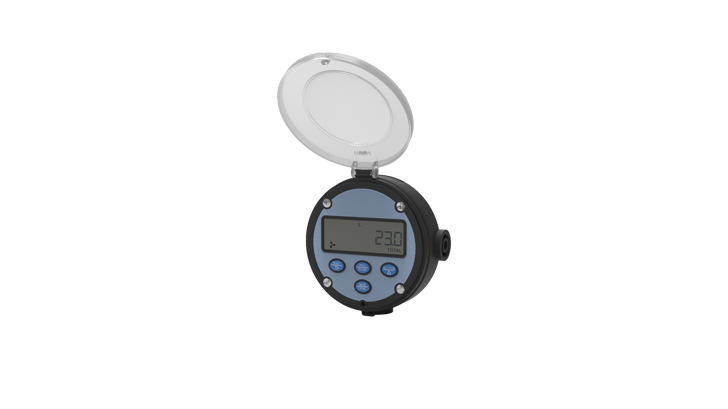

RT14 Flow Rate Totalizer

The RT14 Flow Rate Totalizer from Flomec is a LCD display, which is a completely programmable and self-powered flow rate totalizer. It is specifically designed for computing and displaying, as well as flow rates and totals from flowmeters with pulse, sine wave or frequency outputs.

The flowmeter inputs are suitable to use with most pulse/frequency output meters such as:

Reed switch
Coil
Voltage pulse (Wiegand)
NPN
PNP.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Large Selection of Units and Simple Flow Chart

The RT14 has the following features that benefits you:

Battery, external DC, or loop powered
Easy to read backlit LCD display
Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
Large selection of engineering units for flow rate and total
Ten-point linearization of flow input or frequency inputs
4-20mA analogue output according to flow rate
Flow alarm for high, low, or high/low
Scaled pulse output according to accumulated total
Simple flow chart touch key programming
Nonvolatile memory, long battery life
Flowmeter and pipe mount kits available
Broad operating temperature range
GRN field & panel mountable housing
PIN protected programming
Reverse polarity protection.

Applicable Settings

The RT14 LCD Display is applicable in various settings;

Mounted either direct to the meter or remotely mounted in safe areas
Connections to PLC available
Total, Accumulated Flowrate display
10-point Linearization.

Does it match your need - contact us here

Programmed to your needs

You can program the display according to exactly your needs and preferences as the instrument displays have resettable (batch) total, accumulated total and instantaneous flow rates in engineering units.

The simple PIN protected flowchart programming with English prompts guide you through the programming routine, which significantly reduce the need to refer to the instruction manual.

Get more information here

Easy Transmission and Protection

An unscaled pulse output provides an input signal amplifier well suited for coil type inputs from turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with wiring connection.

Scaled and unscaled pulse outputs make it possible to transmit accumulated flow data to remote control systems.

Flow alarms are available to safeguard flow systems from flow rates that are ‘high’, ‘low’, or both, and an analogue 4-20mA signal provides flow rate monitoring and control by precisely transmitting flow rate readings from the flowmeter to your PLC or PID control system.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Specifications
LCD Display	8 digit alpha-numeric LCD display with 12 mm characters with backlight (Note 1)
Instantaneous Flow Rate	8 digit to 3 decimal points
Engineering Units Displayed	Liter, mL, Gallon, Quart, Cubic Meter, Pounds, Kilograms or Nil
Input Types	Reed, NPN/PNP, mV sinewave (Turbine flowmeters), Weigand Sensors (voltage pulse)
Input Frequency	1.2 kHz (NPN/PNP), 2 kHz (Coil inputs), 120 kHz (Reed)
Input Scaling Range	0.0001 ~ 9999999.9999 with 4 floating points
Linearization	10 point correction
Pulse Outputs	One selectable digital output for scaled pulse, unscaled pulse, high, low or high/low alarms
Analogue Output	12 bit 4-20mA (±0.05% FS at 25°C)
Operating Temperature	-22oF - +176oF (-30oC - +80oC)
Power Sources	AA 3.6V Lithium Thionyl Chloride Battery, external DC powered or loop powered (12 - 30V (dc))
Enclosures	High impact glass reinforced Nylon (PA6) with a Polycarbonate lens, Nitrile O-Ring seals and Polyurethane gaskets, providing an IP rating of IP66/67 (Note 2).

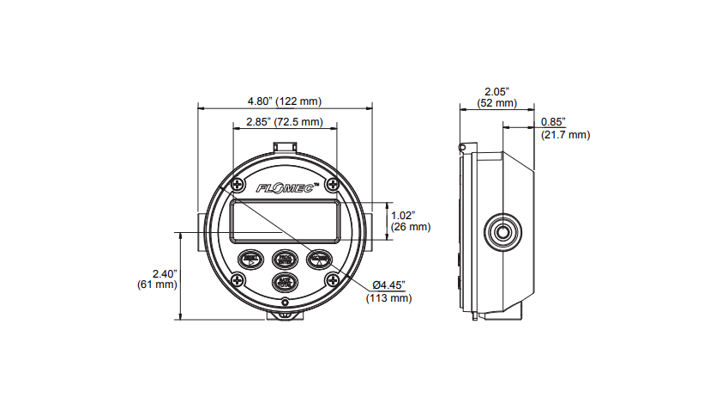

Mounting	Meter & stem mount, wall, pipe or panel mount (Note 2).
Approvals	Intrinsically Safe - IECEx / ATEX (optional) Ex ia IIB T4 Gb (-30°C <Ta <+70°C)
Notes	Note 1: Backlight possible when connected to external power Note 2: Panel mount seal kit required to maintain IP66/67 rating when separating front and rear housing for mounting

Data Sheet - RT14 - Flomec
English | pdf

Download
