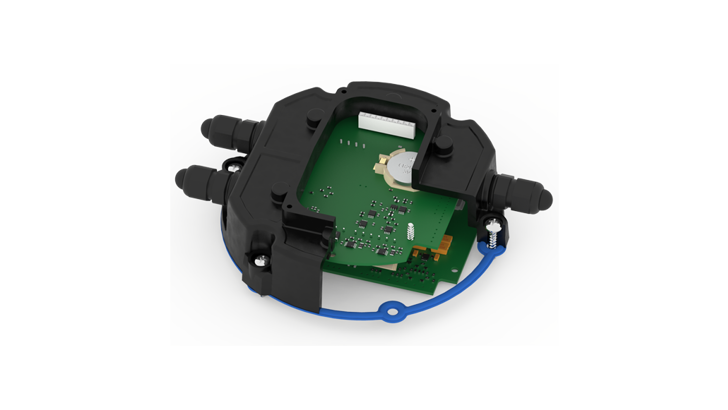

QSI I/O Electronics Interface Board

The Flomec QSI I/O Electronics Interface Board is a multi-functional economical unit designed to improve product functionality. Moreover, it offers fully featured communication protocols and process output signals for all Flomec meters, as well as other flowmeters.

This an extremely user-friendly communication board as the programming is simple and can be done by using the Flomec App via Bluetooth® wireless interface technology.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Contact us now

Three Different Versions
Q1 Version
  • Bluetooth®
  • Coil/Digital Pulse Input
  • Pulse Output (Scalable Flow or Energy)
  • RS485 (MODbus® RTU or BACnet™ MS/TP)
  • Temperature Inputs (requires Temp Sensor Probes)
  • BTU (heat) Calculator
Q2 Version
  • Bluetooth®
  • Coil/Digital Pulse Input
  • Pulse Output (Scalable Flow or Energy)
  • Temperature Inputs (requires Temp Sensor Probes)
  • BTU (heat) Calculator
Q3 Version
  • Bluetooth®
  • Coil/Digital Pulse Input
  • Pulse Output (Scalable Flow)
  • 4-20mA
QSI I O Board Flomec 1024X16x9

Easy Programming and In-Field Updates

The QSI Board has multiple features that benefits you including:

  • Communication options available: Modbus® RTU and BACnet™ MS/TP
  • Built-in Bluetooth® wireless technology
  • External Programming Flomec App available for mobile devices
  • Receive in-field firmware updates
  • Standard process outputs: Pulse out and 4-20mA



The QSI Board has the following process variables:

  • Calculates flow and totals from pick-up coil or digital input pulses
  • Measures temperature from PT100 RTDs
  • BTU (heat) meter calculates energy from flow and temperature inputs

Does it match your need - contact us here

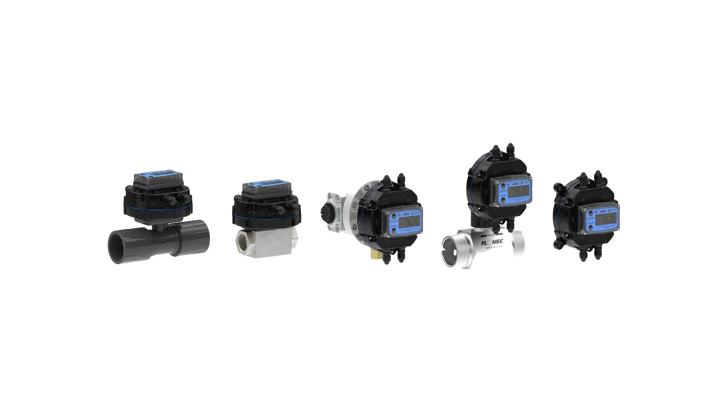

Compatibility and Adapter Kit Options

Both the housing and the QSI Board can be retrofitted in the field. Moreover, adapters and remote wall mount options makes the board compatible with the flowmeters from:

Furthermore, the QSI Board and Housing are compatible with several non-FLOMEC products. Any flow meter that has a pick-up coil or a digital pulse operating from 0 to 1000 pulses per second can be connected.

Get more information here

QSI Adapter Kit Flomec 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Specifications
Material
  • Cover Plate: Polypropylene
  • Adapter: Polypropylene
Voltage
  • Min to Max: 12 - 36V (dc)
  • Max Current: 125mA (dc)
Temperature

Operating: 32° to 180° F (0° to 82° C)
Output
  • Pulse Output: Current Sinking Open Collector Type rated to 30mA @ 36V (dc) max.
  • Pulse Output Units: Flow Totalization in any predefined or custom unit. BTU in one pulse per KBTU.
  • Pulse Scaling: Customized by user
  • Analog Output: 4-20mA or 0-20mA
Communication
  • Bluetooth®: Programming interface; Supported on Android devices
  • RS485: Support for Modbus®, RTU and BACnet®/MS TP
Temperature Sensor Type

Two 3 wire platinum 100ohm RTDs (PT100)
Coin Cell Battery

Battery Backup for internal clock
Units
  • Temperature: degree Fahrenheit or degree Celsius
  • Totalization: Gallon, Litre, Imperial Gallon, Quart, Barrel, Cubic, Centimetre, Cubic Metre, Ounces, Cubic Feet
  • Rate: units/second, units/minute, units/hour, units/day
  • Energy Units: Btu, kBtu, Mbtu, Wh, kWh, MWh, Joules, kJ, Ton
  • Energy Rate: All energy total units/day, units/hr, units/min or units/s

Downloads

  • Data Sheet - QSI - Flomec
    English | pdf
  • Owners Manual - QSI - Flomec
    English | pdf
  • Owners Manual - QSI for OM Meters - Flomec
    English | pdf
  • Owners Manual - QSI for G2 Series - Flomec
    English | pdf
  • Owners Manual - QSI for TM Series - Flomec
    English | pdf
  • Owners Manual - QSI for G Series - Flomec
    English | pdf
