PA 430

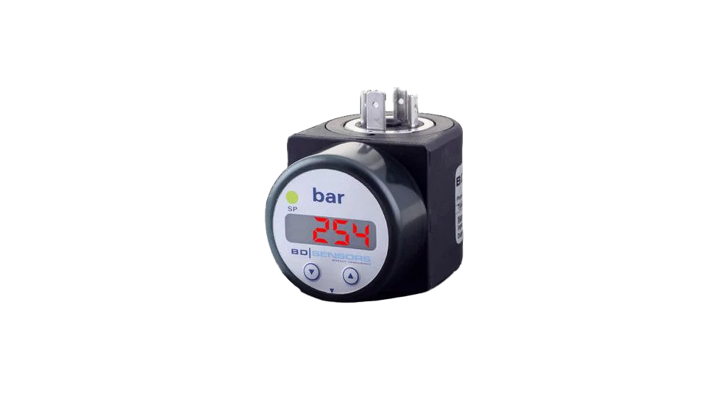

The PA 430 from BD Sensors is a plug-on display for the current loop with contacts. Moreover, it is applicable in various settings including in situ display:
For sales or commercial inquiries please contact us at marine@insatech.com.
The PA 430 display from BD Sensors has a functional range within:
The PA 430 display has the following features that benefits you. A plug-on display for pressure transmitter with output signal: 4 ... 20 mA / 2-wire or 0 ... 10 V / 3-wire, as well as a 4-digit LED display.
If you have a specific need the PA 430 pressure transmitter is available with optional features like IS-Version, as well as 1 or 2 programmable contracts.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard version | 850 |
||||||||||||||||||
| Analogue output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety for zone 1 / 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Contact (Note 1) | 0: without contact 1: 1 contacts 2: 2 contacts |
||||||||||||||||||
| Electrical connection | 100: ISO 4400 200: Binder series 723 (5-pin) A01: Binder series 723 (7-pin) (Note 2) N10: M12x1 (5-pin) / metal version
|
||||||||||||||||||
| Unit | 0: without (Note 3) 1: bar 2: mbar 3: mH2O P: % A: mA 9: customer |
||||||||||||||||||
| Label on display | 1: standard N: neutral 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: max. 1 contact for: 4 ... 20 mA / 2-wire with plug ISO 4400; 0 ... 10 V / 3-wire with Binder 723 (5-pin) or M12x1 (5-pin); IS protection. No contact possible with 0 ... 10 V / 3-wire with plug ISO 4400 2: intended for the use with DMP 331i, DMP 333i and LMP 331i with el. connection Binder Serie 723 (7-pin) 3: the unit signs are loose-settled. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
