CIT 600

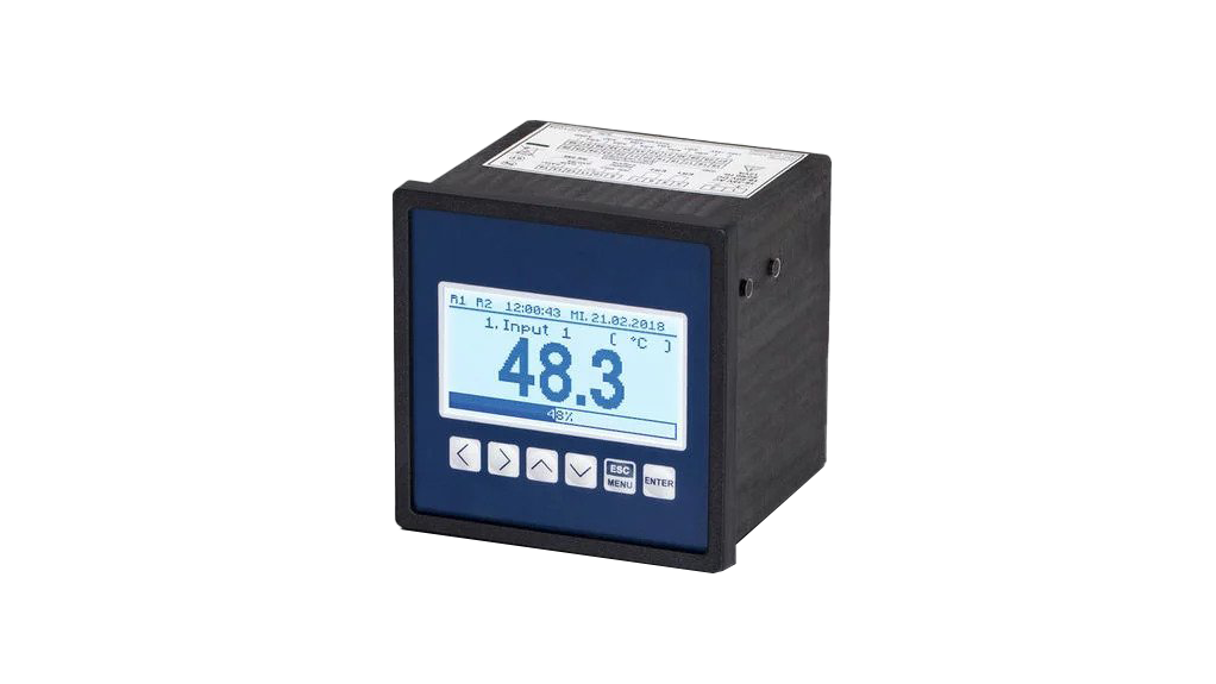

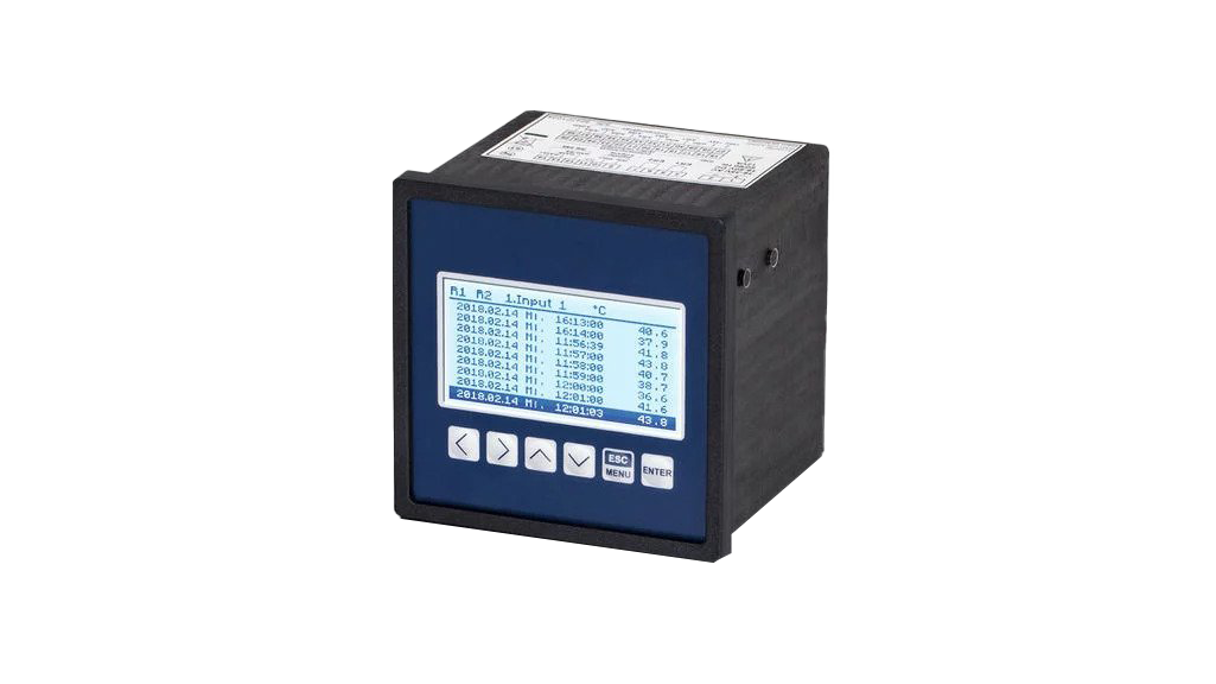

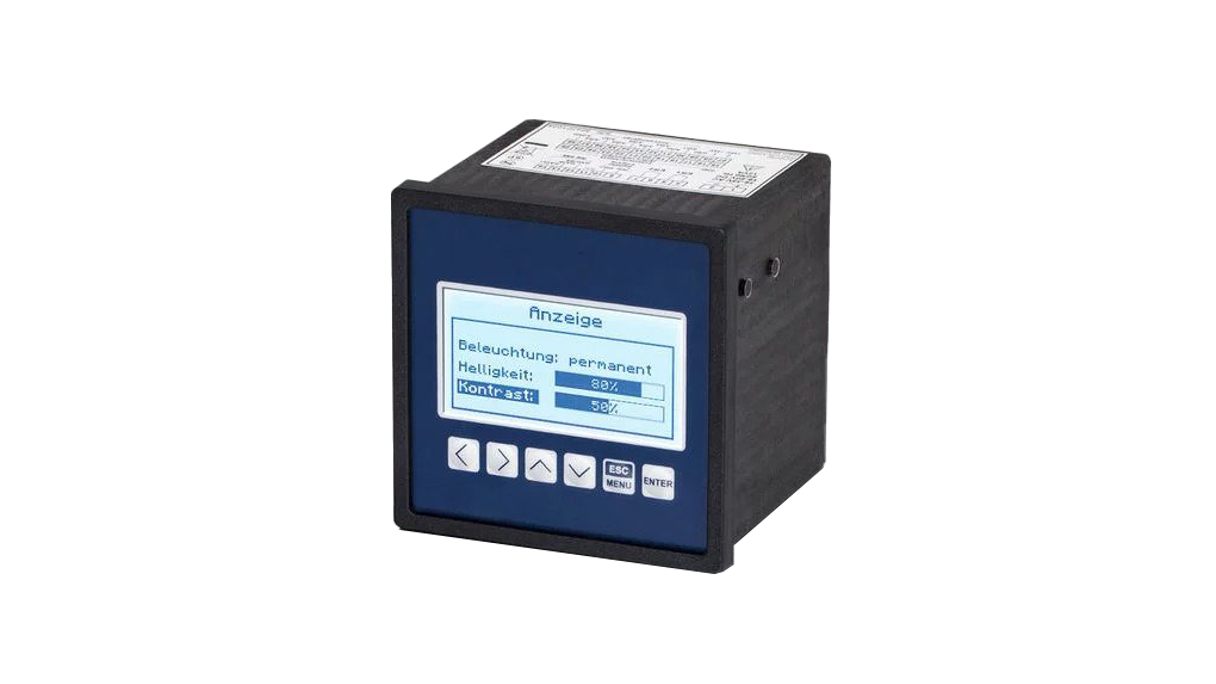

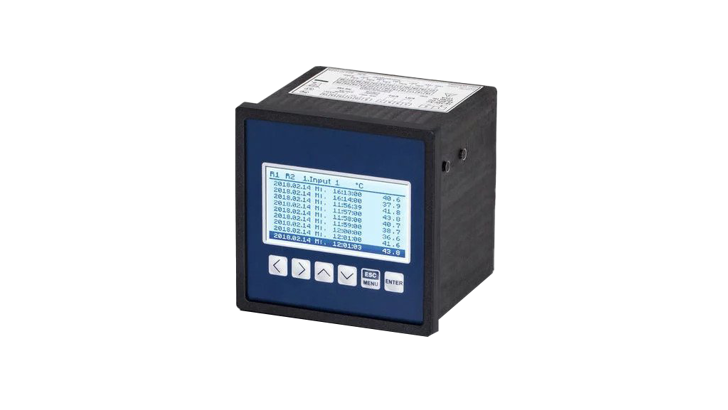

The CIT 600 from BD Sensors is a multichannel process display measuring 96 x 96 mm with contacts. The display is used for various application in for example the marine industry.
For sales or commercial inquiries please contact us at marine@insatech.com.
The CIT 600 display from BD Sensors has a functional range within:
The CIT 600 display has the following features that benefits you:
If you have a specific need the CIT 600 pressure transmitter is available with optional features like input Pt100/500/1000 and input thermocouples.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of inputs | 2: 2 4: 4 8: 8 |
||||||||||||||||||
| Input type | 8: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10V T: Pt100 , Pt500, Pt1000, thermocouple |
||||||||||||||||||
| Number of outputs | 2: 2 |
||||||||||||||||||
| Output type | 8: El. relay 200mA |
||||||||||||||||||
| Supply | 3: 16…35 VAC / 19…50 VDC 4: 85…260 VAC / VDC |
||||||||||||||||||
| Special version | 000: Standard 010: sealing frame IP65 080: operating temperature -20°C…50°C 0P0: IP65 + operating temp. -20…50°C 999: customer |
||||||||||||||||||
| Accessories | Z900002: lockable, transparent door 96 x 96 mm (Note 1) Z900030: hat rail adapter 96 mm |
||||||||||||||||||
| Notes | 1: not for IP65 |
||||||||||||||||||
