CIT 300

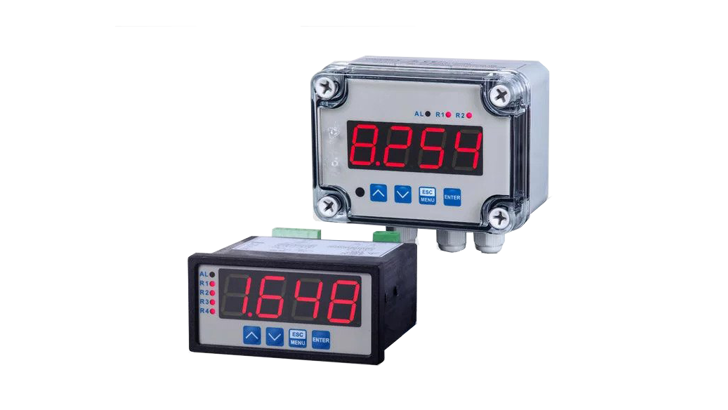

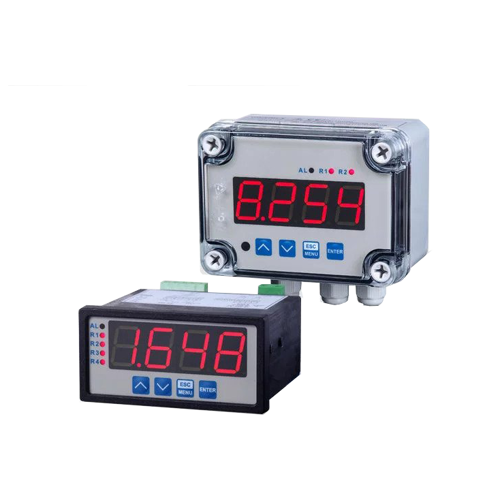

The CIT 300 from BD Sensors is a process display measuring 96 x 48 mm with contacts and analog output. The display is typically used for pressure regulation of a hydraulic circuit and in the marine industry for various applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
The CIT 300 display from BD Sensors has a functional range within:
The CIT 300 display has the following features that benefits you:
If you have a specific need the CIT 300 pressure transmitter is available with optional features like:

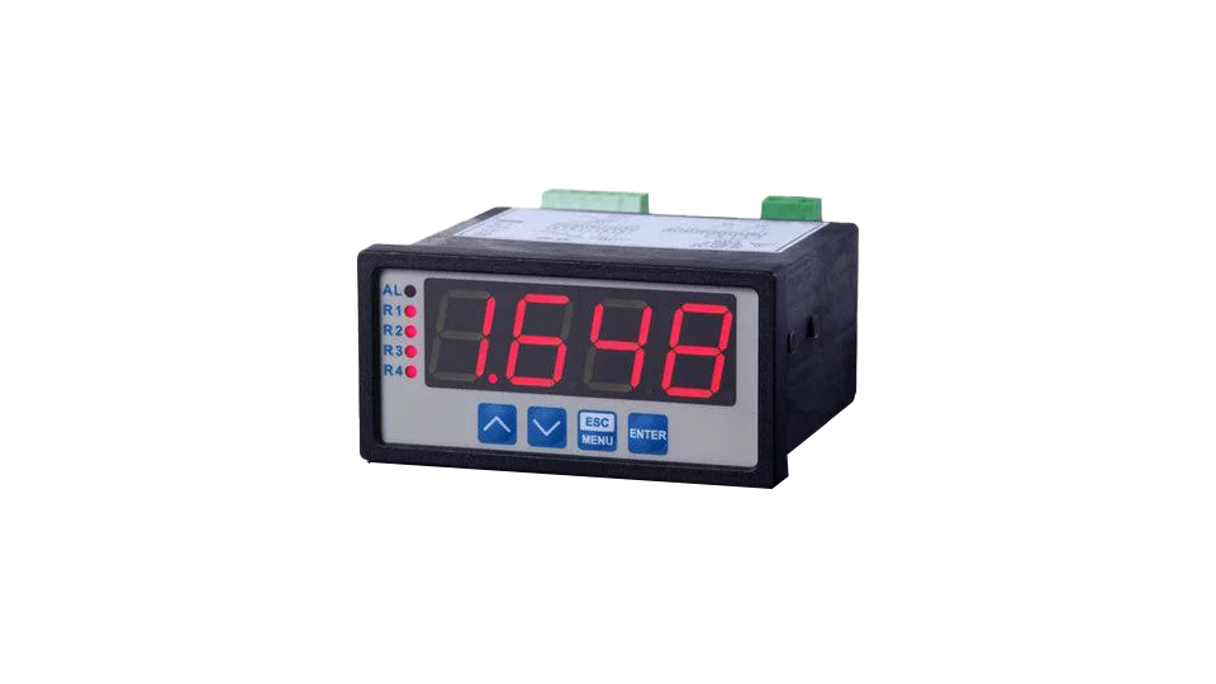

| Model/ Type CIT 300 Panel Housing | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input type | 8: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10V 3: Pt100 , Pt500, Pt1000 A: thermocouple J: universal (mA, mV, V, RTD, TC) |
||||||||||||||||||
| Number of outputs | 0: without 2: 2 3: 3 4: 4 |
||||||||||||||||||
| Output type | 0: Without 1: 2x / 4x SPST relay 2: 2x / 4x Open collector 3: 2x SPST relay + 1x 0/4…20 mA active 4: 2x Open collector + 1x 0/4…20 mA active 9: 2x SPST relay + 1x 4…20 mA passive A: 2x Open collector + 1x 4…20 mA passive B: 2x SPST relay + 1x 0/1…5 V, 0/2…10V C: 2x Open collector + 1x 0/1…5 V, 0/2…10V |
||||||||||||||||||
| Supply | 3: 16…35 VAC / 19…50 VDC 4: 85…260 VAC / VDC |
||||||||||||||||||
| Special version | 000: Standard 010: sealing frame IP65 080: operating temperature -20°C…50°C 0P0: IP65 + operating temp. -20…50°C 999: customer |
||||||||||||||||||

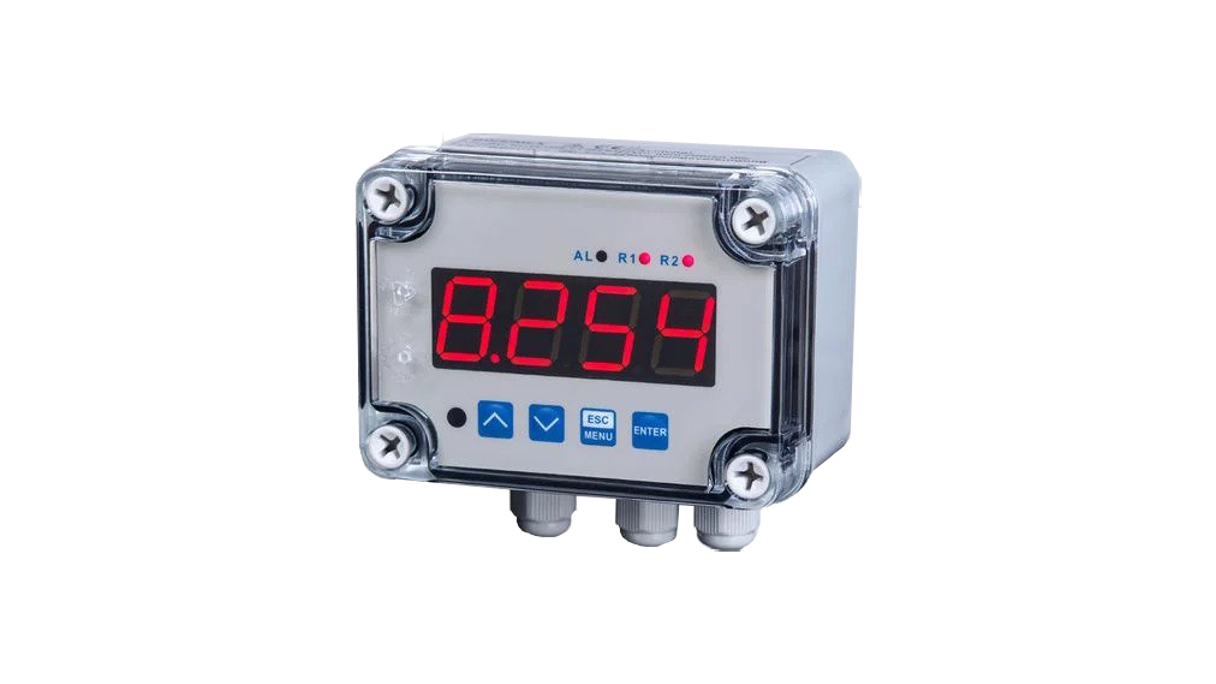

| Model/ Type CIT 300 Wall Mounted Housing | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input type | 8: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10V 3: Pt100 , Pt500, Pt1000 A: thermocouple |
||||||||||||||||||
| Number of outputs | 0: without 2: 2 |
||||||||||||||||||
| Output type | 0: Without 1: 2x / 4x SPST relay 2: 2x / 4x Open collector 3: 2x SPST relay + 1x 0/4…20 mA active 4: 2x Open collector + 1x 0/4…20 mA active 9: 2x SPST relay + 1x 4…20 mA passive A: 2x Open collector + 1x 4…20 mA passive B: 2x SPST relay + 1x 0/1…5 V, 0/2…10V C: 2x Open collector + 1x 0/1…5 V, 0/2…10V |
||||||||||||||||||
| Supply | 3: 16…35 VAC / 19…50 VDC 4: 85…260 VAC / VDC |
||||||||||||||||||
| Special version | 500: wall mounted housing IP67 580: IP67 + operating temp. -20…50°C 999: customer |
||||||||||||||||||
| Accessories | Z900029: hat rail adapter 48 mm Z900033: infrared remote control IR 2 |
||||||||||||||||||
