The purpose of most machinery on board is to generate propulsion making it possible for the ship to move from A to B. A way to measure the efficiency of this process is by measuring the torque generated by the engine and propeller. Combining this measurement with the fuel consumption will tell you how efficient the fuel is converted into propulsion. If you want to measure hull and propeller performance directly you need to measure thrust as well. This measurement can provide data on both the propellers ability to push the vessel and the drag caused by the hull.

6RESULTATERNULSTIL
Insatech Shafttrq Torque Meter 16 9
Torque & Thrust

Insatech ShaftTRQ torque meter

The ShaftTRQ is a continuous shaft power measurement system that is easy and flexible to install and simple to operate.

Insatech Binsfel Torquetrak TPM2 With Shaft And Flange 16 9
Torque & Thrust

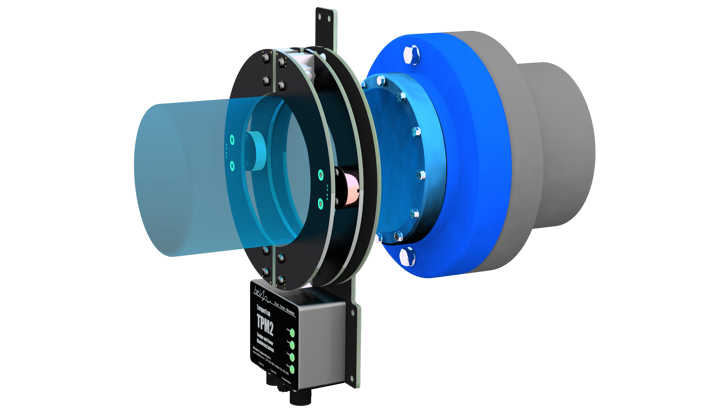

Binsfeld TorqueTrak TPM2 torque & power monitoring system

The Binsfeld TorqueTrak Torque and Power Monitoring System (TPM2 series) is a rugged precision instrument designed to measure torque and/or power on rotating shafts in real time using precise strain-gage sensors. The TPM2 is custom designed to fit on shafting as low as .75″ (19mm) and up to 48″ (1220 mm) in diameter. Machine disassembly is not required.

Insatech Binsfeld Torquetrak Sensor Interface (TTSI) 16 9
Torque & Thrust

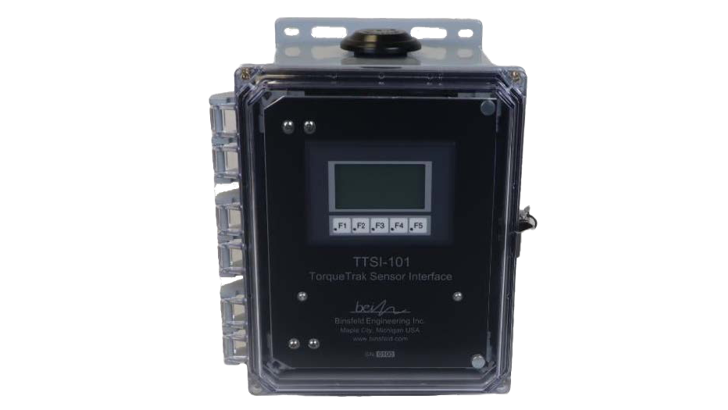

Binsfeld TorqueTrak Sensor Interface (TTSI)

The Binsfeld Engineering TorqueTrak Sensor Interface (TTSI) is an optional interface that connects fx. The TorqueTrak TPM2 with your other products / systems. The TTSI takes the Modbus signal from the torque meter and can transform it to additional analog or digital I/O. It’s made from off-the-shelf components and custom programming giving you a flexible and economical solution.

Insatech Binsfeld Sea Trial Kit 16 9
Torque & Thrust

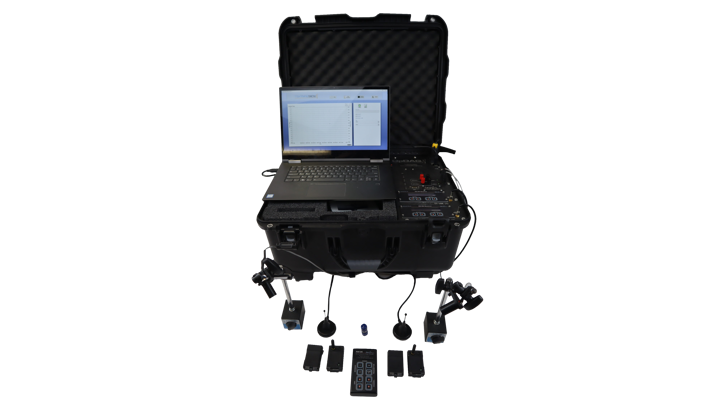

Binsfeld Sea Trial Kit

Binsfeld Engineering’s Sea Trial Kit provides everything you need to measure shaft torque, speed, and power on your vessel during sea trials. The all-in-one system measures and records data for up to 2 shafts simultaneously, at a rate of up to 2400 Hz for torsional vibration testing. The components come in an easily transportable, robust, and compact case, allowing for easy set-up and transport of the system between jobs.

Insatech Binsfeld Torquetrak 10K Torque Sensor 16 9
Torque & Thrust

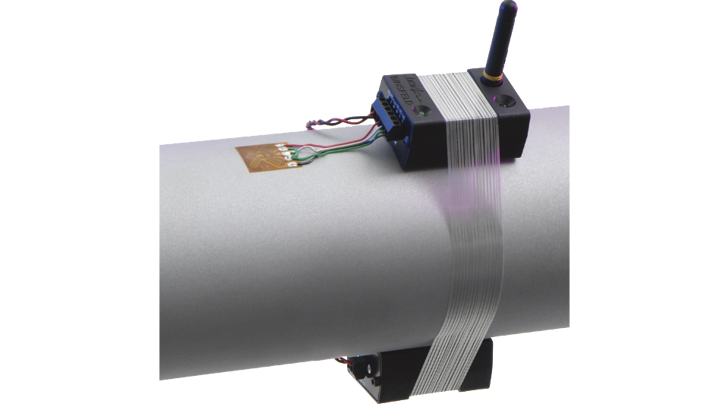

Binsfeld TorqueTrak 10K Torque Sensor

The Binsfeld Engineering TorqueTrak 10K is a non-contact telemetry system ideal for real-time measurement of torque. The system is ideal for short-term data collection and diagnostic testing. It is designed to operate in harsh field conditions and is suitable for a wide range of applications, including marine propulsion systems, industrial machinery, and wind turbines.

Insatech Binsfeld Torquetrak SPM Ion 16 9
Torque & Thrust

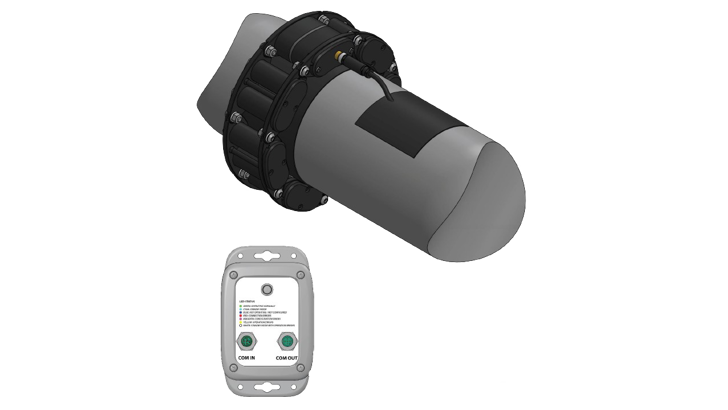

Binsfeld TorqueTrak SPM iON Torque Meter

The Binsfeld TorqueTrak SPM-iON is a cutting-edge strain gage solution that accurately measures torque, RPM, and power on rotating shafts without requiring shaft disassembly or alteration. With only two main components and no need for a base mount, installation is simple and lead times are quick thanks to the innovative chain link design.
