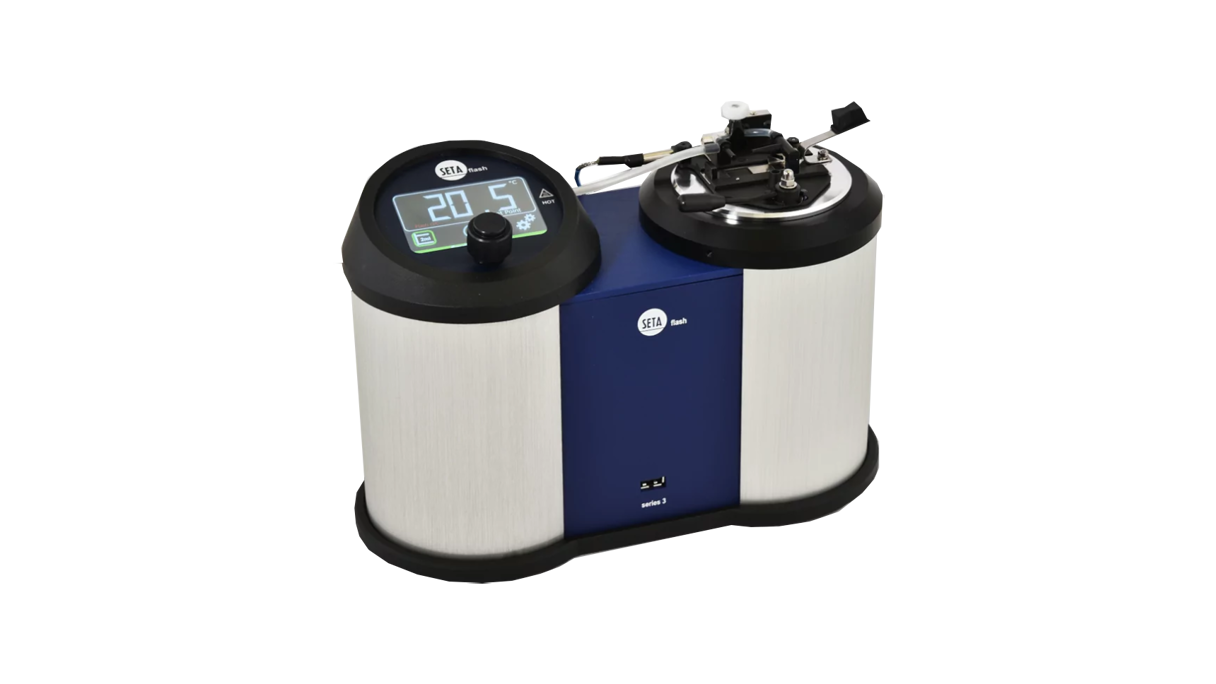

Setaflash Series 3 Flash Point Tester - 30000-3

The Setaflash Series 3 Flash Point Tester (30000-3) delivers fast, reliable flash point results in under 2 minutes with minimal expertise, using a 2 or 4 ml sample and featuring intuitive, touchscreen operation.

The Setaflash Series 3 Flash Point Tester (30000-3) gives you:

  • Easy-to-follow test procedure
  • Compact and robust construction
  • Automated flash detection.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Precision Flash Point Testing Made Simple

The Setaflash Series 3 Flash Point Tester (30000-3) delivers quick and dependable flash point results with minimal user expertise required.

With the Series 3, you can complete a test in under 2 minutes using just a 2 or 4 ml sample. Its intuitive user interface, featuring a color digital display and touchscreen icons, simplifies the testing process. For efficient record keeping, the device can store up to 100,000 test results, which can be easily saved and transferred via a USB port.

Engineered for precision and accuracy, the Series 3 measures barometric pressure with an internal barometer, automatically adjusting the test result accordingly. Unknown samples can be evaluated using the ramp mode feature.

Key Advantages for You

The Setaflash Series 3 Flash Point Tester (30000-3) has several features that benefits you:

  • Temperature Range: Capable of testing from ambient to 300 °C
  • Test Process: Easy-to-follow procedure
  • Design: Space-saving and durable build
  • Flash Detection: Automatic flash detection
  • Ramp Mode: For testing unknown samples
  • Pressure Correction: Automatic barometric pressure adjustment
  • Data Management: USB port and large result storage capacity.

Inquiry the product and contact us now

Setaflash Series3 Flashpointtester 30000 3 2 Stanhope 1024 16X9
Adobestock 164599494 CMYK

Applicable Industries

The Setaflash Series 3 Flash Point Tester (30000-3) is applicable in various industries including:

  • Marine
  • Aviation
  • Biodiesel
  • Chemicals & Solvents
  • Cosmetics & Fragrances
  • Crude Oil
  • Energy & Power
  • Lubricants
  • Pain, Varnish & Waxes
  • Petroleum – Fuels & Oils
  • Pharmaceuticals
  • Transportation, Storage & Packaging
  • Waste & Environmental.

Exactly what you need? Contact us here.

Methods of the Setaflash Series 3 Flash Point Tester (30000-3)

The Setaflash Series 3 Flash Point Tester (30000-3) is fulfilling various methods, which are listed below.

Methods
ASTM D3278

Standard Test Methods for Flash Point of Liquids by Small Scale Closed-Cup Apparatus - paints, enamels, lacquers, varnishes, and related products

ISO 3680 (Obs)

Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)

ASTM E502

Standard Test Method for Selection and Use of ASTM Standards for the Determination of Flash Point of Chemicals by Closed Cup Methods

ISO 3679

Determination of flash point. Rapid equilibrium closed cup method

ASTM D3828

Standard Test Methods for Flash Point by Small Scale Closed Tester

IP 523

Determination of flash point. Rapid equilibrium closed cup method

IP 524

Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (rapid equilibrium method)

ASTM D7236

Flash Point by Small Scale Closed Cup Ramp Method

IP 534

Flash Point by Small Scale Closed Cup Ramp Method

ASTM D1655

Standard Specification for Aviation Turbine Fuels

CLP Regulations EC No 1272/2008

European Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures

ASTM D8174

Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester

EPA 1020 B

Standard test methods for flash point by Setaflash (small-scale) Closed-Cup apparatus

SW-846 1020C

Setaflash (Small Scale) Closed-Cup Apparatus

Setaflash Series3 1 Opencup Stanhope 1024 16X9

Reliable Precision and Accuracy

The Setaflash Series 3 Flash Point Tester (30000-3) I highly reliable and precise:

  • Exceptional flash point testing precision
  • Demonstrated high performance
  • Certified across numerous specifications and regulations

Do you have any questions? Contact us

USB Data Transfer

The Setaflash Series 3 Flash Point Tester (30000-3) is available with USB data transfer:

  • 1 GB storage capacity, capable of holding 100,000 results
  • Save results directly to a USB drive

Need our help? Contact us now.

Setaflash Series3 2 Opencup Stanhope 1024 16X9

Spares and Accessories

All the available spares and accessories for the Setaflash Series 3 Flash Point Tester (30000-3) are listed below.

Spares and accessories for Setaflash Series 3 Flash Point Tester (30000-3)
Part Number

Description

99879-0

Small Scale Certified Flash Point Material (50 ml)

13740-017

Heat Sink Compound

30008-0

Thermometer: Precision Plus Digital

99910-2

Portable Digital Barometer

13730-005

Silicone Rubber Tube 4 metres

13740-004

Sample Well O-ring, Viton (Pack of 5)

13770-311

Syringe 4 ml (Small Scale Flash Point Instruments)

13770-004

Sample Well O-Ring, Silicone (Pack of 5)

13740-425

Flash Detector Assembly

13740-009

Syringe 2 ml (Small Scale Flash Point Instruments)

13666-0

LPG Refill Container (pack of 10)

13747-0

Seta Solid Sample Dispenser

13880-0

Seta Metal Cooling Block

13870-0

Seta Coolant Module

30005-0

Power Supply

30006-0

Carry Case

30007-0

Adaptor – Mains Gas

Efficient and Accurate Flash Point Testing

The Setaflash Series 3 Flash Point Tester (30000-3) is both accurate and efficient in many aspects.

Compact Sample Requirement - 2 ml

The device requires only a 2 ml sample size, minimizing costs and reducing waste per test.

Robust Service and Maintenance

With its durable design, the Setaflash Series 3 requires minimal maintenance.

Swift Results in 1 or 2 Minutes

It offers the quickest method for determining flash point, providing results within one or two minutes, thereby enhancing operational efficiency.

Advanced Calibration and Flash Point Discovery Tools

The Setaflash Series 3 Flash Point Tester (30000-3) also features cutting-edge software for precise calibration of temperature and barometric pressure, verified with Seta’s Small Scale Certified Flash Point material. For testing unknown samples, the ramp mode feature allows user-adjustable ramp rates and dip intervals, ensuring optimal customization and accurate flash point determination.

Setaflash Series3 Flashpointtester 30000 3 Stanhope 1024 16X9
Setaflash Series3 Flashpointtester 30000 3 1 Stanhope 1024 16X9
Setaflash Series3 Flashpointtester 30000 3 2 Stanhope 1024 16X9
Closed Cup Stanhope 1024 16X9
Operator Sequence Stanhope 1024 16X9
Setaflash Series3 2 Opencup Stanhope 1024 16X9
Setaflash Series3 1 Opencup Stanhope 1024 16X9
Setaflash Series3 Flashpointtester 30000 3 Stanhope 1024 16X9
Setaflash Series3 Flashpointtester 30000 3 1 Stanhope 1024 16X9
Setaflash Series3 Flashpointtester 30000 3 2 Stanhope 1024 16X9
Closed Cup Stanhope 1024 16X9
Operator Sequence Stanhope 1024 16X9
Setaflash Series3 2 Opencup Stanhope 1024 16X9
Setaflash Series3 1 Opencup Stanhope 1024 16X9

What is flash point?

A test sample is placed in a heated cup equipped with a lid. An ignition source is introduced through an opening in the lid into the vapor space above the heated sample. Observations are made to determine if the vapor ignites (flashes) at the recorded temperature of the sample.

The determination of flash point is outlined in test methods established by standardization organizations such as the Energy Institute in the UK, ASTM in the USA, CEN in Europe, and ISO internationally.

Moreover, atmospheric pressure can influence the result. Low barometric pressure causes flammable vapors to form at a lower temperature, while high atmospheric pressure delays the formation of flammable vapors until a higher temperature is achieved.

Why should you test for flash point?

Flash point testing has been a well-established practice for over a century, helping to evaluate and classify the safety hazards of materials for classification, storage, and transportation. This testing is utilized across various industries, including petrochemical, waste management, and cosmetics.

The primary purpose of measuring flash point is to ensure that appropriate and specific precautions are taken during the manufacturing, storage, transportation, or usage of liquids.

Flammability is categorized into three main classes:

  • Extremely flammable: Flash point below 0°C
  • Highly flammable: Flash point below 23°C
  • Flammable: Flash point below 60°C

Changes in flash point can indicate the presence of hazardous volatile materials or the adulteration of a product. For instance, pure ethylene glycol has a flash point of 111°C, but with just 2% acetaldehyde, the flash point drops to 29°C. Similarly, adding petroleum spirit to engine oil will lower its flash point, indicating possible adulteration.

Accurate and reliable flash point measurements require standardized testing conditions, as over 20 factors can influence the result. These factors include the dimensions of the test cup and lid, the temperature and position of the ignitor, the dipping sequence and frequency, test duration, heating rate, atmospheric pressure, and more.

Exactly what you need? Contact us here.

What is the difference between Close Cup and Open Cup?

Flash point is determined using either an open cup or closed cup flash point tester. Open cup tests are specified in some regulations and are designed to simulate conditions in open environments. In contrast, closed cup tests more accurately reflect situations where space is confined.

Let us explain the difference a bit more in depth. See below.

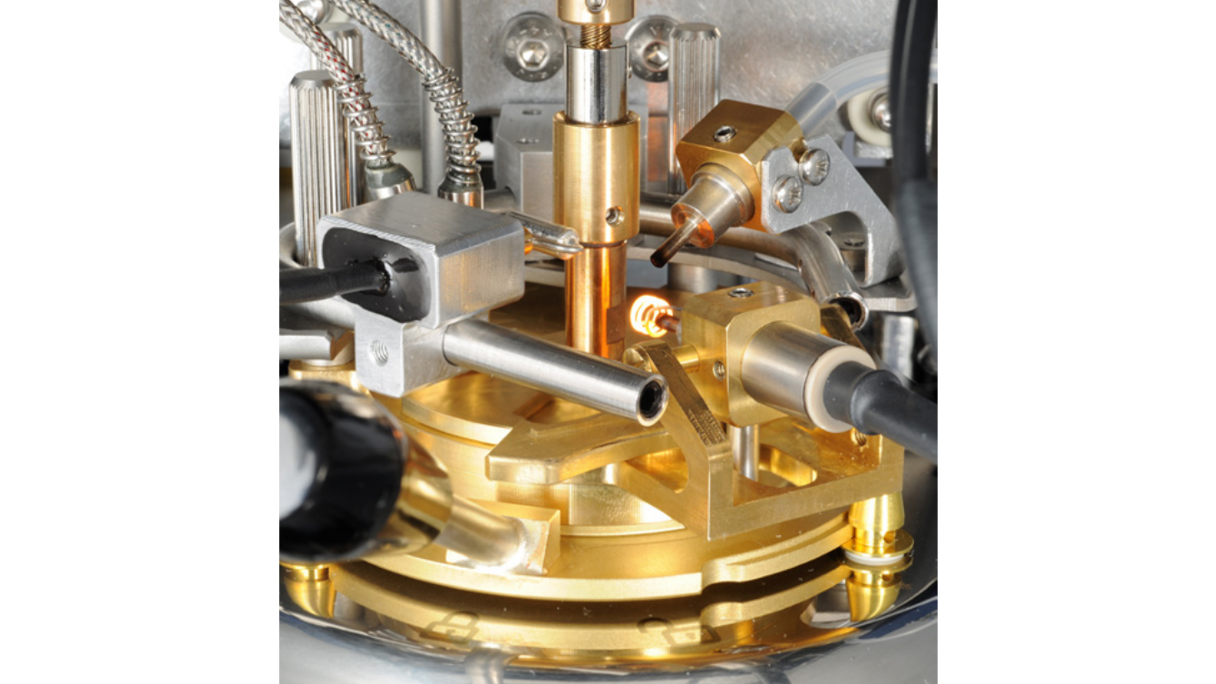

Closed Cup (CC)

Abel, Abel-Pensky, Pensky-Martens, Tag, Setaflash (CC)

Closed cup tests are designed to simulate the scenario of a liquid spill in an enclosed environment. If the liquid is at or above its flash point, exposure to an ignition source could lead to a fire or explosion. In these tests, the sample is placed in a sealed (closed) test cup, and an ignition source is introduced to determine the temperature at which the sample ignites, referred to as its flash point.

Need more information? Contact us now

Closed Cup Stanhope 1024 16X9
Open Cup Stanhope 1024 16X9

Open Cup (OC)

Cleveland, Setaflash (OC)

Open cup tests are designed to simulate the potential ignition of a liquid spill in open conditions, such as a pool of liquid on the floor. These tests are used for fire point, combustibility, and sustained burning evaluations. The fire point is defined as the lowest temperature at which the liquid's vapors ignite and continue to burn after the ignition source is removed. Combustibility and sustained burning tests are typically conducted at a fixed temperature to assess the continuous burning of the sample.

An open cup tester generally yields a higher flash point compared to a closed cup tester because vapors can freely escape into the atmosphere. Closed cup tests are often preferred due to their greater precision.

Need more information? Contact us now

What is the methodology of the Tests?

Non-equilibrium

Abel, Pensky-Martens, Tag, Cleveland

The term non-equilibrium indicates that the vapor is not in equilibrium with the liquid. Non-equilibrium flash point tests involve heating the liquid at a steady rate while applying the ignition source at regular intervals.

Advantages:

  • Well-suited to automation
  • Universally available instrumentation
  • Standardized for a wide range of products.

Disadvantages:

  • Valuable components may escape each time the flame is dipped, leading to artificially high flash points or reduced precision
  • Significant temperature variation between the liquid and vapor in the cup
  • Requires a large sample size (50 to 80 ml per test).

Equilibrium

Setaflash

Traditional equilibrium flash point tests use any cup in a water bath to ensure that the liquid and vapor of the sample are in temperature equilibrium. This is achieved through a complex procedure and a very slow heating rate.

The Setaflash small-scale method simplifies the process by using a 2 ml or 4 ml sample, achieving rapid equilibrium between the vapor and liquid in a cup, and providing a reliable flash point result in just one or two minutes.

Advantages:

  • Improved precision compared to non-equilibrium methods
  • The Setaflash instrument offers low-cost, fast measurement for a flash/no flash result
  • Widely used by many industries.

Disadvantages:

  • Traditional testers can involve a laborious process, especially when larger sample sizes are needed
  • This type of instrumentation is not universally available.

Which Flash Point Testing Method should You be Using?

The suitable method for testing your sample is typically specified in a product specification or regulation, and in some cases, a referee test method may be indicated, which should be the preferred option. If multiple test methods are provided, the choice will depend on factors such as sample size requirements, testing speed, or precision.

When testing specifically for contaminants, some test methods and procedures are more suitable than others. Generally, an equilibrium test method is recommended for samples that might contain traces of volatile contaminants.

You can see the different Testing Methods below.

Seta Flash Small Scale

These methodologies encompass petroleum products and biodiesel liquid fuels, ranging from -30 to 300 °C, utilizing a compact closed cup tester.

These procedures can ascertain whether a product exhibits flash or not at a designated temperature (flash/no flash method A), or determine the flash point of a sample (method B). When coupled with an electronic thermal flash detector, these methodologies are also applicable for flash point assessments of biodiesel like FAME.

Small-scale testers are additionally employed in compliance with shipping and safety regulations such as CLP, aiding in the definition and classification of flammable and combustible materials.

These testers meet the following methods and regulations:

ASTM D1655; ASTM D3278;ASTM D3828; ASTM D7236; ASTM D8174; ASTM E502; CLP

Regulations: DEF STAN 91-91; EPA 1020 A & B; IP 523; IP 524; IP 534; IP 602; ISO 3679; ISO 3680; ISO 9038; UN Class 3 Non-Viscous Flammable Liquids

See All our Small Scale Flash Point Testers here

Seta Smallscale Series 3E Stanhope 1024 16X9
Pensky Martens Setapm 93 35000 0 Stanhope 1024 16X9

Pensky-Martens Closed Cup (PMCC)

These testing procedures encompass the determination of the flash point of petroleum products within the temperature range of 40 to 360 °C, utilizing either a manual or automated PMCC apparatus. Additionally, they are employed to ascertain the flash point of biodiesel within the temperature range of 60 to 190 °C, utilizing automated PMCC apparatus.

These testers meet the following methods and regulations:

ASTM D93; IP 34; ISO 2719

Tag

These testing methodologies encompass the determination of the flash point using both manual and automated closed testers for liquids with a viscosity lower than 5.5 mm²/s (cSt) at 40 °C, or below 9.5 mm²/s (cSt) at 25 °C, and with a flash point below 93 °C.

These testers meet the following methods and regulations:

ASTM D56; ASTM D3934; ASTM D3941; ASTM E502; IP 491; IP 492; ISO 1516; ISO 1523

Tag Flashpointtester 13220 2 Stanhope 1024 16X9
Seta C 92 35300 0 1 Stanhope 1024 16X9

Cleveland

These testing procedures outline the process of determining the flash point and fire point of petroleum products using either a manual Cleveland open cup apparatus or an automated Cleveland open cup apparatus. They are applicable to all petroleum products with flash points above 79 °C and below 400 °C, excluding fuel oils.

These testers meet the following methods and regulations:

ASTM D92; AASHTO T48

See All our Cleveland Flash Point Testers here

Why does Flash Point Autosamplers not Comply with Flash Point Test Methods?

Flash point autosamplers or carousels are not integrated into any flash point methods. Consequently, flash points obtained through an autosampler should not be relied upon for product classification concerning transportation, safety, health regulations, or specification purposes. Incorrect product classification can lead to serious repercussions.

Sample cups utilized in autosamplers fail to comply with flash point test method requisites due to the following reasons:

  • Samples contained within a carousel cup with a lid do not satisfy the criteria for a sealed container or the minimum sample volume as prescribed by the test method.
  • Test methods specify that sample volumes within containers that are less than 50% full can impact the accuracy of the test outcome.
  • Test methods caution that the loss of volatile materials can lead to the acquisition of inaccurately high flash points.

Furthermore, precision and bias have not been established for Autosamplers. Autosamplers have not undergone any flash point Interlaboratory Study Program (ILS). An ILS study enables the generation of precision and repeatability statements for a test method. Thus, any precision mentioned in flash point test methods does not pertain to autosamplers.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Seta Part Number:

30000-3

Cup:

Closed

Material:

Aluminium

Ignitor:

Gas

Temperature Range:

Ambient to 300 °C

Temperature Ramp Mode:

Automatic or custom settings (ramp rate: up to 6 °C/min and beep rate: up to 5 °C/B intervals) Extended test range, 100 °C from start temperature

Temperature Selection:

°C or °F

User Interface:

Colour LCD display - touch screen sensitive

Navigation:

Control knob (rotational and push-down)

Data Storage and Download:

1 GB (internal memory and integrated USB port)

Sample Size:

2 ml or 4 ml

Pressure Correction:

Automatic barometric correction

Voltage Supply:

110 to 250 V a.c~50/60 Hz (universal)

Power:

200 W (Max.)

Size (HxWxD) / Weight:

19.5 x 29.5 x 14 cm / 3 kg

Specifications & Manuals

  • Data Sheet - Setaflash Series 3 Flash Point Tester (30000-3) - Stanhope
    English | pdf
  • Article - Flash Point Testing Guide - Setaflash Series 3 Flash Point Tester (30000-3) - Stanhope
    English | pdf
  • Article - Flash Point Autosampler vs. Flash Point Testing Explained - Setaflash Series 3 Flash Point Tester (30000-3) - Stanhope
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

To top

Search
